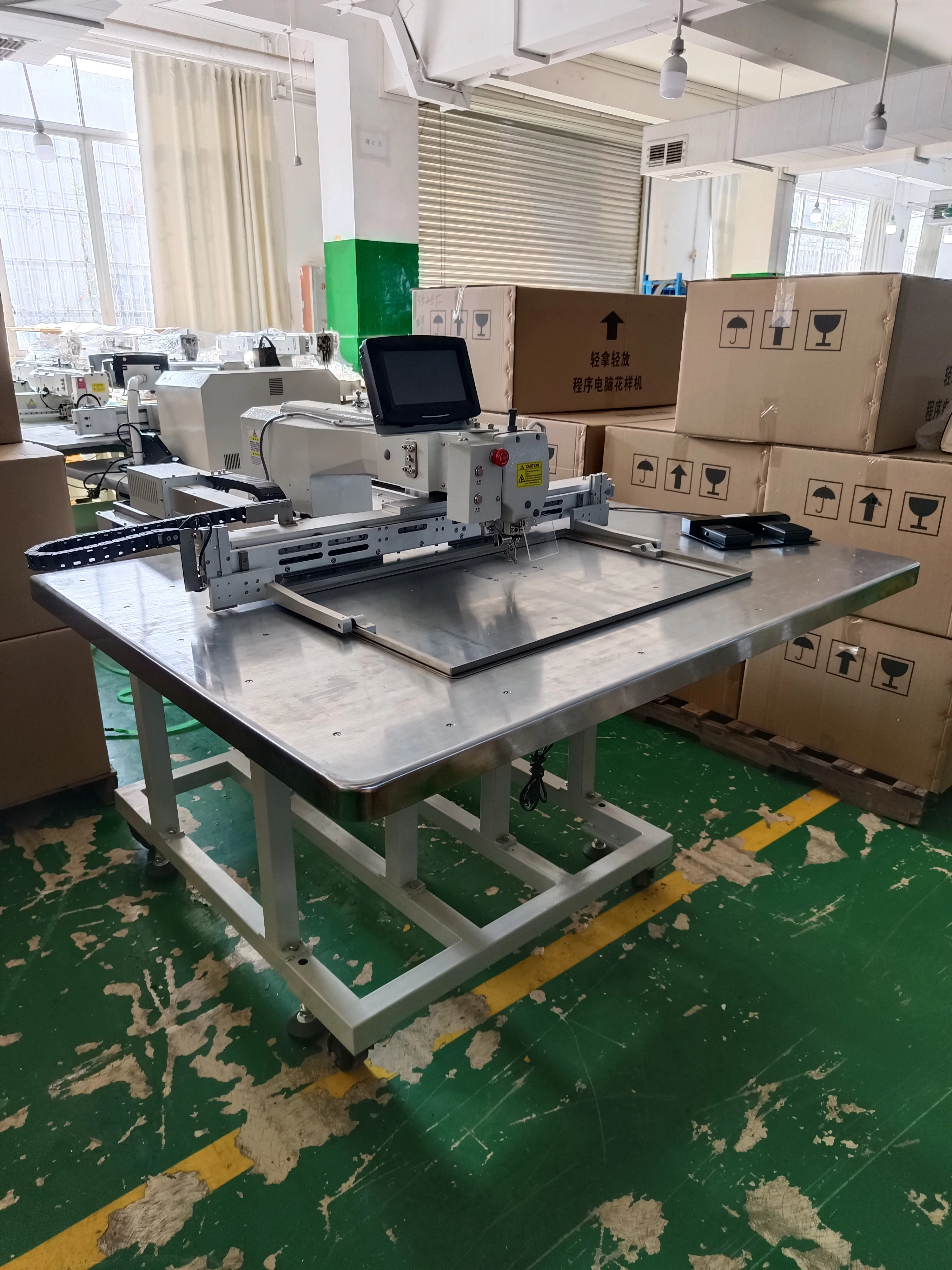

Швейная машина большого размера с узорами компьютерная швейная процессорными 60*40 для больших
- Категория: Sewing Machines >>>
- Поставщик: Guangzhou,Shenghui,Sewing,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3927.50 $* | 4123.26 $* |
| Aug-19-2025 | 3894.19 $* | 4089.73 $* |
| Jul-19-2025 | 3267.21 $* | 3430.93 $* |
| Jun-19-2025 | 3828.45 $* | 4019.21 $* |
| May-19-2025 | 3333.89 $* | 3500.91 $* |
| Apr-19-2025 | 3762.76 $* | 3950.99 $* |
| Mar-19-2025 | 3729.73 $* | 3915.74 $* |
| Feb-19-2025 | 3696.29 $* | 3881.61 $* |
| Jan-19-2025 | 3663.31 $* | 3846.84 $* |
Характеристики
Product Description
Specification
NO. | Type of Controller | Computerized Control System for Mitsubishi Series Pattern-sewing Machine |
1 | Sewing Area | X(Lateral) Direction Y(Longitudinal) Direction SC442HG： 600(mm) x 400(mm) |
2 | Max. Sewing Speed | 2800rpm（with stitch interval below 3mm） |
3 | Stitch Length | 0.1～12.7mm, and in the control system is of version 5.0 or above, the maximum stitch length can extend to 40 mm（Min Resolution: 0.10mm） |
4 | Feed Motion of Frame | Intermittent feeding (2-shaft driven by pulse motor) |
5 | Needle Bar Stroke | 41.2mm |
6 | Needles | DP×5、DP×17 |
7 | Lift of Frame | Standard 18mm to Max. 22mm（Pneumatic type: Max. 25mm） |
8 | Intermediate Presser | Stepping Driving (Range: 0～8mm) |
9 | Lift of Intermediate Presser | 20mm |

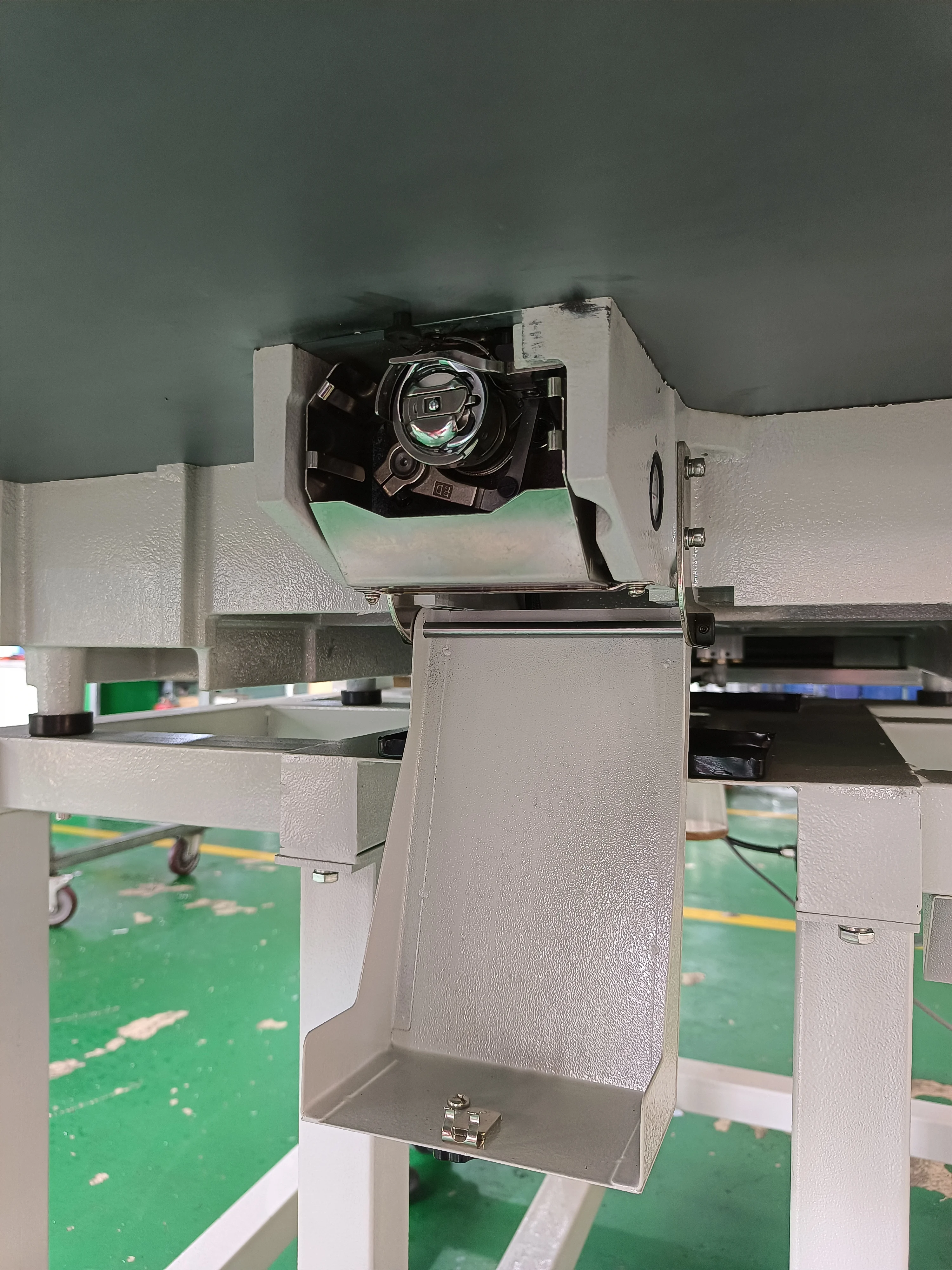

10 | Rotating Shuttle | Double-capacity semi-rotary hook |
11 | Memory of Pattern Data | Memory/U Disk |
12 | Pause function | Stop the machine during the sewing |
13 | Scaling Up/Down Function | Allows a pattern to be scaled up/down on the X axis and Y axis independently when user sews a pattern. Ratio: 1% to 400% (0.1% per step) |
14 | Scaling Up/Down Method | Increasing / decreasing stitch length & Increasing / decreasing stitch number |
15 | Sewing Speed Limitation | 200～2800rpm（100rpm per step） |
16 | Pattern Selection Function | Pattern No. selection method |
17 | Up counter | No Count/Count of Pattern /Count of Cycle (0～99999) |
18 | Down Counter | No Count/Count of Pattern /Count of Cycle (0～99999) |
19 | Sewing Machine Motor | Servo Motor |
20 | Stop Needle at Highest Position Function | After the completion of sewing, the needle can return to its highest position. |
21 | Rated Power | 600W |
22 | Operation Temperature Range | 0℃～45℃ |
23 | Operation Humidity Range | 35%～85% （No Dew Condensation） |
24 | Line Voltage | AC 220V ± 10%；50/60Hz |
Details Images
Walking trails
Guide rail on the top of the walk, so that the machine running flat and stable, not stuck machine.
Walking trails.
Guide rail on the top of the walk, so that the machine running flat and stable, not stuck machine

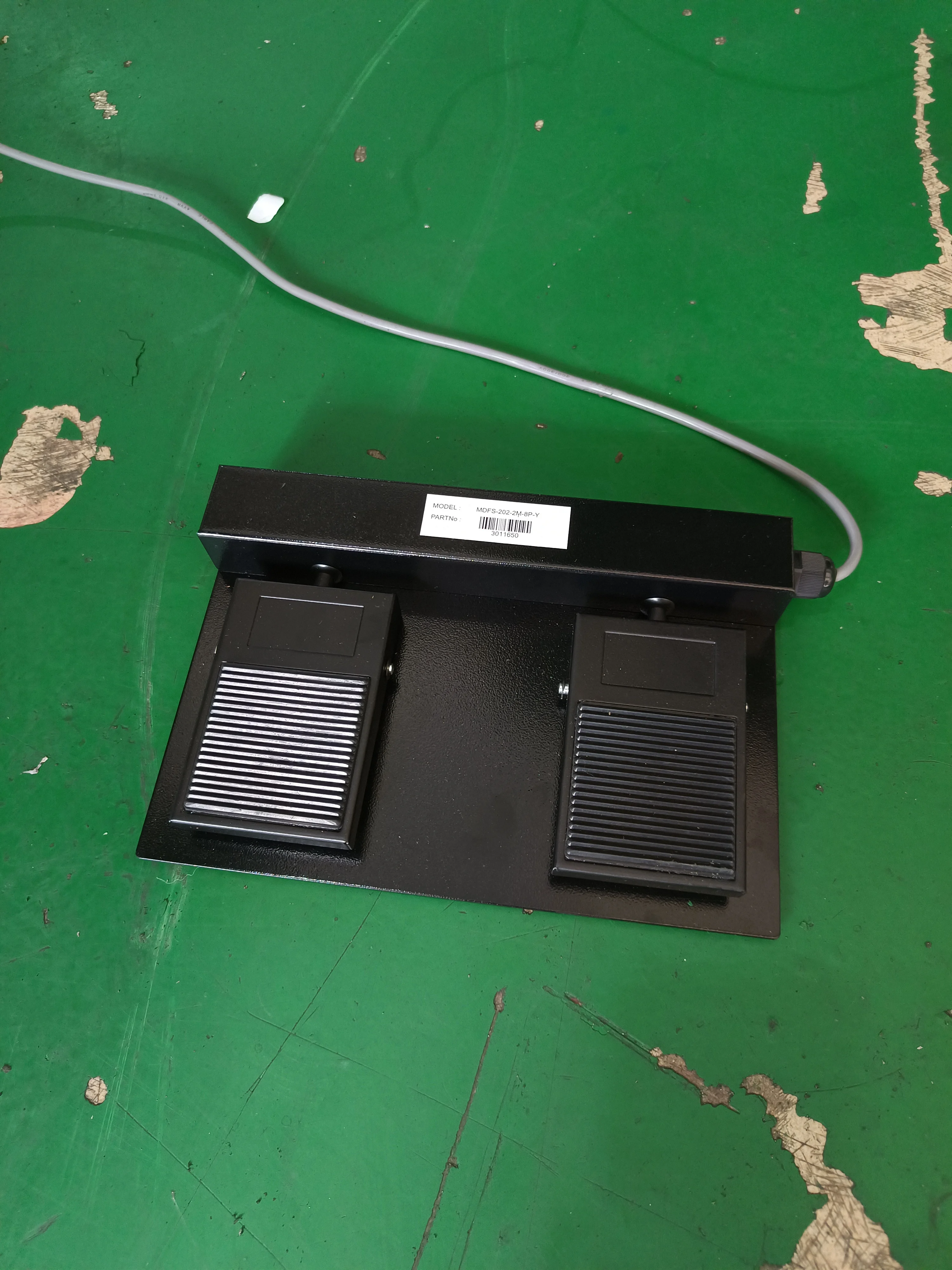

Startup Mode 1.
Pedal mode to start the seam
Startup Mode 2.
Manual button start sewing

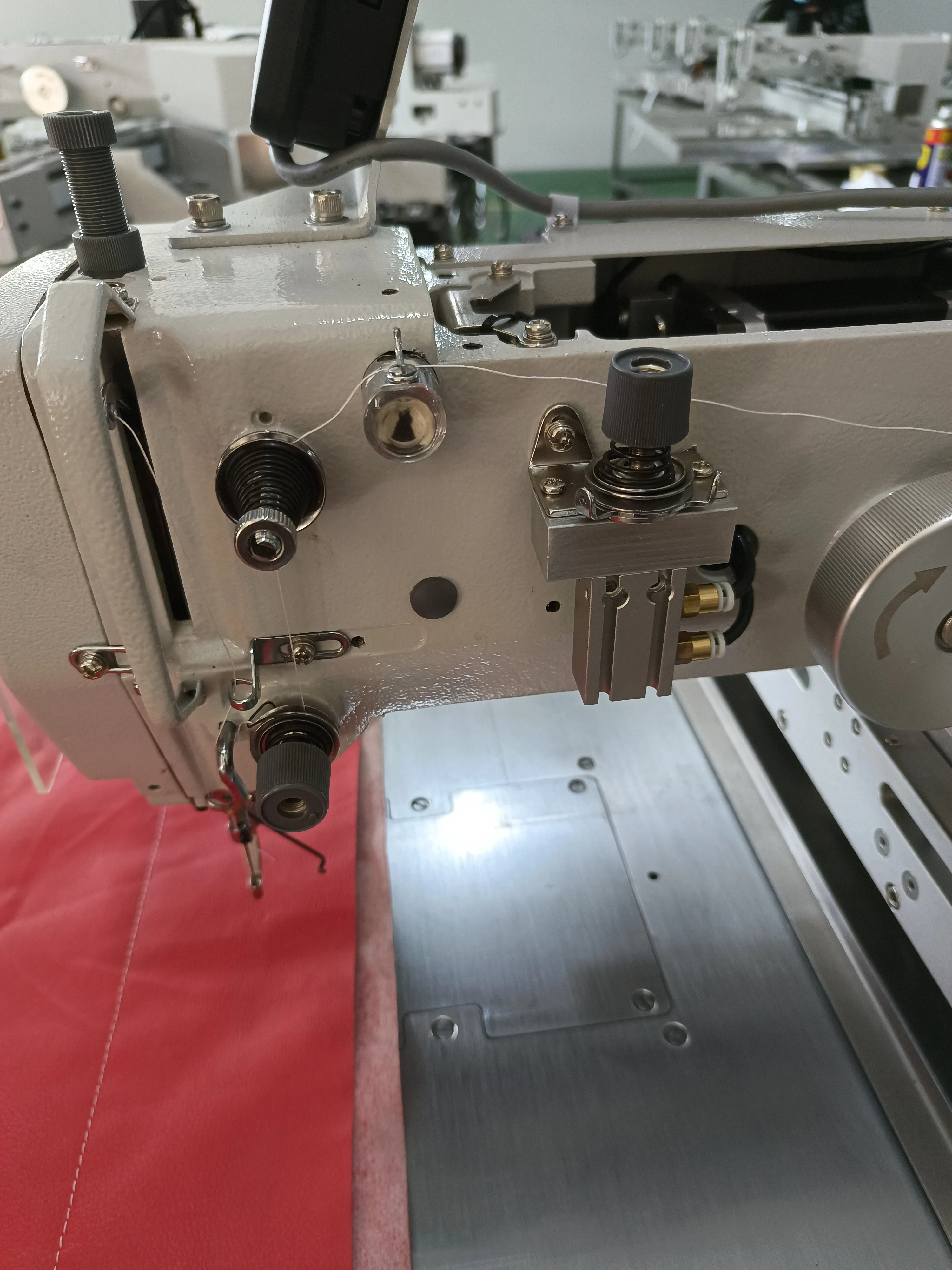

Secondary wire clamping device, decorated wire trace beautiful

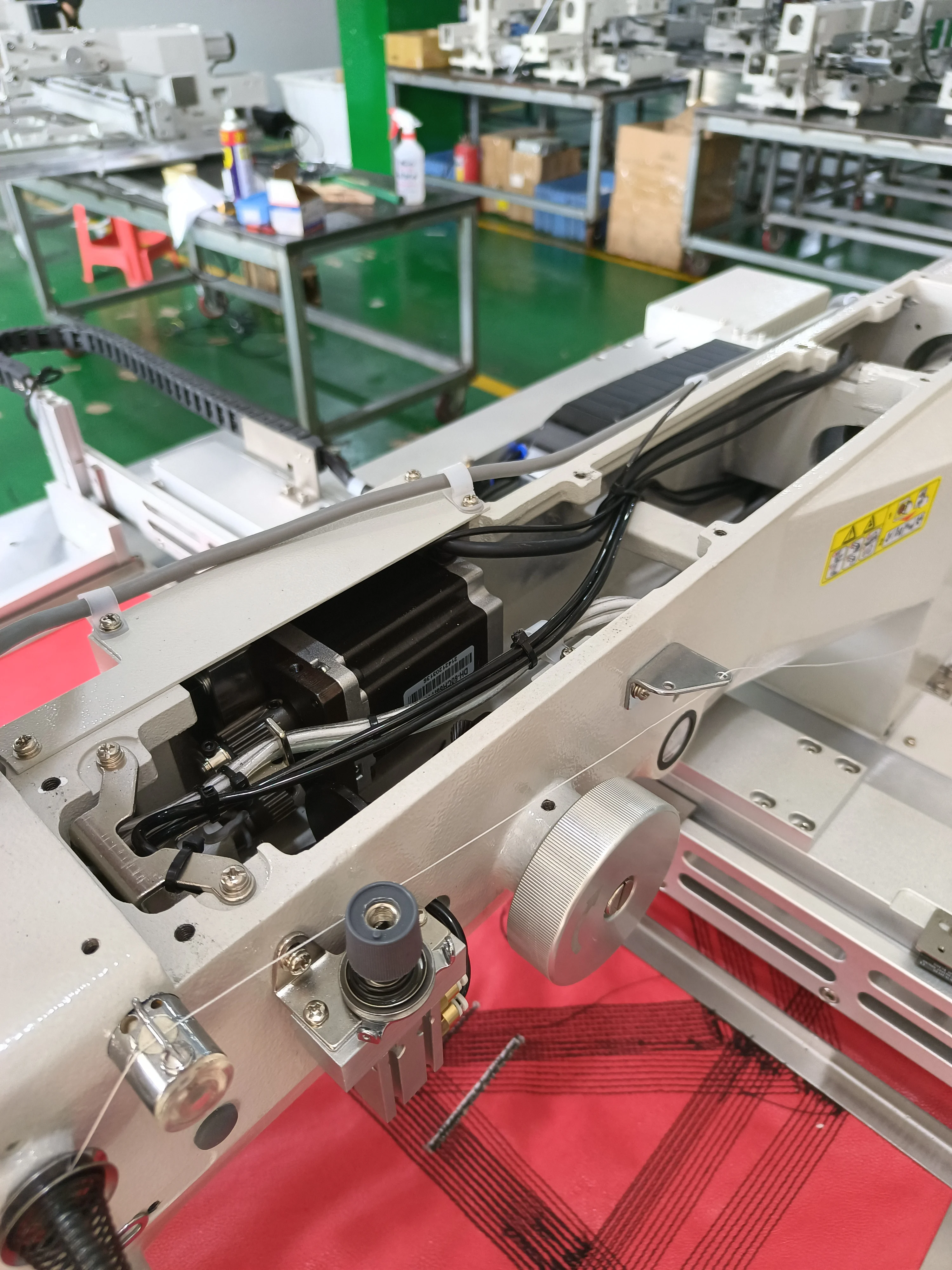

Motor lift medium pressure foot, program setting, automatic high and low pressure foot, the same pattern thickness can be sewn at the same time
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Guangzhou Shenghui needle car Co., LTD., is a focus on industrial computer pattern sewing machine manufacturing and sales, professional assembly line production, each machine has its own independent number easy quality control, complete production models. Production style mitsubishi, brothers, clothing laser bag machine.
FAQ
Q1. Are you a factory?
Re. Yes. we are both a trading company and a factory, and we only focus on excellence sewing machine.
Q2.How about your machine quality?
Re. I cannot answer to you from our side. But our customer said to us our machine quality is good and high, use it about two years no change voice and vibration. After you use it, you will more understand our quality.
Q3. How about your price?
Re. Our price not expensive, but also not very cheap, in general, quality is better than price
Q4. How long could your sewing machine be used?
Re. Generally, more than 6 years.
Q5. What is the shipping port?
Re. We ship the goods via Guangzhou port or as you like
Q6. How about payment ?
Re. At beginning cooperation, 100% TT in advance, or LC at sight for big amount order , after we have good cooperation, we will try to accept DP OR DA payment
Q7. Can you do OEM or ODM for us?
Re. Yes, of course, and we also can do all kinds of the sewing machine by customized.
Q8. Can you supply spare parts?
Re. Yes, of course we can.
Q9. What guarantee you can supply ?
Re: Limited spare parts one-year guarantee, not including quick-wear parts, like needle, hook, needle plate.
Re. Yes. we are both a trading company and a factory, and we only focus on excellence sewing machine.
Q2.How about your machine quality?
Re. I cannot answer to you from our side. But our customer said to us our machine quality is good and high, use it about two years no change voice and vibration. After you use it, you will more understand our quality.
Q3. How about your price?
Re. Our price not expensive, but also not very cheap, in general, quality is better than price
Q4. How long could your sewing machine be used?
Re. Generally, more than 6 years.
Q5. What is the shipping port?
Re. We ship the goods via Guangzhou port or as you like
Q6. How about payment ?
Re. At beginning cooperation, 100% TT in advance, or LC at sight for big amount order , after we have good cooperation, we will try to accept DP OR DA payment
Q7. Can you do OEM or ODM for us?
Re. Yes, of course, and we also can do all kinds of the sewing machine by customized.
Q8. Can you supply spare parts?
Re. Yes, of course we can.
Q9. What guarantee you can supply ?
Re: Limited spare parts one-year guarantee, not including quick-wear parts, like needle, hook, needle plate.
