Заводская цена OEM 5kva 10kva 20kva 30kva 40kva однофазный или трехфазный 110V 220V 230V автоматический
- Категория: Voltage Regulators\/Stabilizers >>>
- Поставщик: Chongqing,Vision,Star,Optical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 83.96 $* | 87.54 $* |
| Aug-17-2025 | 83.20 $* | 87.32 $* |
| Jul-17-2025 | 69.89 $* | 72.2 $* |
| Jun-17-2025 | 81.19 $* | 85.23 $* |
| May-17-2025 | 71.52 $* | 75.7 $* |
| Apr-17-2025 | 80.28 $* | 84.15 $* |
| Mar-17-2025 | 79.7 $* | 83.43 $* |
| Feb-17-2025 | 78.28 $* | 82.98 $* |
| Jan-17-2025 | 78.58 $* | 82.65 $* |
Характеристики

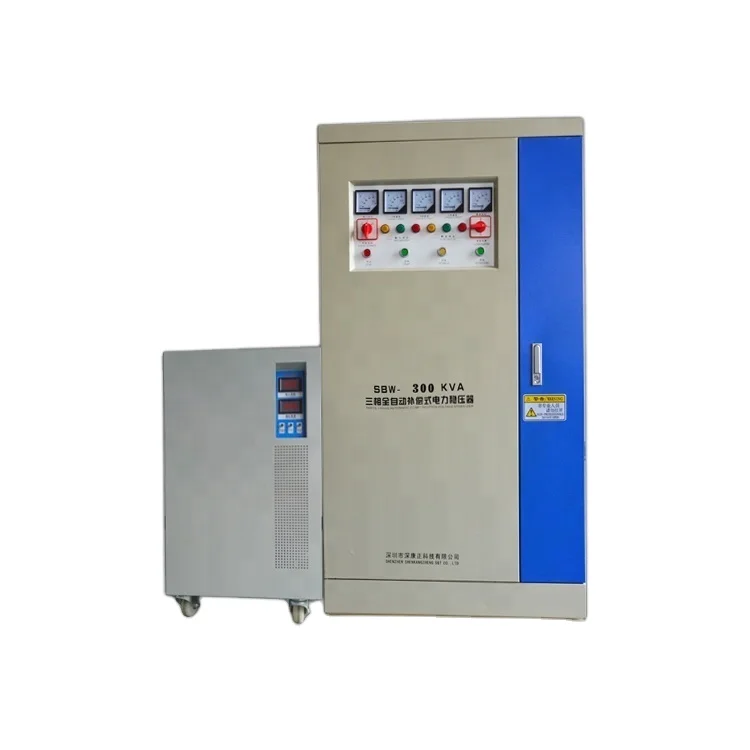

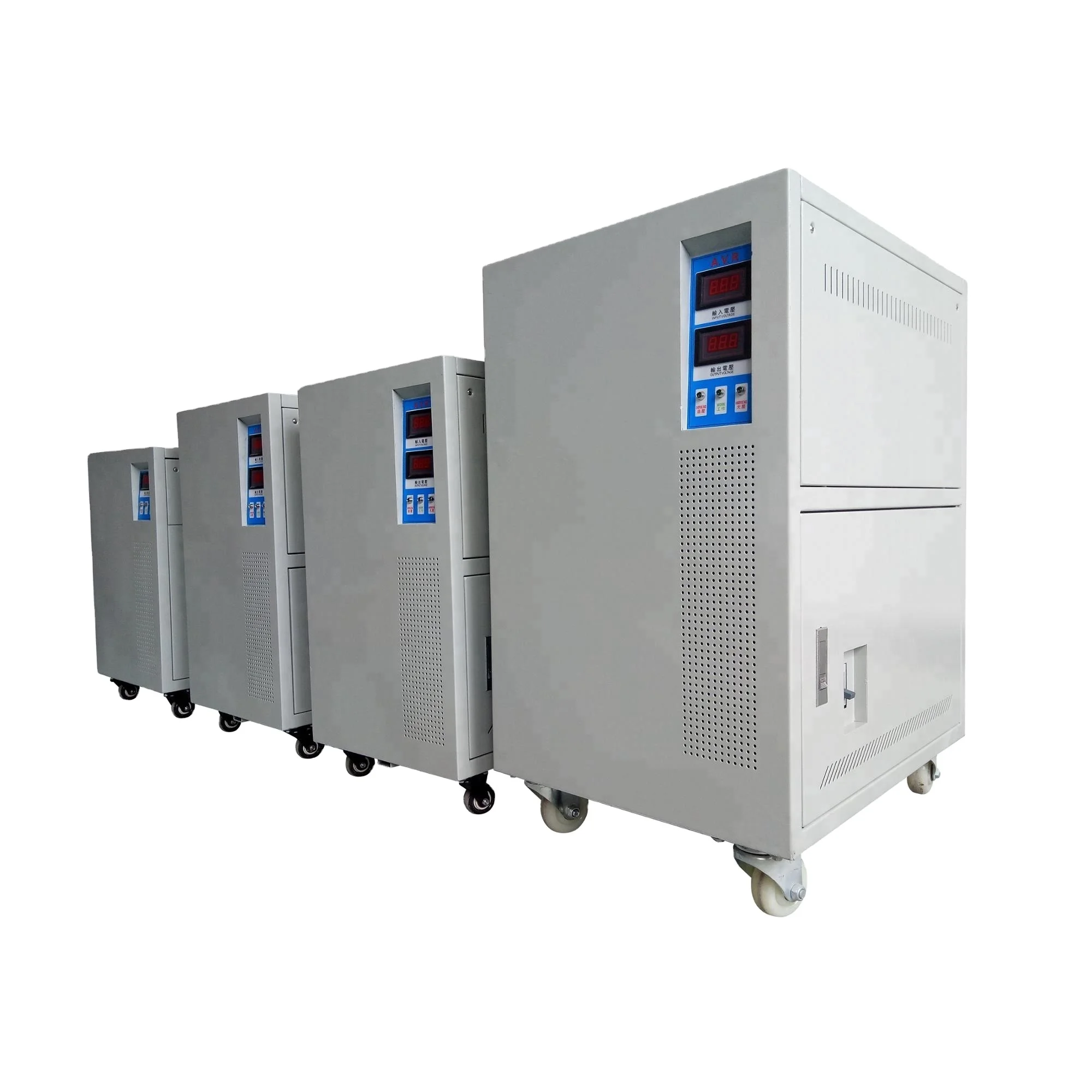

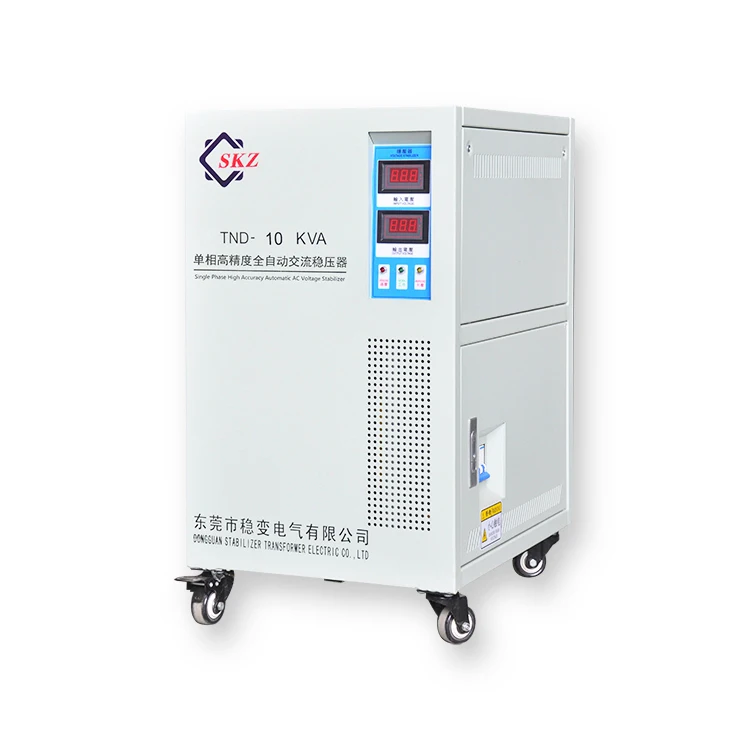

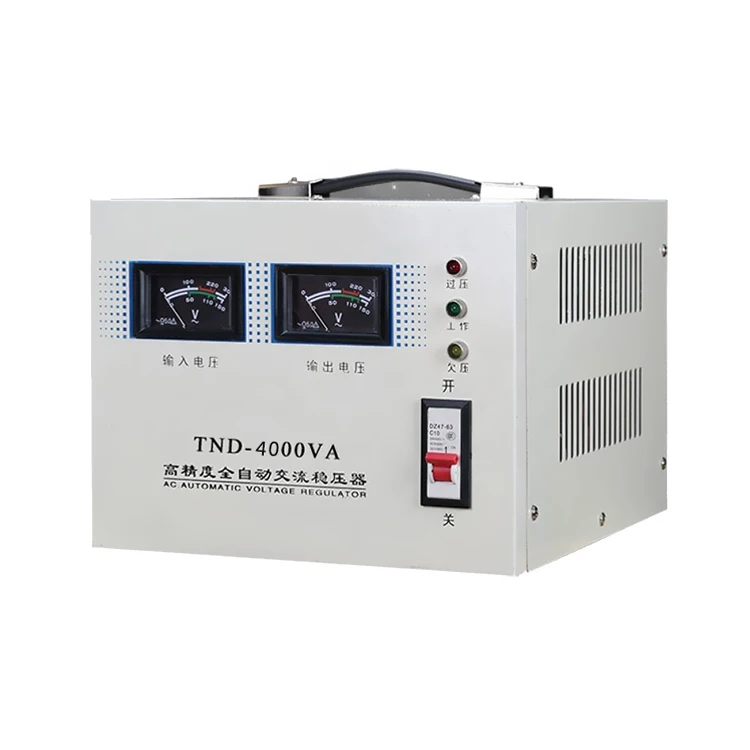

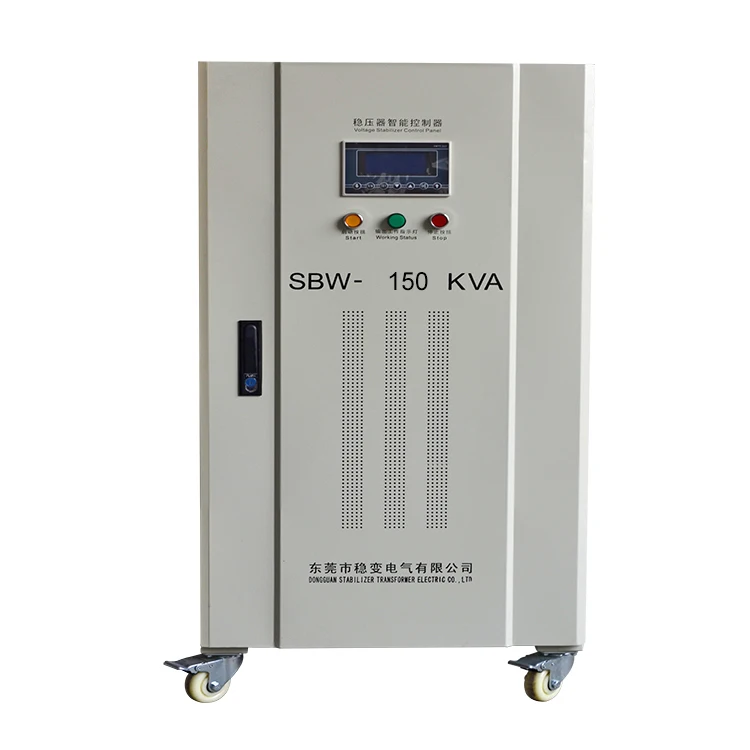

OEM Three Phase or Single Phase Voltage Stabilizer
Description
Voltage Stabilizer is consist of voltage regulation coil, servo motor and digital control circuit. When there is voltage fluctuation, the control circuit will send signal to the servo motor, then the servo motor will drive the carbon brush to move on the voltage regulation coil, consequently it outputs stable voltage
Specifications
| Item | Parameters |
| Power Rating(KVA) | 2.5KVA |
| Control Method | Servo Motor(Carbon brush) |
| Input | |
| Input Voltage | Single Phase Voltage(110V/120V/200V/220V/230V)±20% |
| Frequency | 50/60 Hz |
| Output | |
| Output Voltage | Single Phase Voltage(110V/120V/200V/220V/230V)±1%~5% |
| Output Accuracy | ±1% (1%~5% Adjustable) |
| Power Factor | PF≥1 |
| Efficiency | ≥98% |
| Response time | ≤0.5S |
| Delay time(When it is on) | ≤5s(Optional) |
| Waveform Distortion | ≤1% |
| System Protection | |
| Protection | Over Voltage, Under Voltage, Overload, Short Circuit |
| Bypass | Available |
| LED Digital Display | |
| Display | Input Voltage, Output Voltage, Working Status |
| Others | |
| Cooling | Air Cooling |
| Insulation Resistance | ≥2MΩ |
| Delectric Strength | No breakdown for 2000VAC/ min. |
| Noise | <65dB/m |
| Working Environment | |
| Working Temperature | 0℃-45℃ ( No condensation ) |
| Working Humidity | 20%-90% |
