Автоматическая печатная машина для изготовления гофрированных

•

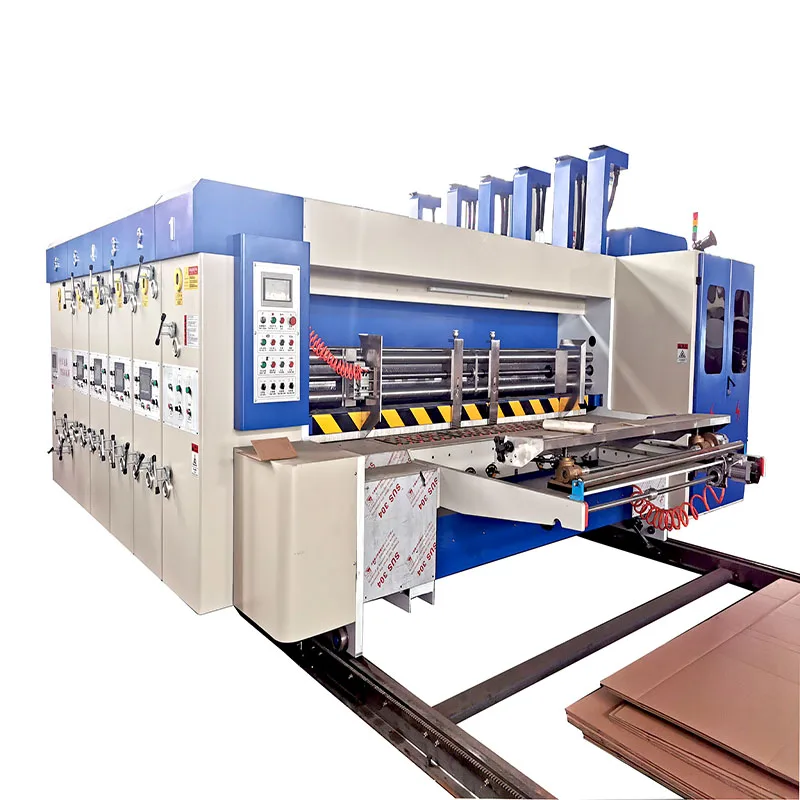

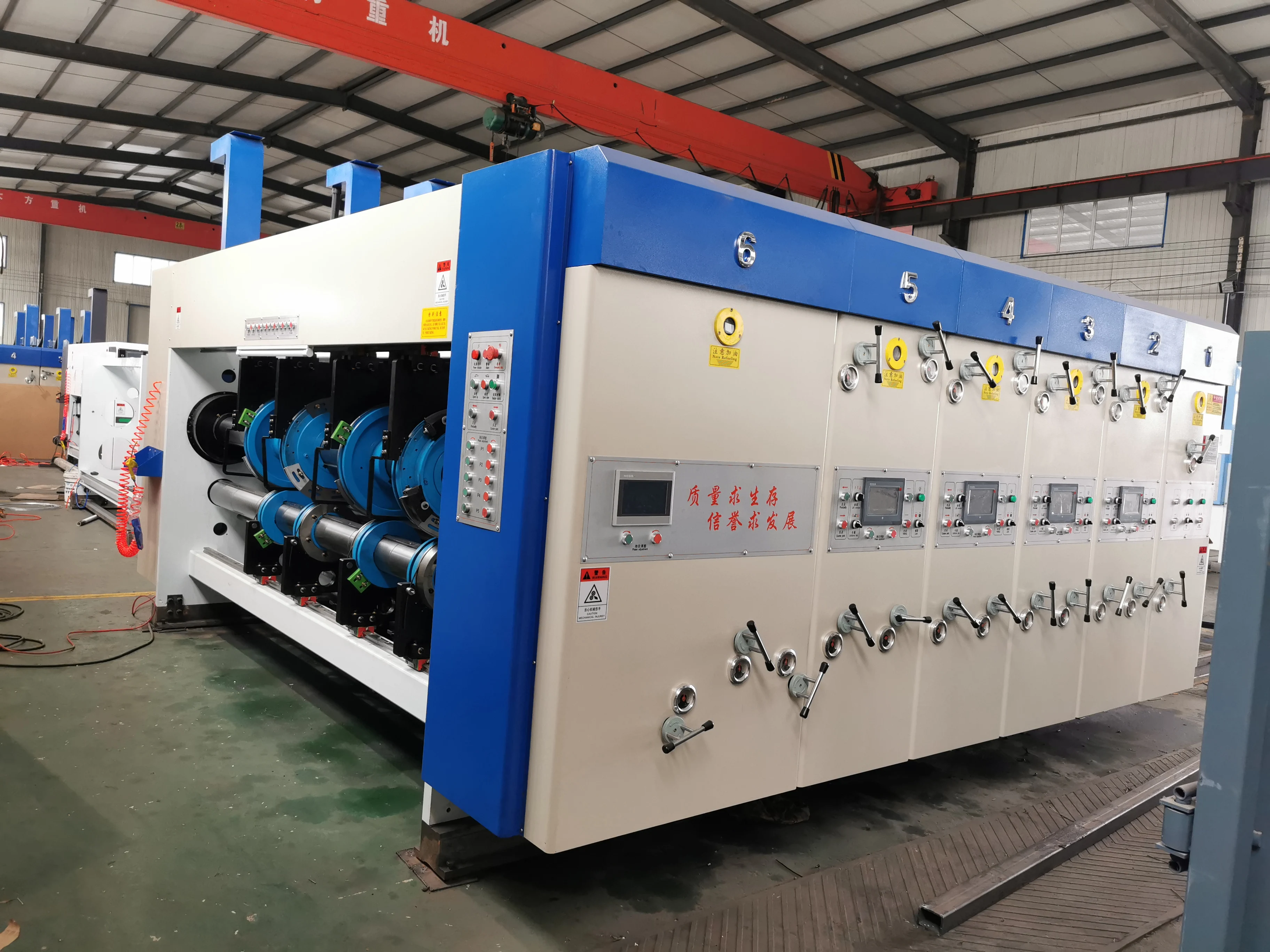

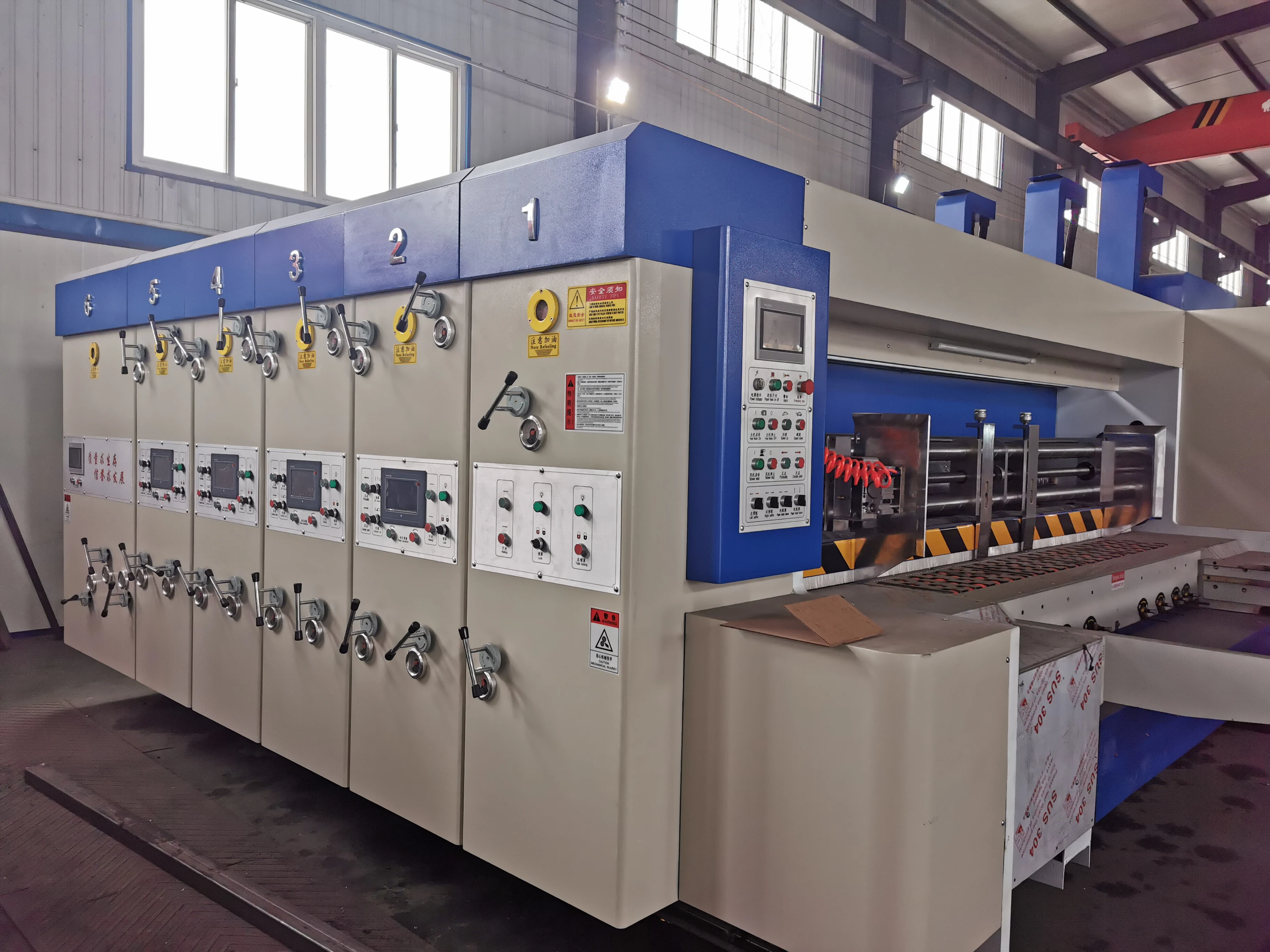

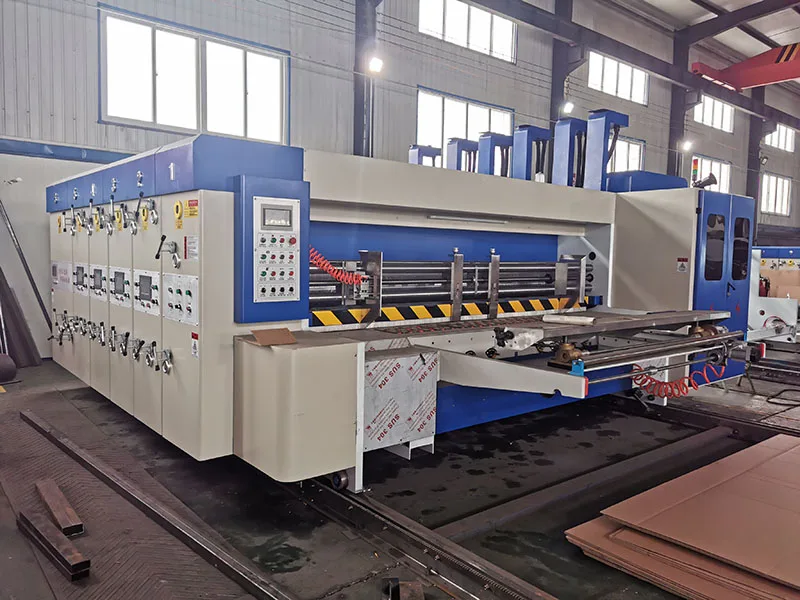

• Automatic corrugated carton box making printing machine ;


• This carton box printing machine has function of printing , slotting , die cutting ,and stacking unit .


• Lead edge feeding system , applicable to all kinds of flute profiles , transfer smoothly  .


• Main machine motor , fans , and phasing adopted frequency transformer devices .


• The drive gear : 20GrMnTi high frequency-quenched and carburizing done .


• Cross-trundling roller driving system  , no wear for long time using ,ensure for transmission accurancy.


• Free-key connection style , roller connects with gear , ensure for registration accurancy .


• Die cutting speed difference compensation system .


• mechanical spray lubrication , pump circulating system for gears ,make gear service long life ,Auto-returen function .


• Function of storage of normal die -cutting orders ,fast and efficient carton printing machine




•


  Feeding department :





•










•


  1 Lead edge feeding system , inverter adjust air volume , feeding in precision and steady .




  2 Double feeding roller model , quick replacement mechanism for the first feeding rubber roller , with spring adjustment function  , it can prevent distortion and to ensure accurate feeding of cardboard .




  3 Brushed and suction device remove dust from board surface .




  4 Touch screen displays production speed and quantity .




  5 Adjust the feed interval by manual carton box printing machine .







•


  Printing Department :





•







  1 The printing unit adopt SUN company colorful master doctor blade of USA . This system can ensure ink in the anilox roller curve transfer to flexo plate , it can control ink volume , it makes the printing more clear and high DPI , the printing picture much better with low price and easy maintenance .




  2 All roller adopt super quality steel with dynamic balance correction , it adopts hard chromed and grinding processing .




  3 Printing phase adopt PLC and electric digital 360 adjust carton box printing machine  .

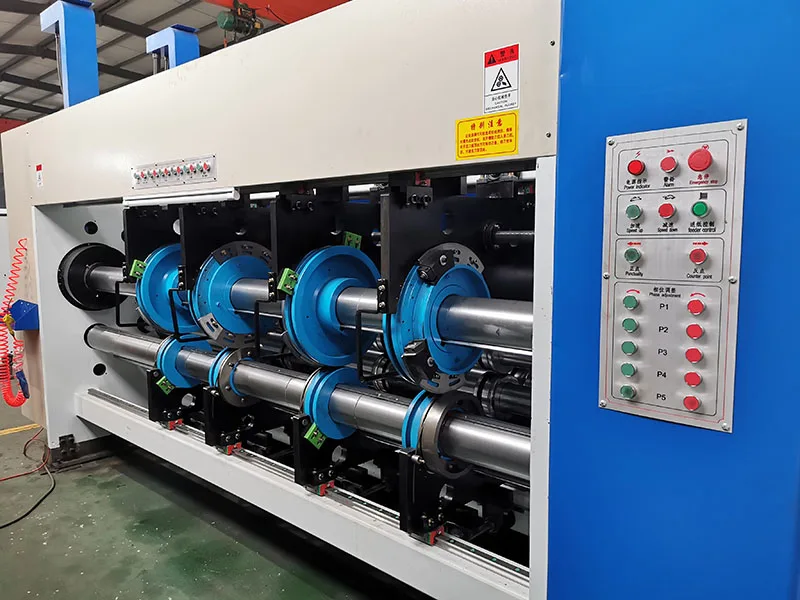

       Slotting department :

            1 Electric control is used to adjust the axial, longitudinal and box height dimensions of each tool holder.

           2 The gap adjustment adopts high-precision worm gear box self-locking adjustment. Equipped with a three-bar disc handle      seat, which is convenient and quick. The adjustment range is 0-11mm.

•


  3 Planetary gear structure, long service life.




  4 The slotting phase is adjusted by a phase meter and an electric digital 360 (return and stop can be adjusted). Phase zero device.




  5 Single-axis double-knife slotting, the box height adjustment adopts internal tooth electric adjustment structure, so that the lubricating oil will not easily pollute the carton. Will not damage the machine.




                                                                                                                                                                          Specifications :
