Характеристики
Product Description

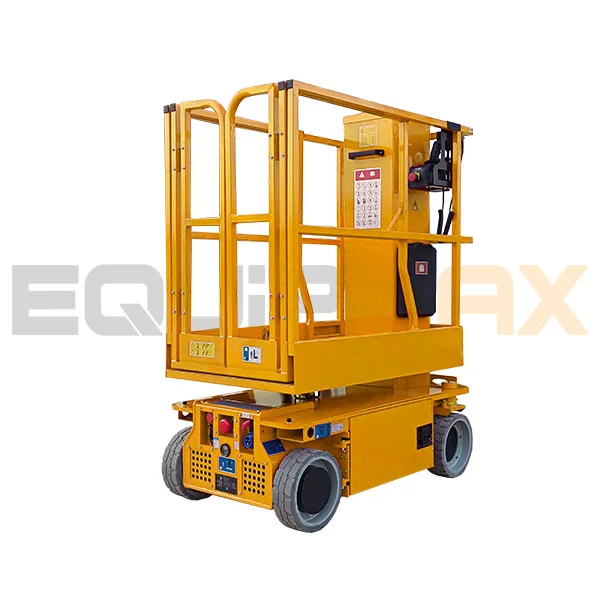

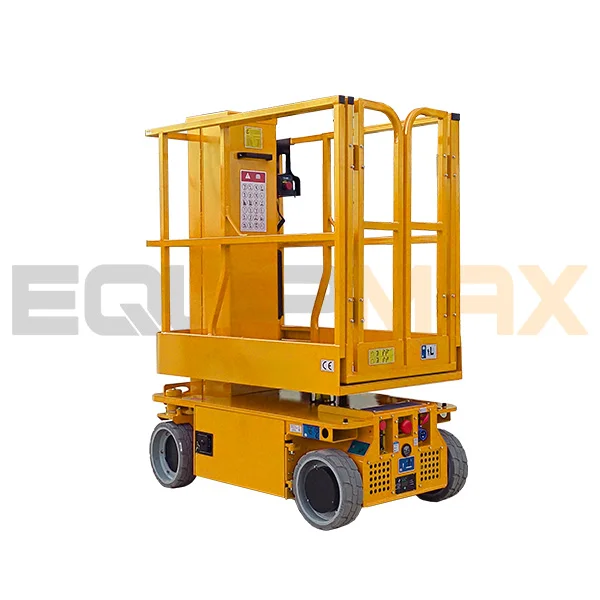

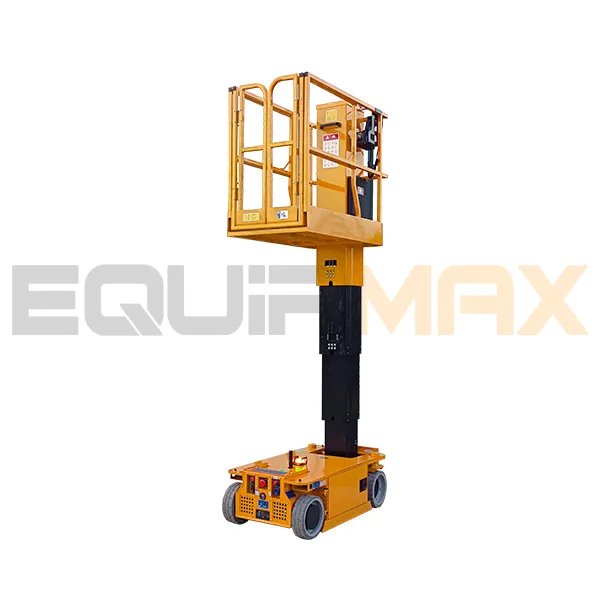

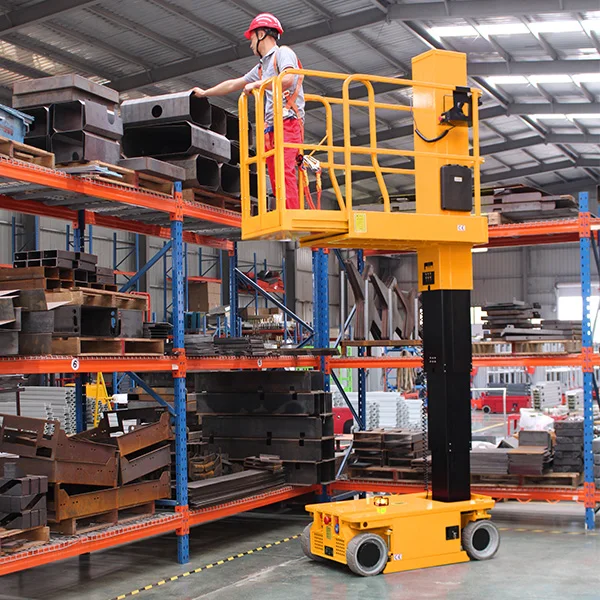

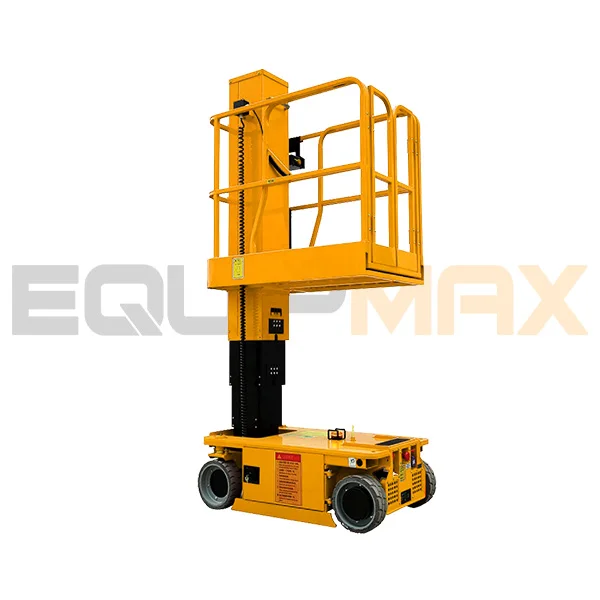

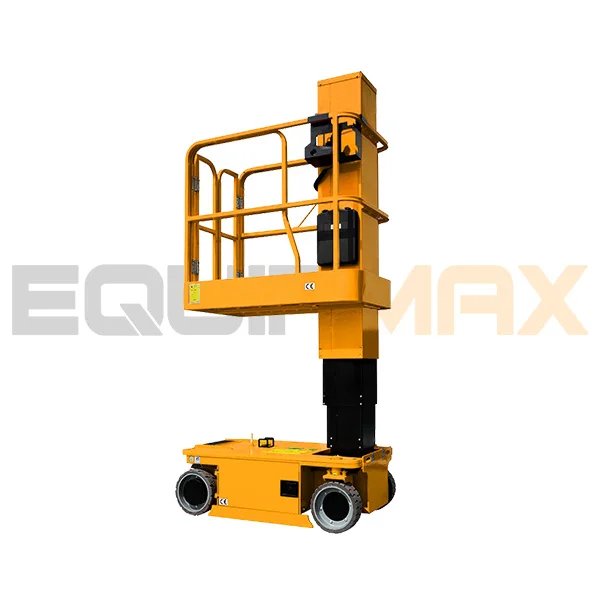

Equipmax’s Self-propelled Vertical Mast Lifts provide a quiet and versatile lifting solution with zero emissions. With a new mast design, powerful electric drive system, drivable mast at full height, and less hydraulic connection points, the Equipmax vertical mast lifts highly increased the working efficiency. Exceptional maneuverability and Equipmax’s unique traversing platform make this mast lifts an ideal choice for a wide range of indoor and outdoor construction, maintenance, and industrial applications.
Main Features
-\tPowerful electric drive system provides exceptional duty cycles. The fully proportional drive and lift controls, superior drive efficiency, improved controllability, and consistent torque.
-\t90° front wheel steering provides zero turning radius and excellent performance and around job site maneuverability
-\tLow gross vehicle weight and wide non-marking tires provide low ground pressures and help protect finished flooring.
-\tElectrical brake release system, lift/tie down points, makes loading and transportation safe and easy.
-\tCompact size and low weight allow passage through a standard doorway and carriage in a passenger elevator.
-\tSimple, maintenance-free, fixed pothole protection system has no moving parts but allows drive over typical site debris due to improved ground clearance
-\tForklift fork pockets located at the rear with the tie down and lift points at rear of machine.
-\tTop of the mast is in-line with the platform rails, which is beneficial for overhead working, especially drop ceilings.
-\tAll components are located inside the base, the maintenance hatch provides easy, unrestricted access to all major components and batteries. Commonality of components and approach across the mast range which increases familiarity making it easy to service and maintain.
Main Features
-\tPowerful electric drive system provides exceptional duty cycles. The fully proportional drive and lift controls, superior drive efficiency, improved controllability, and consistent torque.
-\t90° front wheel steering provides zero turning radius and excellent performance and around job site maneuverability
-\tLow gross vehicle weight and wide non-marking tires provide low ground pressures and help protect finished flooring.
-\tElectrical brake release system, lift/tie down points, makes loading and transportation safe and easy.
-\tCompact size and low weight allow passage through a standard doorway and carriage in a passenger elevator.
-\tSimple, maintenance-free, fixed pothole protection system has no moving parts but allows drive over typical site debris due to improved ground clearance
-\tForklift fork pockets located at the rear with the tie down and lift points at rear of machine.
-\tTop of the mast is in-line with the platform rails, which is beneficial for overhead working, especially drop ceilings.
-\tAll components are located inside the base, the maintenance hatch provides easy, unrestricted access to all major components and batteries. Commonality of components and approach across the mast range which increases familiarity making it easy to service and maintain.
Specification
1 | Brand | EQUIPMAX | EQUIPMAX | |
2 | Model | AMWP3.6-6100 | AMWP4.8-6100 | |
3 | Rated Capacity | kg | 227 | 227 |
4 | Rated Capacity of Extended Platform | kg | 114 | 114 |
5 | Max Working Height | mm | 5600 | 6800 |
6 | Max Platform Height | mm | 3600 | 4800 |
7 | Overall Length | mm | 1360 | 1360 |
8 | Overall Width | mm | 760 | 760 |
9 | Overall Height | mm | 1700 | 1980 |
10 | Platform Size | mm | 1300x700x1100 | 1300x700x1100 |
11 | Extended Platform Size | mm | 510 | 510 |
12 | Min Turning Radius (Inside) | mm | 0 | 0 |
13 | Min Turning Radius (Outside) | mm | 1400 | 1400 |
14 | Lift Motor | kw | 1.3 | 1.3 |
15 | Drive Motor | kw | 0.5 | 0.5 |
16 | Driving Speed (Lowered) | km/h | 4 | 4 |
17 | Driving Speed (Lifting) | km/h | 1.1 | 1.1 |
18 | Lifting Speed | sec | 31 | 41.5 |
19 | Lowering Speed | sec | 32 | 42 |
20 | Battery | V/AH | 2×12V/100AH | 2×12V/100AH |
21 | Max Gradeability | % | 25% | 25% |
22 | Net Weight | kg | 810 | 980 |
