G3PE-225B DC12-24 реле> твердотельные реле по хорошей цене
US $5.00-$46.00
KNX/EIB Встроенный 8-канальный Универсальный интерфейс сухой контакт модуль ввода Смарт гостиничная система KNX сигнализации умный дом 100% Новый
- Категория: Other Electrical Equipment >>>
- Поставщик: Shanghai,Goldsu,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 113.78 $* | 115.54 $* |
| Jul-19-2025 | 92.76 $* | 94.29 $* |
| Jun-19-2025 | 111.88 $* | 113.74 $* |
| May-19-2025 | 110.69 $* | 112.69 $* |
| Apr-19-2025 | 88.40 $* | 90.4 $* |
| Mar-19-2025 | 109.39 $* | 111.38 $* |
| Feb-19-2025 | 108.58 $* | 110.75 $* |
| Jan-19-2025 | 107.90 $* | 109.12 $* |
Характеристики
Product Description

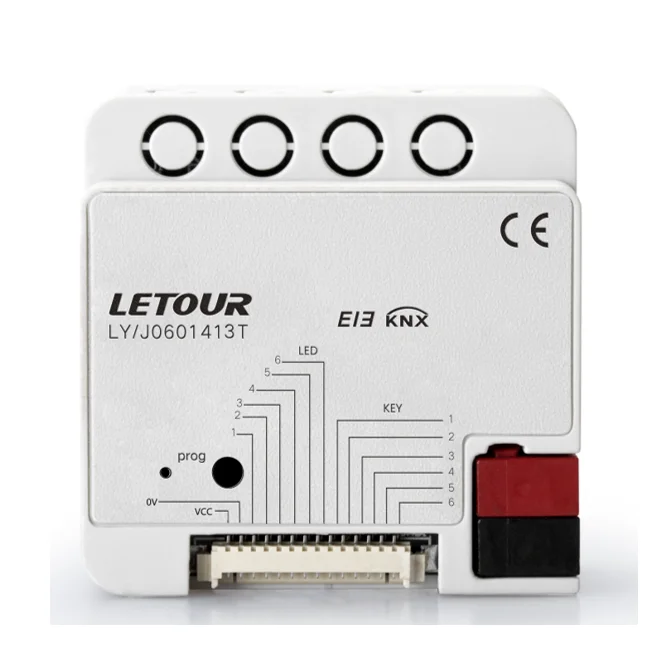

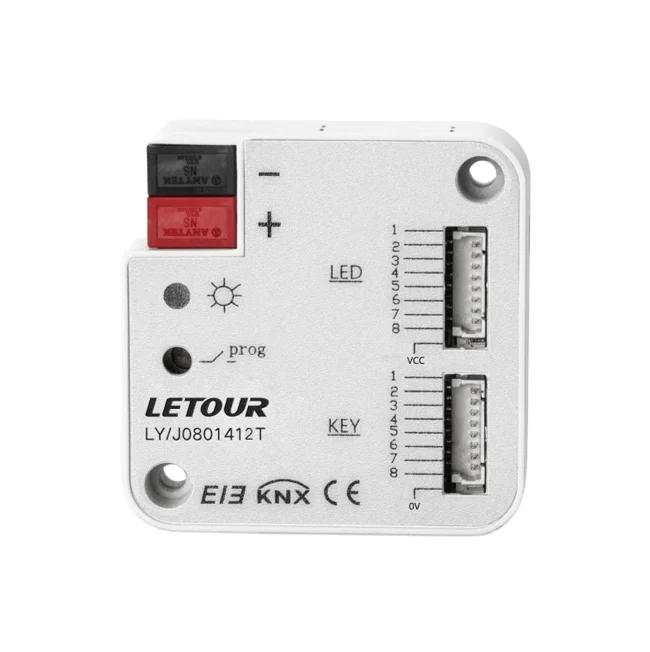

Product Name | KNX protocol 8-channel universal interface dry contact input module |
Installation Method | Standard DIN-Rail Mounting |
Function | Convert dry contact input signal into switch, dimming, curtain control signal |
Product Dimensions | 50x50x3mm |
Product performance description
Parameters:
Working voltage: 21-30V DC
Working current: <12mA
Standby power: <360mW
Output: 8 LED outputs (the maximum current of each channel is 2.5mA)
Input: 8 passive key input
Dimensions: 46mm*46mm*11.7mm
Working temperature: -5℃-45℃
Working humidity: 10%~95%, no condensation

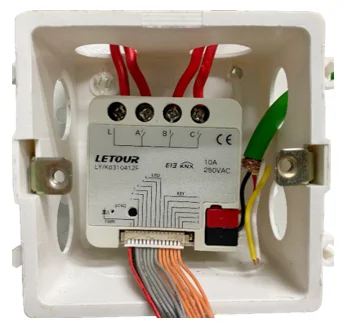

Installation: The depth of the junction box is at least 50mm
Function:
Switch function: convert dry contact input signal into switch, dimming, curtain control signal

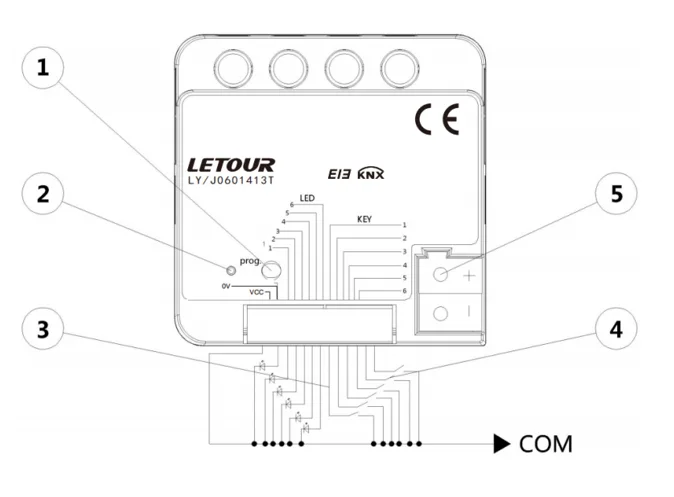

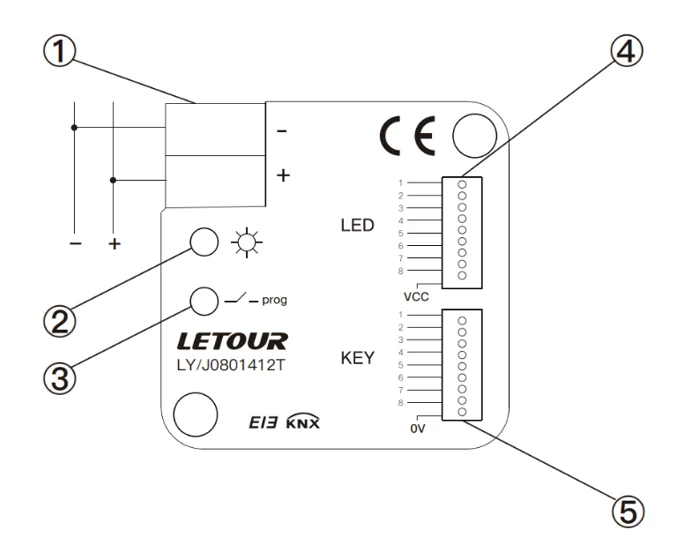

Supports the connection of common cathode and common anode
Counter function, value/forced output function: convert dry contact input signal into control value, switch sequence function, multiple operation function
Working voltage: 21-30V DC
Working current: <12mA
Standby power: <360mW
Output: 8 LED outputs (the maximum current of each channel is 2.5mA)
Input: 8 passive key input
Dimensions: 46mm*46mm*11.7mm
Working temperature: -5℃-45℃
Working humidity: 10%~95%, no condensation
Installation: The depth of the junction box is at least 50mm
Function:
Switch function: convert dry contact input signal into switch, dimming, curtain control signal
Supports the connection of common cathode and common anode
Counter function, value/forced output function: convert dry contact input signal into control value, switch sequence function, multiple operation function
Details Images
KNX home and building control technology is one of the most advanced bus control technologies in the development of modern intelligent buildings, and it is also the application hotspot of "low carbon, environmental protection, green and energy saving" advocated at present.After 30 years of development and application practice, KNX has become a leader in the international market with its many advantages such as technology maturity, system integrity and application reliability.More and more manufacturers and users choose to develop, produce and use KNX. At present, many large-scale public buildings and well-known villa projects in China have chosen KNX.
Stability
The global market share of public construction projects is the highest; EIB is guided by the market technology,
Reliability always comes first, it has been successfully used in European countries for more than 25 years,
There are hundreds of thousands of successful projects around the world.
Reliability always comes first, it has been successfully used in European countries for more than 25 years,
There are hundreds of thousands of successful projects around the world.
Safety
KNX switch is a low-voltage bus power supply, weak current control strong current,
Safe and reliable
Safe and reliable
Openness
The only worldwide open standard for home and building control (international, European,
China, USA); for home and building automation; nearly 450
Manufacturers provide fully compatible products.
China, USA); for home and building automation; nearly 450
Manufacturers provide fully compatible products.
Product Usage
KNX is the abbreviation of KONNEX. In May 1999, the three major European bus protocols EIB,BATIBUS and EHSA merged to
form the KONNEX Association and proposed the KNX protocol.The protocol is based on EIB, taking into account the physical layer
specifications of BATIBUS and EHSA , And absorb the advantages of the configuration mode in BATIBUS and EHSA, providing family,The complete solution for building automation.
form the KONNEX Association and proposed the KNX protocol.The protocol is based on EIB, taking into account the physical layer
specifications of BATIBUS and EHSA , And absorb the advantages of the configuration mode in BATIBUS and EHSA, providing family,The complete solution for building automation.

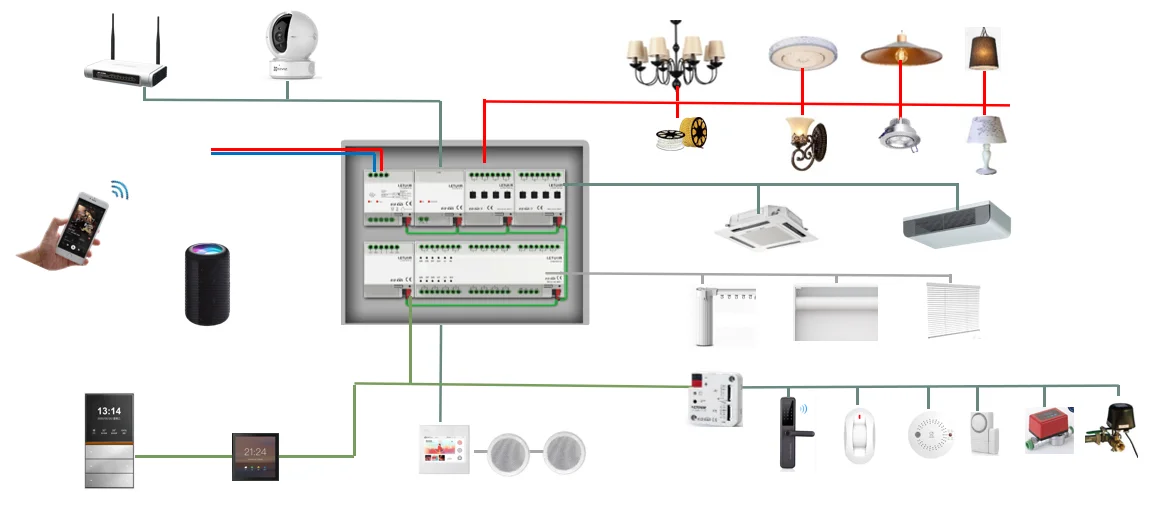

KNX bus technology is applied in the intelligent lighting control system, and the software and hardware of the system are selected and designed respectively. In recent years, the application of products based on KNX technology has grown rapidly in China. Many large public facilities, such as Beijing International Airport T3 Terminal, Shanghai Pudong Airport and Shanghai World Expo Park, all use KNX technology. And the application of KNX in China has a trend of developing towards civil housing. There are also more and more domestic companies joining in the use of KNX technology, and even the development of KNX products.
Company Introduction
Shanghai GoldSu industrial Co.Ltd. is a technology enterprise engaged in the research and development, manufacturing and sales of AI smart switches, lighting, business scenarios, smart homes, smart buildings, and smart life products. The company has strong technical strength and is a member of KNX international manufacturing, KNX international certified engineer training center, China's top ten smart lighting, and China's top ten smart home brands.
Our Services & Strength
Shanghai GoldSu industrial Co.Ltd is committed to creating a technology-based living experience for consumers to enjoy a better quality of life, providing system solutions and products for intelligent control, energy management, efficient operation, energy saving and emission reduction, and commercial scenarios for commercial and residential buildings, and providing green and quality living. make due contributions.
FAQ
Q1:Can I have a sample order?
yes,we are willing to offer trial sample order to you for quality test.
Q2:What is the delivery time ?
1.sample order aboout 1~3 working days.
2.General order about 15~25 working days .
3.Bull order about 25~45 working days .
Q3:When will shipping the order ?
We will shipping them whthin 1~2days after paymet .
Q4:What is your payment method ?
We accept payment of T/T westerm union and L/C paypal.
Q5:How long is your warranty ?
We provide 2 years warranty after the shippingdate.
Q6:Where is your factory ?
Our company and factory are in XiaMen.China.
welcome to visit our factory.
yes,we are willing to offer trial sample order to you for quality test.
Q2:What is the delivery time ?
1.sample order aboout 1~3 working days.
2.General order about 15~25 working days .
3.Bull order about 25~45 working days .
Q3:When will shipping the order ?
We will shipping them whthin 1~2days after paymet .
Q4:What is your payment method ?
We accept payment of T/T westerm union and L/C paypal.
Q5:How long is your warranty ?
We provide 2 years warranty after the shippingdate.
Q6:Where is your factory ?
Our company and factory are in XiaMen.China.
welcome to visit our factory.
