Автомобильная камера заднего вида с экраном 4,3 дюйма
US $3.99-$12.99
Система обнаружения слепых зон ADAS 79 ГГц миллиметровый волновой радар 3 5*14 м зона для большого
- Категория: Car Reversing Aid >>>
- Поставщик: Guangzhou,Leisure,Auto,Safety,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 186.54 $* | 195.14 $* |
| Aug-19-2025 | 184.88 $* | 193.40 $* |
| Jul-19-2025 | 154.37 $* | 162.17 $* |
| Jun-19-2025 | 181.87 $* | 190.43 $* |
| May-19-2025 | 158.27 $* | 166.29 $* |
| Apr-19-2025 | 178.32 $* | 187.34 $* |
| Mar-19-2025 | 176.35 $* | 185.93 $* |
| Feb-19-2025 | 175.79 $* | 184.46 $* |
| Jan-19-2025 | 173.8 $* | 182.80 $* |
Характеристики
Product Description
ADAS BLIND SPOT DETECTION SYSTEM
79Ghz Millimeter Wave Radar
Monitoring and Warning System for Right Blind Area in Commercial Vehicle
1. Production Introduction

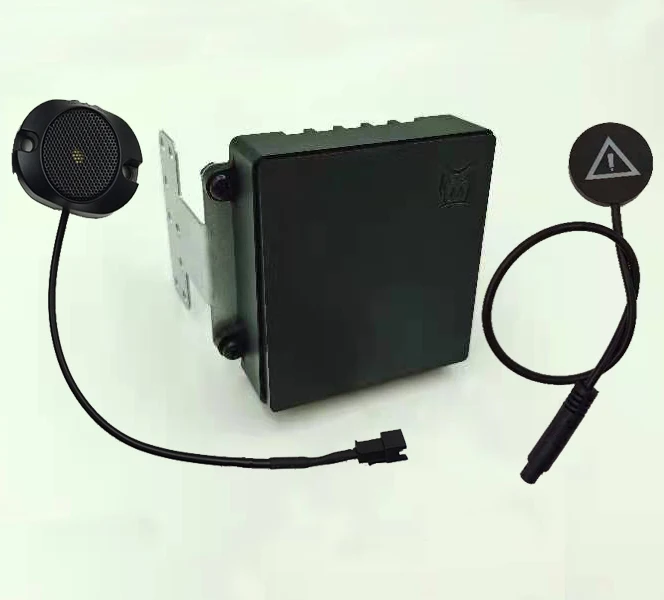

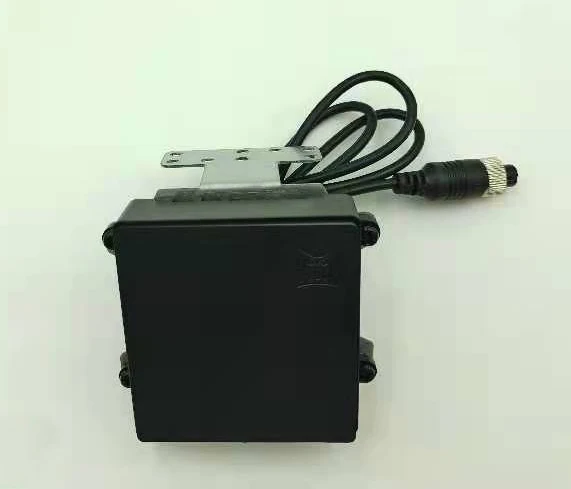

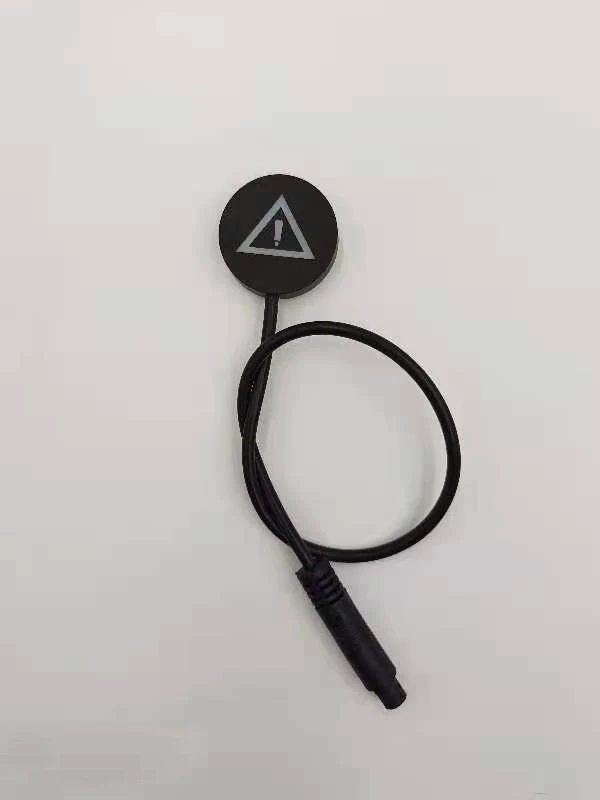

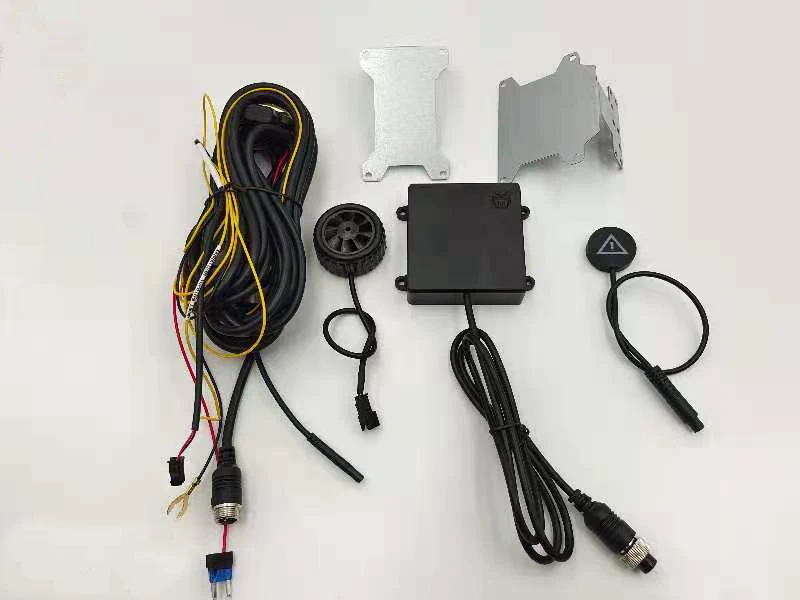

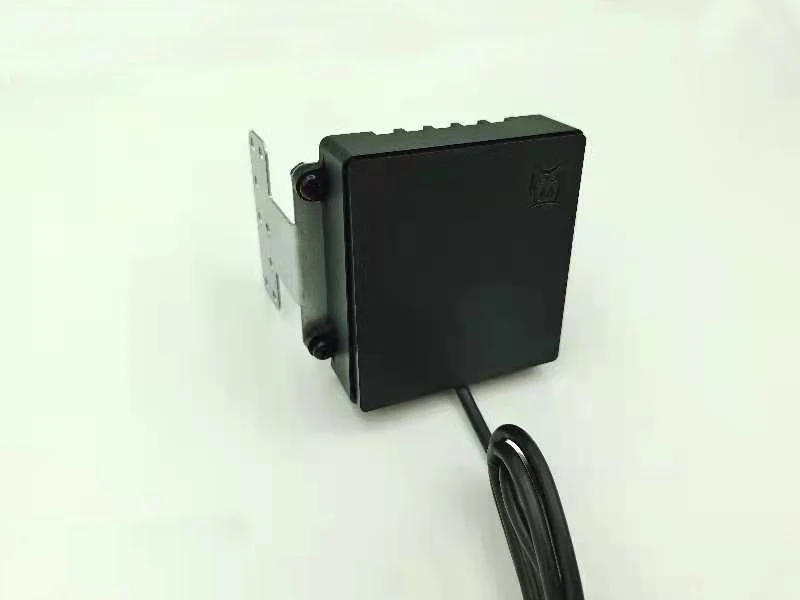

The product consists of a 79Ghz millimeter wave radar, an indicator light, a buzzer and the connecting harness.
This system product provides early warning of dangerous targets in the adjacent lane on the right. The unique ability of 79Ghz millimeter wave radar to penetrate smoke, fog, and dust can realize all-weather and all-day service, real-time detection of objects in the signal area, and output alarm signals corresponding to the warning strategy.
In terms of the large vehicles such as vans, there is a large blind areas on the right side, which may cause endless traffic
accidents. DSM03 radar is used for 79GHz FMCW radar for side safety protection of large cars and trucks. The radar can detect and warn obstacles on the side of the vehicle, and effectively remove fixed obstacles such as fences and green belts, which can greatly improve the driving safety of heavy vehicles such as large trucks.
The product consists of a 79Ghz millimeter wave radar, an indicator light, a buzzer and the connecting harness.
This system product provides early warning of dangerous targets in the adjacent lane on the right. The unique ability of 79Ghz millimeter wave radar to penetrate smoke, fog, and dust can realize all-weather and all-day service, real-time detection of objects in the signal area, and output alarm signals corresponding to the warning strategy.
In terms of the large vehicles such as vans, there is a large blind areas on the right side, which may cause endless traffic
accidents. DSM03 radar is used for 79GHz FMCW radar for side safety protection of large cars and trucks. The radar can detect and warn obstacles on the side of the vehicle, and effectively remove fixed obstacles such as fences and green belts, which can greatly improve the driving safety of heavy vehicles such as large trucks.
IV.Product Function and Alarm Mode
The radar is on after powering, and the self-inspection light turns on for 1 second and then goes out.

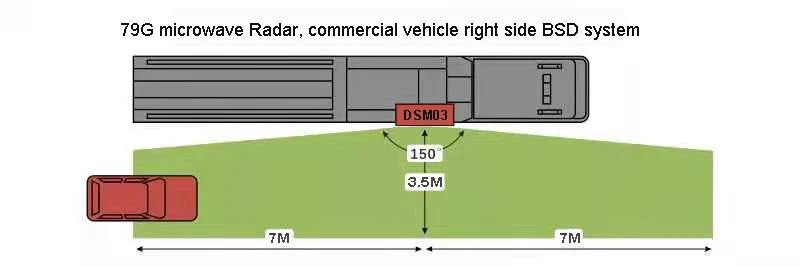

As shown in the figure, when a target vehicle enters the side radar detection area, the vehicle’s radar can detect the target and warns it with LED lights. In this state, the driver should stop dangerous driving behaviors such as turning right and changing lanes.
As shown in the figure, when a target vehicle enters the side radar detection area, the vehicle’s radar can detect the target and warns it with LED lights. In this state, the driver should stop dangerous driving behaviors such as turning right and changing lanes.
V.Installation Notes
1. Radar installation height: 0.6-1.2 meters from the ground;
2. Radar installation angle: horizontal and vertical to the ground; parallel to the vehicle body (it can be tilted 0-5 degrees toward the rear of the vehicle, which does not affect the forward detection distance, but will increase the backward detection distance);
3. The radar outlet is facing downwards;
4. The radar is installed on the outer right side of the vehicle body, and the surface of radar signal cannot be covered by metal materials;
2. Radar installation angle: horizontal and vertical to the ground; parallel to the vehicle body (it can be tilted 0-5 degrees toward the rear of the vehicle, which does not affect the forward detection distance, but will increase the backward detection distance);
3. The radar outlet is facing downwards;
4. The radar is installed on the outer right side of the vehicle body, and the surface of radar signal cannot be covered by metal materials;
VI.Line Connection Legend
Precautions for radar installation:
No metal objects can be set in front of the radar signal, which will block the signal.
