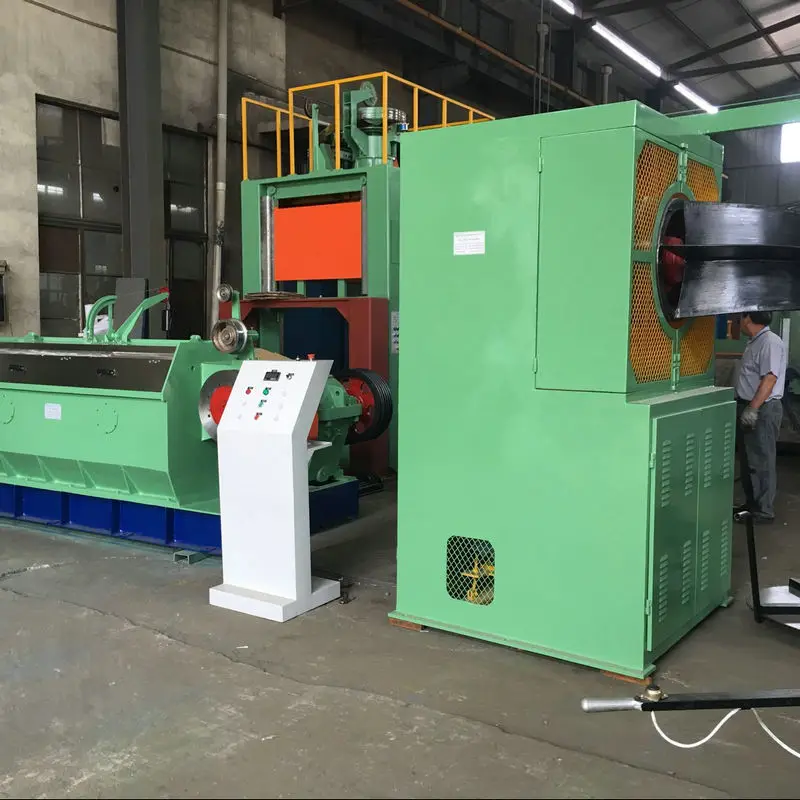

8mm-3mm RBD Wire Drawing Machine (tower wheel type)



Main technical data of the equipment:

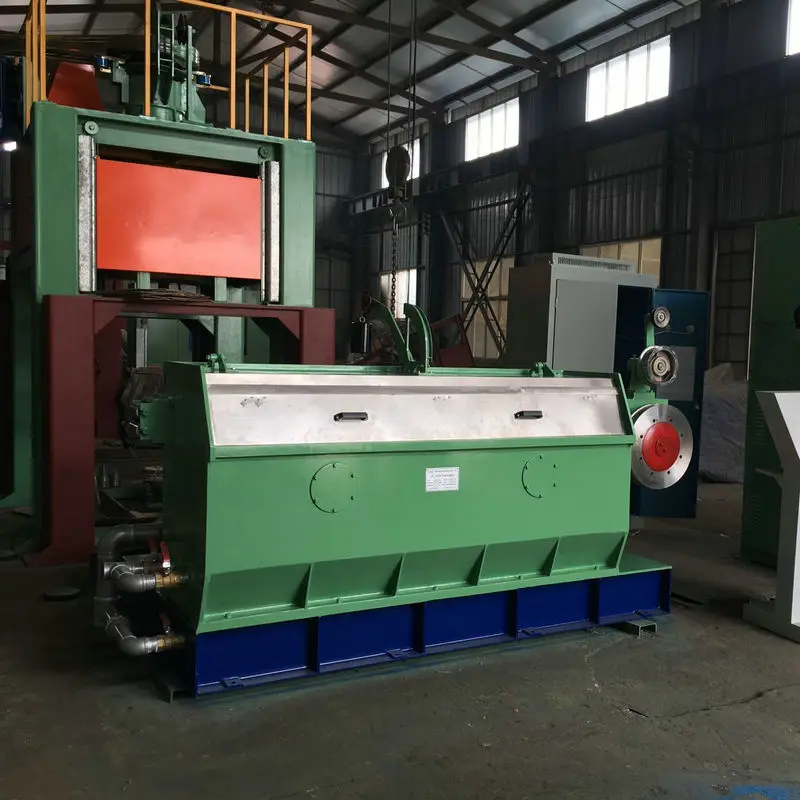

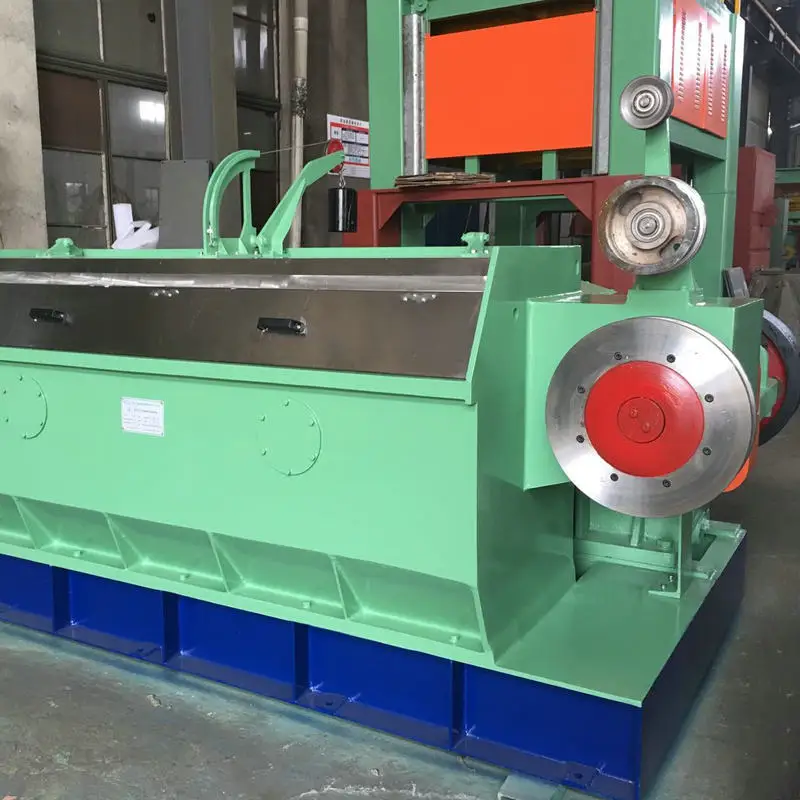

Part A. LHT-450/8 die (tower wheel) wire-drawing machine

1. Drawing materials:  copper wire from upcasting plant

2, Drawing dies: 8n

3, Capstan diameter:  450 mm

4, Drum number: 2 n

5, Cored die specifications:  40 x 25 (user prepared)

6, Inlet wire diameter:  8 mm

7, Minimum outlet diameter:  3. 0 mm

8, Total compression rate: ~85.93%

9, the max. outlet speed: (φ3.0)   400m/min

10. Output capacity: (φ3.0)   1500 kg/h

11, Regulation: variable-frequency speed control

12, Main motor power: 110 kw

13, Frequency converter model: 110 kw

14. Reducer model no. : ZL-850

15, machine weight: 5.5 tons

16. External dimensions of the equipment :(length × width × height) ~6m*2.5m*1.6m

17. The equipment covers an area(length × width × height) : 12.5m * 4m * 2.5m



Part B. SD-650 Vertical Wire Take-up Machine

1, the drum diameter: 650 mm

2, Wire diameter: 3.0-φ2.0 mm

3, linear speed: 400 m/min

4, Wire collecting bucket size: 900 * 460 * 1650 mm

5, Max. collecting weight: 350 ~ 500 kg/bucket

6, Main motor power: 11 kw

7, Regulation: variable-frequency speed control

8, Winding motor no.: PL28 s3-200-200

9, Wire collecting method: Hydraulic hand trolley

10, Size (length x width x height) : 3.8 * 4.6 * 4.0 m

11, Machine weight:  4.5 tons



Below is the equipment delivery list:

1, Pay-off rack: 1pc

2, LHT - 450/8 (tower wheel type) drawing machine: 1set

3. Main motor (including belt and track) : 1set

4, Electrical cabinet (including frequency converter) : 1pc

5, Electrical work station: 1pc

6, Tension frame: 1

7. SD-650 vertical winding machine: 1 set

Including 1 rack

Including 1 operating platform

Including 1 piece operation ladder

Including 2 pieces wire collecting bucket

Including 1 piece hand push trolley

8, Machine body cover: 1pc

9, With one set of transmission belt, one piece of drum dis-assembly tool, one set of equipment foot screws
