Thermal Insulation Brick B5 for Industrial Furnace tops and backings

Product Description

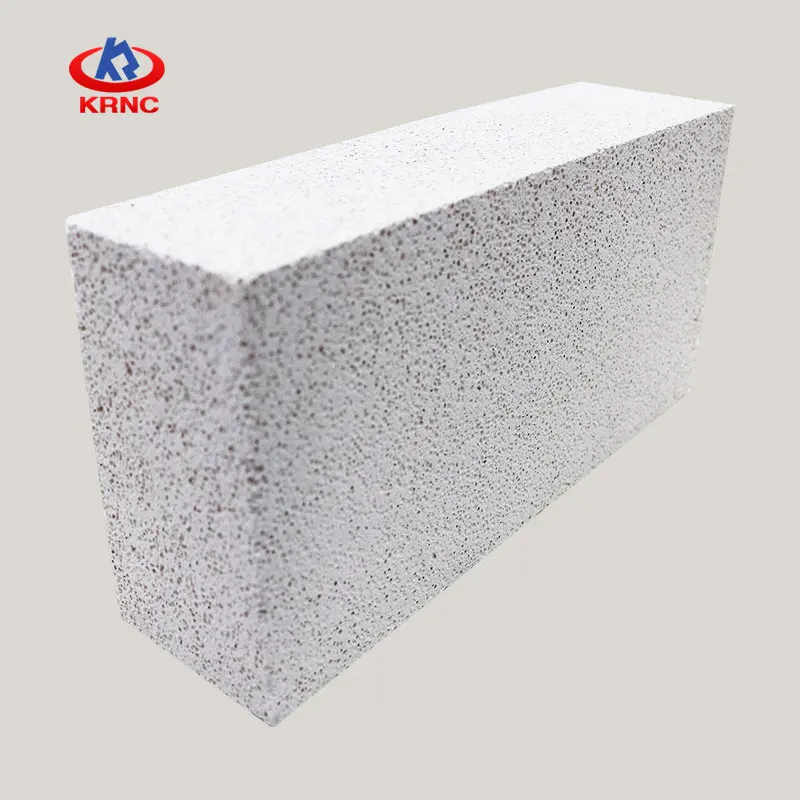

light corundum mullite brick

Kerui Refractory manufactures customized products with special grade mullite (3Al2O3·2SiO2) as the major crystal phase, firing with poly-light ball by research according to actual service condition. It is used under the temperature can reach 1350~1700℃, can contact flame directly. Al2O3is normally 65~75%.

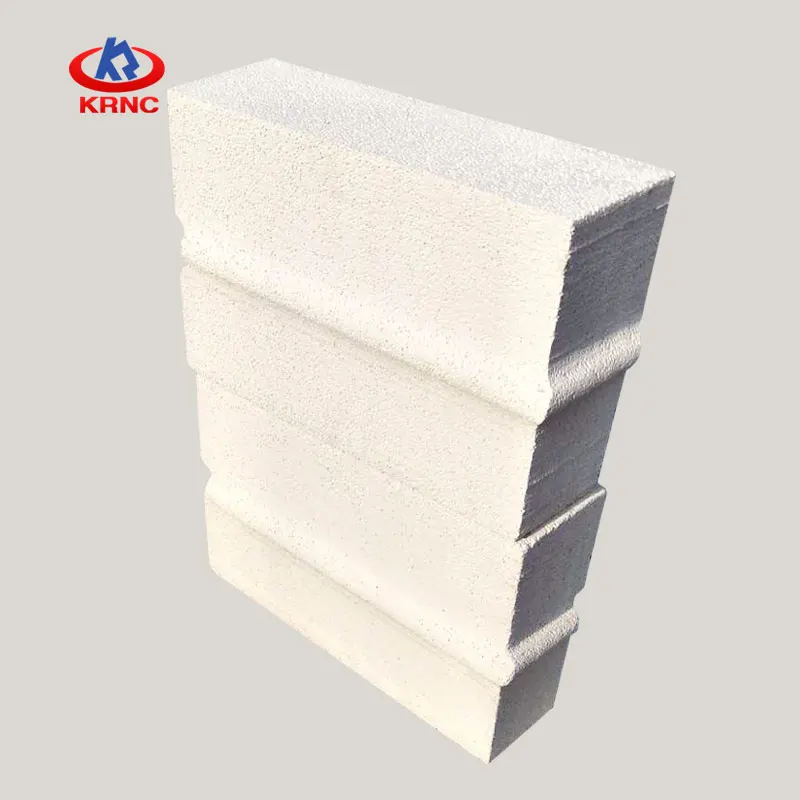

light corundum mullite brick

Performances:

1. Low heat conductivity, with good thermal insulation effect

2. Low hot melting, due to low heat conductivity, it accumulates little heat to get obvious energy-saving in intermittent operation.

3. Low impurity content and low content of iron oxide & alkali metal oxide realize high refractoriness. High Al2O3content makes it keep good performance under reducing atmosphere.

4. High thermal compressive strength

5. Accurate size increases construction speed, decreases fire clay usage, ensures strength and stability of masonry, prolongs the life span of lining.

6. It can be processed into special shapes to reduce brickwork amount and paving seam.

Application:

Mullite insulating brick can be used in high temperature kiln lining. Currently, it is widely used roof of hot-blast furnace, body and bottom of blast furnace, regenerative chamber of glass melting furnace, ceramic kiln, blind angle furnace lining of petroleum cracking system, shuttle kiln, roller kiln, linings of glass and petrochemical engineering furnaces.

In addition, in order to meet the production requirements of more clients and kilns, KERUI develops new products of different textures and shapes on the basis of originals, such as poly-light mullite brick tile, poly-light corundum brick, poly-light silicon brick, fire clay insulating brick, etc.

Physical and Chemical Indexes:

Item	JM23	JM 26	JM28	JM 30
Chemical Composition (%)
Al2O3	42	56	67	73
SiO2	55	41	30	24
Fe2O3	≤1	≤0.8	≤0.7	≤0.7
K2O + Na2O	1.1	1.7	1.7	1.7
Physical Properties
Density (kg/m3)	600	800	900	1000
Classification Temperature (°C)	1300	1400	1500	1550
Cold Crushing Strength (MPa)	1.2	1.8	2.5	3.3
Modulus of Rupture (MPa)	1.0	1.7	2.3	3.1
Permanent Linear Change (%) x 24hrs	≤0.6	≤0.6	≤0.8	≤0.9
Thermal Expansion (%) 1000°C	0.5	0.52	0.52	0.53
Thermal Conductivity (W/m.k)
350°C	0.18	0.25	0.33	0.38
400°C	0.20	0.29	0.35	0.40
600°C	0.24	0.32	0.37	0.42

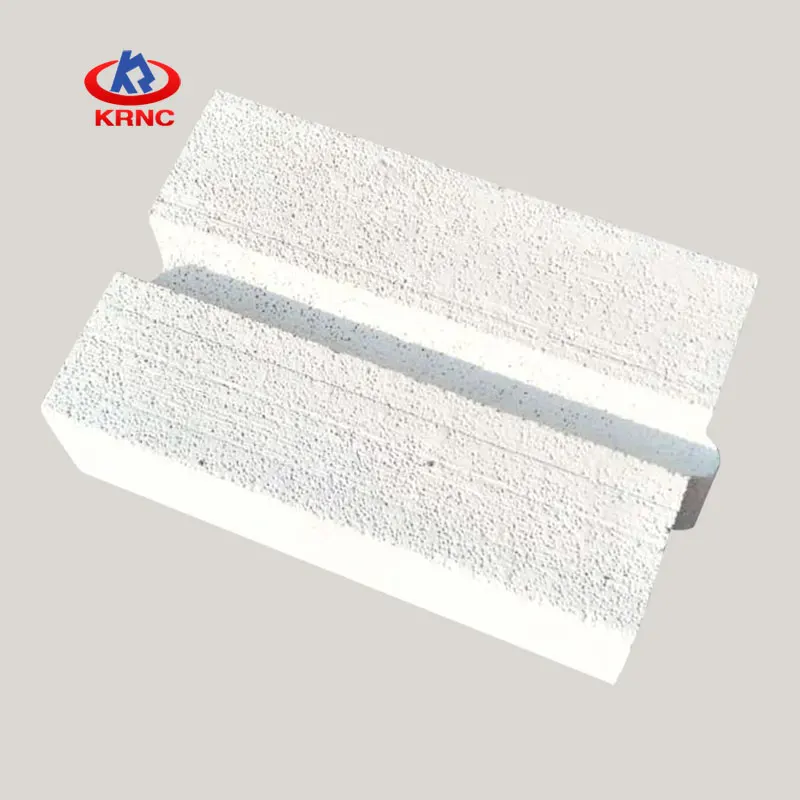

light corundum mullite brick

Product Uses

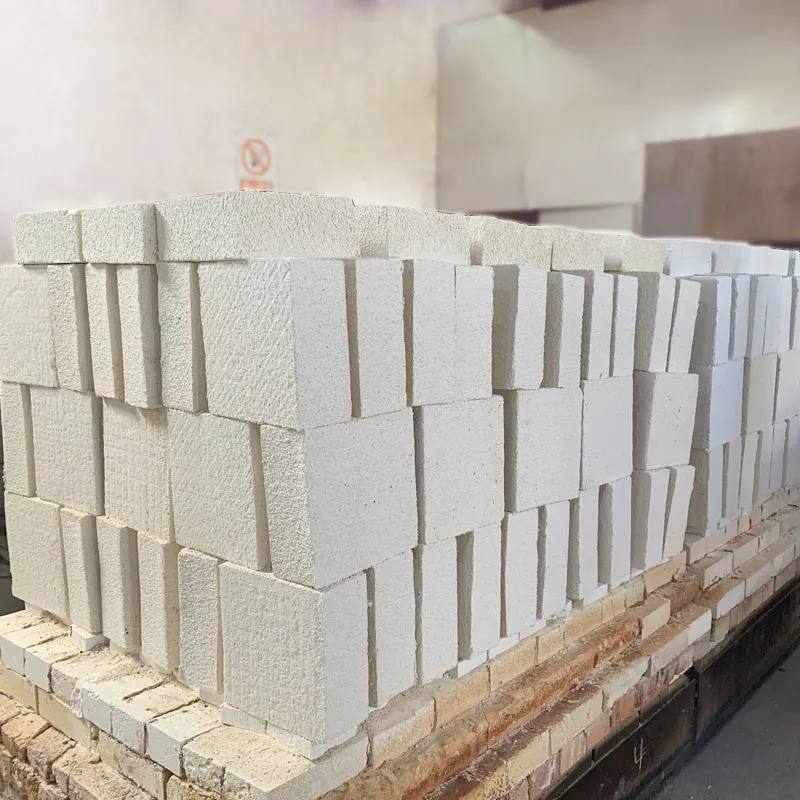

light corundum mullite brick

Currently, our products have been used in many carbon burning furnaces, CFB boilers in power plant, cement rotary kilns, non-ferrous metal melting furnaces, blast furnaces, hot-blast furnaces, coking furnaces, steel ladles, glass melting kilns and other high temperature industries all over the world.

Case Show

light corundum mullite brick
