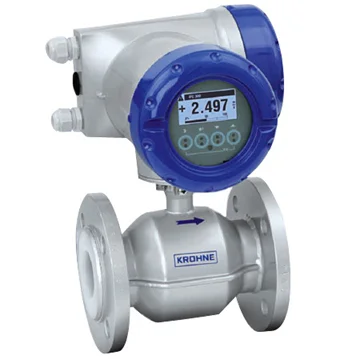

Магнитный расходомер Krohne optiflux 5000

Цена:1 300,00 $*

Количество:

Krohne Magentic flow meter Optiflux5000 IFC300

Optiflux6000, IFC100

1. Electromagnetic flowmeter
2. Accuracy: 0.5%
3. Size: DN15-DN3000
4. Protection grad: IP67 or IP68
5. 4-20mA, RS485/RS232, Hart, Pulse

The Specifications of Electromagnetic flowmeter
Measuring fluid	Conductive fluid
Accuracy	0.2%, 0.3%
Repeatability	0.06%, 0.1%
Temperature range of fluid	-25---180 C
Rated pressure	DN25--DN150: 4.0Mpa , DN200--DN1000: 1.0Mpa , DN1100--DN2000: 0.6Mpa, DN2200--DN3200: 0.25Mpa
Flowrate range of media	0.3---12m/s
Conductivity	≥ 1μ s/cm, ≥ 5μ s/cm
Electrode material	316SS, Hastelloy alloy B, Hastelloy alloy C, titanium, platinum dissolution, tungsten carbide, etc.
Number of electrode	2electrodes(standard), 4 eletrodes (≤ DN500), 6 eletrodes(≤ DN600)
Lining materials	Chloroprene rubber, PTFE F4, FEP copolymer F46, polyurethane rubber and so on
Flange material of bulk	304SS, 20# carbon steel and other materials (special orders)
Installation forms	Holder-style (≤ DN300), flange connected (≤ DN350)
Protection grade	IP67, IP68
Power supply of converter	220V± 20%, 60 HZ/ 24VDC (opional frome the two)
Signal output	Standard: Pulse, and 4--20mA, RS485, Hart protocol and MODERBUS protocol are optional.
Structural form	Integrative type and splite type(with 5m standard cables)
Power consumption	0.65W
Working environment	Environmental temperature: -25---60oC, Humidity: 0.5%--90%
Disply interface of converter	LCD and operation interfaces entirely in English that are able to display instantaneous flow, cumulative flow, and multiple flow units can be selected.
