Полностью закрытая спиральная обмотка Графитовая заполненная прокладка из нержавеющей
- Категория: Gaskets >>>
- Поставщик: Dacheng,County,Mengfei,Fireproof,Materials,Co.,Ltd.Dacheng,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 90.15 $* | 95.92 $* |
| Aug-17-2025 | 90.66 $* | 95.13 $* |
| Jul-17-2025 | 75.25 $* | 79.60 $* |
| Jun-17-2025 | 88.19 $* | 92.69 $* |
| May-17-2025 | 77.90 $* | 81.90 $* |
| Apr-17-2025 | 87.66 $* | 91.25 $* |
| Mar-17-2025 | 86.90 $* | 90.5 $* |
| Feb-17-2025 | 85.91 $* | 89.89 $* |
| Jan-17-2025 | 84.79 $* | 88.18 $* |
Характеристики
Specification
Product Name | Spiral Wound Gasket |
Shape | Ring |
Size | Can be custom |
Color | White |
Product description:

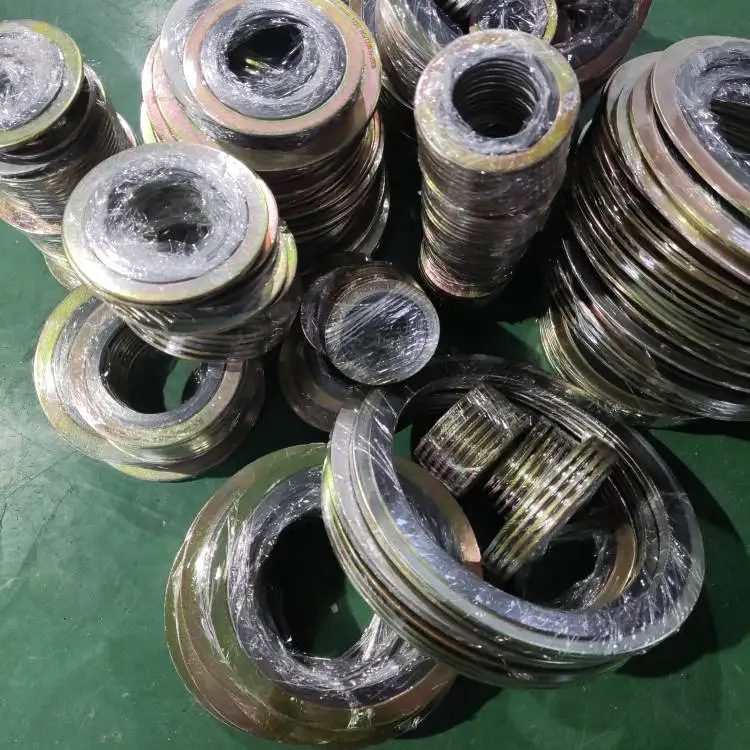

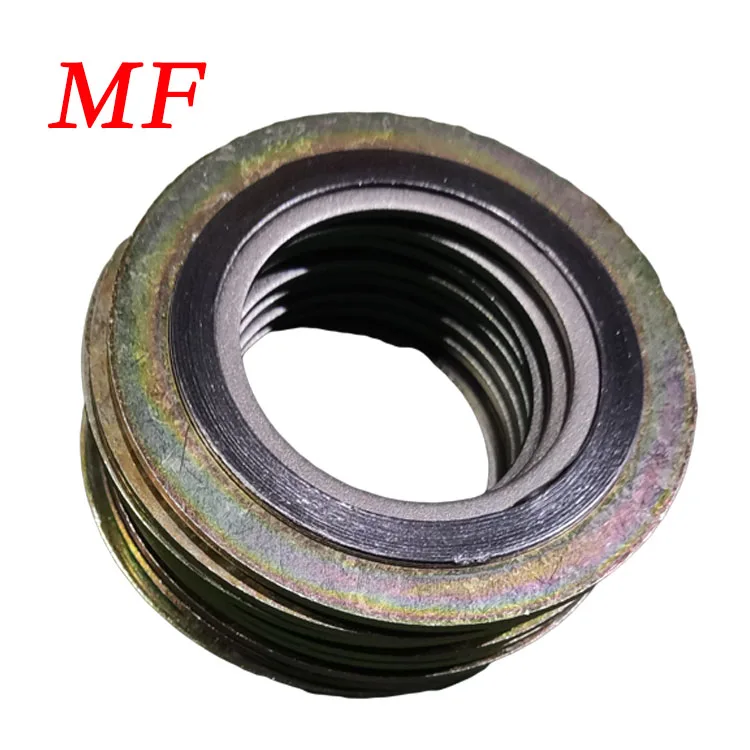

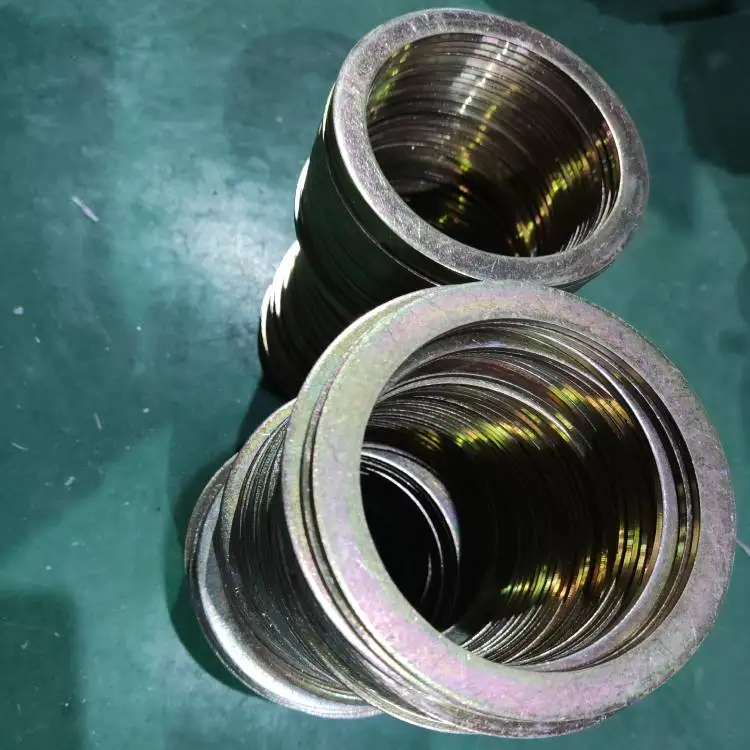

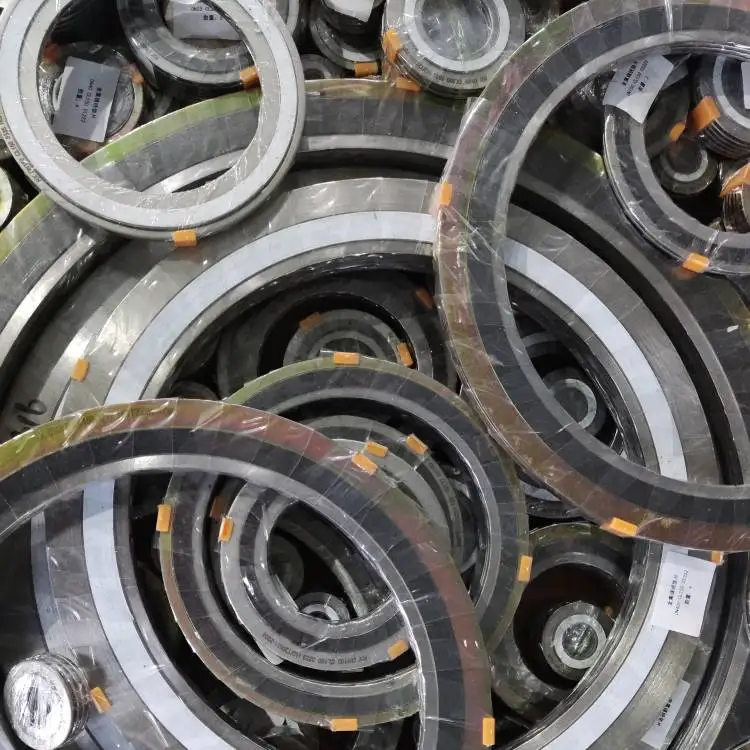

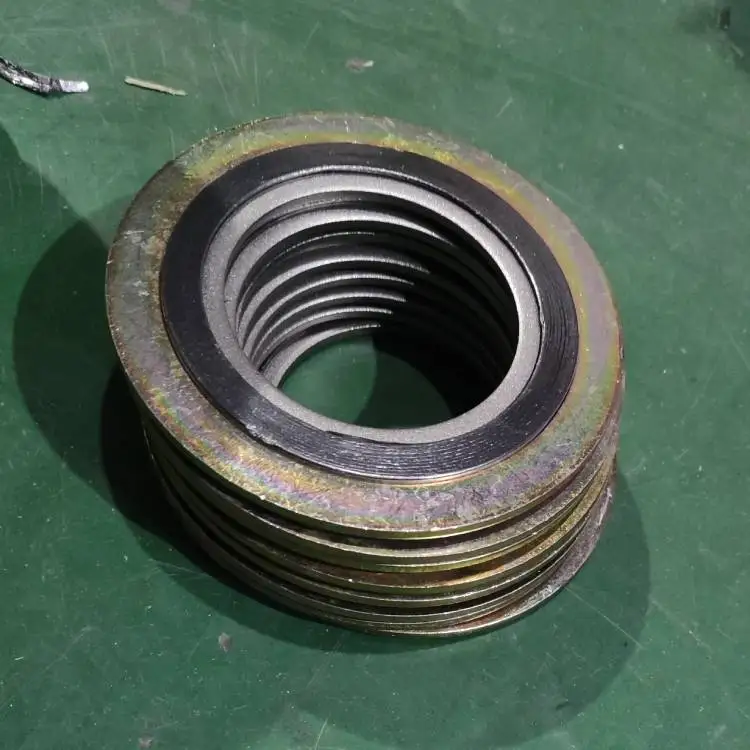

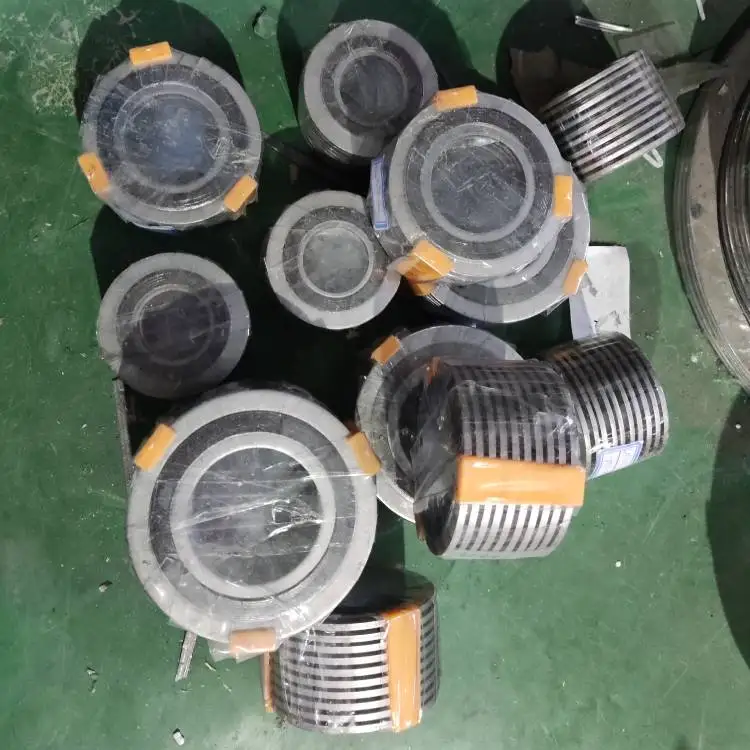

Spiral Wound Gaskets are winding by "V" shaped metallic strip and soft non-metallic filler.
According to the requestment, the gaskets can be within inner and outer rings for improving the gaskets handling, fitting and
versatility.
Depend on its excellent compresion resilience, it's suitable for sealing spots where the alteration of temperature and pressure
are frequenty.
Basic Type:
Basic type gasket: inner and outer diameters are reinforced with several piles of metal without filler to give greater stability
and better compression characteristics.
Suitable for tongue and groove, male and famale or grooved to flat face flange essemblies.
Inner Ring Type:
Solid inner metal ring acts as a compression stopper. To prevent accumulation of solids, reduce trubulent flow of process fluids
and minimize erosion, damages of gasket between flange bore and the inside diameter, the annular space is filled up by solid inner
metal ring;
Suitable for male and female pipe flanges.
Outer Ring Type:
Solid outer accurately locates the gasket on the flange face to give the additional radial strength to prevent gasket blowout and
acts as a compression limiter. In case of installing the outer ring, it is very easy to install the gasket to flange face because
the end of outer ring will touch at bolts;
Suitable for use with flat face and raised face flanges. For class 900 and above an internal ring is recommended.
Inner & Outer Ring Type:
An inner ring and outer ring type gasket will give an additional compression limiting stopper for gasket inner and outer side. It
will prevent the corrosions on flange face at annular space;
Suitable for use with flat face and raised face flanges and specified for high pressure and temperature service, Class 900 and
above or where corrosive or toxic media are present.
Spiral Wound Gaskets are winding by "V" shaped metallic strip and soft non-metallic filler.
According to the requestment, the gaskets can be within inner and outer rings for improving the gaskets handling, fitting and
versatility.
Depend on its excellent compresion resilience, it's suitable for sealing spots where the alteration of temperature and pressure
are frequenty.
Basic Type:
Basic type gasket: inner and outer diameters are reinforced with several piles of metal without filler to give greater stability
and better compression characteristics.
Suitable for tongue and groove, male and famale or grooved to flat face flange essemblies.
Inner Ring Type:
Solid inner metal ring acts as a compression stopper. To prevent accumulation of solids, reduce trubulent flow of process fluids
and minimize erosion, damages of gasket between flange bore and the inside diameter, the annular space is filled up by solid inner
metal ring;
Suitable for male and female pipe flanges.
Outer Ring Type:
Solid outer accurately locates the gasket on the flange face to give the additional radial strength to prevent gasket blowout and
acts as a compression limiter. In case of installing the outer ring, it is very easy to install the gasket to flange face because
the end of outer ring will touch at bolts;
Suitable for use with flat face and raised face flanges. For class 900 and above an internal ring is recommended.
Inner & Outer Ring Type:
An inner ring and outer ring type gasket will give an additional compression limiting stopper for gasket inner and outer side. It
will prevent the corrosions on flange face at annular space;
Suitable for use with flat face and raised face flanges and specified for high pressure and temperature service, Class 900 and
above or where corrosive or toxic media are present.
Product Description
Product Features
Company Profile
Contact Us
Packing & Delivery
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time？
A: According to the order quantity, small order usually need 7-15 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time？
A: According to the order quantity, small order usually need 7-15 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
