Одноколесный пескомойщик для строительных площадок 50

Одноколесный пескомойщик для строительных площадок 50

Категория: Mining Machinery >>>
Поставщик: Zhengzhou,Tianyu,Heavy,Industry,Machinery,Co.,Ltd.

Цена:621 035,65 ₽ - 648 037,20 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	788714.90 $*	804488.98 $*
Jul-18-2025	639666.28 $*	652459.28 $*
Jun-18-2025	776294.47 $*	791820.24 $*
May-18-2025	770083.27 $*	785485.36 $*
Apr-18-2025	614825.42 $*	627122.39 $*
Mar-18-2025	757663.30 $*	772816.77 $*
Feb-18-2025	751452.76 $*	766481.78 $*
Jan-18-2025	745242.81 $*	760147.66 $*

Характеристики

Product Description

Vibrating 50 tph Screen Bucket Single Wheel Spiral Washer Drying Silica Sand Plant Screw Washing Machine Price

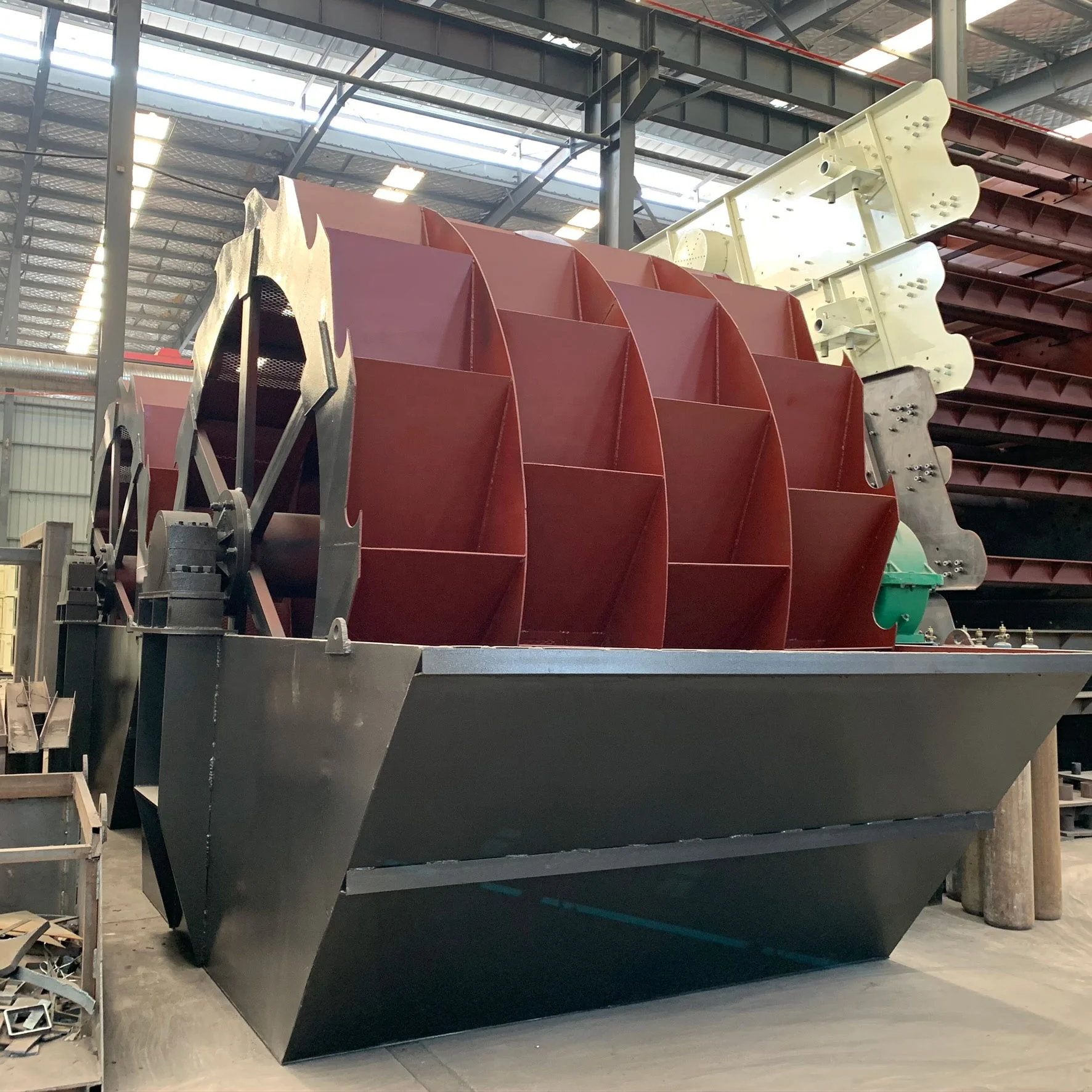

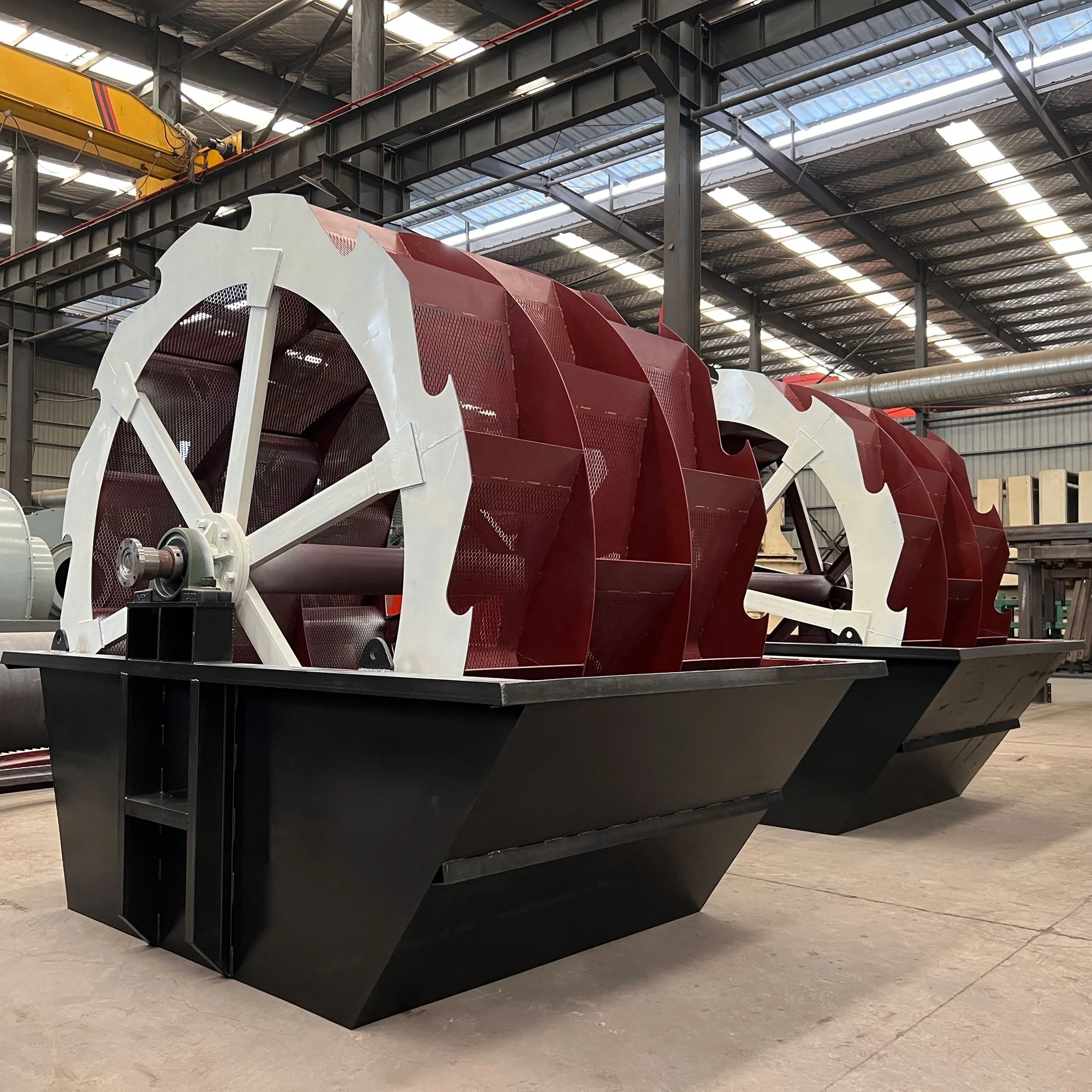

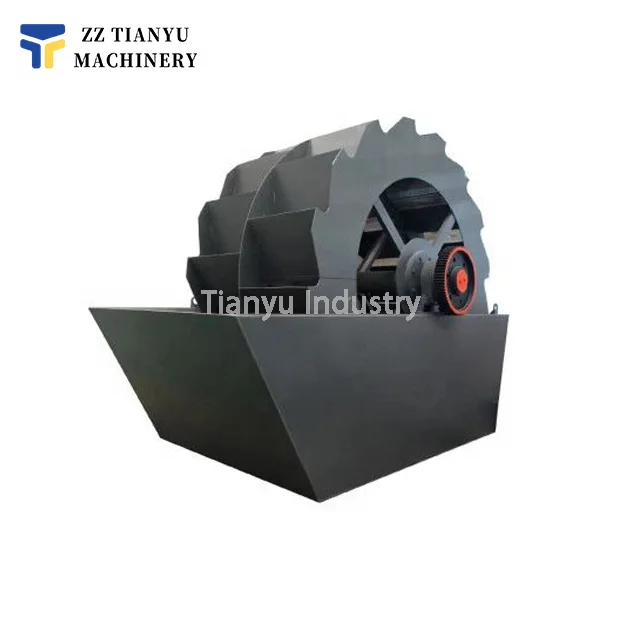

Tianyu Wheel Sand Washer is used for washing out the clay in the sand for the purpose of increasing the sand quality. It is widely used in gravel pits, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing stations and other industries in the washing of the material. Thanks to their simple design they have an ease in assembly process, these bucket wheels provide advantages to the users with low power comsumption and water saving.

Feature & Advantage

Tianyu Heavy Industry has achieved laurels in offering Portable Sand Washing Machine to the clients. Portable Sand Washing Machine is made as per the set industry norms and guidelines, utilizing the finest raw material and modern machines. Offered range is widely demanded for high performance, high strength and weather resistance nature.

Simple Structure

Water Saving

Low Power Consumption

Ease of Installation

Maintenance Free

Optimum Performance

Technical Specifications

	XSD2610	XSD3016	XSD3220	XSD3620
Feed Size(mm)	≤10	≤10	≤10	≤10
Capacity(t/h)	20-50	50-120	80-150	140-220
Impeller Distance(mm)	2600	3000	3200	3600
Power(kw)	5.5	11	13	18.5
Rotation Speed(r/min)	0.8-1.2	0.8-1.2	0.8-1.2	0.8-1.2
Weight(kg)	2525	4200	6250	7988
Overall Dimention(mm)	310722722739	365028393070	175032003280	430039703685

Product Structure

Customer Case

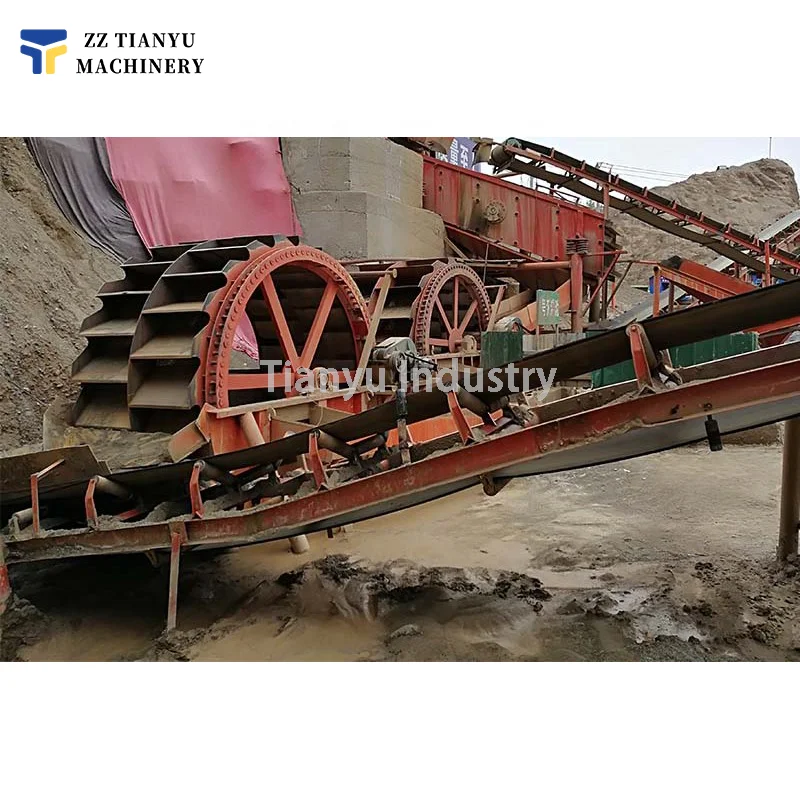

Project Name: Sand Screening & Washing project for Zhengzhou Mining Machinery Co., Ltd.

Equipment Model: XSD2610

Impeller Distance: 2600mm
Capacity: 20-50t/h

Rotation Speed: 0.8-2.2r/min

Power: 5.5kw

Dimention: 3107*2272*2739mm

Project Name: Sand Making & Washing system for China Road & Bridge Corporation

Equipment Model: XSD2610

Impeller Distance: 2600mm
Capacity: 20-50t/h
Rotation Speed: 0.8-2.2r/min
Power: 5.5kw
Dimention: 3107*2272*2739mm

Project Name: Sand Screening & Washing system for China Road & Bridge Corporation

Equipment Model: XSD3016
Impeller Distance: 3000mm
Capacity: 50-120t/h
Rotation Speed: 0.8-2.2r/min
Power: 11kw
Dimention: 3650*2839*3070mm

Related Product

FAQ

In order to give you more effective information, some useful messages are as follows:

Q1: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

Q2: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment and operation training.

Q3: Do you offer spare accessories?
A: Yes, a set of spare accessories will be sent together with the delivery.

Q4: Do you provide after-sale service?
A: Yes, the warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly.
