Двухрядный Сферический роликовый подшипник 22226 МБ, сделано в Китае
US $18.00-$20.00
Износостойкость сделано в Китае оригинальный 22340C 22340K 22344C/W33 22344CK/W33 Настраиваемые роликовые подшипники NSK
- Категория: Spherical Roller Bearings >>>
- Поставщик: Jinan,Tianyuan,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5.96 $* | 5.54 $* |
| Aug-19-2025 | 5.26 $* | 5.89 $* |
| Jul-19-2025 | 4.10 $* | 4.51 $* |
| Jun-19-2025 | 5.55 $* | 5.93 $* |
| May-19-2025 | 4.1 $* | 4.79 $* |
| Apr-19-2025 | 5.30 $* | 5.46 $* |
| Mar-19-2025 | 5.24 $* | 5.94 $* |
| Feb-19-2025 | 4.35 $* | 4.76 $* |
| Jan-19-2025 | 4.99 $* | 4.96 $* |
Характеристики
Products Description
Welcome to choose Jinan Tianyuan Bearing Co.,Ltd.
Wear resistance made in China original 22340C 22340K 22344C/W33 22344CK/W33 Aligning rolling bearings of NSK NTN KOYO
our advantages
1. 15 years bearing products manufacturing and exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be provided.
4. To respect customers, you can choose the loading port.
5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.

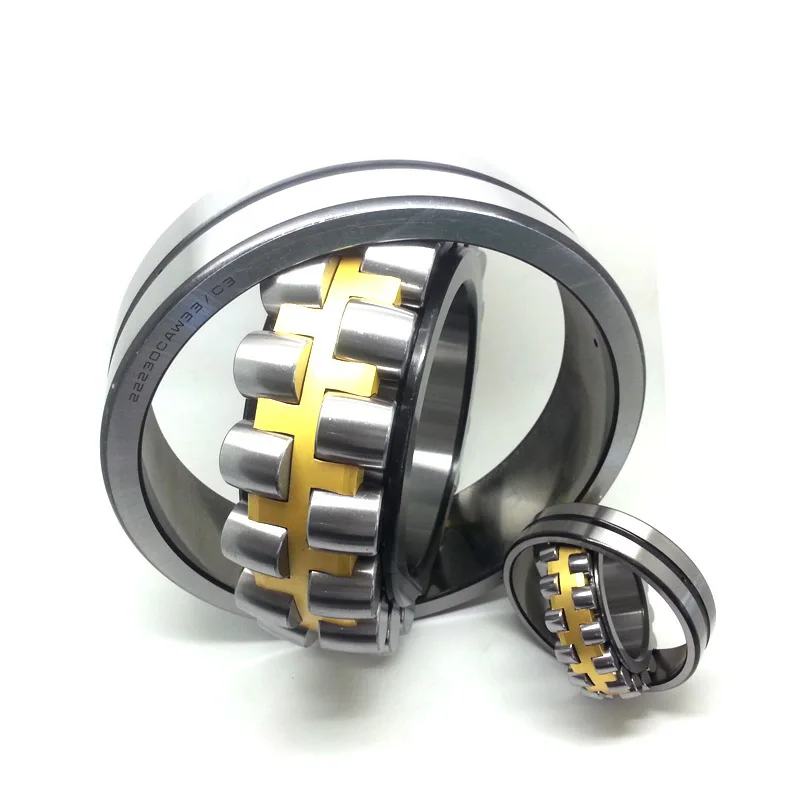

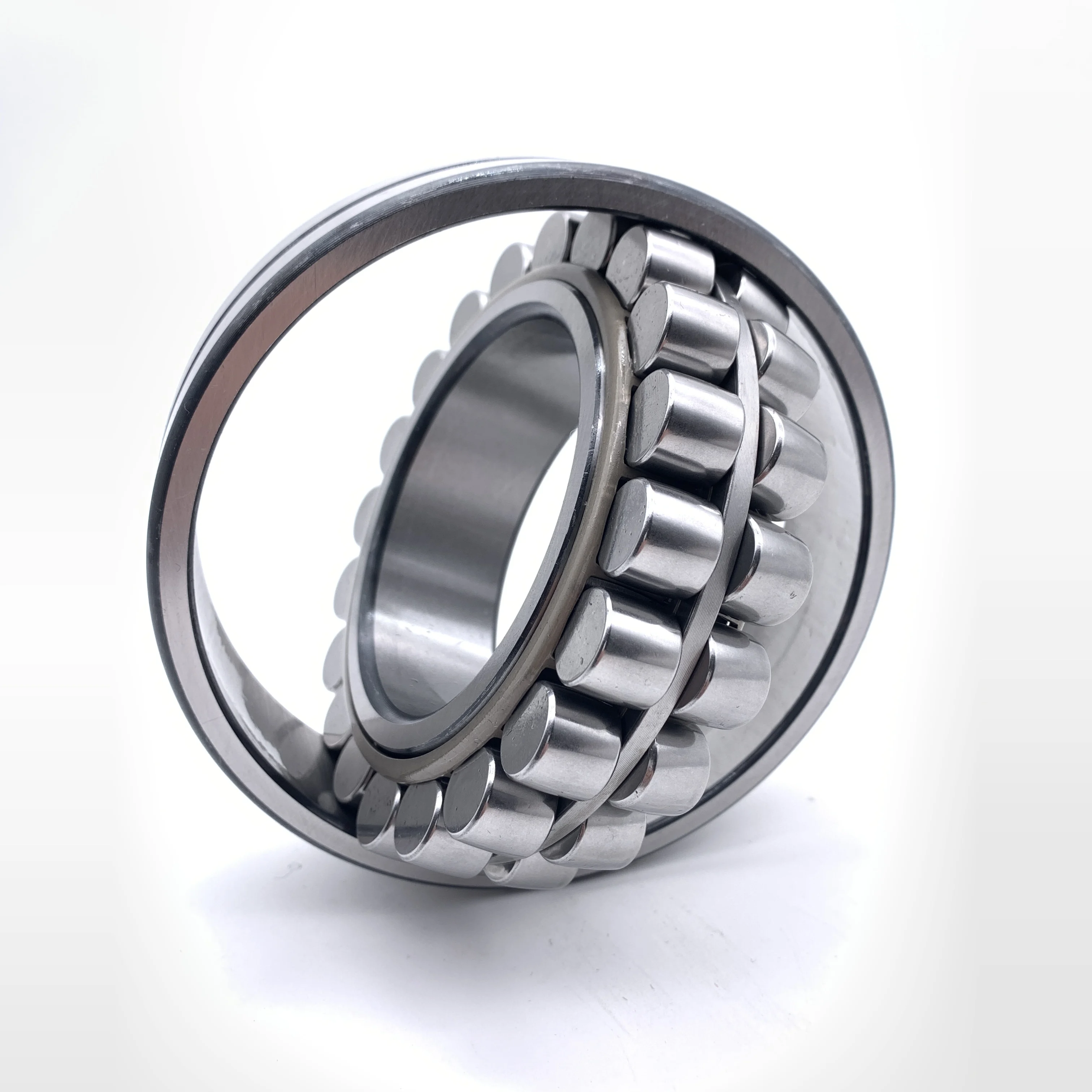

Description: Spherical roller bearing
Race: we use the most advanced technology-cold extrusion process. Besides, the race will make two or three times temper to guarantee its high precision.Rolling element: we use the rolling technology to process the roller and the steel ball of high precision bearing, the most advantage of our technology is to promote productive and productive efficiency. At the same time, our technology can prolong the bearing working life. The hardness and the diamention stability will also promote.
Steel cage: in order to avoid avoid cracks and guarantee the hardness, we use pattern "high temperature+long time", our cage of high precision bearing have reached advanced level in china at surface abrasion resistance and fatigue strength.
C(J), CC--Two window-type steel cages, flangeless inner ring and guide ring centre on the inner ring
EC(J), ECC(J)--Two window-type steel cages, flangeless inner ring, guide ring centre on the inner ring and reinforced roller complement.
CA--One-piece machined brass cage, double-pronged, retaining flanges on the inner ring and guide ring centre on the inner ring
CAF-- As CA, but with a steel cage.
ECA, ECAC-- Reinforced roller complement, one-piece machined brass cage, double-pronged, retaining flanges on the inner ring,guide ring centred on the inner ring.
ECAF-- As ECA, but with a steel cage.
E-- For bearings with a bore diameter d ≤ 65 mm: Two pressed window-type steel cages, flangeless inner ring and guide ring centred on the inner ring.
CAFA-- One-piece machined steel cage, double-pronged, centred on the outer ring raceway, retaining flanges on the inner ring and guide ring centred on the inner ring
Features:
Double row spherical roller bearing for applications that support radial and oscillating axial loads
C4 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees F Straight bore for fitting to a conventional cylindrical shaft Outer ring-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise Open design, circumferential groove and three lubrication holes in the outer ring allow for lubrication in place.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be provided.
4. To respect customers, you can choose the loading port.
5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.
Description: Spherical roller bearing
Race: we use the most advanced technology-cold extrusion process. Besides, the race will make two or three times temper to guarantee its high precision.Rolling element: we use the rolling technology to process the roller and the steel ball of high precision bearing, the most advantage of our technology is to promote productive and productive efficiency. At the same time, our technology can prolong the bearing working life. The hardness and the diamention stability will also promote.
Steel cage: in order to avoid avoid cracks and guarantee the hardness, we use pattern "high temperature+long time", our cage of high precision bearing have reached advanced level in china at surface abrasion resistance and fatigue strength.
C(J), CC--Two window-type steel cages, flangeless inner ring and guide ring centre on the inner ring
EC(J), ECC(J)--Two window-type steel cages, flangeless inner ring, guide ring centre on the inner ring and reinforced roller complement.
CA--One-piece machined brass cage, double-pronged, retaining flanges on the inner ring and guide ring centre on the inner ring
CAF-- As CA, but with a steel cage.
ECA, ECAC-- Reinforced roller complement, one-piece machined brass cage, double-pronged, retaining flanges on the inner ring,guide ring centred on the inner ring.
ECAF-- As ECA, but with a steel cage.
E-- For bearings with a bore diameter d ≤ 65 mm: Two pressed window-type steel cages, flangeless inner ring and guide ring centred on the inner ring.
CAFA-- One-piece machined steel cage, double-pronged, centred on the outer ring raceway, retaining flanges on the inner ring and guide ring centred on the inner ring
Features:
Double row spherical roller bearing for applications that support radial and oscillating axial loads
C4 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees F Straight bore for fitting to a conventional cylindrical shaft Outer ring-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise Open design, circumferential groove and three lubrication holes in the outer ring allow for lubrication in place.
OEM All Brand Bearing
1. deep groove ball bearing 6000,6200,6300,6400,61800,61900,Z,RS,ZZ,2RS
2. spherical roller bearing 22200,22300,23000,24000,23100,24100,CA,CC,E,W33
3. cylindrical roller bearing N,NU,NJ,NN,NUP,E,ECP,ECM,ECJ
4. taper roller bearing 30200,30300,32200,32300,31300,32000
5. Aligning ball bearing 1200,1300,2200,2300,
6. needle roller bearing NA,NAV,NK,NKI,RNA,NK,RNAV,ZKLF,ZKLN,ZARF,ZARN
7. thrust ball bearing 51100,51200,51300,51400,E,M
8. angular contact ball bearing7000,7100,7200,7300,AC,BECBM,C
9. spherical plain bearing GE,GEG,GEEW,U,UC,UG,GX,GAC,SA,SABP
10.Wheel hub bearing /ceramic bearing/plastic bearing/lazy susan bearing
Product details
Company Profile
Company profile
SFNB bearing company was founded in March 2008. We are not only principally engaged in the research, development and manufacture of bearings but also engaged in the sales of internationally-famous brand bearings. Our products are sold in Britain, America,Japan, Italy and Southeast Asia, well appreciated by their purchasers.
We can provide:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
Model table
Spherical roller bearing model table | ||||||||
MODEL | SIZE | MODEL | SIZE | |||||
21307CC/W33 | 35x72x23 | 23120MB/W33 | 100x165x52 | |||||
21307CCK/W33 | 35x72x23 | 23120MBK/W33 | 100x165x52 | |||||
21308CC/W33 | 40x90x23 | 23121MB/W33 | 105x175x56 | |||||
21308CCK/W33 | 40x90x23 | 23121MBK/W33 | 105x175x56 | |||||
21309CC/W33 | 45x100x25 | 23122MB/W33 | 110x180x56 | |||||
21309CCK/W33 | 45x100x25 | 23122MBK/W33 | 110x180x56 | |||||
21310CC/W33 | 50x110x27 | 23124MB/W33 | 120x200x62 | |||||
21310CCK/W33 | 50x110x27 | 23124MBK/W33 | 120x200x62 | |||||
21311CC/W33 | 55x120x29 | 23126MB/W33 | 130x210x64 | |||||
21311CCK/W33 | 55x120x29 | 23126MBK/W33 | 130x210x64 | |||||
21312CC/W33 | 60x130x31 | 23128MB/W33 | 140x225x68 | |||||
21312CCK/W33 | 60x130x31 | 23128MBK/W33 | 140x225x68 | |||||
21313CC/W33 | 65X140X33 | 23130MB/W33 | 150x250x80 | |||||
21313CCK/W33 | 65X140X33 | 23130MBK/W33 | 150x250x80 | |||||
21314CC/W33 | 70X150X35 | 23132MB/W33 | 160x270x86 | |||||
21314CCK/W33 | 70X150X35 | 23132MBK/W33 | 160x270x86 | |||||
21315CC/W33 | 75x160x37 | 23134MB/W33 | 170x280x88 | |||||
21315CCK/W33 | 75x160x37 | 23134MBK/W33 | 170x280x88 | |||||
21316CC/W33 | 80x170x39 | 23136MB/W33 | 180x300x96 | |||||
21316CCK/W33 | 80x170x39 | 23136MBK/W33 | 180x300x96 | |||||
21317CC/W33 | 85x180x41 | 23138MB/W33 | 190x320x104 | |||||
21317CCK/W33 | 85x180x41 | 23138MBK/W33 | 190x320x104 | |||||
21318CC/W33 | 90x190x43 | 23140MB/W33 | 200x340x112 | |||||
21318CCK/W33 | 90x190x43 | 23140MBK/W33 | 200x340x112 | |||||
21320CC/W33 | 100x215x47 | 23144MB/W33 | 220x370x120 | |||||
21320CCK/W33 | 100x215x47 | 23144MBK/W33 | 220x370x120 | |||||
21321CC/W33 | 105x225x49 | 23148MB/W33 | 240x400x128 | |||||
21321CCK/W33 | 105x225x49 | 23148MBK/W33 | 240x400x128 | |||||
21322CC/W33 | 110x240x50 | 23152MB/W33 | 260x440x144 | |||||
21322CCK/W33 | 110x240x50 | 23152MBK/W33 | 260x440x144 | |||||
21324CC/W33 | 120x260x55 | HG2 C9 Y A6MB/W33 | 260x | |||||
21324CCK/W33 | 120x260x55 | HG2 C9 Y A6MBK/W33 | 260x | |||||
22307CC/W33 | 35x80x31 | 23156MB/W33 | 280x460x146 | |||||
22307CCK/W33 | 35x80x31 | 23156MBK/W33 | 280x460x146 | |||||
22308CC/W33 | 40x90x33 | 23160MB/W33 | 300x500x160 | |||||
22308CCK/W33 | 40x90x33 | 23160MBK/W33 | 300x500x160 | |||||
22309CC/W33 | 45x100x36 | 23164MB/W33 | 320x540x176 | |||||
22309CCK/W33 | 45x100x36 | 23164MBK/W33 | 320x540x176 | |||||
22310CC/W33 | 50x110x40 | 23168MB/W33 | 340x580x190 | |||||
22310CCK/W33 | 50x110x40 | 23168MBK/W33 | 340x580x190 | |||||
22311CC/W33 | 55x120x43 | 23172MB/W33 | 360x600x192 | |||||
22311CCK/W33 | 55x120x43 | 23172MBK/W33 | 360x600x192 | |||||
22312CC/W33 | 60x130x46 | 23176MB/W33 | 380x620x194 | |||||
22312CCK/W33 | 60x130x46 | 23176MBK/W33 | 380x620x194 | |||||
22313CC/W33 | 65x140x48 | 23180MB/W33 | 400x650x200 | |||||
22313CCK/W33 | 65x140x48 | 23180MBK/W33 | 400x650x200 | |||||
22314CC/W33 | 70x150x51 | 23184MB/W33 | 420x700x224 | |||||
22314CCK/W33 | 70x150x51 | 23184MBK/W33 | 420x700x224 | |||||
22315CC/W33 | 75x160x55 | 23188MB/W33 | 440x720x226 | |||||
22315CCK/W33 | 75x160x55 | 23188MBK/W33 | 440x720x226 | |||||
22316CC/W33 | 80x170x58 | 23192MB/W33 | 460x760x240 | |||||
22316CCK/W33 | 80x170x58 | 23192MBK/W33 | 460x760x240 | |||||
22317CC/W33 | 85x180x60 | 231/479MB/W33 | 479x790x258 | |||||
22317CCK/W33 | 85x180x60 | 231/479MBK/W33 | 479x790x258 | |||||
22318CC/W33 | 90x190x64 | 23196MB/W33 | 480x790x248 | |||||
22318CCK/W33 | 90x190x64 | 23196MBK/W33 | 480x790x248 | |||||
22319CC/W33 | 95x200x67 | 231/500MB/W33 | 500x830x264 | |||||
22319CCK/W33 | 95x200x67 | 231/500MBK/W33 | 500x830x264 | |||||
22320CC/W33 | 100x215x73 | 231/530MB/W33 | 530x870x272 | |||||
22320CCK/W33 | 100x215x73 | 231/530MBK/W33 | 530x870x272 | |||||
22322CC/W33 | 110x240x80 | 231/560MB/W33 | 560x920x280 | |||||
22322CCK/W33 | 110x240x80 | 231/560MBK/W33 | 560x920x280 | |||||
22324CC/W33 | 120x260x80 | 231/600MB/W33 | 600x980x300 | |||||
22324CCK/W33 | 120x260x80 | 231/600MBK/W33 | 600x980x300 | |||||
22326CC/W33 | 130x280x93 | 231/630MB/W33 | 630x1030x315 | |||||
22326CCK/W33 | 130x280x93 | 231/630MBK/W33 | 630x1030x315 | |||||
22328CC/W33 | 140x300x102 | 231/670MB/W33 | 670x1090x336 | |||||
22328CCK/W33 | 140x300x102 | 231/670MBK/W33 | 670x1090x336 | |||||
22330CC/W33 | 150x320x108 | 231/850MB/W33 | 850x1360x400 | |||||
22330CCK/W33 | 150x320x108 | 231/850MBK/W33 | 850x1360x400 | |||||
22332CC/W33 | 160x340x114 | 231/1000MB/W33 | 1000x1580x462 | |||||
22332CCK/W33 | 160x340x114 | 231/1000MBK/W33 | 1000x1580x462 | |||||
22334CC/W33 | 170x360x120 | 24120MB/W33 | 100x165x65 | |||||
22334CCK/W33 | 170x360x120 | 24120MBK/W33 | 100x165x65 | |||||
22336CC/W33 | 180x380x126 | 24122MB/W33 | 110x180x69 | |||||
22336CCK/W33 | 180x380x126 | 24122MBK/W33 | 110x180x69 | |||||
22338CC/W33 | 190x400x132 | 24124MB/W33 | 120x200x80 | |||||
22338CCK/W33 | 190x400x132 | 24124MBK/W33 | 120x200x80 | |||||
22340CC/W33 | 200x420x138 | 24126MB/W33 | 130x210x80 | |||||
22340CCK/W33 | 200x420x138 | 24126MBK/W33 | 130x210x80 | |||||
22344CC/W33 | 220x460x145 | 24128MB/W33 | 140x225x85 | |||||
22344CCK/W33 | 220x460x145 | 24128MBK/W33 | 140x225x85 | |||||
22348CC/W33 | 240x500x155 | 24130MB/W33 | 150x250x100 | |||||
22348CCK/W33 | 240x500x155 | 24130MBK/W33 | 150x250x100 | |||||
22352CC/W33 | 260x540x165 | 24132MB/W33 | 160x270x109 | |||||
22352CCK/W33 | 260x540x165 | 24132MBK/W33 | 160x270x109 | |||||
22356CC/W33 | 280x580x175 | 24134MB/W33 | 170x280x109 | |||||
22356CCK/W33 | 280x580x175 | 24134MBK/W33 | 170x280x109 | |||||
22368CC/W33 | 340x | 24136MB/W33 | 180x300x118 | |||||
22368CCK/W33 | 340x | 24136MBK/W33 | 180x300x118 | |||||
22372CC/W33 | 360x750x244 | 24138MB/W33 | 190x320x128 | |||||
22372CCK/W33 | 360x750x244 | 24138MBK/W33 | 190x320x128 | |||||
22376CC/W33 | 380x780x230 | 24140MB/W33 | 200x340x140 | |||||
22376CCK/W33 | 380x780x230 | 24140MBK/W33 | 200x340x140 | |||||
22380CC/W33 | 400x820x243 | 24144MB/W33 | 220x370x150 | |||||
22380CCK/W33 | 400x820x243 | 24144MBK/W33 | 220x370x150 | |||||
23322CC/W33 | 110x240x92.1 | 24148MB/W33 | 240x400x160 | |||||
23322CCK/W33 | 110x240x92.1 | 24148MBK/W33 | 240x400x160 | |||||
23328CC/W33 | 140x | 24152MB/W33 | 260x440x180 | |||||
23328CCK/W33 | 140x300x118 | 24152MBK/W33 | 260x440x180 | |||||
23334CC/W33 | 170x360x136 | SX-24152MB/W33 | 260x440x180 | |||||
23334CCK/W33 | 170x360x136 | SX-24152MBK/W33 | 260x440x180 | |||||
23340CC/W33 | 200x420x165 | 24156MB/W33 | 280x460x180 | |||||
23340CCK/W33 | 200x420x165 | 24156MBK/W33 | 280x460x180 | |||||
22205MB/W33 | 25x52x18 | 24160MB/W33 | 300x500x200 | |||||
22205MBK/W33 | 25x52x18 | 24160MBK/W33 | 300x500x200 | |||||
22206MB/W33 | 30x62x20 | SX-24160MB/W33 | 300x500x200 | |||||
22206MBK/W33 | 30x62x20 | SX-24160MBK/W33 | 300x500x200 | |||||
22207MB/W33 | 35x72x23 | 24164MB/W33 | 320x540x218 | |||||
22207MBK/W33 | 35x72x23 | 24164MBK/W33 | 320x540x218 | |||||
22208MB/W33 | 40x80x23 | 24168MB/W33 | 340x580x243 | |||||
22208MBK/W33 | 40x82x23 | 24168MBK/W33 | 340x580x243 | |||||
22209MB/W33 | 45x85x23 | 24172MB/W33 | 360x600x243 | |||||
22209MBK/W33 | 45x85x23 | 24172MBK/W33 | 360x600x243 | |||||
22210MB/W33 | 50x90x23 | SX-24172MB/W33 | 360x600x243 | |||||
22210MBK/W33 | 50x90x23 | SX-24172MBK/W33 | 360x600x243 | |||||
22211MB/W33 | 55x100x25 | 24176MB/W33 | 380x620x243 | |||||
22211MBK/W33 | 55x100x25 | 24176MBK/W33 | 380x620x243 | |||||
22212MB/W33 | 60x110x28 | 24180MB/W33 | 400x650x250 | |||||
22212MBK/W33 | 60x110x28 | 24180MBK/W33 | 400x650x250 | |||||
22213MB/W33 | 65x120x31 | 24184MB/W33 | 420x700x280 | |||||
22213MBK/W33 | 65x120x31 | 24184MBK/W33 | 420x700x280 | |||||
22214MB/W33 | 75x125x31 | 24188MB/W33 | 440x720x280 | |||||
22214MBK/W33 | 75x125x31 | 24188MBK/W33 | 440x720x280 | |||||
22215MB/W33 | 75x130x31 | 24192MB/W33 | 460x760x300 | |||||
22215MBK/W33 | 75x130x31 | 24192MBK/W33 | 460x760x300 | |||||
22216MB/W33 | 80x140x33 | 24196MB/W33 | 480x790x308 | |||||
22216MBK/W33 | 80x140x33 | 24196MBK/W33 | 480x790x308 | |||||
22217MB/W33 | 85x150x36 | 241/500MB/W33 | 500x830x325 | |||||
22217MBK/W33 | 85x150x36 | 241/500MBK/W33 | 500x830x325 | |||||
22218MB/W33 | 90x160x40 | 241/530MB/W33 | 530x870x335 | |||||
22218MBK/W33 | 90x160x40 | 241/530MBK/W33 | 530x870x335 | |||||
22219MB/W33 | 95x170x43 | 241/560MB/W33 | 560x920x355 | |||||
22219MBK/W33 | 95x170x43 | 241/560MBK/W33 | 560x920x355 | |||||
22220MB/W33 | 100x180x46 | 241/600MB/W33 | 600x980x375 | |||||
22220MBK/W33 | 100x180x46 | 241/600MBK/W33 | 600x980x375 | |||||
22222MB/W33 | 110x200x53 | 241/630MB/W33 | 630x1030x400 | |||||
22222MBK/W33 | 110x200x53 | 241/630MBK/W33 | 630x1030x400 | |||||
22224MB/W33 | 120x215x58 | 241/670MB/W33 | 670x1090x412 | |||||
22224MBK/W33 | 120x215x58 | 241/670MBK/W33 | 670x1090x412 | |||||
22226MB/W33 | 130x230x64 | 241/710MB/W33 | 710x1150x438 | |||||
22226MBK/W33 | 130x230x64 | 241/710MBK/W33 | 710x1150x438 | |||||
22228MB/W33 | 140x250x68 | 241/750MB/W33 | 750x1220x475 | |||||
22228MBK/W33 | 140x250x68 | 241/750MBK/W33 | 750x1220x475 | |||||
22230MB/W33 | 150x270x73 | 241/800MB/W33 | 800x1280x475 | |||||
22230MBK/W33 | 150x270x73 | 241/800MBK/W33 | 800x1280x475 | |||||
22232MB/W33 | 160x290x80 | 23216MB/W33 | 80x140x44.4 | |||||
22232MBK/W33 | 160x290x80 | 23216MBK/W33 | 80x140x44.4 | |||||
22234MB/W33 | 170x310x86 | 23218MB/W33 | 90x160x52.4 | |||||
22234MBK/W33 | 170x310x86 | 23218MBK/W33 | 90x160x52.4 | |||||
22236MB/W33 | 180x320x86 | 23220MB/W33 | 100x180x60.3 | |||||
22236MBK/W33 | 180x320x86 | 23220MBK/W33 | 100x180x60.3 | |||||
22238MB/W33 | 190x320x92 | 23222MB/W33 | 100x200x69.8 | |||||
22238MBK/W33 | 190x320x92 | 23222MBK/W33 | 100x200x69.8 | |||||
22240MB/W33 | 200x360x98 | 23224MB/W33 | 120x215x76 | |||||
22240MBK/W33 | 200x360x98 | 23224MBK/W33 | 120x215x76 | |||||
22244MB/W33 | 220x400x108 | 23226MB/W33 | 130x230x80 | |||||
22244MBK/W33 | 220x400x108 | 23226MBK/W33 | 120x230x80 | |||||
22248MB/W33 | 240x440x120 | 23228MB/W33 | 140x250x88 | |||||
22248MBK/W33 | 240x440x120 | 23228MBK/W33 | 140x250x88 | |||||
22252MB/W33 | 260x480x130 | 23230MB/W33 | 150x270x96 | |||||
22252MBK/W33 | 260x480x130 | 23230MBK/W33 | 150x270x96 | |||||
22256MB/W33 | 280x500x130 | 23232MB/W33 | 160x290x104 | |||||
22256MBK/W33 | 280x500x130 | 23232MBK/W33 | 160x290x104 | |||||
22260MB/W33 | 300x540x140 | 23234MB/W33 | 170x310x110 | |||||
22260MBK/W33 | 300x540x140 | 23234MBK/W33 | 170x310x110 | |||||
22264MB/W33 | 300X580X150 | 23236MB/W33 | 180x320x112 | |||||
22264MBK/W33 | 300X580X150 | 23236MBK/W33 | 180x320x112 | |||||
22272MB/W33 | 360X580X150 | 23238MB/W33 | 190x340x120 | |||||
22272MBK/W33 | 360X580X150 | 23238MBK/W33 | 190x340x120 | |||||
22276MB/W33 | 380X700X175 | 23240MB/W33 | 200x360x128 | |||||
22276MBK/W33 | 380X700X175 | 23240MBK/W33 | 200x360x128 | |||||
23216MB/W33 | 80x140x44.4 | 23244MB/W33 | 220x400x144 | |||||
23216MBK/W33 | 80x140x44.4 | 23244MBK/W33 | 220x400x144 | |||||
23218MB/W33 | 90x160x52.4 | 23248CS/W33 | 240x440x160 | |||||
23218MBK/W33 | 90x160x52.4 | 23248MBK/W33 | 240x440x160 | |||||
23220MB/W33 | 100x180x60.3 | 23252MB/W33 | 260x480x174 | |||||
23220MBK/W33 | 100x180x60.3 | 23252MBK/W33 | 260x480x174 | |||||
23222MB/W33 | 100x200x69.8 | 23256MB/W33 | 280x500x176 | |||||
23222MBK/W33 | 100x200x69.8 | 23256MBK/W33 | 280x500x176 | |||||
23224MB/W33 | 120x215x76 | 23260MB/W33 | 300x540x192 | |||||
23224MBK/W33 | 120x215x76 | 23260MBK/W33 | 300x540x192 | |||||
23226MB/W33 | 130x230x80 | 23264MB/W33 | 320x580x208 | |||||
23226MBK/W33 | 120x230x80 | 23264MBK/W33 | 320x580x208 | |||||
23228MB/W33 | 140x250x88 | 23268MB/W33 | 340x620x224 | |||||
23228MBK/W33 | 140x250x88 | 23268MBK/W33 | 340x620x224 | |||||
23230MB/W33 | 150x270x96 | 23272MB/W33 | 360x650x232 | |||||
23230MBK/W33 | 150x270x96 | 23272MBK/W33 | 360x650x232 | |||||
23232MB/W33 | 160x290x104 | 23276MB/W33 | 380x680x240 | |||||
23232MBK/W33 | 160x290x104 | 23276MBK/W33 | 380x680x240 | |||||
23234MB/W33 | 170x310x110 | 23280MB/W33 | 400x720x256 | |||||
23234MBK/W33 | 170x310x110 | 23280MBK/W33 | 400x720x256 | |||||
23236MB/W33 | 180x320x112 | 23284MB/W33 | 420x760x272 | |||||
23236MBK/W33 | 180x320x112 | 23284MBK/W33 | 420x760x272 | |||||
23238MB/W33 | 190x340x120 | 23288MB/W33 | 440x790x280 | |||||
23238MBK/W33 | 190x340x120 | 23288MBK/W33 | 440x790x280 | |||||
23240MB/W33 | 200x360x128 | 23292MB/W33 | 460x830x296 | |||||
23240MBK/W33 | 200x360x128 | 23292MBK/W33 | 460x830x296 | |||||
23244MB/W33 | 220x400x144 | 23296MB/W33 | 480x870x310 | |||||
23244MBK/W33 | 220x400x144 | 23296MBK/W33 | 480x870x310 | |||||
23248CS/W33 | 240x440x160 | 232/500MB/W33 | 500x920x336 | |||||
23248MBK/W33 | 240x440x160 | 232/500MBK/W33 | 500x920x336 | |||||
23252MB/W33 | 260x480x174 | 232/530MB/W33 | 530x980x355 | |||||
23252MBK/W33 | 260x480x174 | 232/530MBK/W33 | 530x980x355 | |||||
23256MB/W33 | 280x500x176 | 232/560MB/W33 | 560x1030x365 | |||||
23256MBK/W33 | 280x500x176 | 232/560MBK/W33 | 560x1030x365 | |||||
23260MB/W33 | 300x540x192 | 232/600MB/W33 | 600x1090x388 | |||||
23260MBK/W33 | 300x540x192 | 232/600MBK/W33 | 600x1090x388 | |||||
23264MB/W33 | 320x580x208 | 232/670MB/W33 | 670x1220x438 | |||||
23264MBK/W33 | 320x580x208 | 232/670MBK/W33 | 670x1220x438 | |||||
23268MB/W33 | 340x620x224 | 232/750MB/W33 | 750x1360x475 | |||||
23268MBK/W33 | 340x620x224 | 232/750MBK/W33 | 750x1360x475 | |||||
23272MB/W33 | 360x650x232 | 42 SERIES | ||||||
23272MBK/W33 | 360x650x232 | 24280MB/W33 | 400X720X315 | |||||
23276MB/W33 | 380x680x240 | 24280MBK/W33 | 400X720X315 | |||||
23276MBK/W33 | 380x680x240 | (0)3 SERIES | ||||||
23280MB/W33 | 400x720x256 | 20313MB/W33 | 65X140X33 | |||||
23280MBK/W33 | 400x720x256 | 20313MBK/W33 | 65X140X33 | |||||
23284MB/W33 | 420x760x272 | 20314MB/W33 | 70X150X35 | |||||
23284MBK/W33 | 420x760x272 | 20314MBK/W33 | 70X150X35 | |||||
23288MB/W33 | 440x790x280 | 13 SERIES | ||||||
23288MBK/W33 | 440x790x280 | 21307MB/W33 | 35x72x23 | |||||
23292MB/W33 | 460x830x296 | 21307MBK/W33 | 35x72x23 | |||||
23292MBK/W33 | 460x830x296 | 21308MB/W33 | 40x90x23 | |||||
23296MB/W33 | 480x870x310 | 21308MBK/W33 | 40x90x23 | |||||
23296MBK/W33 | 480x870x310 | 21309MB/W33 | 45x100x25 | |||||
232/500MB/W33 | 500x920x336 | 21309MBK/W33 | 45x100x25 | |||||
232/500MBK/W33 | 500x920x336 | 21310MB/W33 | 50x110x27 | |||||
232/530MB/W33 | 530x980x355 | 21310MBK/W33 | 50x110x27 | |||||
232/530MBK/W33 | 530x980x355 | 21311MB/W33 | 55x120x29 | |||||
232/560MB/W33 | 560x1030x365 | 21311MBK/W33 | 55x120x29 | |||||
232/560MBK/W33 | 560x1030x365 | 21312MB/W33 | 60x130x31 | |||||
232/600MB/W33 | 600x1090x388 | 21312MBK/W33 | 60x130x31 | |||||
232/600MBK/W33 | 600x1090x388 | 21313MB/W33 | 65X140X33 | |||||
232/670MB/W33 | 670x1220x438 | 21313MBK/W33 | 65X140X33 | |||||
232/670MBK/W33 | 670x1220x438 | 21314MB/W33 | 70X150X35 | |||||
232/750MB/W33 | 750x1360x475 | 21314MBK/W33 | 70X150X35 | |||||
232/750MBK/W33 | 750x1360x475 | 21315MB/W33 | 75x160x37 | |||||
42 SERIES | 21315MBK/W33 | 75x160x37 | ||||||
24280MB/W33 | 400X720X315 | 21316MB/W33 | 80x170x39 | |||||
24280MBK/W33 | 400X720X315 | 21316MBK/W33 | 80x170x39 | |||||
(0)3 SERIES | 21317MB/W33 | 85x180x41 | ||||||
20313MB/W33 | 65X140X33 | 21317MBK/W33 | 85x180x41 | |||||
20313MBK/W33 | 65X140X33 | 21318MB/W33 | 90x190x43 | |||||
20314MB/W33 | 70X150X35 | 21318MBK/W33 | 90x190x43 | |||||
20314MBK/W33 | 70X150X35 | 21320MB/W33 | 100x215x47 | |||||
13 SERIES | 21320MBK/W33 | 100x215x47 | ||||||
21307MB/W33 | 35x72x23 | 21321MB/W33 | 105x225x49 | |||||
21307MBK/W33 | 35x72x23 | 21321MBK/W33 | 105x225x49 | |||||
21308MB/W33 | 40x90x23 | 21322MB/W33 | 110x240x50 | |||||
21308MBK/W33 | 40x90x23 | 21322MBK/W33 | 110x240x50 | |||||
21309MB/W33 | 45x100x25 | 21324MB/W33 | 120x260x55 | |||||
21309MBK/W33 | 45x100x25 | 21324MBK/W33 | 120x260x55 | |||||
21310MB/W33 | 50x110x27 | 23 SERIES | ||||||
21310MBK/W33 | 50x110x27 | 22307MB/W33 | 35x80x31 | |||||
21311MB/W33 | 55x120x29 | 22307MBK/W33 | 35x80x31 | |||||
21311MBK/W33 | 55x120x29 | 22308MB/W33 | 40x90x33 | |||||
21312MB/W33 | 60x130x31 | 22308MBK/W33 | 40x90x33 | |||||
21312MBK/W33 | 60x130x31 | 22309MB/W33 | 45x100x36 | |||||
21313MB/W33 | 65X140X33 | 22309MBK/W33 | 45x100x36 | |||||
21313MBK/W33 | 65X140X33 | 22310MB/W33 | 50x110x40 | |||||
21314MB/W33 | 70X150X35 | 22310MBK/W33 | 50x110x40 | |||||
21314MBK/W33 | 70X150X35 | 22311MB/W33 | 55x120x43 | |||||
21315MB/W33 | 75x160x37 | 22311MBK/W33 | 55x120x43 | |||||
21315MBK/W33 | 75x160x37 | 22312MB/W33 | 60x130x46 | |||||
21316MB/W33 | 80x170x39 | 22312MBK/W33 | 60x130x46 | |||||
21316MBK/W33 | 80x170x39 | 22313MB/W33 | 65x140x48 | |||||
21317MB/W33 | 85x180x41 | 22313MBK/W33 | 65x140x48 | |||||
21317MBK/W33 | 85x180x41 | 22314MB/W33 | 70x150x51 | |||||
21318MB/W33 | 90x190x43 | 22314MBK/W33 | 70x150x51 | |||||
21318MBK/W33 | 90x190x43 | 22315MB/W33 | 75x160x55 | |||||
21320MB/W33 | 100x215x47 | 22315MBK/W33 | 75x160x55 | |||||
21320MBK/W33 | 100x215x47 | 22316MB/W33 | 80x170x58 | |||||
21321MB/W33 | 105x225x49 | 22316MBK/W33 | 80x170x58 | |||||
21321MBK/W33 | 105x225x49 | 22317MB/W33 | 85x180x60 | |||||
21322MB/W33 | 110x240x50 | 22317MBK/W33 | 85x180x60 | |||||
21322MBK/W33 | 110x240x50 | 22318MB/W33 | 90x190x64 | |||||
21324MB/W33 | 120x260x55 | 22318MBK/W33 | 90x190x64 | |||||
21324MBK/W33 | 120x260x55 | 22319MB/W33 | 95x200x67 | |||||
23 SERIES | 22319MBK/W33 | 95x200x67 | ||||||
22307MB/W33 | 35x80x31 | 22320MB/W33 | 100x215x73 | |||||
22307MBK/W33 | 35x80x31 | 22320MBK/W33 | 100x215x73 | |||||
22308MB/W33 | 40x90x33 | 22322MB/W33 | 110x240x80 | |||||
22308MBK/W33 | 40x90x33 | 22322MBK/W33 | 110x240x80 | |||||
22309MB/W33 | 45x100x36 | 22324MB/W33 | 120x260x80 | |||||
22309MBK/W33 | 45x100x36 | 22324MBK/W33 | 120x260x80 | |||||
22310MB/W33 | 50x110x40 | 22326MB/W33 | 130x280x93 | |||||
22310MBK/W33 | 50x110x40 | 22326MBK/W33 | 130x280x93 | |||||
22311MB/W33 | 55x120x43 | 22328MB/W33 | 140x300x102 | |||||
22311MBK/W33 | 55x120x43 | 22328MBK/W33 | 140x300x102 | |||||
22312MB/W33 | 60x130x46 | 22330MB/W33 | 150x320x108 | |||||
22312MBK/W33 | 60x130x46 | 22330MBK/W33 | 150x320x108 | |||||
22313MB/W33 | 65x140x48 | 22332MB/W33 | 160x340x114 | |||||
22313MBK/W33 | 65x140x48 | 22332MBK/W33 | 160x340x114 | |||||
22314MB/W33 | 70x150x51 | 22334MB/W33 | 170x360x120 | |||||
22314MBK/W33 | 70x150x51 | 22334MBK/W33 | 170x360x120 | |||||
22315MB/W33 | 75x160x55 | 22336MB/W33 | 180x380x126 | |||||
22315MBK/W33 | 75x160x55 | 22336MBK/W33 | 180x380x126 | |||||
22316MB/W33 | 80x170x58 | 22338MB/W33 | 190x400x132 | |||||
22316MBK/W33 | 80x170x58 | 22338MBK/W33 | 190x400x132 | |||||
22317MB/W33 | 85x180x60 | 22340MB/W33 | 200x420x138 | |||||
22317MBK/W33 | 85x180x60 | 22340MBK/W33 | 200x420x138 | |||||
22318MB/W33 | 90x190x64 | 22344MB/W33 | 220x460x145 | |||||
22318MBK/W33 | 90x190x64 | 22344MBK/W33 | 220x460x145 | |||||
22319MB/W33 | 95x200x67 | 22348MB/W33 | 240x500x155 | |||||
22319MBK/W33 | 95x200x67 | 22348MBK/W33 | 240x500x155 | |||||
22320MB/W33 | 100x215x73 | 22352MB/W33 | 260x540x165 | |||||
22320MBK/W33 | 100x215x73 | 22352MBK/W33 | 260x540x165 | |||||
22322MB/W33 | 110x240x80 | 22356MB/W33 | 280x580x175 | |||||
22322MBK/W33 | 110x240x80 | 22356MBK/W33 | 280x580x175 | |||||
22324MB/W33 | 120x260x80 | 22368MB/W33 | 340x | |||||
22324MBK/W33 | 120x260x80 | 22368MBK/W33 | 340x | |||||
22326MB/W33 | 130x280x93 | 22372MB/W33 | 360x750x244 | |||||
22326MBK/W33 | 130x280x93 | 22372MBK/W33 | 360x750x244 | |||||
22328MB/W33 | 140x300x102 | 22376MB/W33 | 380x780x230 | |||||
22328MBK/W33 | 140x300x102 | 22376MBK/W33 | 380x780x230 | |||||
22330MB/W33 | 150x320x108 | 22380MB/W33 | 400x820x243 | |||||
22330MBK/W33 | 150x320x108 | 22380MBK/W33 | 400x820x243 | |||||
22332MB/W33 | 160x340x114 | 23322MB/W33 | 110x240x92.1 | |||||
22332MBK/W33 | 160x340x114 | 23322MBK/W33 | 110x240x92.1 | |||||
22334MB/W33 | 170x360x120 | 23328MB/W33 | 140x | |||||
22334MBK/W33 | 170x360x120 | 23328MBK/W33 | 140x300x118 | |||||
22336MB/W33 | 180x380x126 | 23334MB/W33 | 170x360x136 | |||||
22336MBK/W33 | 180x380x126 | 23334MBK/W33 | 170x360x136 | |||||
22338MB/W33 | 190x400x132 | 23340MB/W33 | 200x420x165 | |||||
22338MBK/W33 | 190x400x132 | 23340MBK/W33 | 200x420x165 | |||||
22340MB/W33 | 200x420x138 | NON-STANDARD SERIES | ||||||
22340MBK/W33 | 200x420x138 | 2638MB/W33 | 190x | |||||
22344MB/W33 | 220x460x145 | 2638MBK/W33 | 190x | |||||
22344MBK/W33 | 220x460x145 | 2644MB/W33 | 220x320x76 | |||||
22348MB/W33 | 240x500x155 | 2644MBK/W33 | 220x320x76 | |||||
22348MBK/W33 | 240x500x155 | 2650MB/W33 | 250x365x87 | |||||
22352MB/W33 | 260x540x165 | 2650MBK/W33 | 250x365x87 | |||||
22352MBK/W33 | 260x540x165 | 2652MB/W33 | 260x490x153 | |||||
22356MB/W33 | 280x580x175 | 2652MBK/W33 | 260x490x153 | |||||
22356MBK/W33 | 280x580x175 | 2680MB/W33 | 400x590x142 | |||||
22368MB/W33 | 340x | 2680MBK/W33 | 580x | |||||
22368MBK/W33 | 340x | 26/750MB/W33 | 750x1090x310 | |||||
22372MB/W33 | 360x750x244 | 26/750MBK/W33 | 750x1090x310 | |||||
22372MBK/W33 | 360x750x244 | 26/900MB/W33 | 900x1270x365 | |||||
22376MB/W33 | 380x780x230 | 26/900MBK/W33 | 900x1270x365/470 | |||||
22376MBK/W33 | 380x780x230 | |||||||
22380MB/W33 | 400x820x243 | |||||||
22380MBK/W33 | 400x820x243 | |||||||
23322MB/W33 | 110x240x92.1 | |||||||
23322MBK/W33 | 110x240x92.1 | |||||||
23328MB/W33 | 140x | |||||||
23328MBK/W33 | 140x300x118 | |||||||
23334MB/W33 | 170x360x136 | |||||||
23334MBK/W33 | 170x360x136 | |||||||
23340MB/W33 | 200x420x165 | |||||||
23340MBK/W33 | 200x420x165 | |||||||
NON-STANDARD SERIES | ||||||||
2638MB/W33 | 190x | |||||||
2638MBK/W33 | 190x | |||||||
2644MB/W33 | 220x320x76 | |||||||
2644MBK/W33 | 220x320x76 | |||||||
2650MB/W33 | 250x365x87 | |||||||
2650MBK/W33 | 250x365x87 | |||||||
2652MB/W33 | 260x490x153 | |||||||
2652MBK/W33 | 260x490x153 | |||||||
2680MB/W33 | 400x590x142 | |||||||
2680MBK/W33 | 580x | |||||||
26/750MB/W33 | 750x1090x310 | |||||||
26/750MBK/W33 | 750x1090x310 | |||||||
26/900MB/W33 | 900x1270x365 | |||||||
26/900MBK/W33 | 900x1270x365/470 | |||||||
Factory and warehouse
Product packaging
Shipping service
FAQ
.1.What is the producing process?A:Production process including raw material cutting,machine ?
2.How to control the products quality?
A:Combining advanced equipment and strict management,we provide high standard and quality bearings for our customers all over the word.
3: Are you trading company or manufacturer ?
A:processing,grinding,accessoriescleaning,assemble,cleaning,stoving,oil coating,cover pressing,testing,testing,package.
2.How to control the products quality?
A:Combining advanced equipment and strict management,we provide high standard and quality bearings for our customers all over the word.
3: Are you trading company or manufacturer ?
A: We are factory.
4: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
5: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
6: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Похожие товары
