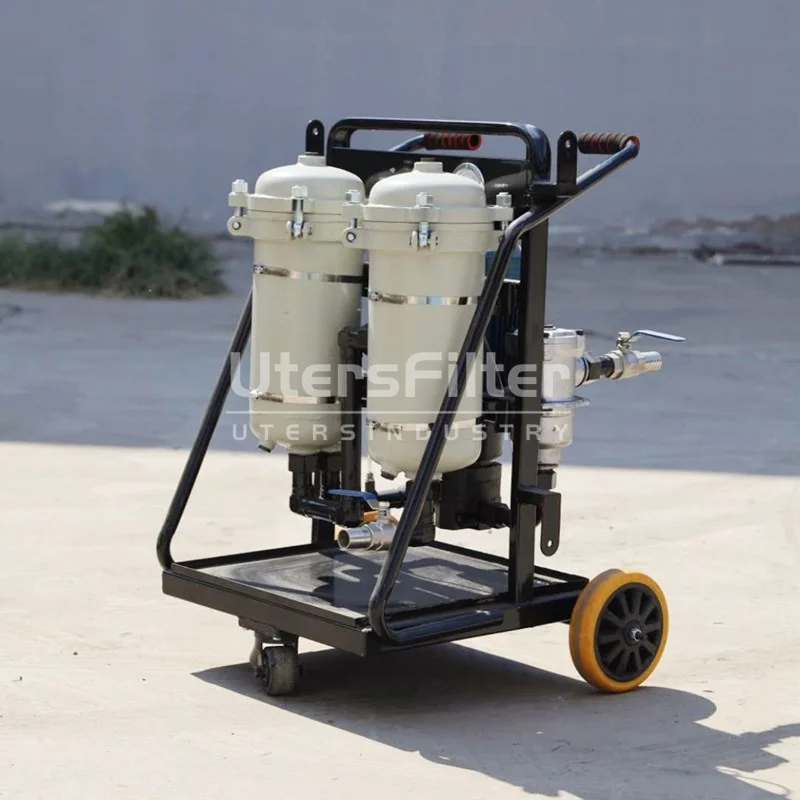

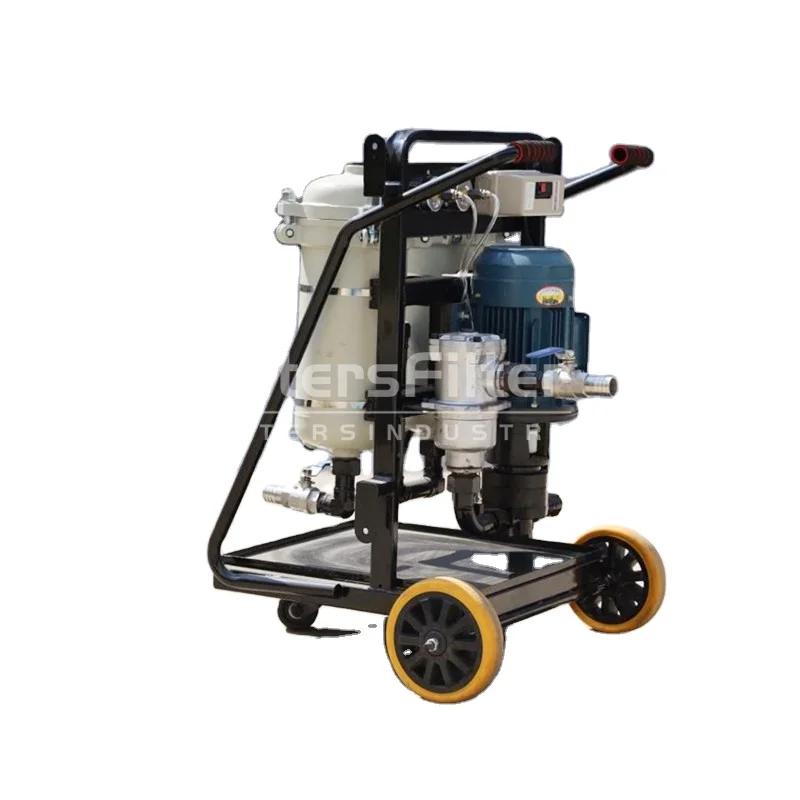

LYC-B серии двойной цилиндр высокой точности

Описание и отзывы

Трекер стоимости

Характеристики

Applications

1.Filtering when the hydraulic lubrication system is refueling

2.Bypass filtration when the hydraulic lubrication system is working

3.Circuit filtration before the hydraulic lubrication system is put into operation

4.The oil of the hydraulic lubrication system is pumped out without the

pump of the equipment itself.



Features

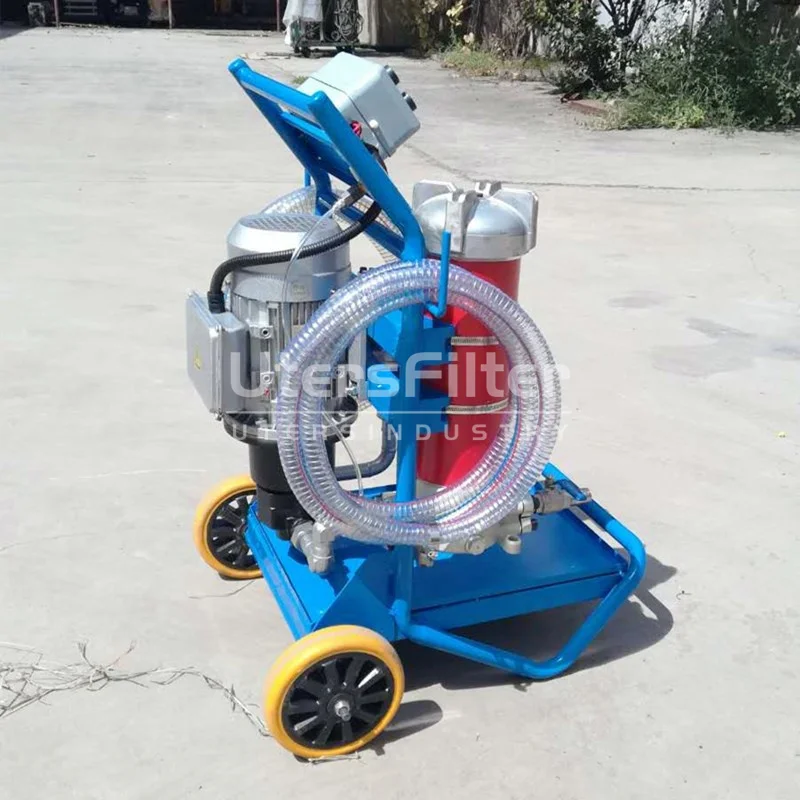

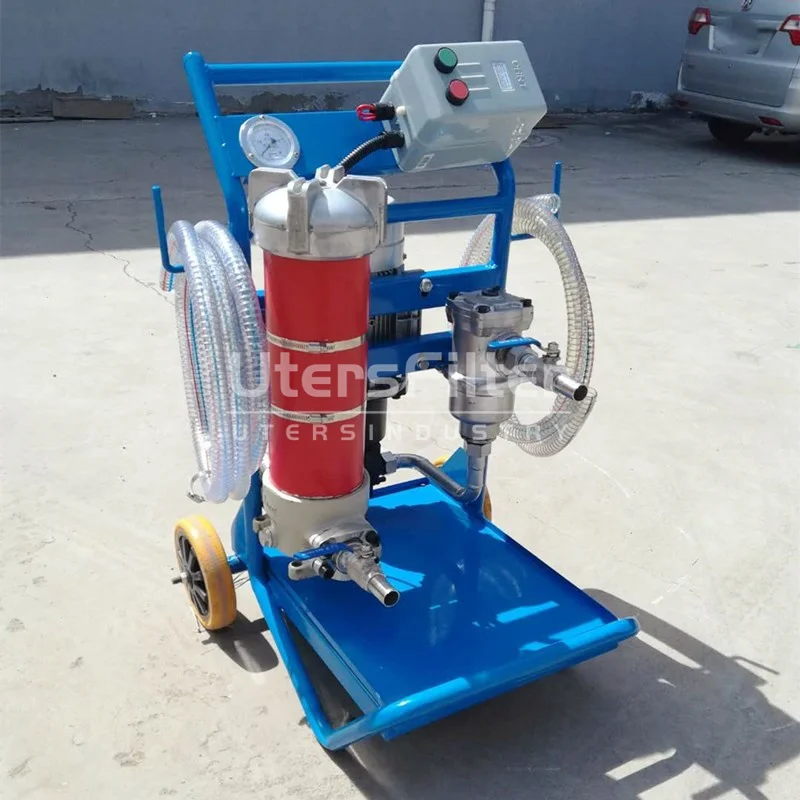

The oil filter includes a special gear pump driven by a motor,

which has the characteristics of low noise, strong self-priming ability and stable operation.

The high pressure pipeline is provided with an overflow protection device to effectively protect the safety of the hydraulic system.

Thermal relay protection is used to prevent motor damage caused by motor overload.

The suction port coarse filter protects the oil pump and extends the life of the main filter.

The fine filter can select different precision according to different needs of users to achieve the desired result.

The oil filter housing has a quick-opening structure that can be quickly and quickly opened without any tools, and the filter element can be replaced. A pressure gauge is mounted on the panel to continuously indicate the operating condition of the system and the degree of contamination of the filter element during operation.



Technical Parameters

Model	LYC-32A -*/**	LYC-50A -*/**	LYC-100A -*/**	LYC-150A -*/**
Rated flow L/min	32	50	100	150
Rated Pressure Mpa	0.6
Original pressure loss Mpa	≤0.02
Coarse filtration accuracy μm	100
Fine filtration precision μm	3,5,10,20,40
Motor Power kw	0.75	1.1	1.1	2.2
Voltage V	AC 380V Three-phase,AC220V Two-phase
Weight kg	75	80	100	120
Dimensions mm	650X680X980	650X680X980	720X680X1020	720X740X1020

Note: * is the precision of the fine filter, such as 003 is 3 microns.

** is the medium to be applied, omitted: general hydraulic oil;

BH: water-glycol;

V: Phosphonate hydraulic fluid

***Adapted to medium viscosity ≤200cSt

Package: wooden box.Usually we use export standard wooden boxes or pallets for heavy goods.

Shipment: Express For Small Package,and also could offer Express lines service for Southeast Asian countries, Central Asian countries,Middle East countries; Air Shipment could ship goods above 45 kgs with faster time; Sea Shipment could ship goods with big volume or heavy total weight,with longer time; China-Europe freight train could ship goods to the countries and regions along the route, the destination is in Europe.and could offer door to door service!
