Сублимационный термопресс для печати на футболках 38*38
US $110.00-$120.00
Сублимационная машина Tumblers термопресс сублимационный принтер 20oz 30
- Категория: Printing Machine >>>
- Поставщик: Shenzhen,Xinhuili,Industrial,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.79 $* | 0.67 $* |
| Aug-20-2025 | 0.29 $* | 0.50 $* |
| Jul-20-2025 | 0.5 $* | 0.55 $* |
| Jun-20-2025 | 0.8 $* | 0.31 $* |
| May-20-2025 | 0.50 $* | 0.7 $* |
| Apr-20-2025 | 0.76 $* | 0.49 $* |
| Mar-20-2025 | 0.71 $* | 0.6 $* |
| Feb-20-2025 | 0.68 $* | 0.61 $* |
| Jan-20-2025 | 0.9 $* | 0.55 $* |
Характеристики

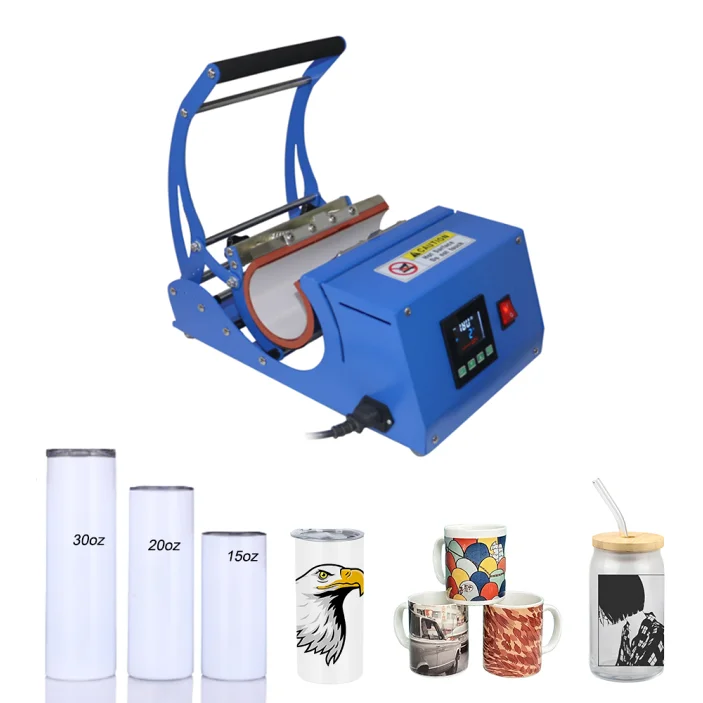

Sublimation Machine Tumblers Heat Press Machine Sublimation Printer Machine 20oz 30 oz
Specification
Product Name | Heat Press Machine |
Size | 44*30*27.5cm |
MOQ | 1set |
Voltage | 110V |
Power | 350W |
Temperature range | 0~480℉(0~250℃) （Normally we set it 356℉) |
Time control range | 1~999Sec (Normally we set it 120~180Sec) |
Temperature error band | +/-3 Celsius degrees |
Working size | 70mm diameter( 20oz )mug heating pad |
Product Description
How to USE

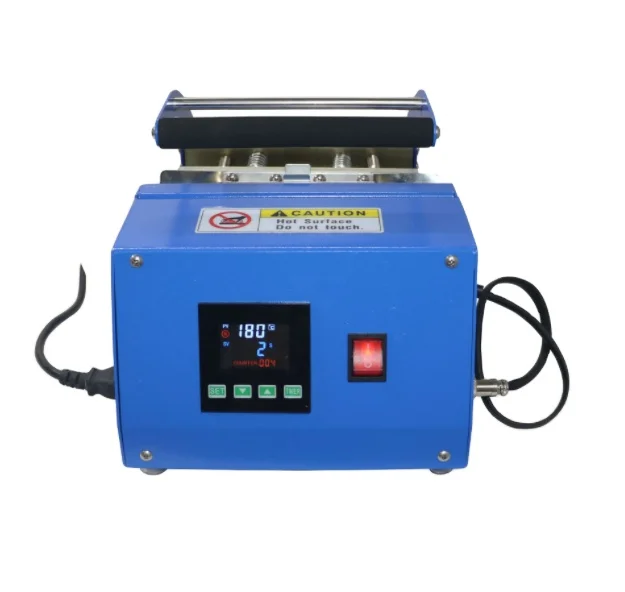

A.Temperature setting
* Fahrenheit or Celsius scale selection
1. Touch “SET” key for 5 seconds, display "C-F"
2. Select Fahrenheit or Celsius scale with "Up" or "Down" button
F: Fahrenheit degree
C: Celsius degree
3. Touch “SET” key for 5 seconds to save
4. Touch “TIMER” button for 5 seconds to resetting the counter
* Fahrenheit or Celsius scale selection
1. Touch “SET” key for 5 seconds, display "C-F"
2. Select Fahrenheit or Celsius scale with "Up" or "Down" button
F: Fahrenheit degree
C: Celsius degree
3. Touch “SET” key for 5 seconds to save
4. Touch “TIMER” button for 5 seconds to resetting the counter
*Working temperature setting
1. Touch "SET" key, it display will show "SP", it means the working temperature,
2. Select desired temperature with "Up" or "Down" button
(If need to add or reduce temperature continuously, touch "Up" or "Down" button for a while. When it reaches the desired
temperature, please release the button.)
Note: Please check the controller setting for C or F degree before setting temperature (default setting: F degree)
B.Time setting
1. Touch "SET" key, it display will show "St", it means the working time,
2. Select desired time with "Up" or "Down" button
(If need to add or reduce time continuously, touch "Up" or "Down" button for a while. When it reaches the desired time, release the button. )
3. Touch "SET" key again to save setting
2. Select desired temperature with "Up" or "Down" button
(If need to add or reduce temperature continuously, touch "Up" or "Down" button for a while. When it reaches the desired
temperature, please release the button.)
Note: Please check the controller setting for C or F degree before setting temperature (default setting: F degree)
B.Time setting
1. Touch "SET" key, it display will show "St", it means the working time,
2. Select desired time with "Up" or "Down" button
(If need to add or reduce time continuously, touch "Up" or "Down" button for a while. When it reaches the desired time, release the button. )
3. Touch "SET" key again to save setting

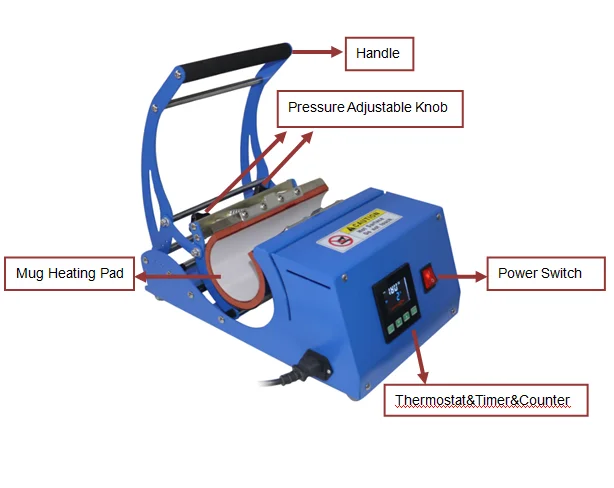

Mug heat press machine operation
1. Securely connect the AC power cord to the unit and mains power
2. Draw down the handle and adjust pressure with mug press pressure knob.
3. Turn on the switch.
4. Set the proper temperature and heating time by the 3 in 1 temperature/time/counter controller. Normally we set it 356℉,120~180Sec.
5. When the temperature reaches to the required level, place the transfer on a mug or any column form you may want to use dye sublimation for. Make sure the pattern side facing to the mug surface.
6. Draw down the handle, then the timer will count down automatically. 7. Pull up the handle to open the heating plate and take out the mug when the alarm alerts.
Please note
1. Be careful of the hot heating attachment.
2. Do not heating up the pad without mug in long time.
3. Make sure the heating temperature and transfer time are correct and suitable.
4. In order to extend the service life, please turn off the machine for 15 minutes after it is working for 4 hours.
5. Please refer to the directions on the transfers before setting the temperature and time. Since the requirements of material and transfer paper are different.
6. Warm-up time is about 5 minutes to 356℉ for the first press.
1. Securely connect the AC power cord to the unit and mains power
2. Draw down the handle and adjust pressure with mug press pressure knob.
3. Turn on the switch.
4. Set the proper temperature and heating time by the 3 in 1 temperature/time/counter controller. Normally we set it 356℉,120~180Sec.
5. When the temperature reaches to the required level, place the transfer on a mug or any column form you may want to use dye sublimation for. Make sure the pattern side facing to the mug surface.
6. Draw down the handle, then the timer will count down automatically. 7. Pull up the handle to open the heating plate and take out the mug when the alarm alerts.
Please note
1. Be careful of the hot heating attachment.
2. Do not heating up the pad without mug in long time.
3. Make sure the heating temperature and transfer time are correct and suitable.
4. In order to extend the service life, please turn off the machine for 15 minutes after it is working for 4 hours.
5. Please refer to the directions on the transfers before setting the temperature and time. Since the requirements of material and transfer paper are different.
6. Warm-up time is about 5 minutes to 356℉ for the first press.
Trouble shootings
1. No action after switching on the power
a. Check the plug to see whether it touches well
b. Check the fuse to see whether it has been burned out
c. Make sure you use the safe ground wire and the voltage is correct
1. No action after switching on the power
a. Check the plug to see whether it touches well
b. Check the fuse to see whether it has been burned out
c. Make sure you use the safe ground wire and the voltage is correct
2. The smell comes out from the plate.
Please pay attention to ventilation and always keep an eye on the wires.
Please pay attention to ventilation and always keep an eye on the wires.
Note: please switch off the machine and unplug the power cord when the machine is not in use.
