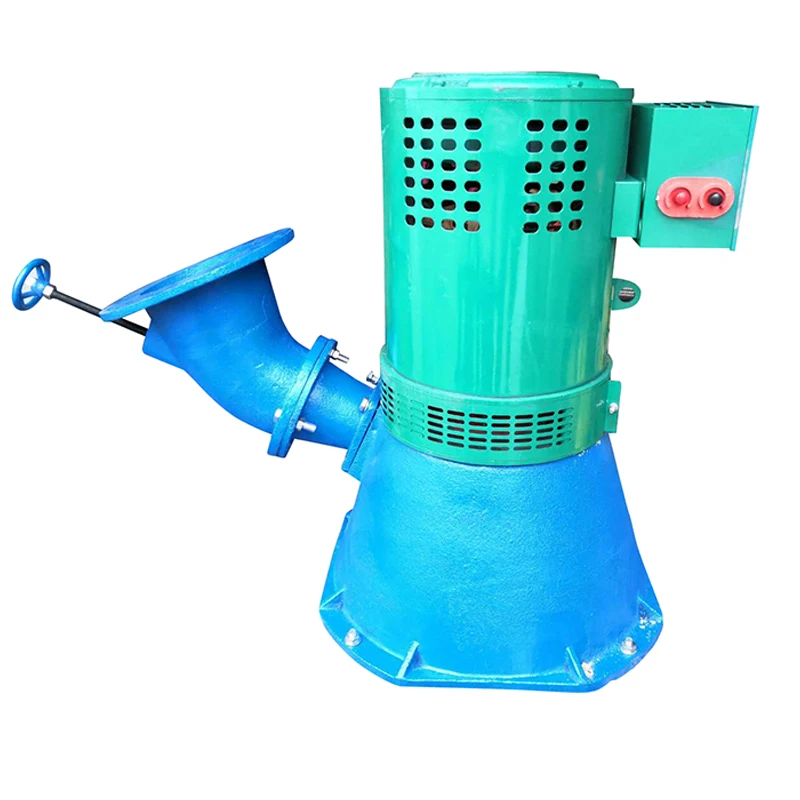

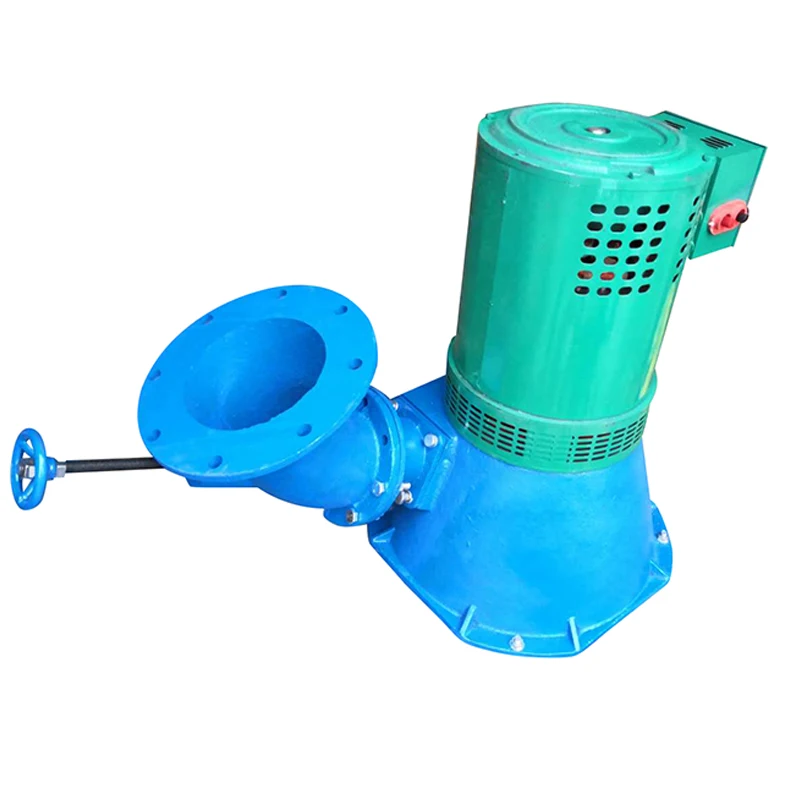

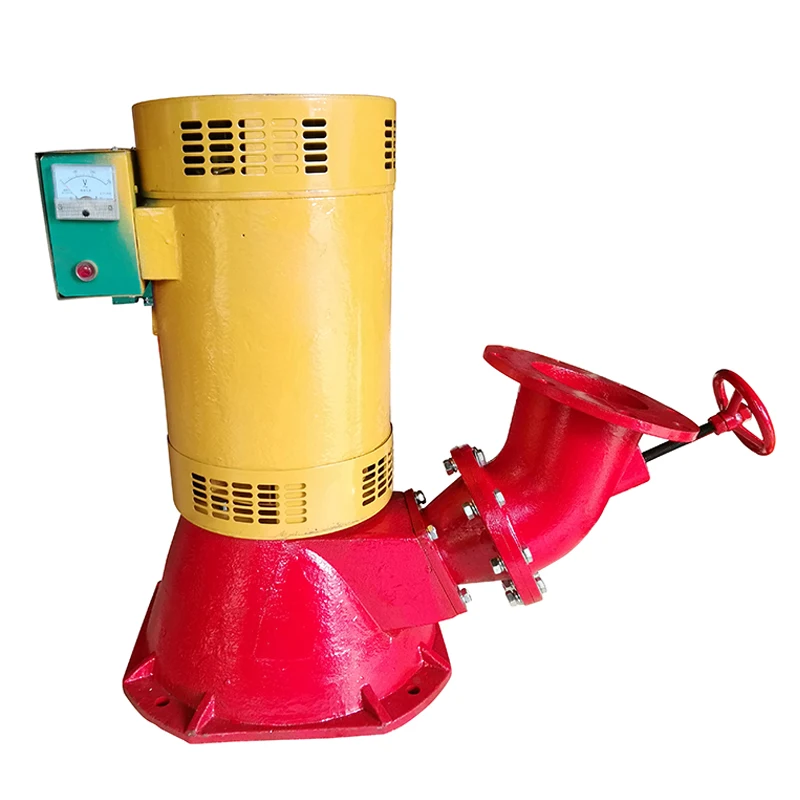

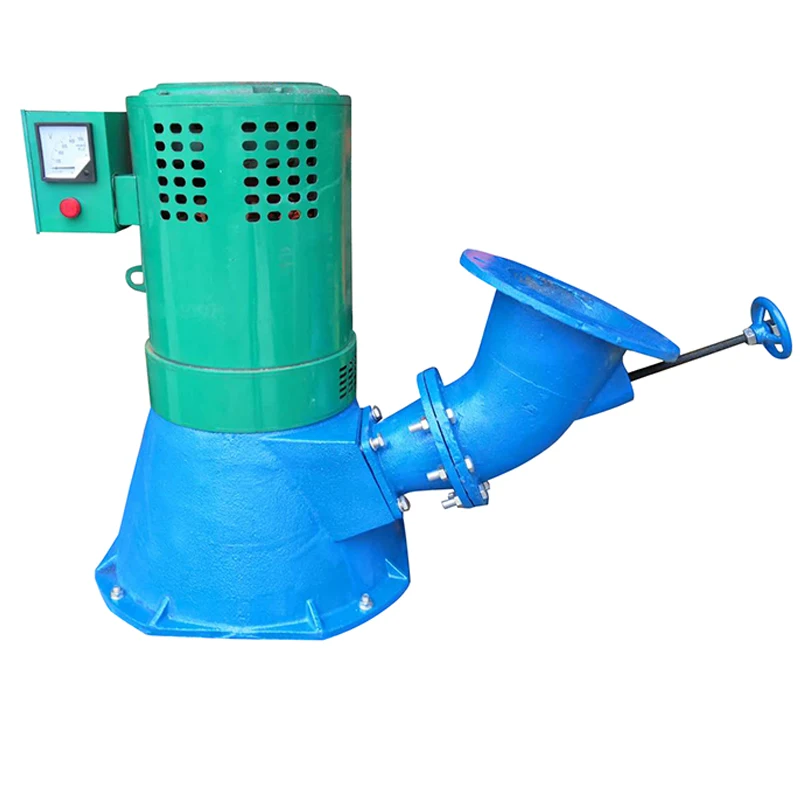

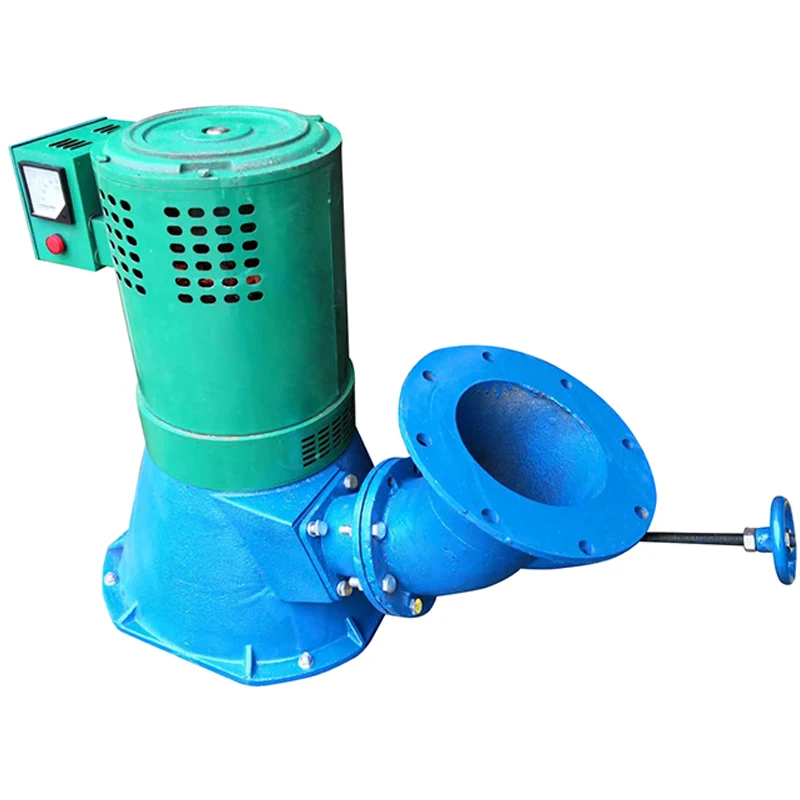

10kw water turbine generators hydro power generator water turbine



Characteristics:



1.Turbine and generator are separated, which is more easy to maintain;



2.Unlike vertical turbine, this turbine is horizontal. The turgo turbine is water lubricated, while the radial turbine has a separate oil lubrication system ensuring a more reliable system. The turbine has 2 bearings, generator has 2 bearing, which is more reliable.



3.The axial force is well balanced by axial force balancing device, therefore it is more reliable.



4.The automatic voltage rectifier is installed within induction generator, the voltage and frequency is more stable than permanent magnetic generator.



Specification:





Power	Water head	Flow Rate	Install pipe diameter	Install Water Head	Weight
3.0kw	15-70m	0.003-0.015 m3/s	50 mm	40m	80 kg
	10-60m	0.005-0.017 m3/s	65 mm	30m
	10-50m	0.008-0.025 m3/s	80 mm	20m
5.0kw	10-50m	0.008-0.025 m3/s	80 mm	40m	140 kg
	10-40m	0.011-0.033 m3/s	100 mm	30m
	10-40m	0.014-0.042 m3/s	150  mm	20m
8.0kw	10-70m	0.008-0.025 m3/s	80 mm	60m	150 kg
	10-70m	0.011-0.033 m3/s	100 mm	45m
	10-70m	0.014-0.045 m3/s	150 mm	30m
10.0kw	10-70m	0.011-0.033 m3/s	100 mm	60m	160 kg
	10-70m	0.011-0.033 m3/s	150 mm	40m
	10-70m	0.015-0.055 m3/s	150 mm	30m
15kw	10-100m	0.015-0.055 m3/s	150 mm	50m	200 kg
	10-100m	0.025-0.11 m3/s	200 mm	30m
20kw	10-100m	0.025-0.11 m3/s	150 mm	50m	220 kg
	10-100m	0.03-0.15 m3/s	200 mm	30m
30kw	10-100m	0.025-0.11 m3/s	200 mm	50m	240 kg
	10-100m	0.03-0.15 m3/s	250 mm	30m
