Keerte TBD-10A двухслойный комбинированный разъем Din Rail клеммные
- Категория: Terminal Blocks >>>
- Поставщик: Keerte,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.71 $* | 0.74 $* |
| Aug-19-2025 | 0.70 $* | 0.91 $* |
| Jul-19-2025 | 0.25 $* | 0.34 $* |
| Jun-19-2025 | 0.63 $* | 0.36 $* |
| May-19-2025 | 0.63 $* | 0.97 $* |
| Apr-19-2025 | 0.41 $* | 0.39 $* |
| Mar-19-2025 | 0.24 $* | 0.7 $* |
| Feb-19-2025 | 0.60 $* | 0.77 $* |
| Jan-19-2025 | 0.25 $* | 0.70 $* |
Характеристики
Product Description

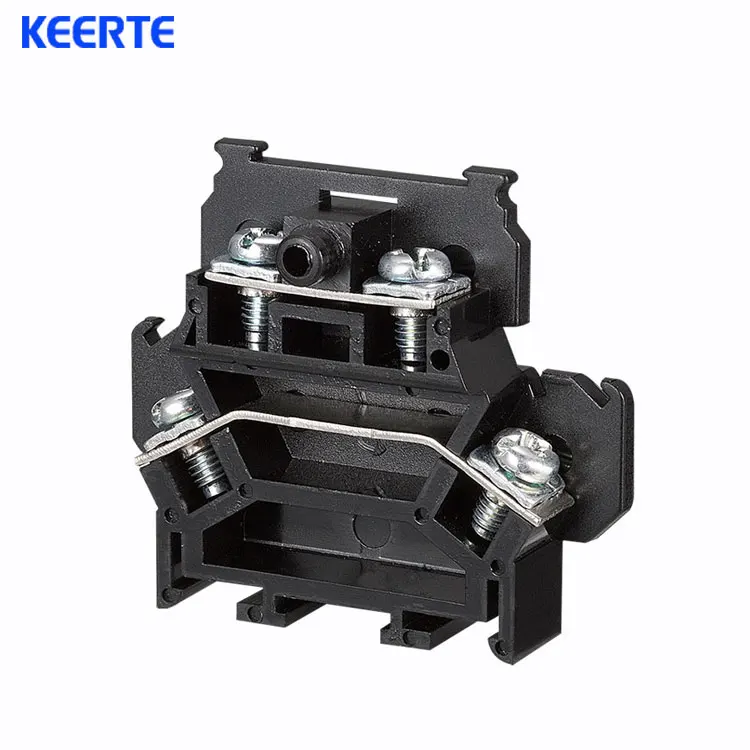

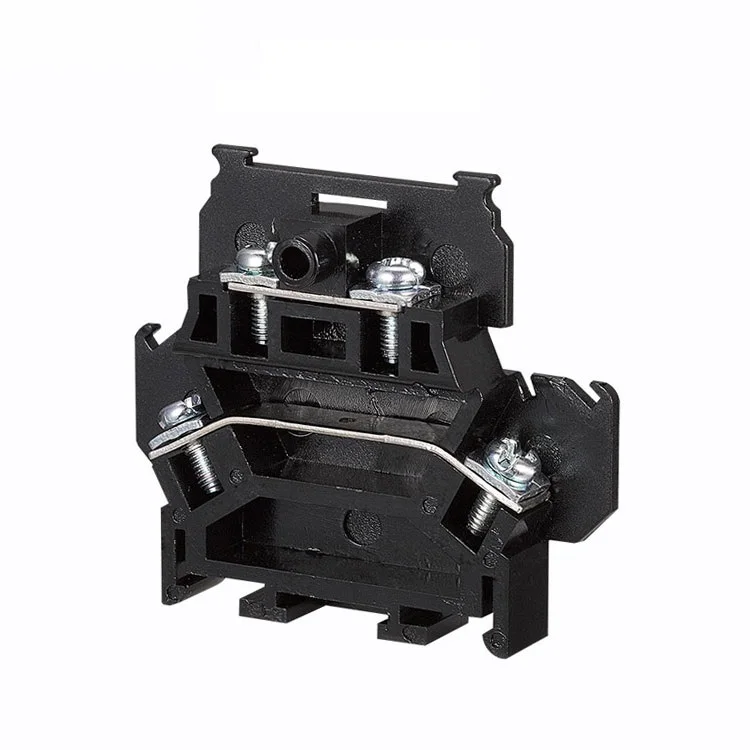

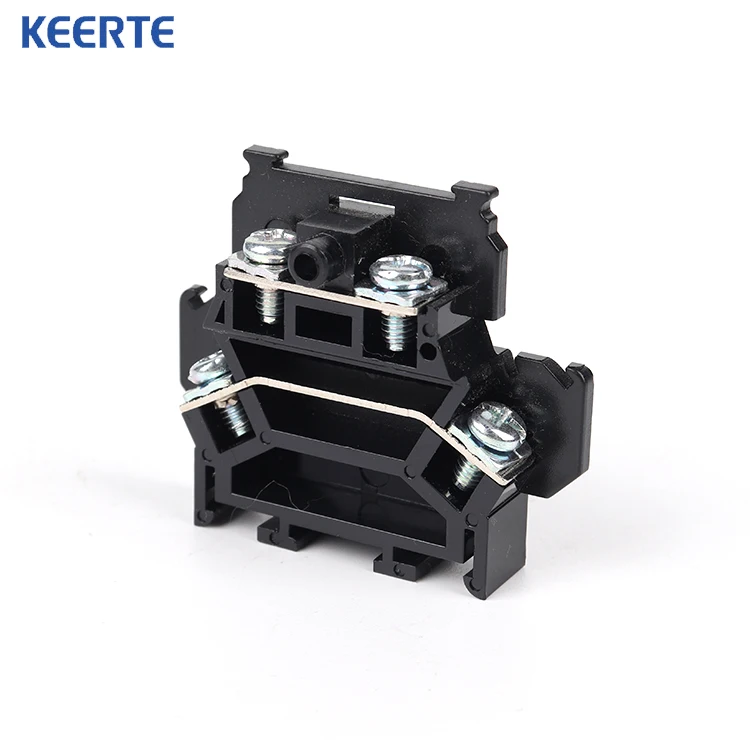

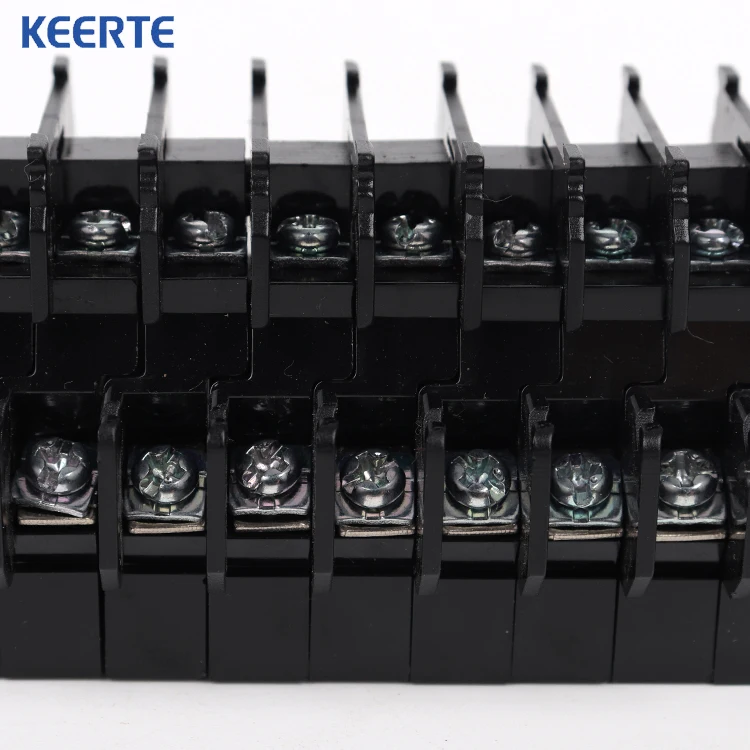

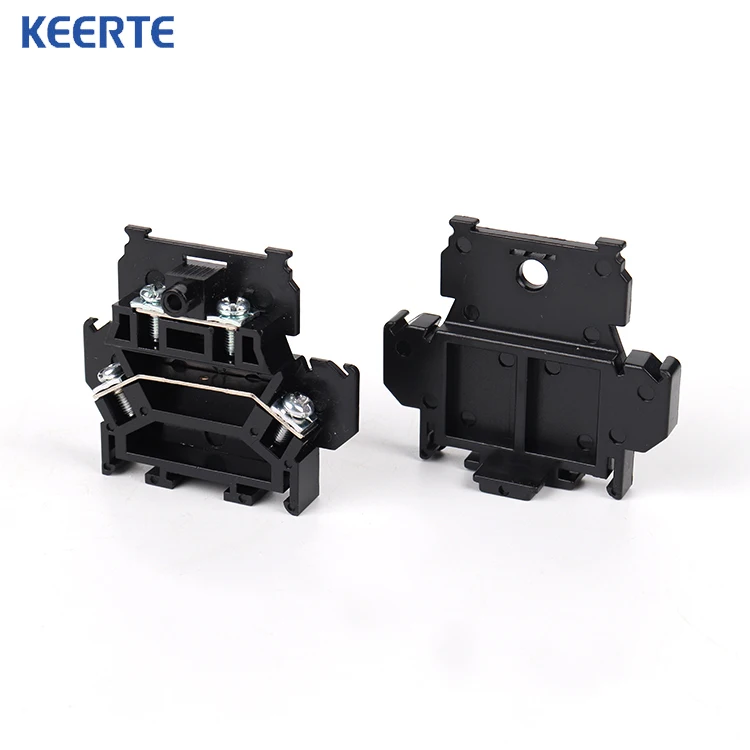

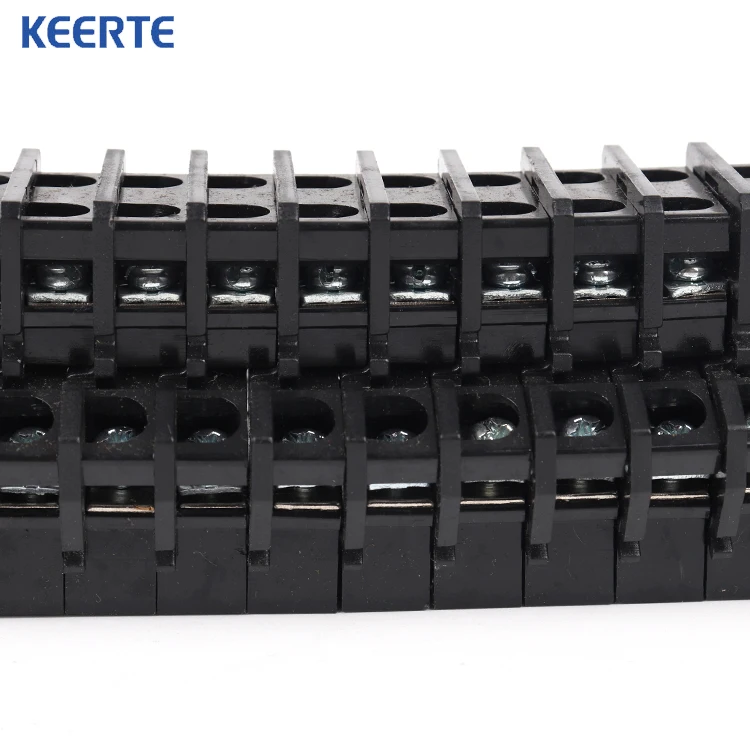

UK series terminals block
The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section.
Characteristics:
1. Terminal: With universal mounting feet, can be installed on tracks NS32 or NS35.2. Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out.
3. Made from engineering flame retardants nylon PA66 with brass screw metal.
4. It can connect two conductors with ease, even large conductor cross sections are not a problem.
5. Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.
6. Two ends on the top with white marking system to realize uniformed sign.
7. Accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.
8. 15 years lifetime.
9. OEM acceptable.
Specification
Model Number | UK-1.5N |
Type | DIN Rail Terminal Blocks |
Rated Voltage | 500V |
Rated Current | 17.5A |
Wiring Section | 1.5mm2 |
Wiring Capacity | 26-16AWG |
Dimension (L*D*H) | 42.5*4.2*40.7mm |
D/C | KET4-UK001 |
Material | PA66 / Copper |
Color | Grey (Red, Blue, Orange, Black Customized) |
Packing & Delivery
Company Profile
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: Our Quality department will carefully check every process in order to meet their standard, such as raw material quality,
Material processing, Assembly process, Finished product performance testing, Packaging material quality.
All the products will be 100% checked before the shipment.
Q3: How long you can give warranty to us?
A3: For all our products, we will give 2 years warranty. If any quality problem happen during this time,we will offer you with
free placement.
Q4: When can I get the company profile, price and product information?
A4:Usually we offer you with these information within 1 hour after we get your inquiry.
Q5: How could I get a sample?
A5: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q6: What is your payment terms?
A6: For first order,we need deposit,then we can start produce goods for you.
After we have good relation and know each other better, you can pay us before shipment and no need deposit,or even we can give you 2-3 months to pay us after shipping.
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: Our Quality department will carefully check every process in order to meet their standard, such as raw material quality,
Material processing, Assembly process, Finished product performance testing, Packaging material quality.
All the products will be 100% checked before the shipment.
Q3: How long you can give warranty to us?
A3: For all our products, we will give 2 years warranty. If any quality problem happen during this time,we will offer you with
free placement.
Q4: When can I get the company profile, price and product information?
A4:Usually we offer you with these information within 1 hour after we get your inquiry.
Q5: How could I get a sample?
A5: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q6: What is your payment terms?
A6: For first order,we need deposit,then we can start produce goods for you.
After we have good relation and know each other better, you can pay us before shipment and no need deposit,or even we can give you 2-3 months to pay us after shipping.
