Прямая продажа с завода Высококачественная пластиковая настенная
- Категория: Anchors >>>
- Поставщик: Langfang,Yifang,Plastic,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.85 $* | 0.85 $* |
| Aug-16-2025 | 0.87 $* | 0.12 $* |
| Jul-16-2025 | 0.89 $* | 0.79 $* |
| Jun-16-2025 | 0.93 $* | 0.36 $* |
| May-16-2025 | 0.31 $* | 0.85 $* |
| Apr-16-2025 | 0.36 $* | 0.89 $* |
| Mar-16-2025 | 0.42 $* | 0.93 $* |
| Feb-16-2025 | 0.95 $* | 0.14 $* |
| Jan-16-2025 | 0.39 $* | 0.44 $* |
Характеристики
Product Description
It is insulation board fixed on the wall of a kind of special engineering plastic bolts.Of exterior wall thermal insulation for
heat preservation nail is the anchor pieces, widely used in building decoration, wall BaoWenWu anchorage.By galvanized screws, nylon tube rises and the fixed wafers.
We also produce heat preservation nail, Insulation fastener, expansion screw, wall plug, gas nail, factory direct, price
advantage, welcome inquiry!
heat preservation nail is the anchor pieces, widely used in building decoration, wall BaoWenWu anchorage.By galvanized screws, nylon tube rises and the fixed wafers.
We also produce heat preservation nail, Insulation fastener, expansion screw, wall plug, gas nail, factory direct, price
advantage, welcome inquiry!
Specification
Material: | PE, PP, Nylon |
Color: | White, gray, yellow, blue, green, red and so on |
Length: | 30mm,40mm,50mm,60mm,75mm or by your request |
Standard: | ISO |
Heat Width: | all kinds of |
Application: | widely used for slab heating, enhence the wall of constrction, and for sound insulation. |
Delivery time: | Shipped in 7 days after payment |
Model | Dia(mm) | Length(mm) | Material | Qty/bag |
6*30 | 6 | 30 | PE, PP, Nylon | 2000 |
8*40 | 8 | 40 | PE, PP, Nylon | 500 |
10*50 | 10 | 50 | PE, PP, Nylon | 500 |
12*60 | 12 | 60 | PE, PP, Nylon | 300 |
14*75 | 14 | 75 | PE, PP, Nylon | 200 |

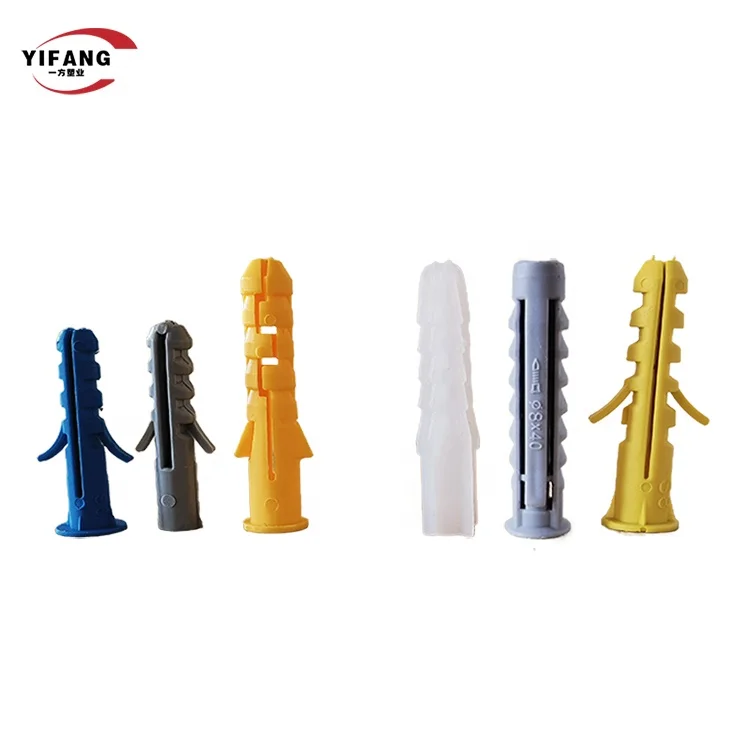

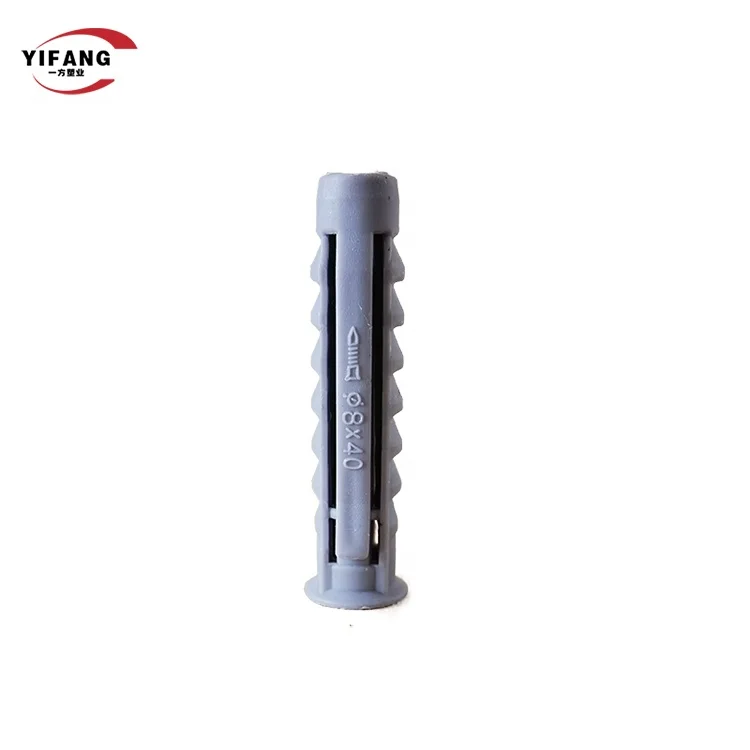

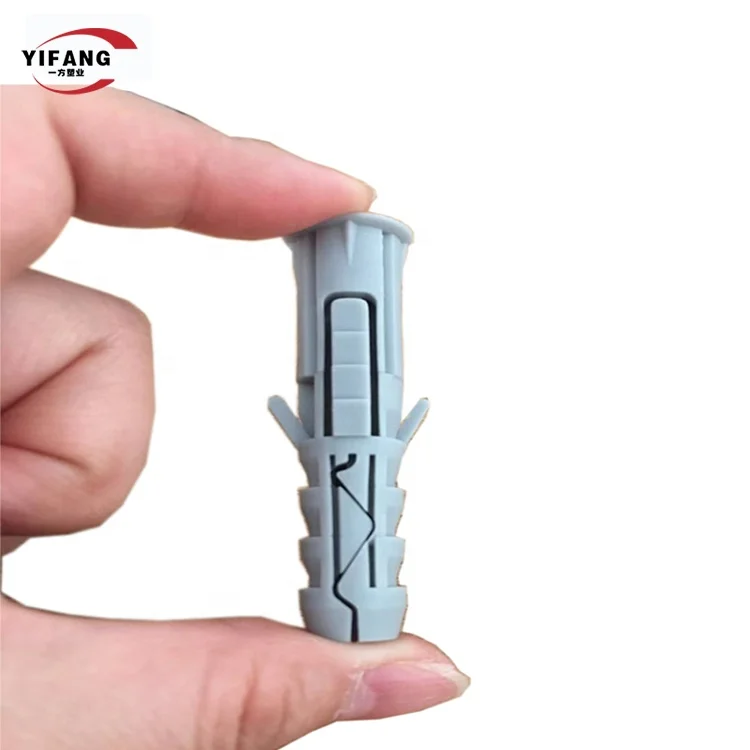

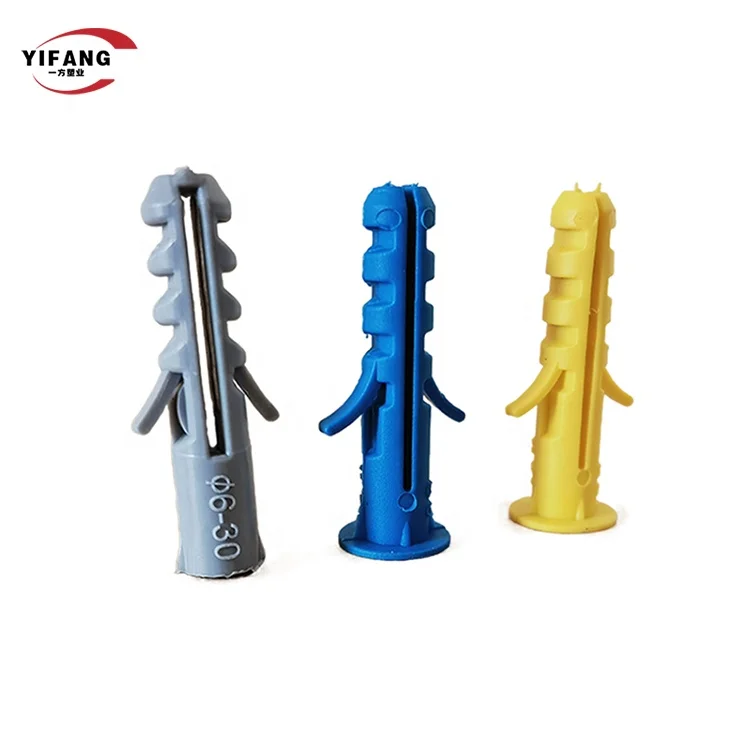

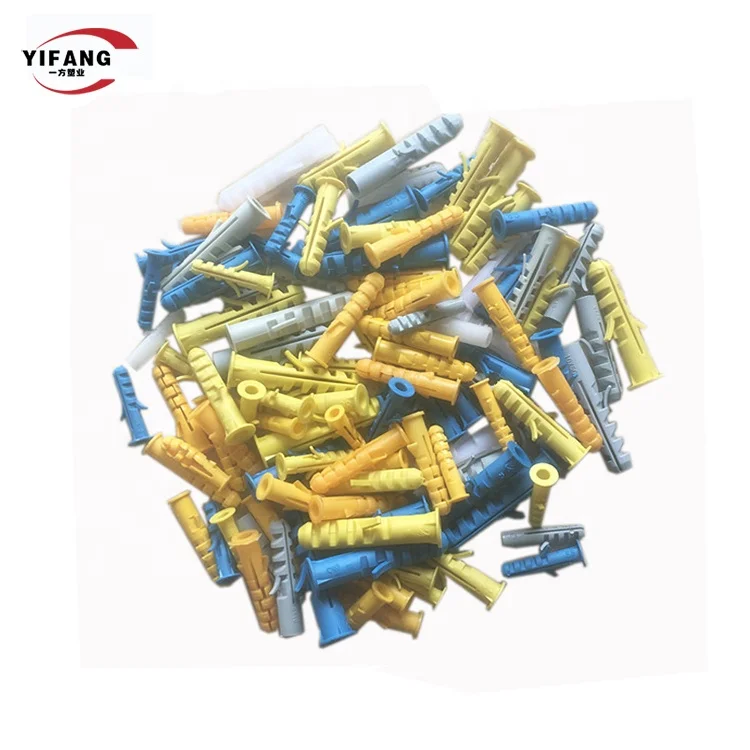

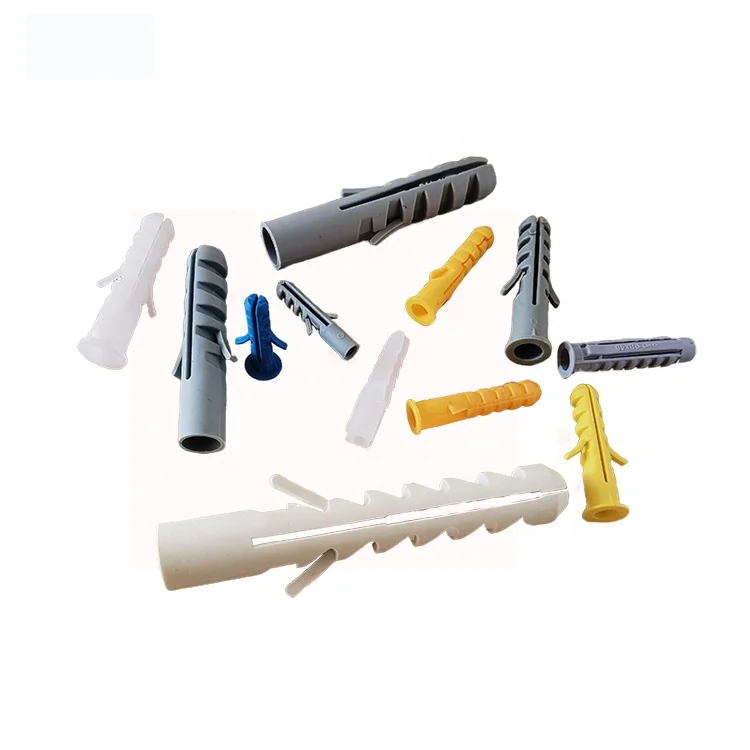

Product Image
PE New Material.
Preferred high quality nylon materials, high bearing capacity, strong and durable, strong corrosion resistance, safe and stable
Axisymmetric Modeling.
The expansion area is divided into two symmetrical parts to avoid damage to the installation foundation and cause anchoring
failure
failure
Expansion Curve.
The expansion curve design of flange inverted hook type greatly increases the anchoring force of anchor bolt
Leaf Wing On Casing.
The blade fins on the casing prevent the expansion tube from rotating and increase friction during installation
Full Expansion.
The thick wall of the high elastic tube makes the expansion tube more fully expanded
Installation Diagram
Matters needing attention:
1. The depth and diameter of the hole need to correspond to the size of the engineering product (example: 6MM size expansion pipe needs to play 6MM hole on the wall).
2, in order to ensure the reliability of the installation, please ensure that the length of the matching screw can penetrate the
expansion tube, and the extension of min is equivalent to the length of one screw diameter.
3. When using a similar situation to a wall corner, etc., ensure that:
(1) The distance between the mounting position of the fish-shaped plastic expansion tube and the angle is above the length of one expansion tube.
(2) The unfolding direction of the fin-shaped anti-rotation structure (ie the direction of expansion) should be parallel to the
edge of the corner.
4. This product is not suitable for use in places where continuous axial tensile loads (such as vertical suspension
installations), and the expansion tube should be protected by min° shear force.
2, in order to ensure the reliability of the installation, please ensure that the length of the matching screw can penetrate the
expansion tube, and the extension of min is equivalent to the length of one screw diameter.
3. When using a similar situation to a wall corner, etc., ensure that:
(1) The distance between the mounting position of the fish-shaped plastic expansion tube and the angle is above the length of one expansion tube.
(2) The unfolding direction of the fin-shaped anti-rotation structure (ie the direction of expansion) should be parallel to the
edge of the corner.
4. This product is not suitable for use in places where continuous axial tensile loads (such as vertical suspension
installations), and the expansion tube should be protected by min° shear force.
Production capacity
In our factory workshop, we have 15-lines production machine who is producing insulation fastener. And about 40,000 pieces production can be produced for a machine-line per day. So we can guarantee the delivery time very fast.
So if you need some special products, give us your darwing or tell us, we can also help you producing them.
So if you need some special products, give us your darwing or tell us, we can also help you producing them.
Packing & Delivery
a. Plastic films + carton+ pallet ；
b. As the client's design.
Company Profile
ABOUT US
___________
LangFang YiFang Plastics Co. Ltd is established in Dacheng County which located in the center of the triangle territory of Beijing, Tianjin and Shijiazhuang. This area with its excellent geographical location and convenient communication.
MORE +
Our company is founded in 2012 and we have made great progress after years of development. We are a high-tech company with the collection capacities of design, manufacturing, sales and research & development services. We have completed product range and strong technical strength, our quality is stable and reliable. We have the home advanced manufacturing equipment and accurate & completed testing equipment as well as we have mastered the advanced process. We are always strictly follow the International standard to control the manufacturing process. Our company guarantee the 0 defect and the safety, stable and reliable with the strict management and completed pre-sales, sales and after-sales services.
Our product: one-piece type heat preservation nails, split type heat preservation nails, shoot nails, nails for air brick, and fasten disc for rock wool board, moreover our company
can manufacture other plastic product.
can manufacture other plastic product.
Over the years our product has been widely recognized and trusted by clients. Our research & development personnel are always follow the market pace for continuous innovation for the purpose of satisfy the demand of changing economy and society.
We sincerely welcome new and old clients from all over the world to work together to create social value and to create brilliant future.
FAQ
Q1: Why choose YIFANG?
A: We provide customers with first-class service, provide high-quality insulation nails, and minimize costs.
Q2: Are you trading company or manufacturer ?
A: We are a professional fastener manufacturer.
Q3:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What payment terms do you accept ?
A: At least 30% TT deposite,the remain balance paid before loading in our factory.
Q5: What's your MOQ? And how does your delivery?
A: MOQ is 10,000pcs in usual. But if your order cannot reach this limit,also want to purchase our products. Don't
worry, We also accept sample orders, if the producing is not too tight.
worry, We also accept sample orders, if the producing is not too tight.
Q6:What’s your Delivery Time?
A: Generally it is 5-15 days，we have 15-lines production machine who is producing insulation fastener. And about 40,000 pieces production can be produced for a machine-line per day. So we can guarantee the delivery time very fast.
Q7:Can you produce according to customers' design?
A:Sure, we are professional manufacturer, OEM and ODM are both welcome. We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
