Product Description

used wheel alignment machine

Feature

●Target plate: No electronic components,
replacing the transmission sensor, eliminating the equipment failure that may be caused by the circuit.

●Equipment calibration:
One-time calibration before leaving the factory, and can be used after installation, without on-site calibration.

●Software system: Easy to operate, complete the cart steps within 5 seconds, read the four-wheel positioning data

●Maintenance: The equipment is easy to
maintain and does not require regular calibration.

Principle of the 3D wheel alignment system:

Obtain the center of the four wheels according to the four targets and construct the reference plane and the centerline of exercise. The position of each target on the plane and the centerline is used to obtain various parameters, thus avoiding the plane and lifting of the vehicle. The measurement deviation caused by the lift platform in a non-level state

Specification

Measurement and readings:

1. Toe/Camber/ Caster/S.A.I (or KPI)

2. Thrust Angle/Chassis wheelbase/wheel track/Rolling Radius/Set-Back

Measure Items	Measure Accuracy Range	Measure Range
Display Precision	0.1mm/0.01°
Toe	±0.01°	±40°
Camber	±0.01°	±45°
Caster	±0.02°	±45°
S.A.I	±0.02°	±45°
Set Back	±0.01°	±40°
Thrust Angle	±0.01°	±40°
Steering Angle	±0.02°	±50°
Track Width	±2mm	1219mm-2438mm
Wheelbase	±2mm	2006mm-4572mm

Details Images

wheel alignment machine parts

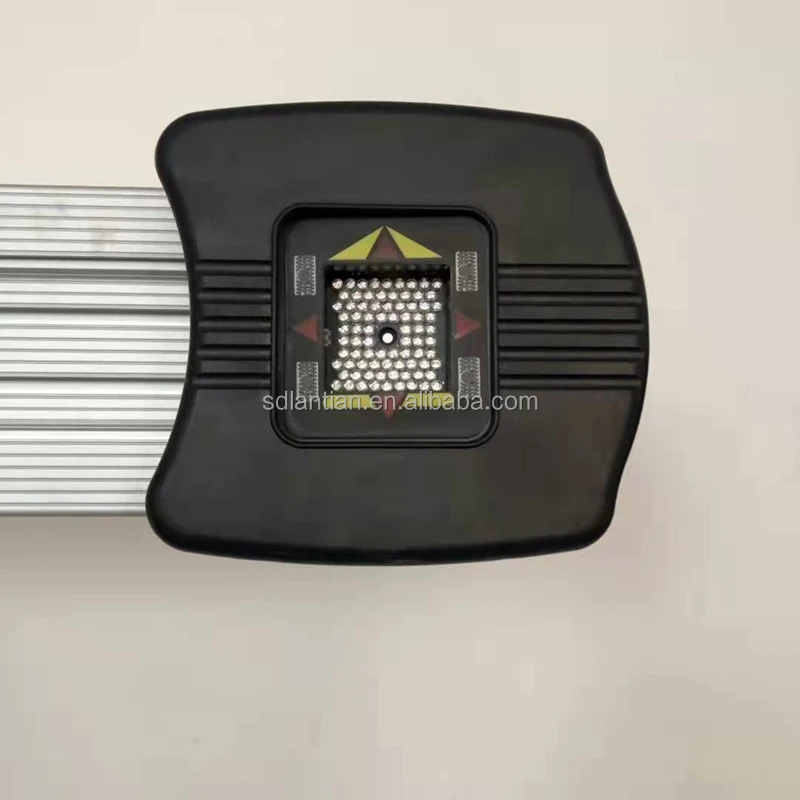

wheel alignment camera

The Sony dedicated industrial camera with 12 million pixels at 60 frames per second can read all the basic data of the four-wheel positioning of the cart within 5 seconds.

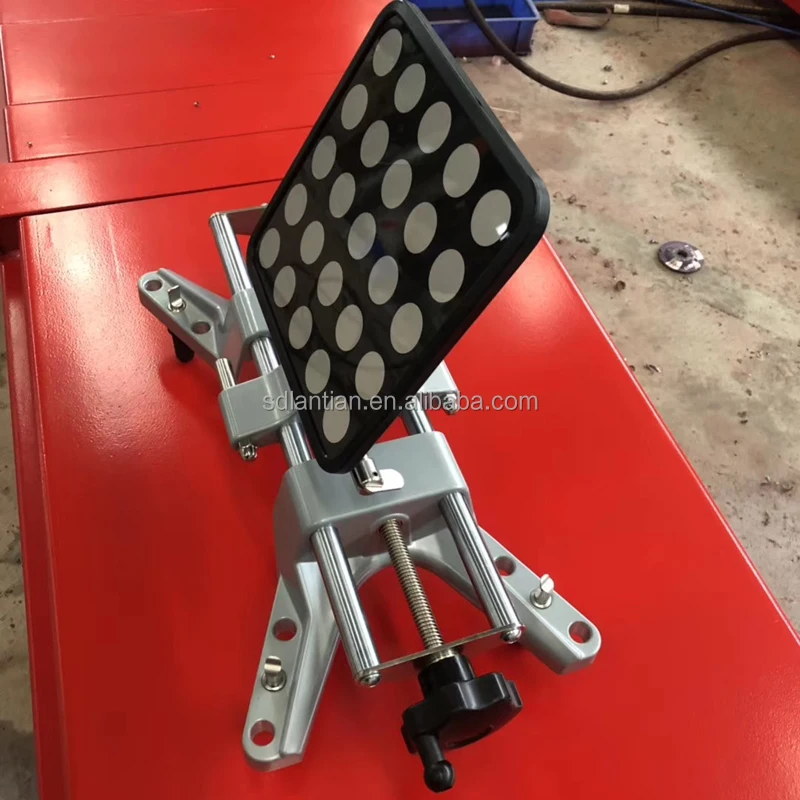

Clamps & Target plate

Fast installation, suitable for all rims between 12”-23”

Apply high strength plastic target, which is lighter, thinner and stronger.

Double displayer of 32 inch

and 22 inch.

Multiscreen four wheel alignment
It can synchronously shows vehicle's rear wheel data and operator can complete adjusting process independently.

wheel alignment software

wheel alignment machine software free download.

Keyboard & Mouse

Standard configuration of one set of Keyboard & Mouse, Lenovo computer host.

wheel alignment turntable plate

Equipped with a 400MM mechanical engraved turntable plate to facilitate the detection of vehicle parameters;

Accessory

Steering wheel lock Brake lock Wedge-shaped Pad*2 Transitional Block*2

Comparasion

WA3D180

WA3D280

WA3D380

Item	WA3D180	WA3D280	WA3D380
Computer	1 set	1 set	1 set
Display	32”	32” and 22”	32” and 22”
Camera	2 sets	2 sets	2 sets
Cabinet	none	Simple cabinet	Movable cabinet
Mouse/keyboard	1 set	1 set	1 set
Pillar	fixed	fixed	Automatic lifting
Camera beam	1 set	1 set	1 set
Pad	1 set/2pcs	1 set/2pcs	1 set/2pcs
Transitional block	1 set/2pcs	1 set/2pcs	1 set/2pcs
Clamp	1 set/4pcs	1 set/4pcs	1 set/4pcs
Target	1 set/4pcs	1 set/4pcs	1 set/4pcs
Turntable	1 set/ 2pcs	1 set/ 2pcs	1 set/ 2pcs
Steering Wheel & Brake Lock	1 set	1 set	1 set
Table PC	None	8”	10”
