Пластиковая дробилка из полипропилена, 800 кг/ч
US $10000-$28000
Двухвальный измельчитель/измельчитель для переработки использованных шин/пластика/дерева используемых в
- Категория: Plastic Crushing Machines >>>
- Поставщик: Suzhou,Famous,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 53550.87 $* | 56228.60 $* |
| Aug-16-2025 | 53100.95 $* | 55755.41 $* |
| Jul-16-2025 | 44550.70 $* | 46778.73 $* |
| Jun-16-2025 | 52200.79 $* | 54810.43 $* |
| May-16-2025 | 45450.24 $* | 47723.13 $* |
| Apr-16-2025 | 51300.58 $* | 53865.45 $* |
| Mar-16-2025 | 50850.78 $* | 53393.91 $* |
| Feb-16-2025 | 50400.89 $* | 52920.40 $* |
| Jan-16-2025 | 49950.12 $* | 52448.58 $* |
Характеристики
Product Image
Screen Size | 30-160mm |
Motor Brand | Simo, Wannan, Siemens, Weg |
Main Motor Power | 22+22kw |
Gear Box | GUOMAO or BONENG |
Main Electrics | Schneider |
Output | 1000-1500kg/Hr |
After Warranty Service: | Video technical support, Online support, Free spare parts, Field installation, commissioning and Trainning, Field Maintenance and Repair Service |
HS Code | 84778000 |
Products Description

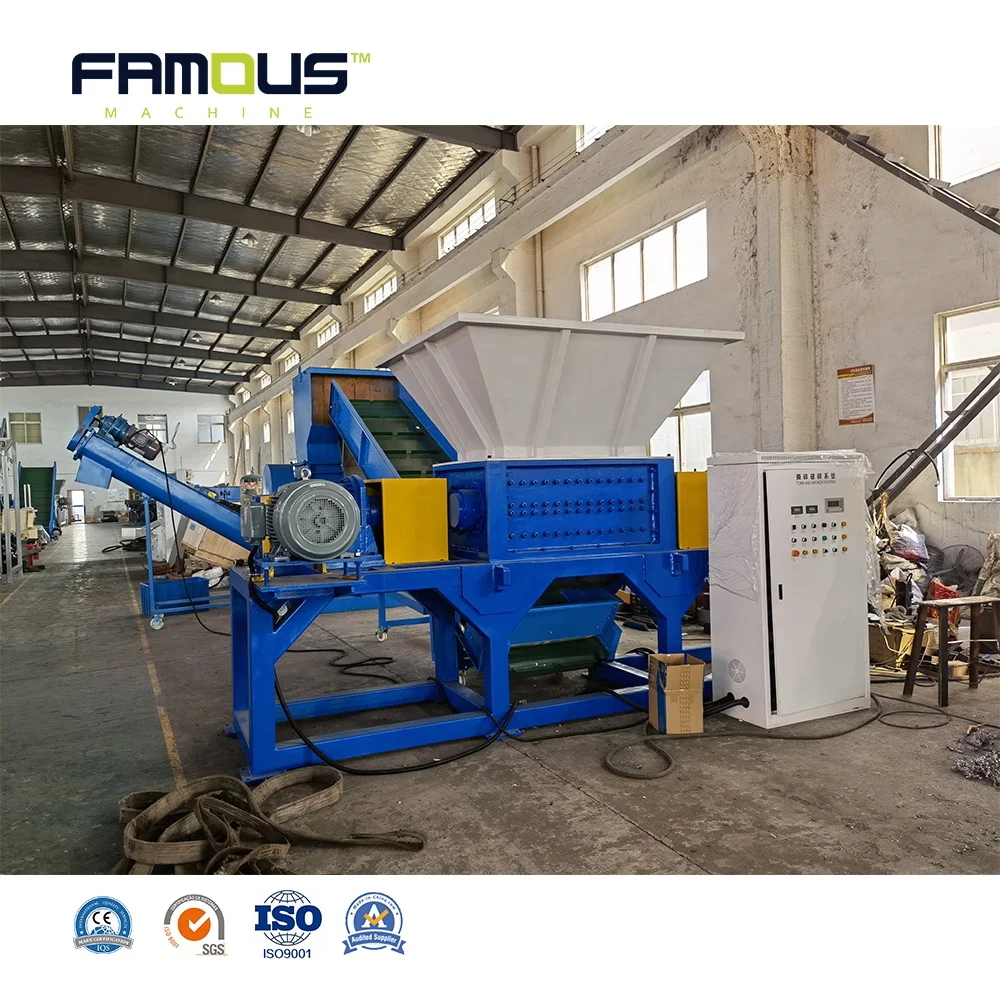

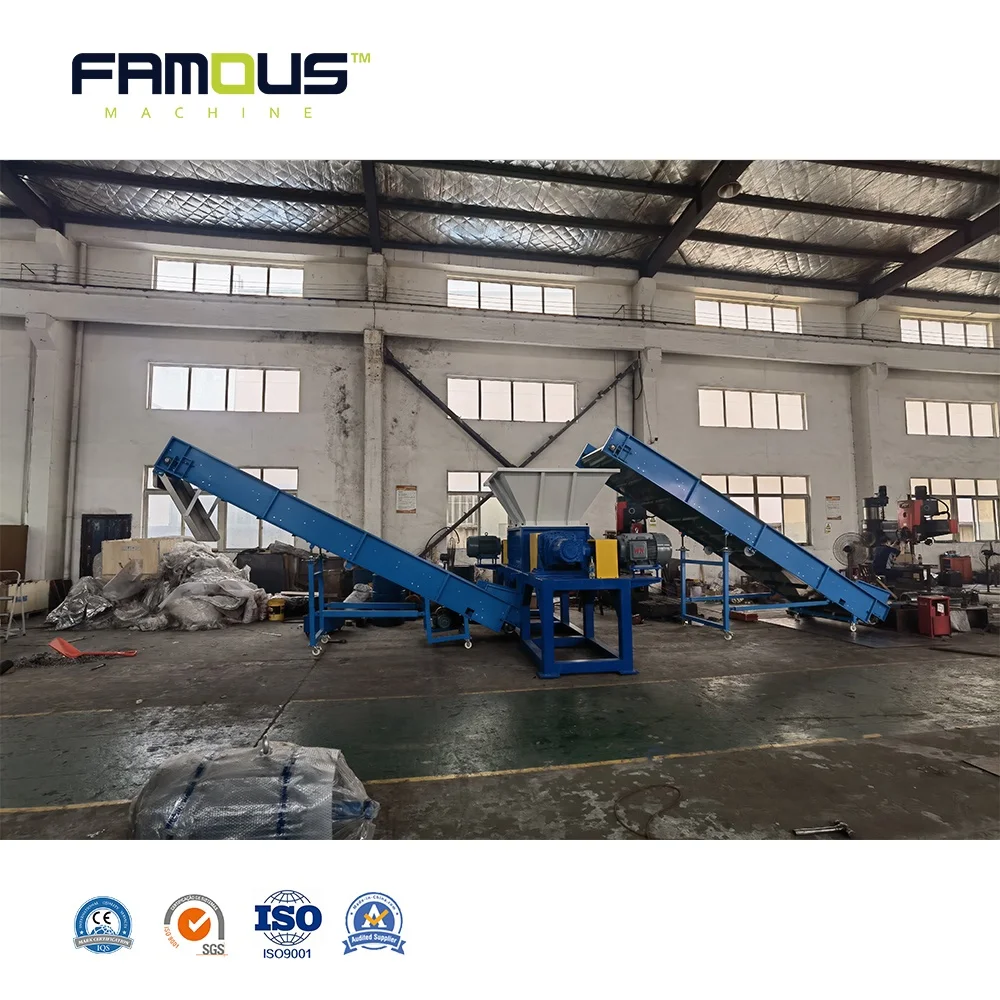

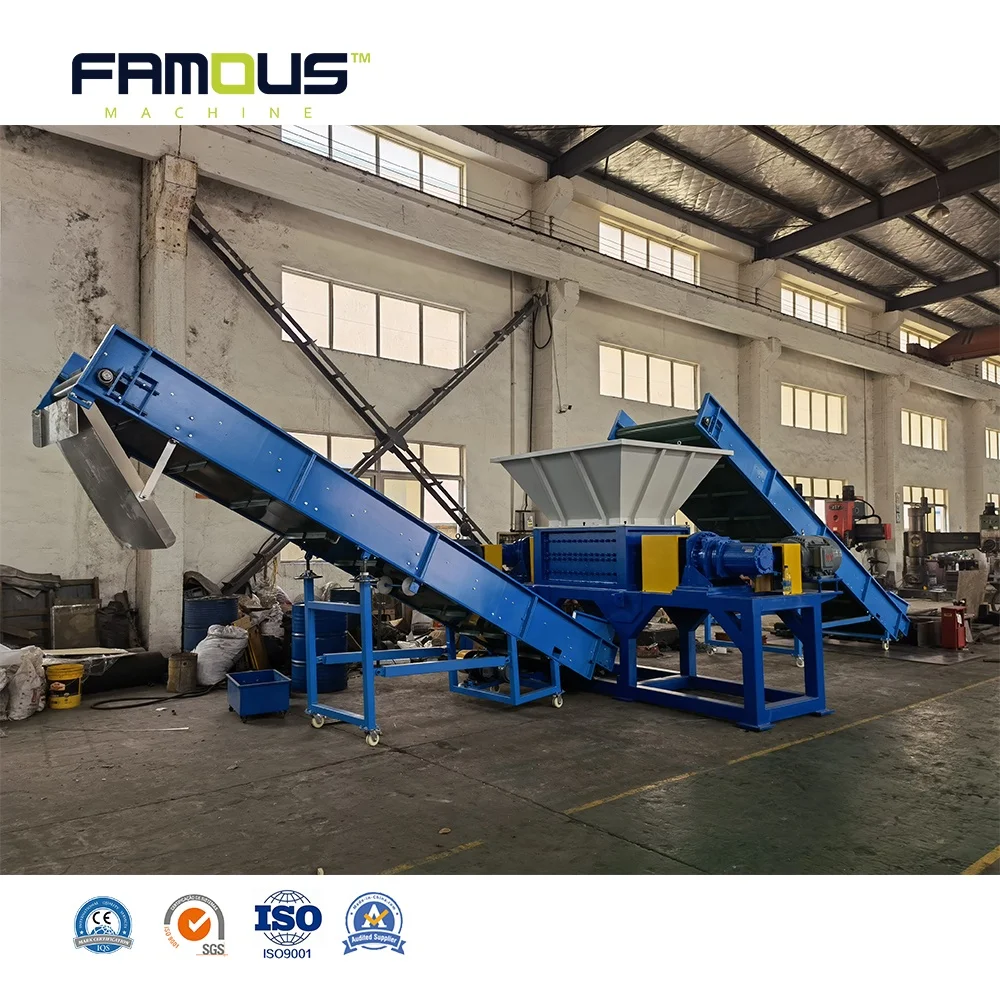

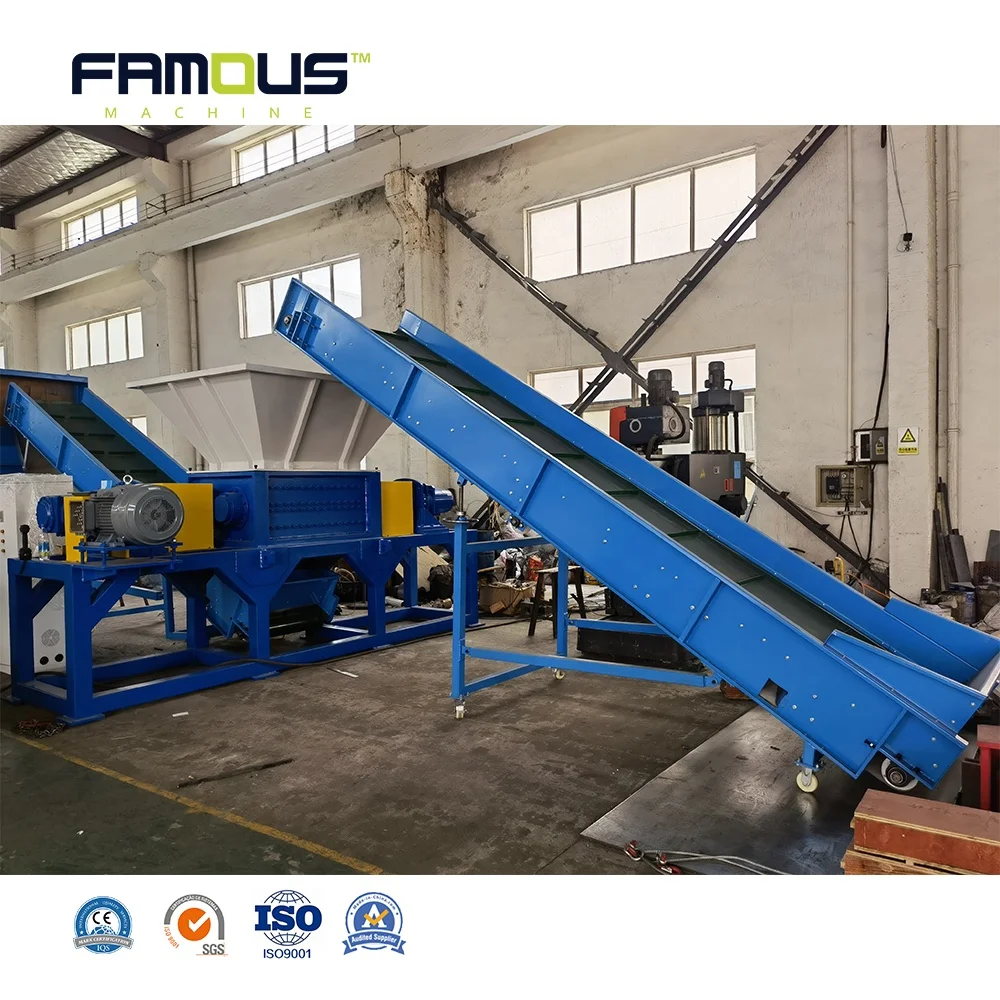

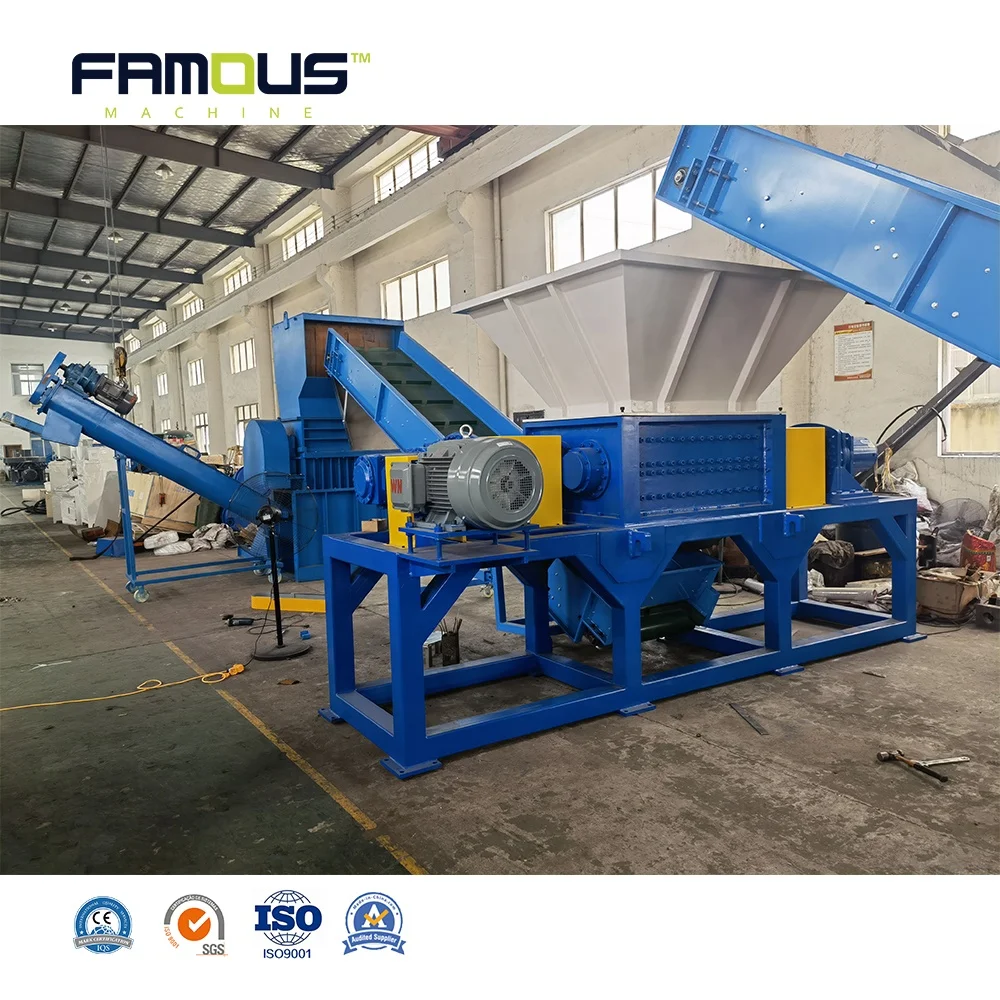

Double Shaft Shredder Machine
Based on different materials, we design the special blades with different hooks, normally, we have single hooks blade, double hooks blades, four hooks blades and multi-hooks blades. Also the thickness of blades for different materials are different, the range is 10mm-80mm. We design single or multi-hooks of blades with different thickness for different materials.
Such as:
The 10 and 20mm thick blades are suitable for fragile materials such as medical packaging and electrical board.
The 40 and 50mm thick blades are widely used for various materials such as tires, plastic products, wood pallets, film and etc.
The 80mm thickness blades are used for shredding metal items or plastic and metal compounds such as refrigerator and drums, the blades can handle material up to 10mm in thickness.
Product Description:
The XD series double shafts shredders have been designed for a wide way of applications and industries, such as: shredding WEEE waste, scrap tires, packaging barrel, pallets, etc. Depending on input materials and the following process the shredded material can be used directly or go into the next step of size reduction. XD's serious double shaft shredder has two rotors built into the machine that rotate at low speeds, high torque and low noise. Adopt with microcomputer control system with function of start, stop, automatic reverse sensors to protect the machine against over loading and jamming.
Based on different materials, we design the special blades with different hooks, normally, we have single hooks blade, double hooks blades, four hooks blades and multi-hooks blades. Also the thickness of blades for different materials are different, the range is 10mm-80mm. We design single or multi-hooks of blades with different thickness for different materials.
Such as:
The 10 and 20mm thick blades are suitable for fragile materials such as medical packaging and electrical board.
The 40 and 50mm thick blades are widely used for various materials such as tires, plastic products, wood pallets, film and etc.
The 80mm thickness blades are used for shredding metal items or plastic and metal compounds such as refrigerator and drums, the blades can handle material up to 10mm in thickness.
Suitable Products:
• PLASTICS
• RUBBER
• WOOD
• BIOMASS
• PAPER
• ALTERNATIVE FUELS (RDF/SRF)
• DOMESTIC & COMMERCIAL WASTE
• PLASTICS
• RUBBER
• WOOD
• BIOMASS
• PAPER
• ALTERNATIVE FUELS (RDF/SRF)
• DOMESTIC & COMMERCIAL WASTE
Product Parameters:
Model | Motor (kw) | Diameter of rotor (mm) | Speed(rpm) | Rotating Knife (pcs) | Fixed Knife (pcs) | Hooks | Weight (kg) |
XD600 | 7.5+7.5 | Φ280 | 16 | 20 | 20 | 5-13 | 2400 |
XD800 | 11+11 | Φ280 | 16 | 16 | 16 | 5-13 | 3700 |
XD1000 | 18.5+18.5 | Φ400 | 16 | 20 | 20 | 5-21 | 4100 |
XD1000 | 22+22 | Φ420 | 16 | 20 | 20 | 5-21 | 4500 |
XD1200 | 37+37 | Φ440 | 16 | 24 | 24 | 5-21 | 6500 |
XD1500 | 55+55 | Φ500 | 16 | 30 | 30 | 5-21 | 8700 |
XD2000 | 90+90 | Φ750 | 16 | 40 | 40 | 5-21 | 9200 |
Product Details
The rotary shaft made by high quality carbon steel, anti-worn
Blade Spacer
Use High quality carbon steel making
Using D-2 material, USA Standard, HRC 58-59 more better than SKD-II, We also can use DC-53 material
Assembling blades
It is easy and quick to replace the blades.
Using Beide brand motor(siemens standard motors ltd in china)
Bearing
Using Japan famous brand- NSKoriginal import from Japan factory
We also supply SKF bearing for customer
Contactors
Use Schneider brand in our control system
Use Siemens PLC for shredder machine
Automatic control rotor shaft positive, negative rotary
Raw material to Final product
Company Profile
SUZHOU FAMOUS MACHINERY CO.,LTD. is located in the national civilized city—Zhangjiagang, it's near the golden waterway of Yangtze River, only 2 hours from Shanghai Pudong airport by car. It covers an area of 10000 square meters, with two machinery workshop. It’s a modernized manufacturing enterprise with machinery, product and technology together.
FAMOUS MACHINERY COMPANY held the mission “turn plastic waste into profit, and make it industrialization”, vigorously develop circular economy, We are dedicated to developing and manufacturing the high technology plastic recycling machinery. Our factory has a history of 20 years of equipment processing and experienced engineers which will ensure the quality for you;
Our main products machinery are at below: 1- Waste PET Recycling Line used to washing the waste PET bottles into clean PET flakes complete line; 2- Waste Plastic Film, Woven bags/Jumbo bags recycling washing line; 3- Plastic granulator line with different model can used for the waste plastic Film, PP woven bags, Jumbo bags, waste PSF/POY textile and fabric, Nylon and for hard plastics such as PE, PP, PET, PS, ABS, EPS, XPS, etc. 4- Plastic Shredder Machinery include the Single Shaft Shredder Machine, Double/Four Shaft Shredder Machine, Twin Roller Shredder Machine; 5- Plastic Crushers: PET bottle crusher, PPPE film crusher, PIPE crusher. 6- Milling Machine: PVC milling machine, PE milling machine, WOOD milling machine. 7- Plastic Mixer: PVC mixer, PE mixer, Wood Plastic Mixer; 8- EPS Foam material recycling machine which includes EPS hot melting machine, EPS compacting machine, EPS crusher. 9- Auxiliary Machine: Agglomeration Machine, Plastic Film Squeezer, Plastic film squeezing pelletizer machine, etc.
FAMOUS MACHINERY COMPANY held the mission “turn plastic waste into profit, and make it industrialization”, vigorously develop circular economy, We are dedicated to developing and manufacturing the high technology plastic recycling machinery. Our factory has a history of 20 years of equipment processing and experienced engineers which will ensure the quality for you;
Our main products machinery are at below: 1- Waste PET Recycling Line used to washing the waste PET bottles into clean PET flakes complete line; 2- Waste Plastic Film, Woven bags/Jumbo bags recycling washing line; 3- Plastic granulator line with different model can used for the waste plastic Film, PP woven bags, Jumbo bags, waste PSF/POY textile and fabric, Nylon and for hard plastics such as PE, PP, PET, PS, ABS, EPS, XPS, etc. 4- Plastic Shredder Machinery include the Single Shaft Shredder Machine, Double/Four Shaft Shredder Machine, Twin Roller Shredder Machine; 5- Plastic Crushers: PET bottle crusher, PPPE film crusher, PIPE crusher. 6- Milling Machine: PVC milling machine, PE milling machine, WOOD milling machine. 7- Plastic Mixer: PVC mixer, PE mixer, Wood Plastic Mixer; 8- EPS Foam material recycling machine which includes EPS hot melting machine, EPS compacting machine, EPS crusher. 9- Auxiliary Machine: Agglomeration Machine, Plastic Film Squeezer, Plastic film squeezing pelletizer machine, etc.
Our Partners
Our Certificates
Exhibition
Our Service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
Package & Delivery
FAQ
Q: Are you a factory or a trading company? |
A: As a professional manufacturer, we have been in plastic recycling machine industry for more than 20 years, our factory is in Zhangjiagang city which is near shanghai and wuxi. |
Q: Do you have any certifications? |
A: Yes, we have ISO, CE, SGS. |
Q: What’s your guarantee or the warranty of the quality if we buy your machines? |
A: We offer you high quality machines with 1 year guarantee and supply life-long technical support. |
Q: When can I get my machine after I paid? |
A: Normally production time is around 45-75days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port. |
Q: How to install my machines when it arrives? how much the cost? |
A: We will send the instruction manual and videos to you, your workers can install the machine according to it. If you still have problems in installing it and need our engineer to help, we will arrange our engineer to debugging the machine for you. At same time our engineer will give training lessons to workers in your factory. Customer pay for visa, round air tickets, accommodation and USD100/day/person. |
Q:How long time for installation? |
A:According your machines order, we will send one or two engineers to your plant, it will take about 15 days to 30 days. |
Q: How about the spare parts? |
A: We will send one year enough easy broken spare parts together with the machines, shipping together. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If it is caused by your incorrect operations, we will provide the spare parts at cost price. |
