Характеристики
Product Description
Factory wholesale new cheap price used wheel alignment machine
Product's feature
(1)3D measurement technology which based on car body, more precision and stable.
(2)Camera measurement system using two cameras and work together with four targets which is a revolutionary measurement method.
(3)Target disk there isn't electronic components inner and instead of traditional electronic sensor. It can more efficiently to eliminate the equipment error which caused by circuit.
(4)Calibration Only need once RCP calibration after installation, process simple and repeated calibration is unnecessary.
(5)Software system Simple operation, measurement can be finished in 2 minutes.
(6)Multi-screen four wheel alignment It can synchronously shows vehicle's rear wheel data and operator can complete adjusting process independently.
Measurement and readings:1. Toe/Camber/ Caster/S.A.I (or KPI)
2. Thrust Angle/Chassis wheelbase/wheel track/Rolling Radius/Set-Back
2. Thrust Angle/Chassis wheelbase/wheel track/Rolling Radius/Set-Back
Measure Items | Measure Accuracy Range | Measure Range |
Display Precision | 0.1mm/0.01° | |
Toe | ±0.01° | ±40° |
Camber | ±0.01° | ±45° |
Caster | ±0.02° | ±45° |
S.A.I | ±0.02° | ±45° |
Set Back | ±0.01° | ±40° |
Thrust Angle | ±0.01° | ±40° |
Steering Angle | ±0.02° | ±50° |
Track Width | ±2mm | 1219mm-2438mm |
Wheelbase | ±2mm | 2006mm-4572mm |
Detailed Images
wheel alignment parts
Double LCD Displayers
3d wheel alignment camera
wheel alignment turntable plate
wheel alignment clamp
Steering Wheel & Brake Lock

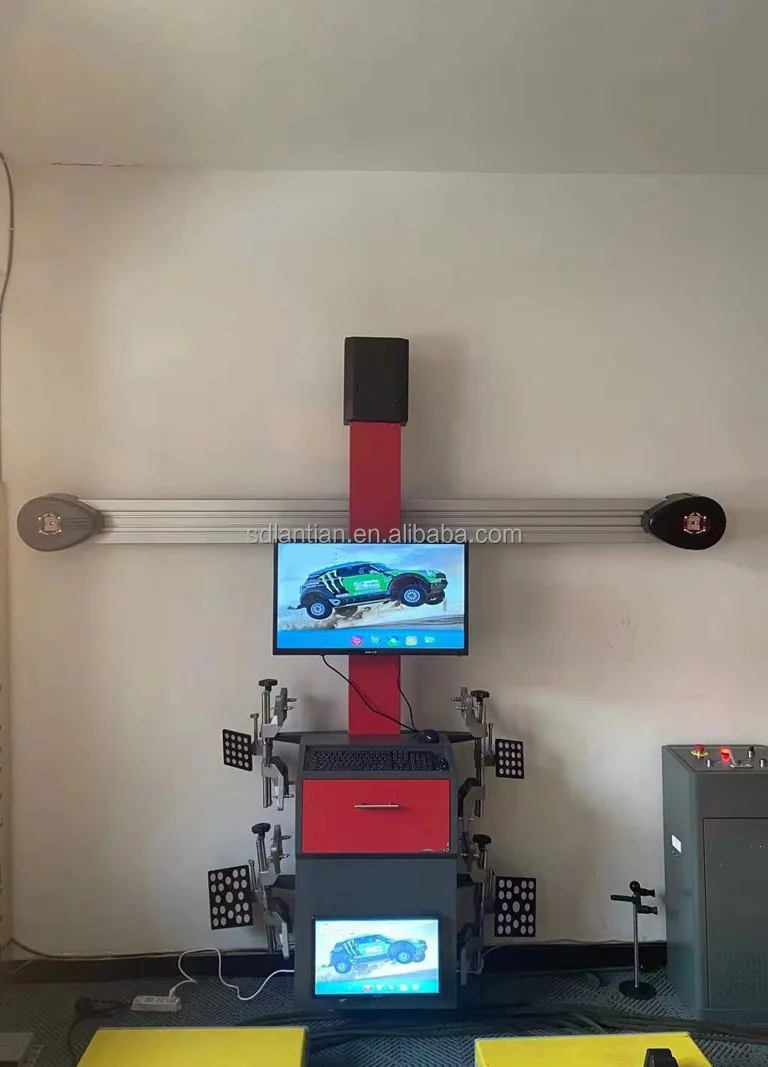

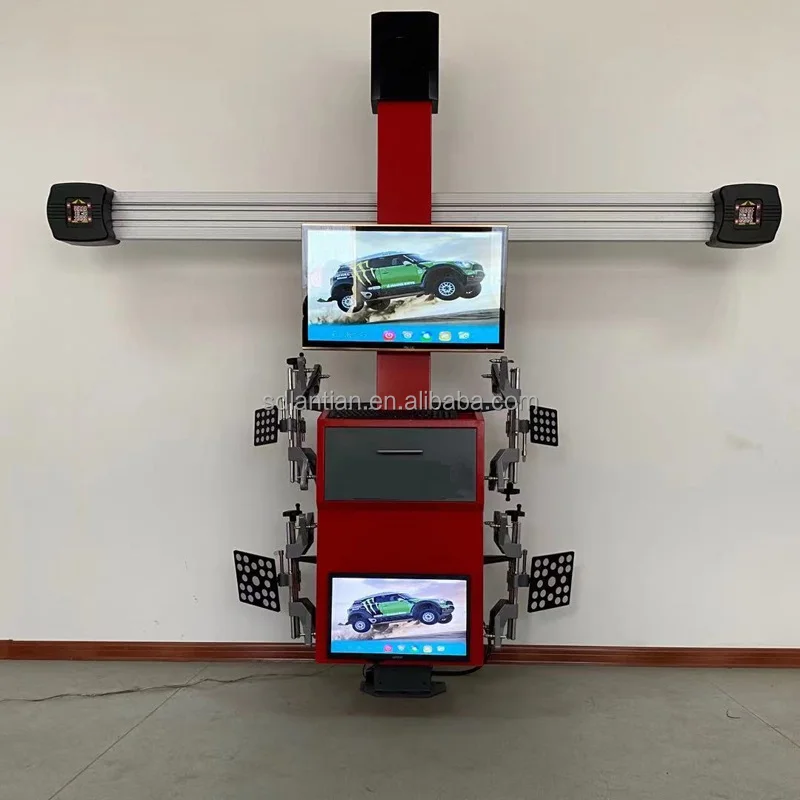

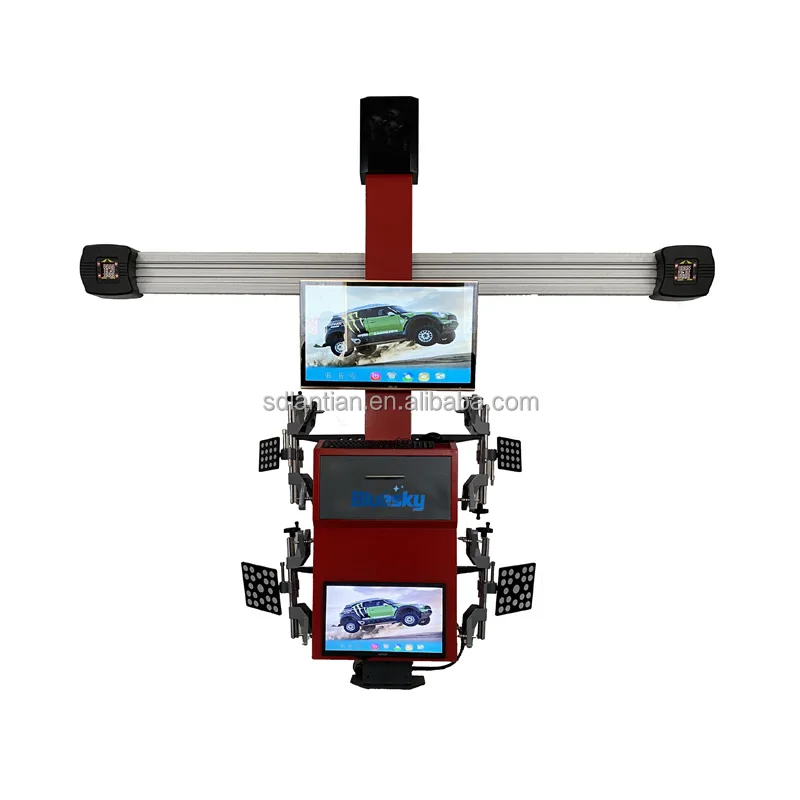

wheel alignment machine
software free download
Standard configuration
Computer | 1 Set |
Displayer | 32"+22" |
Camera | 1 Set/2 pcs |
Camera Beam | 1 Set |
Iron Pillar | 1 Set |
Cabinet | 1 Set |
Clamp/Target | 1 Set/4pcs |
Hanger | 1 Set/4pcs |
Mouse/Keyboard | 1 Set |
Turntable | 1 Set/2pcs |
Eccentric screw and ground pin | 1 Set |
Transitional Block | 1 Set/2pcs |
Steering Wheel & Brake Lock | 1 Set |
Wedge-shaped Pad | 1 Set/2pcs |
Tablet PC | 1 set 8" |
Packing & Delivery
Standard export free fumigation wooden box packaging
1150*700*900mm 2850*350*400mm 150kg
1150*700*900mm 2850*350*400mm 150kg
Customers Feedback

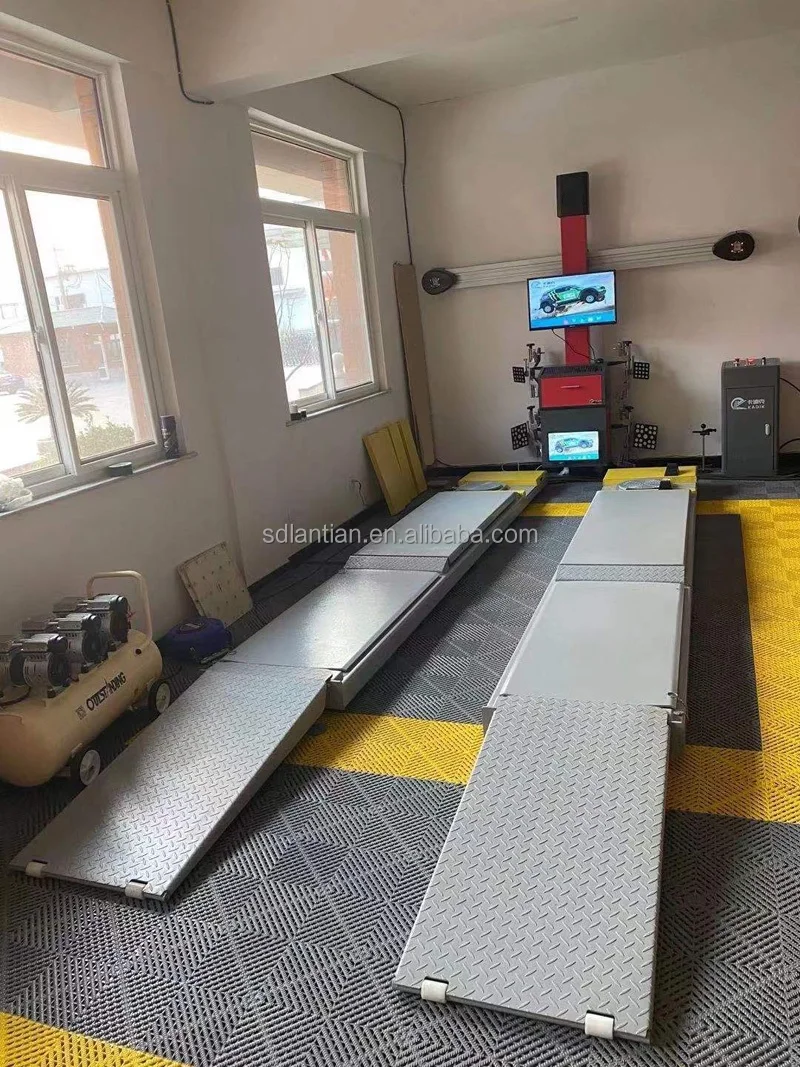

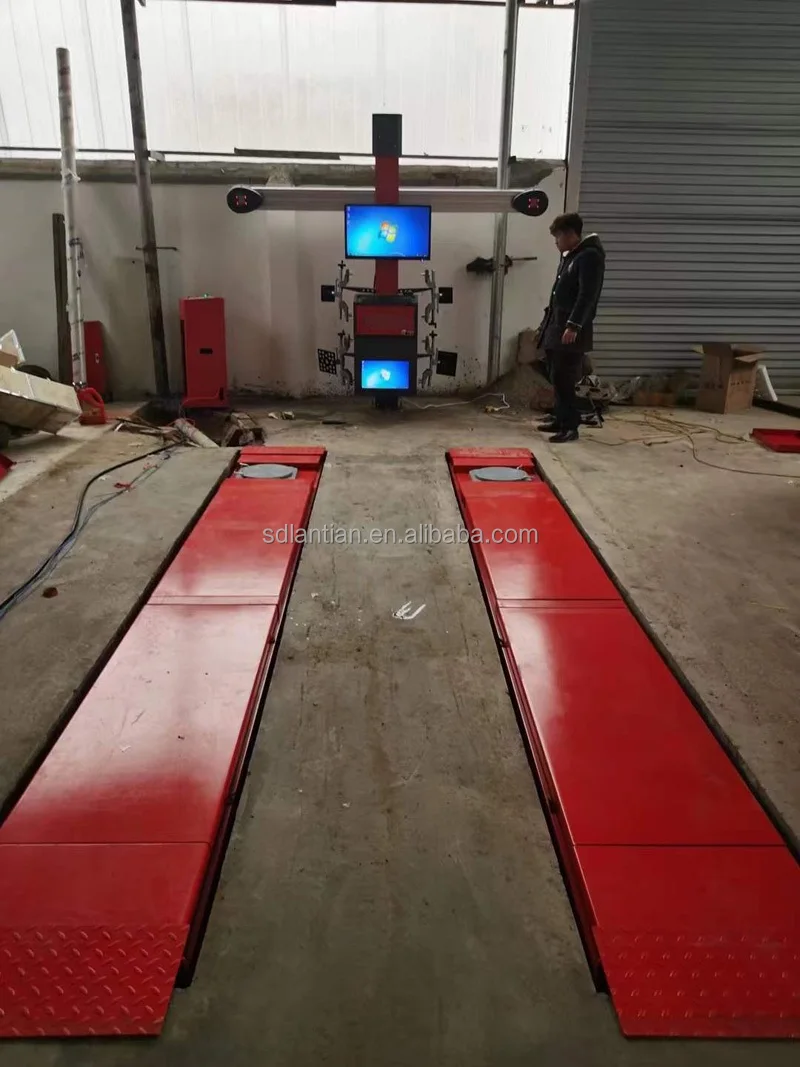

wheel alignment with lifter
Recommend Products
FAQ
FAQ
1) Warranty Policy and Terms.
-The machine warranty is one year(except man-made damage). and if there is any question about
the machine or software, we can offer help by mail, phone call, or online tools like skype, whatsapp etc.
2) Do we need to calibrate for the machine?
The machine only need one calibration and it finished calibration before leaving the factory, because no periodic calibration needed, you don’t need to calibrate again.
3) How do I get help when I have problems with the aligner?
-Online and/or offline help would be offered to work out and solve your problem
