Products Description

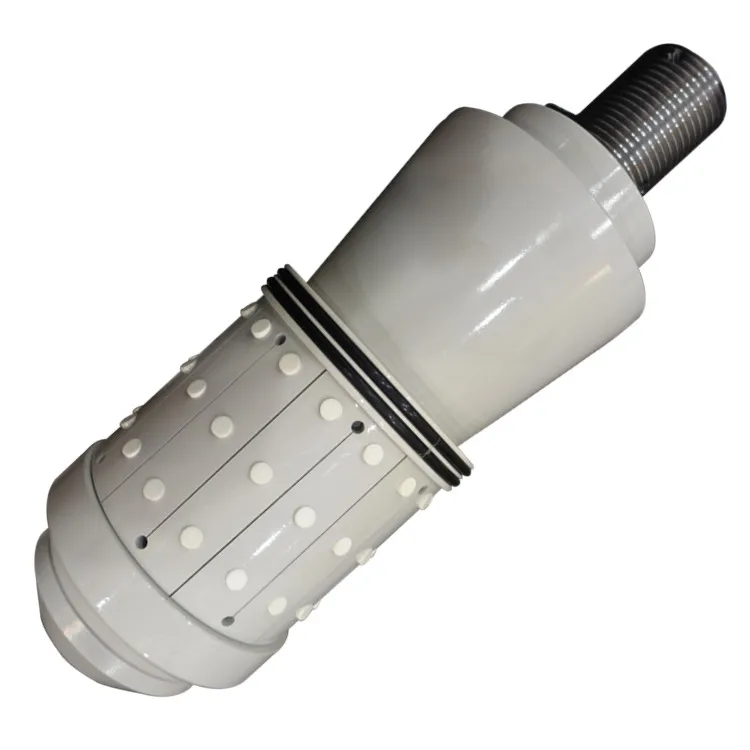

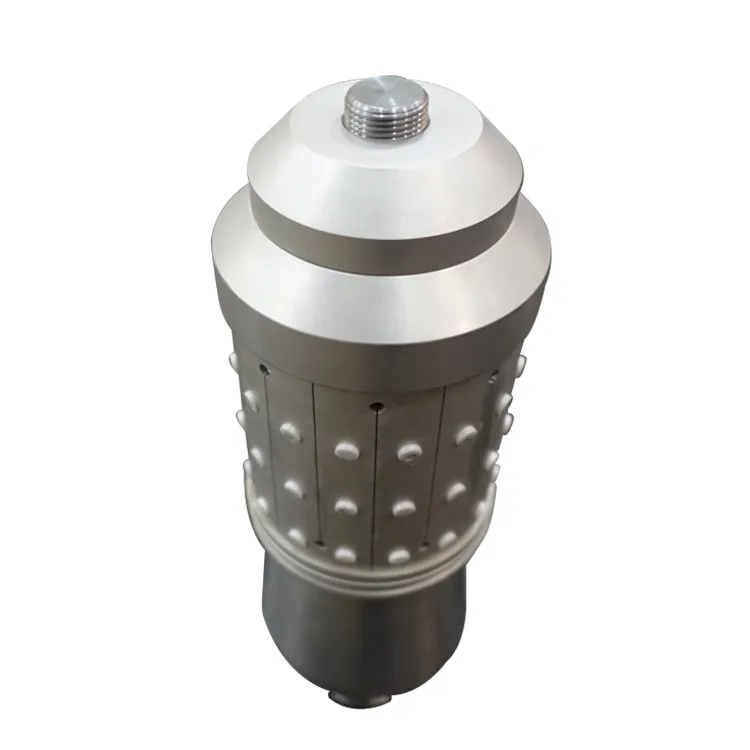

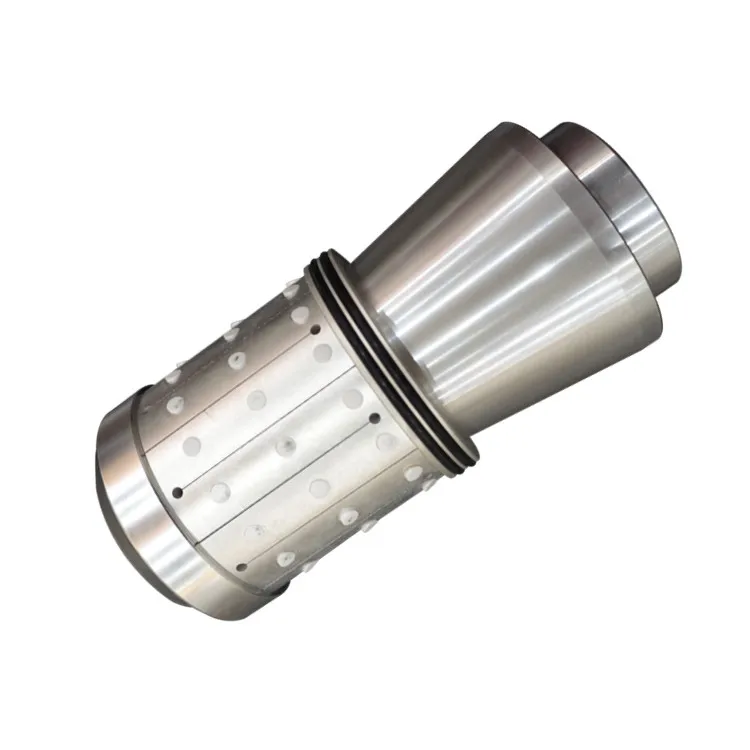

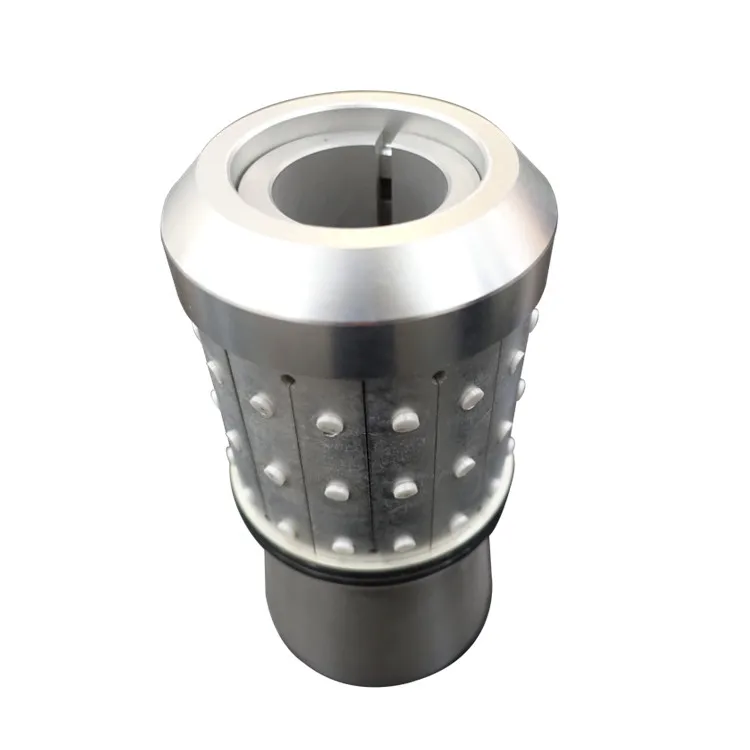

All-Metal Dissolvable Frac Plug
Horizontal well multi-stage efficient fracturing technology Unconventional oil and gas development tool

Mist Series-All-metal soluble bridge plug body is made of high-strength soluble magnesium alloy,and the sealing ring is made of soluble alloy material,the bridge plug can be completely dissolved after fracturing.
Purposes: Mainly used in vertical or horizontal well casing fracturing in layered sections,completion casing open hole layered sectioned fracturing construction or other temporary plugging operations.
Scope of application: suitable for high temperature or low temperature oil and gas wells,working temperature 20-180℃, sealing pressure performance over 90MPa,and dissolution rate after fracturing is controllable and adjustable.

Technical Features:

>Simple structure,easy to operate,with various specifications such as Φ72,Φ88,Φ98,Φ102,Φ108,Φ112,etc.,which can meet the needs of staged fracturing of different well diameters (customizable);
>Dissolution is only affected by stratum salinity;
>Compared with the rubber tube bridge plug,the body length is shorter,the inner diameter is larger,and it is easier to dissolve after fracturing;
>Adapt to Baker #10 & #20 setting tools,the length of the bridge plug body is short,and the displacement of the seat seal is short;
>Compared with the rubber-cylinder sealed type dissolvable bridge plug,it has "lower temperature resistance,higher high temperature resistance,20-160℃",dissolves more thoroughly after pressing,truly realizes "full soluble";
>Compared with similar foreign products,the advantage of "small diameter sealing large borehole" is obvious.

Model	Casing Inner Diameter (mm)	Body Length (mm)	Working Pressure (MPa)	Setting Tool	Working Temperature
HHY25R-85-70-M2	φ99.6 φ101.6	240	90	Brico#10	20-180℃
HHY25R-88-70-M2	φ104.8	255	90	Brico#10	20-180℃
HHY25R-98-70-M1	φ114.3	270	90	Brico#20	20-180℃
HHY25R-108-70-M1	φ121.4 φ124.3	310	90	Brico#20	20-180℃
