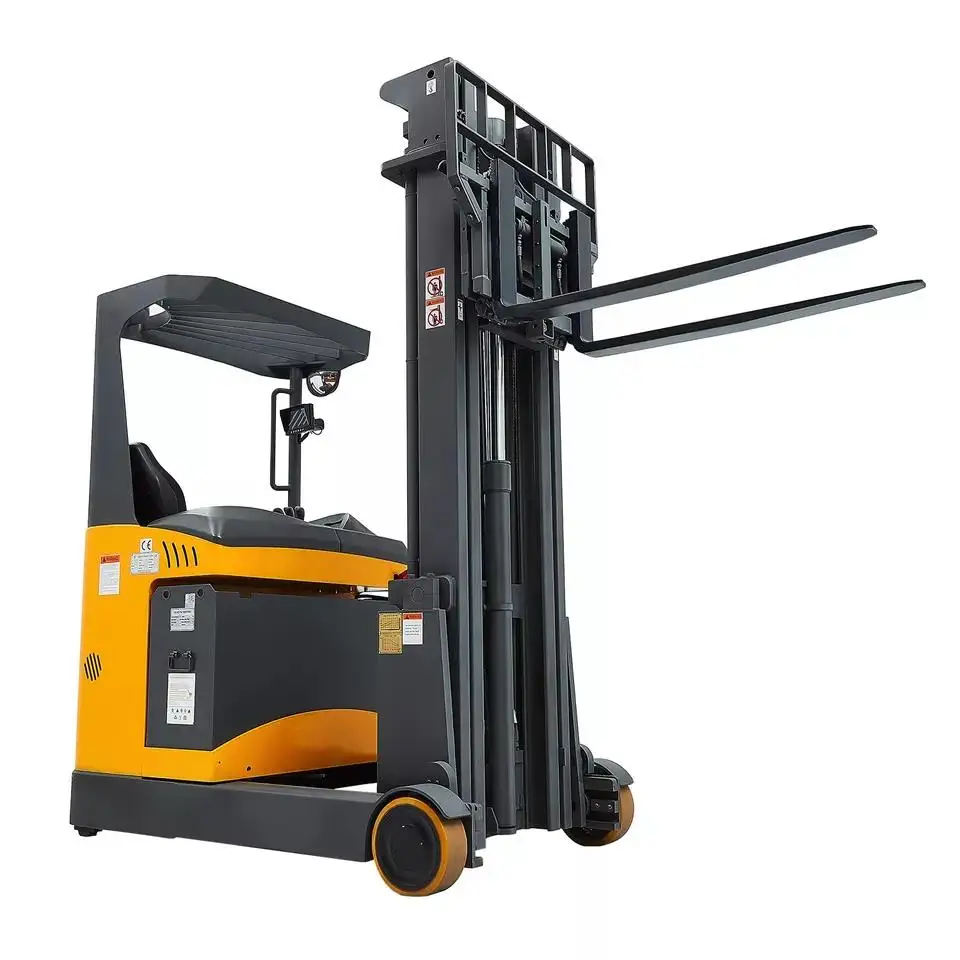

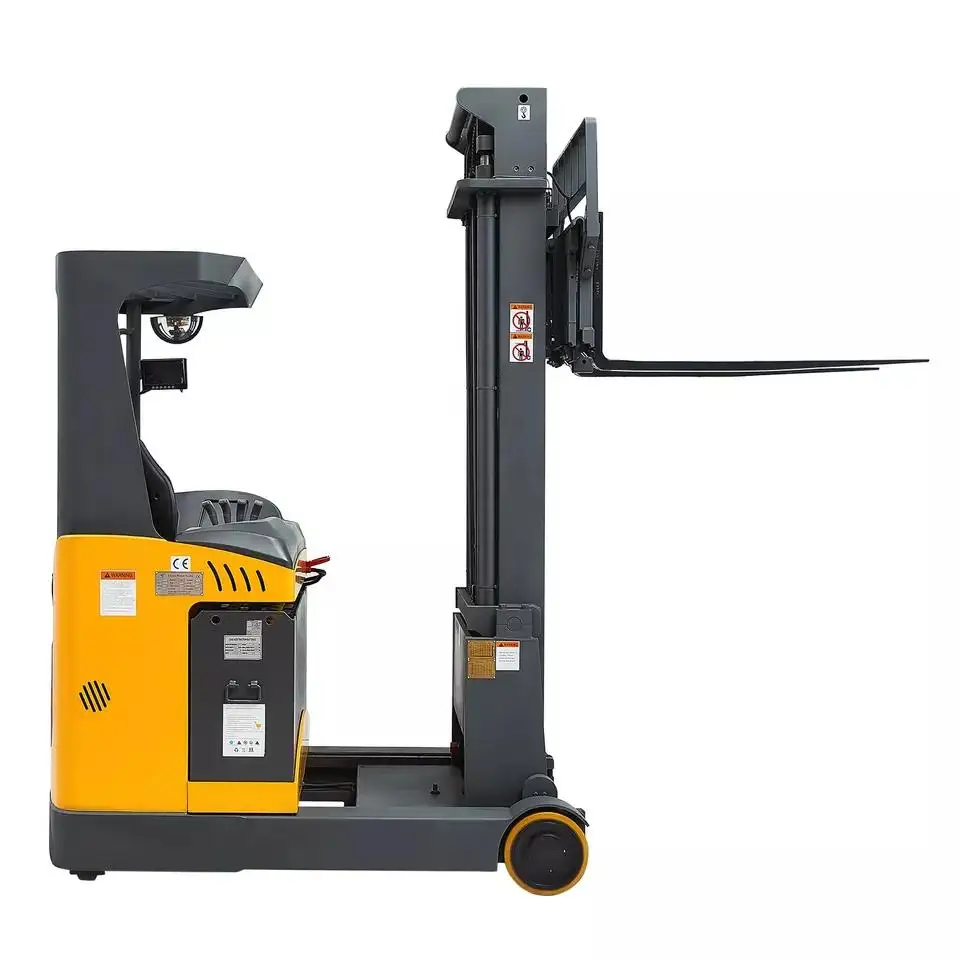

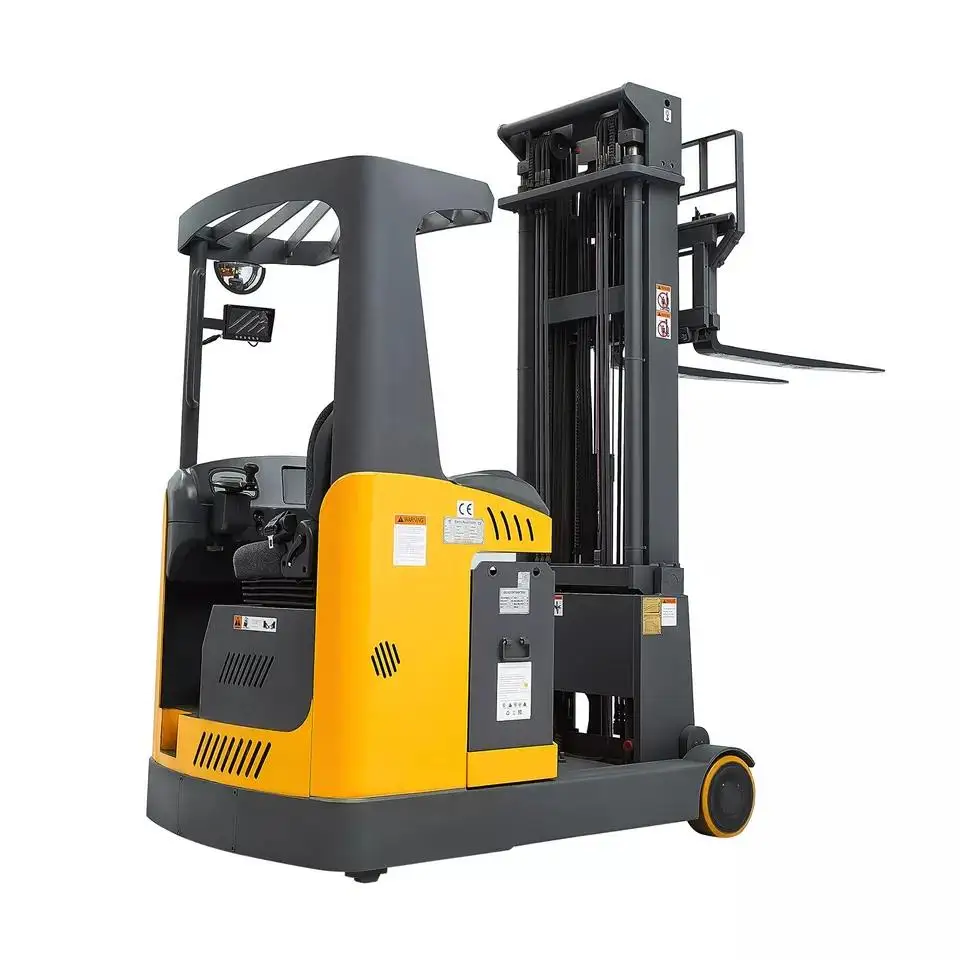

Полная электрическая штабелеукладчик для поддонов с широкими штанинами вилочный погрузчик
- Категория: Forklifts >>>
- Поставщик: Jiangsu,Satong,Intelligent,Logistics,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 17979.73 $* | 18878.87 $* |
| Aug-20-2025 | 17827.78 $* | 18718.37 $* |
| Jul-20-2025 | 14957.40 $* | 15705.75 $* |
| Jun-20-2025 | 17525.15 $* | 18401.86 $* |
| May-20-2025 | 15259.59 $* | 16022.5 $* |
| Apr-20-2025 | 17223.0 $* | 18084.24 $* |
| Mar-20-2025 | 17072.73 $* | 17926.92 $* |
| Feb-20-2025 | 16921.84 $* | 17767.27 $* |
| Jan-20-2025 | 16770.23 $* | 17609.6 $* |
Характеристики
Standard
* AC control system.
* Powering steering system (EPS).
* Multi-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc.
* Manual multi-valve.
* Adjustable speed for forks lifting/lowering mast forward/backward and side shift right/left.
* German ZF brand gear box.
* Adjustable steering wheel.
* With traveling speed limited device when forks at high level.
* Electronic height limited device.
* Powering steering system (EPS).
* Multi-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc.
* Manual multi-valve.
* Adjustable speed for forks lifting/lowering mast forward/backward and side shift right/left.
* German ZF brand gear box.
* Adjustable steering wheel.
* With traveling speed limited device when forks at high level.
* Electronic height limited device.
Option
* Electronic multi valve.
* Finger-tip control stick.
* Side shift.
* Height selection and height position system.
* LCD display and camera
* Travel/back-up flashing lights.
* Side-way battery.
* Side shift.
* Height selection and height position system.
* LCD display and camera
* Travel/back-up flashing lights.
* Side-way battery.
Model | CQD15 | |
Capacity / rated load | （kg) | 1500 |
Max. lift height | h3(mm) | 3000/5000/6200/7400/8000 |
Load centre distance | c(mm) | 600 |
Height, mast lowered | h1(mm) | 2086/2240/2740/3190/3390 |
Free lift | h2(mm) | 0/1700/2100/2500/2700 |
Height, mast extended | h4(mm) | 3800/5800/7000/8200/8800 |
Height of overhead guard (cabin) | h6(mm) | 2140 |
Seat height / stand height | h7(mm) | 970 |
Height of crura | h8(mm) | 315 |
Overall length | l1(mm) | 2370 |
Length to face of forks | l2(mm) | 1880 |
Overall width | b1(mm) | 1200 |
Fork dimensions | s/e/l(mm) | 35/100/1070 |
Reach distance | l4(mm) | 600 |
Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2800 |
Aisle width for pallets 800x1200 lengthways | Ast(mm) | 2890 |
Turning radius | Wa(mm) | 1780 |
Travel speed, laden / unladen | Km/h | 8/8.3 |
Lift speed, laden / unladen | m/s | 0.45/0.36 |
Service weight (with battery) | (kg) | 2900/3000/3100/3200/3300 |
ABOUT US
Jiangsu Satong Intelligent Logistics equipment Co.,Ltd .(hereinafter referred to as "Satong") is a company with more than 15 years of experience in the production of storage shelves. It is an automatic three-dimensional warehouse, all kinds of conventional storage shelves, metal work station appliances,plastic pallets and material boxes and other products of the design, manufacture, sales, installation and commissioning of professional comprehensive services company. Satong has 12 senior mechanical engineers and electrification engineers, and more than 20 core technology patents.
1. Q: Are you manufacture or trading company?
A: We are manufacture.We have more than 15 years experience in producing racks.
2. Q: What is your delievery time?
A: Typically, it takes 15 to 25 days from order to delivery. Sometimes it also needs to be calculated according to the different styles and quantities customized by customers.
3. Q: what is the terms of payment?
A:Payment terms: 30% deposit shall be paid upon signing PI, and the balance shall be settled by T/T, L/C
and other payment methods before delivery.
4. Q: Are samples available?
A: Samples up to 300mm are free, samples over 300mm will be charged.
5. Q: which loading port is close to you?
A: We are closest to lianyungang port, Qingdao port and Shanghai port are also very close to us
6. Q: What is your source of raw materials?
A: We purchase raw materials from Shanghai Baosteel and Shandong Rizhao Steel.
7. Q: How could I install the racks?
A: We provide detailed install instruction for every type of shelf. If needed,we can also ask engineers to
teach you for free.
8. Q: What is your terms of delivery?
A: FOB、CIF
9. Q: Where is your factory?Can I visit?
A: Our factory locaded in Tushan town,Pizhou City,Jiangsu province.Welcome to visit our factory.
10.Q: Which countries have you exported to?
A: We used to export mainly to Southeast Asia and the middle East.
