Характеристики

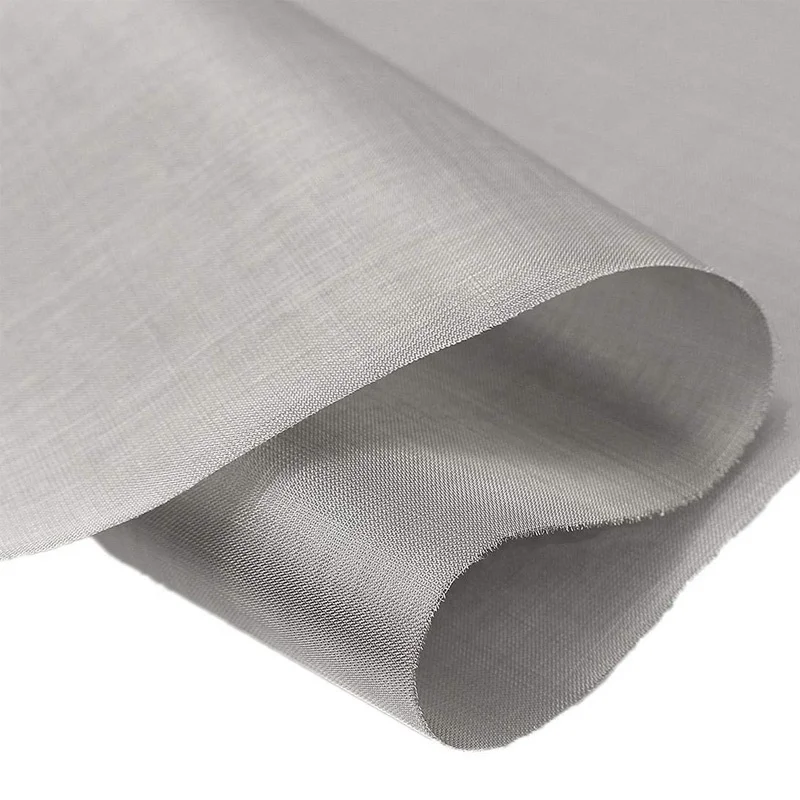

plain weave stainless steel wire mesh
Product Description
Woven Wire Mesh, Wire Cloth Supply | Custom Manufacturing | Factory Price
Stainless steel available: 304, 304L, 316, 316L, 310s, 904L, 430, etc
More materials available: Copper, Brass, Bronze, Inconel, Monel, Nickel, Titanium, etc
Specification customization: Wire Diameter, Mesh Count, Weave type

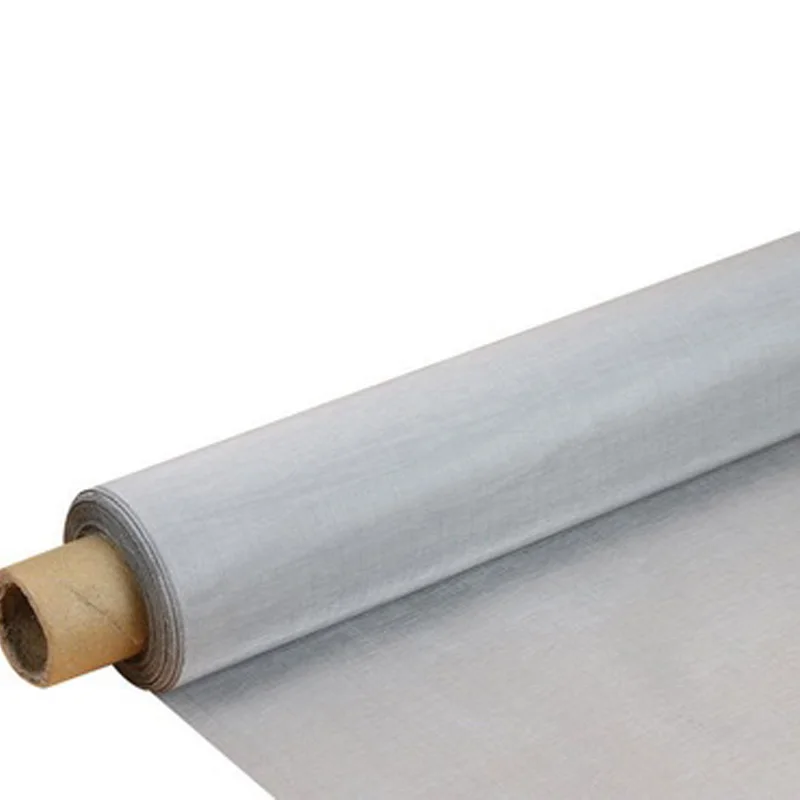

Woven wire mesh is available on the roll or cut to size
Provide fine and strict packaging to ensure that the goods will not be damaged
Learn More About Stainless Steel Woven Wire Mesh on Our Website:View More
Stainless steel available: 304, 304L, 316, 316L, 310s, 904L, 430, etc
More materials available: Copper, Brass, Bronze, Inconel, Monel, Nickel, Titanium, etc
Specification customization: Wire Diameter, Mesh Count, Weave type
Woven wire mesh is available on the roll or cut to size
Provide fine and strict packaging to ensure that the goods will not be damaged
Learn More About Stainless Steel Woven Wire Mesh on Our Website:View More
Product Name | Woven Wire Mesh, Wire Cloth | ||||||
Stainless Steel Grade | 304, 304L, 316, 316L, 310s, 904L, 430, etc | ||||||
Special Material Options | Inconel, Monel, Nickel, Titanium, etc | ||||||
Wire Diameter Range | 0.02 - 6.30mm | ||||||
Hole Size Range | 1 - 3500mesh | ||||||
Weave Types | Plain Weave,Twill Weave,Dutch or 'Hollander' Weave,Plain Dutch Weave Twill Dutch Weave,Reverse Dutch Weave,Multiplex Weave. | ||||||
Mesh Width | Standard less than 2000 mm | ||||||
Mesh Length | 30m rolls or cut to length, minimum 2m | ||||||
Mesh Type | Rolls and sheets are available | ||||||
Production Standards | ASTM E2016 - 20 | ||||||
Certification | ISO9001: 2015 | ||||||
Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but it is made of wire. The mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.
The main materials are 304 stainless steel wire mesh, 316 stainless steel wire mesh, 310 stainless steel wire mesh, 904L stainless steel wire mesh, 430 stainless steel wire mesh, and other stainless steel grade. The most popular ones are 304 stainless steel wire mesh and 316 stainless steel wire mesh, which can be used in most application environments and are not expensive.
And some special materials are used to meet the high requirements of the use environment, such as Inconel wire mesh, Monel Wire Mesh, Titanium Wire Mesh, Pure Nickel Mesh, and Pure Silver Mesh, etc.
The main materials are 304 stainless steel wire mesh, 316 stainless steel wire mesh, 310 stainless steel wire mesh, 904L stainless steel wire mesh, 430 stainless steel wire mesh, and other stainless steel grade. The most popular ones are 304 stainless steel wire mesh and 316 stainless steel wire mesh, which can be used in most application environments and are not expensive.
And some special materials are used to meet the high requirements of the use environment, such as Inconel wire mesh, Monel Wire Mesh, Titanium Wire Mesh, Pure Nickel Mesh, and Pure Silver Mesh, etc.
Weave Types
Tianhao Wire Mesh can provide many different weaves to meet different application needs.the weave styles mainly depend on the mesh and wire diameter specifications of the woven mesh. Below are the show of some common styles we weave here.
Mesh, Mesh Count, and Micron Size
Mesh Count and Micron Size are some of the important terms in the wire mesh industry.The Mesh count is calculated by the number of the holes in an inch of mesh, so the smaller is the woven holes the bigger is the number of holes.The Micron Size refers to the size of the holes measured in microns. (The term micron is actually a commonly used shorthand for micrometer. )
In order to make it easier for people to understand the number of the holes of the wire mesh, these two specifications are usually used together. This is the key component of specifying the wire mesh. The Mesh Count determines the filtering performance and function of the wire mesh.
More intuitive expression:
Mesh Count = number of mesh hole. (larger the mesh count, the smaller the mesh hole)
Micron Size = size of mesh hole. (larger the micron size, larger the mesh hole)
Application
Perfectly suited for a wide array of architectural and functional purposes, stainless steel
wire mesh is used in various industries. The petroleum, chemical environmental protection,
mining, aerospace, paper making, electronic, metallurgical, food and pharmaceutical
industries all utilize woven wire mesh.
wire mesh is used in various industries. The petroleum, chemical environmental protection,
mining, aerospace, paper making, electronic, metallurgical, food and pharmaceutical
industries all utilize woven wire mesh.
The above are some of the applications of wire mesh we listed. In fact, woven wire mesh
has a seemingly infinite range of applications. Because it has many irreplaceable features
and advantages, there can be few industries where wire mesh does not have a part to play.
-High open area/flow rate.
-Closely controlled, accurate apertures.
-Smooth surface - screening surface has no sharp edges, burrs or acute angles.
-Very high-temperature tolerance (variable according to metal selected).
-Usable under high pressure.
-Flexible - ideal for forming rigid concave / convex shapes.
-Control of chemical/acid/ corrosion resistance using different metals.
-Special aperture requirements can be met without high tooling costs.
-High durability.
-Self-supporting.
-Suitable as upper for less rigid media.
-Stable under tension
-The weaving process uses no punching, piercing or stretching operations that create
stress-induced weaknesses.
-Point contact only on the screened product allows freer screening and reduced binding.
-Corrosion, abrasion and heat resistance.
-Highly aesthetic appeal for architectural applications.
-Hygienic characteristics and clean ability are specifically suitable for the food and
pharmaceutical industries.
-Cost-effective.
has a seemingly infinite range of applications. Because it has many irreplaceable features
and advantages, there can be few industries where wire mesh does not have a part to play.
Wire mesh offers many benefits including:
-Widest range filtration, from over 6-inch aperture down to 1-micron nominal.-High open area/flow rate.
-Closely controlled, accurate apertures.
-Smooth surface - screening surface has no sharp edges, burrs or acute angles.
-Very high-temperature tolerance (variable according to metal selected).
-Usable under high pressure.
-Flexible - ideal for forming rigid concave / convex shapes.
-Control of chemical/acid/ corrosion resistance using different metals.
-Special aperture requirements can be met without high tooling costs.
-High durability.
-Self-supporting.
-Suitable as upper for less rigid media.
-Stable under tension
-The weaving process uses no punching, piercing or stretching operations that create
stress-induced weaknesses.
-Point contact only on the screened product allows freer screening and reduced binding.
-Corrosion, abrasion and heat resistance.
-Highly aesthetic appeal for architectural applications.
-Hygienic characteristics and clean ability are specifically suitable for the food and
pharmaceutical industries.
-Cost-effective.
