Сверхмощный durbal внутреннюю резьбу шарнирный Подшипник
- Категория: Rod End Bearings >>>
- Поставщик: Shandong,XRT,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.79 $* | 0.5 $* |
| Aug-19-2025 | 0.52 $* | 0.1 $* |
| Jul-19-2025 | 0.44 $* | 0.80 $* |
| Jun-19-2025 | 0.50 $* | 0.79 $* |
| May-19-2025 | 0.74 $* | 0.25 $* |
| Apr-19-2025 | 0.25 $* | 0.83 $* |
| Mar-19-2025 | 0.84 $* | 0.95 $* |
| Feb-19-2025 | 0.11 $* | 0.72 $* |
| Jan-19-2025 | 0.83 $* | 0.44 $* |
Характеристики

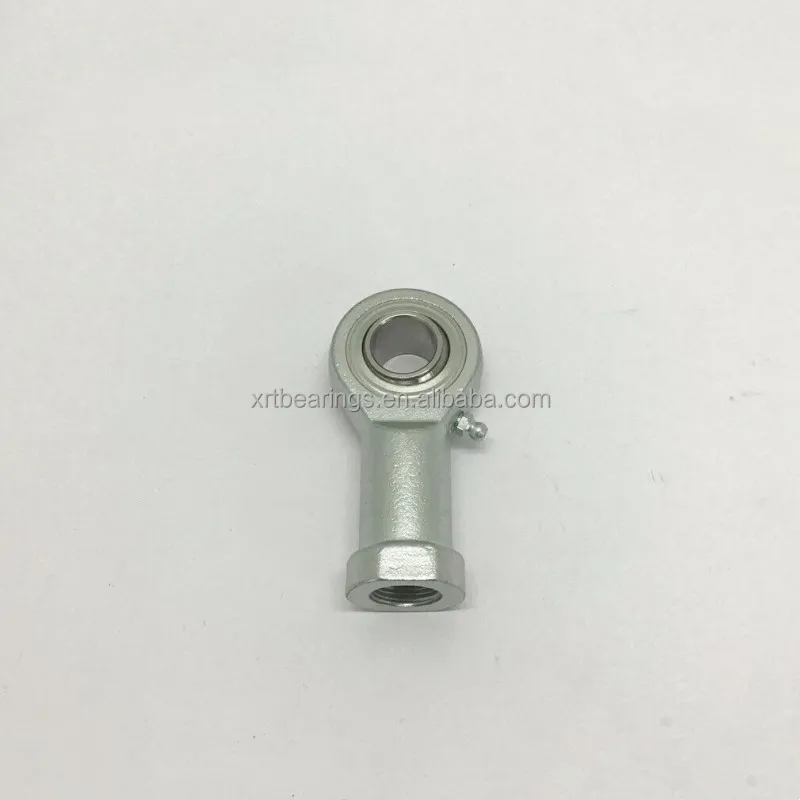

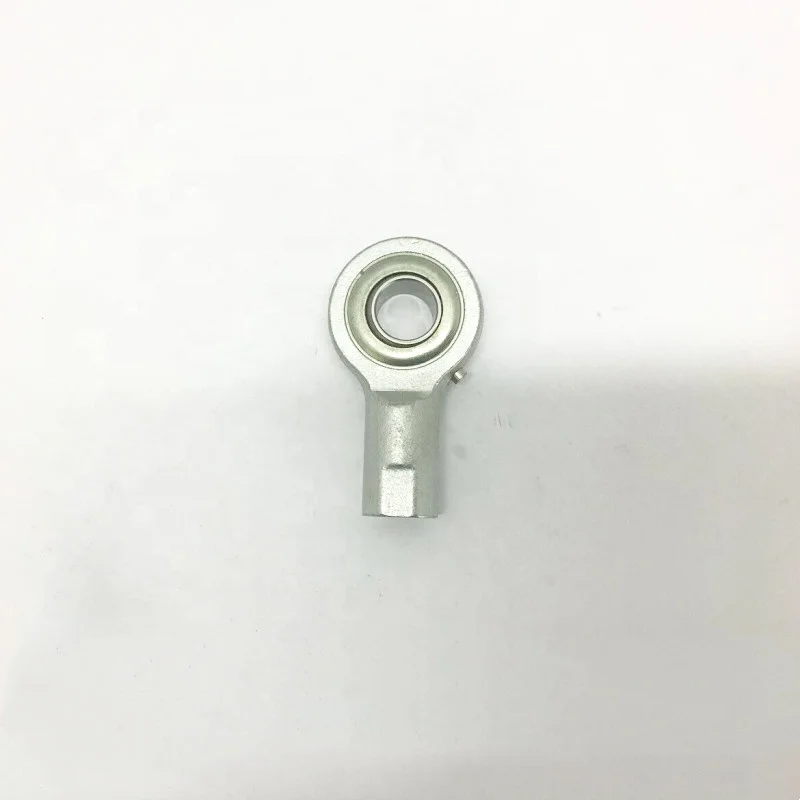

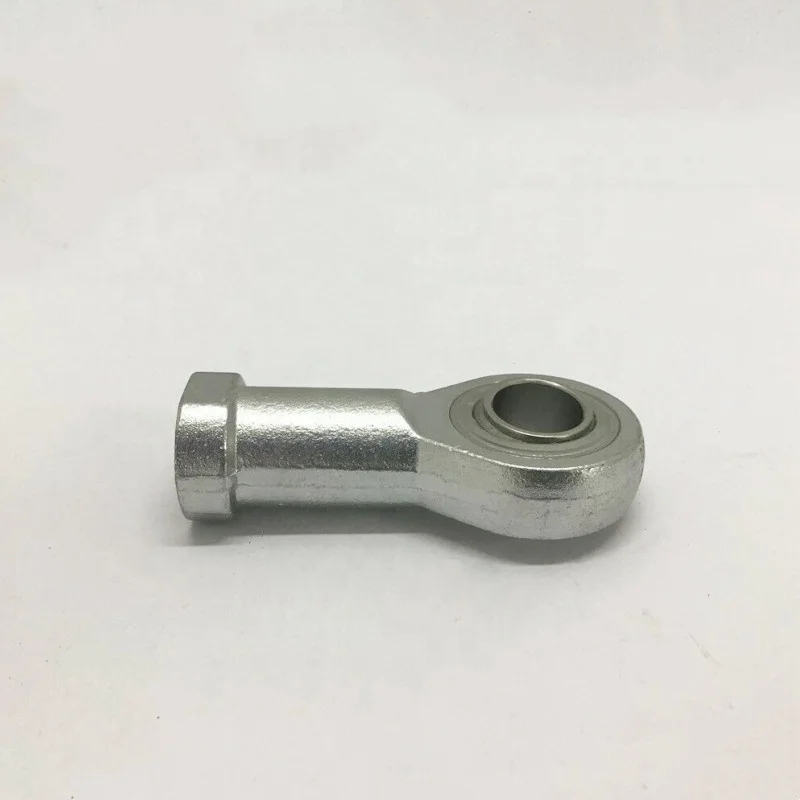

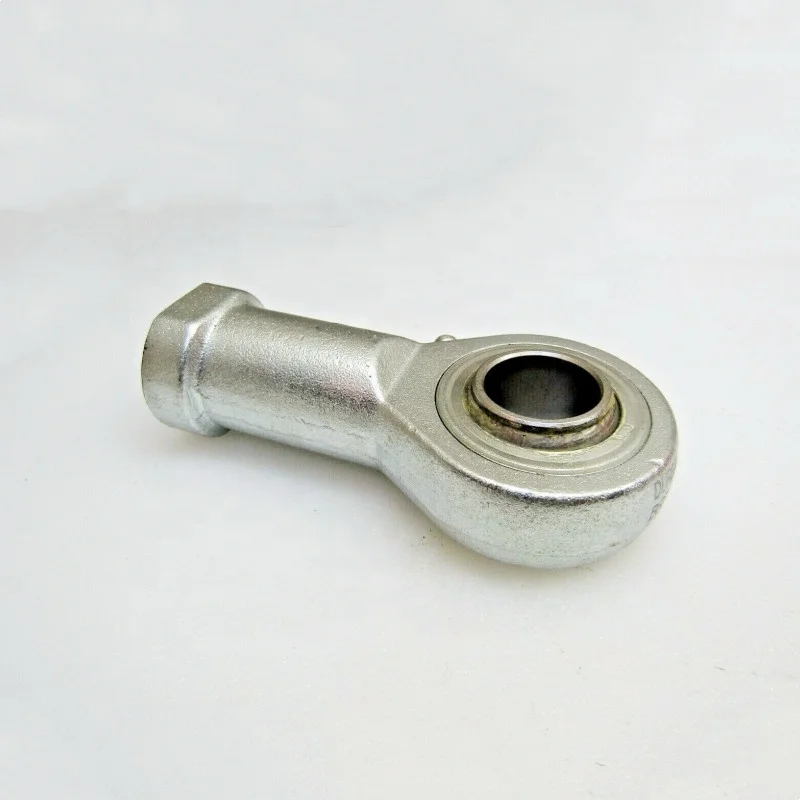

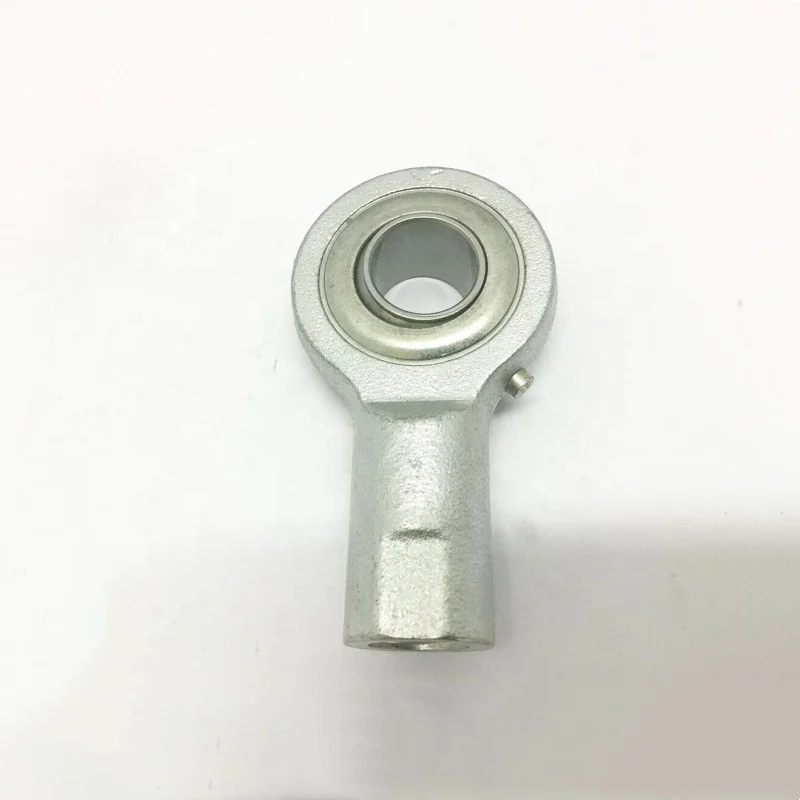

Heavy Duty Durbal Female Thread Rod End Bearing PF20-00-502
Product Description
| Product Name | Heavy Duty Durbal Female Thread Rod End Bearing PF20-00-502 |
| Brand | Durbal |
| Material | Carbon Steel |
| d | 20mm |
| G | M16 |
| d2 | 48mm |
| I4 | 89mm |
| B | 20.5mm |
| C1 | 15mm |
| Dynamic Load Rating | 6.1KN |
| Static Load Rating | 3KN |
| Rotional Speed Limit | 850r/min |
| Weight | 0.223kg |
Feature
1.For high speeds, wide swivelling angles or rotating movements,
2.Low bearing friction,
3.All rod end housings are made of forged steel, tempered, extremly high loads resistant and protected against corrosion by galvanisation.
4.Low maintenance due to long-term lubrication with food-grade approval; the rod ends can be greased subsequently by means of a funnel-type lubrication nipple. Further special grease nipples available on request;
5.Covering discs on both sides to prevent the penetration of coarse dirt particles inside the bearing.
Heavy Duty Durbal Female Thread Rod End Bearing PF20-00-502 Show
