Новый инвертор воздуха в воду тепловой насос моноблок нагреватель для
- Категория: Water Heaters >>>
- Поставщик: Newfair,Eco-Energy(Guangdong),Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.81 $* | 0.54 $* |
| Aug-19-2025 | 0.73 $* | 0.49 $* |
| Jul-19-2025 | 0.39 $* | 0.37 $* |
| Jun-19-2025 | 0.45 $* | 0.74 $* |
| May-19-2025 | 0.30 $* | 0.70 $* |
| Apr-19-2025 | 0.70 $* | 0.15 $* |
| Mar-19-2025 | 0.75 $* | 0.97 $* |
| Feb-19-2025 | 0.3 $* | 0.25 $* |
| Jan-19-2025 | 0.52 $* | 0.57 $* |
Характеристики

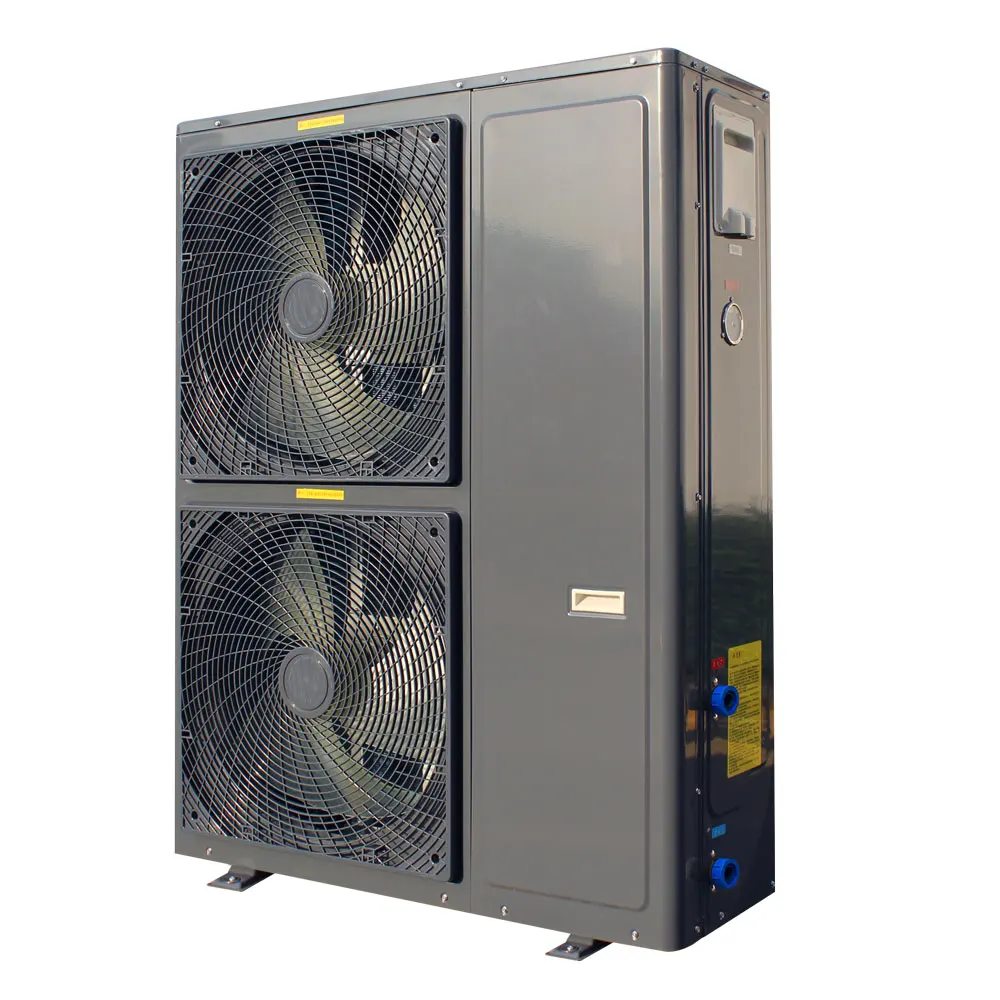

PRODUCTS DESCRIPTION
Ultra-Low Noise Air Source Heat Pump Water Heater for Swimming Pool

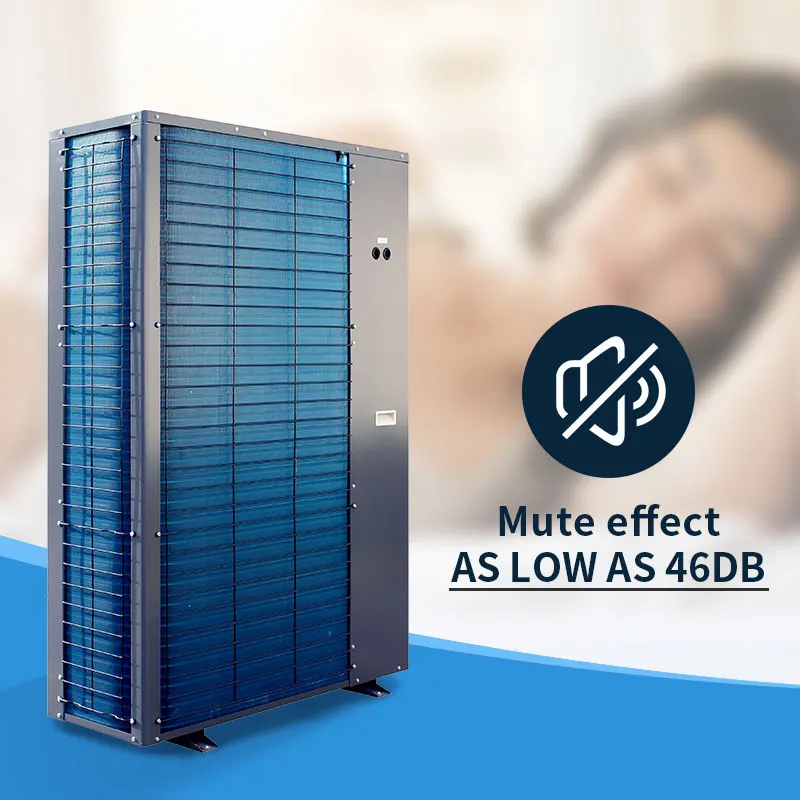

Ultra-low noise: as low as 46DB-62DB.
The machine uses double vibration reduction technology, equipped with brushless DC EVI fan and compressor to reduce the noise.

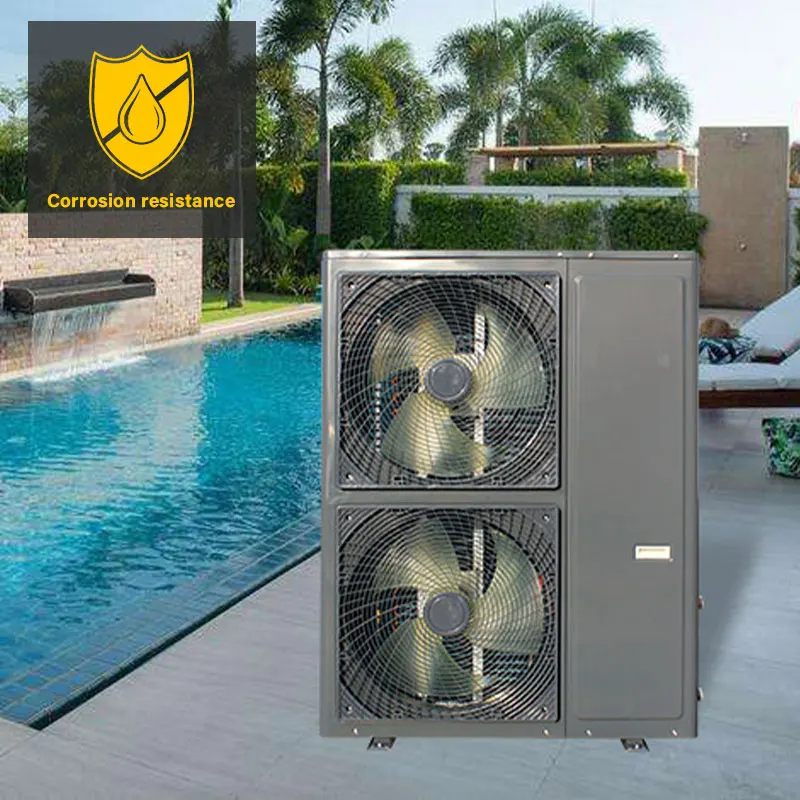

CORROSION RESISTANCE

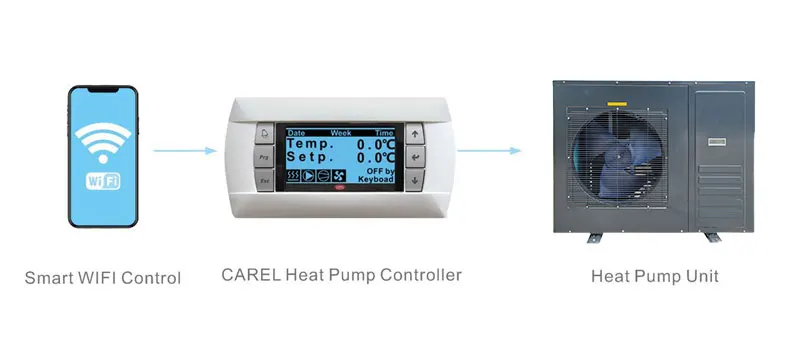

CAREL WIFI REMOTE CONTROLLING SYSTEM
Controlling Temperature by Your Fingertips
DETAILED SPECIFICATIONS
Model No. | NFE020H-BYDW | NFE030H-BYDW | NFE050H-BYDW | NFE060H-BYDW | NFE080H-BYDW | NFE100H-BYDW | ||||||
Rated Heating Capacity(Kw) | 9 | 16.4 | 21.7 | 27.6 | 32.5 | 42.3 | ||||||
Rated Heating Power(Kw) | 1.2 | 2.28 | 3.02 | 3.84 | 4.57 | 6.04 | ||||||
COP | 7.5 | 7.2 | 7.2 | 7.1 | 7.1 | 7.0 | ||||||
Power Supply | 220V/1ph/50Hz | 380V/3ph/50Hz | ||||||||||
Electricity（A） | 7.1 | 5 | 6.7 | 8 | 10 | 13 | ||||||
Rated Heating Water Temp.(℃) | 28℃ | |||||||||||
Max Water Temp.(℃) | 40℃ | |||||||||||
Operating Ambient Temp.(℃) | -15℃-45℃ | |||||||||||
Heat Exchanger | High Efficiency 316 Stainless Steel Plate Heat Exchanger | |||||||||||
Refrigerant | R32 | |||||||||||
Minimum Noise dB(A) | 46 | 49 | 50 | 52 | 56 | 59 | ||||||
Water Flow（m3/h） | 1.1 | 2.2 | 3.1 | 3.48 | 4.16 | 5.4 | ||||||
Water Tube Size/Type DN | DN50 | |||||||||||
IP Level | IPX4/I | |||||||||||
Weight（kg） | 46 | 95 | 100 | 148 | 152 | 185 | ||||||
Dimensions（mm） | 1160*420*860 | 1160*420*860 | 1050*370*1400 | 1050*370*1400 | 1050*370*1400 | 1050*420*1560 | ||||||
Installation Dimensions（mm） | 800*430 | 800*430 | 800*380 | 800*380 | 800*380 | 800*430 | ||||||
Remarks: Ambient Temp.:dry-bulb temp:26℃，wet-bulb temp.:20℃，water temp.:28℃ | ||||||||||||
DETAILED IMAGES
Carefully Selected Core Parts
Carel remote Wifi controller
Copeland Scroll compressor
U-shaped corrugated fin evaporator

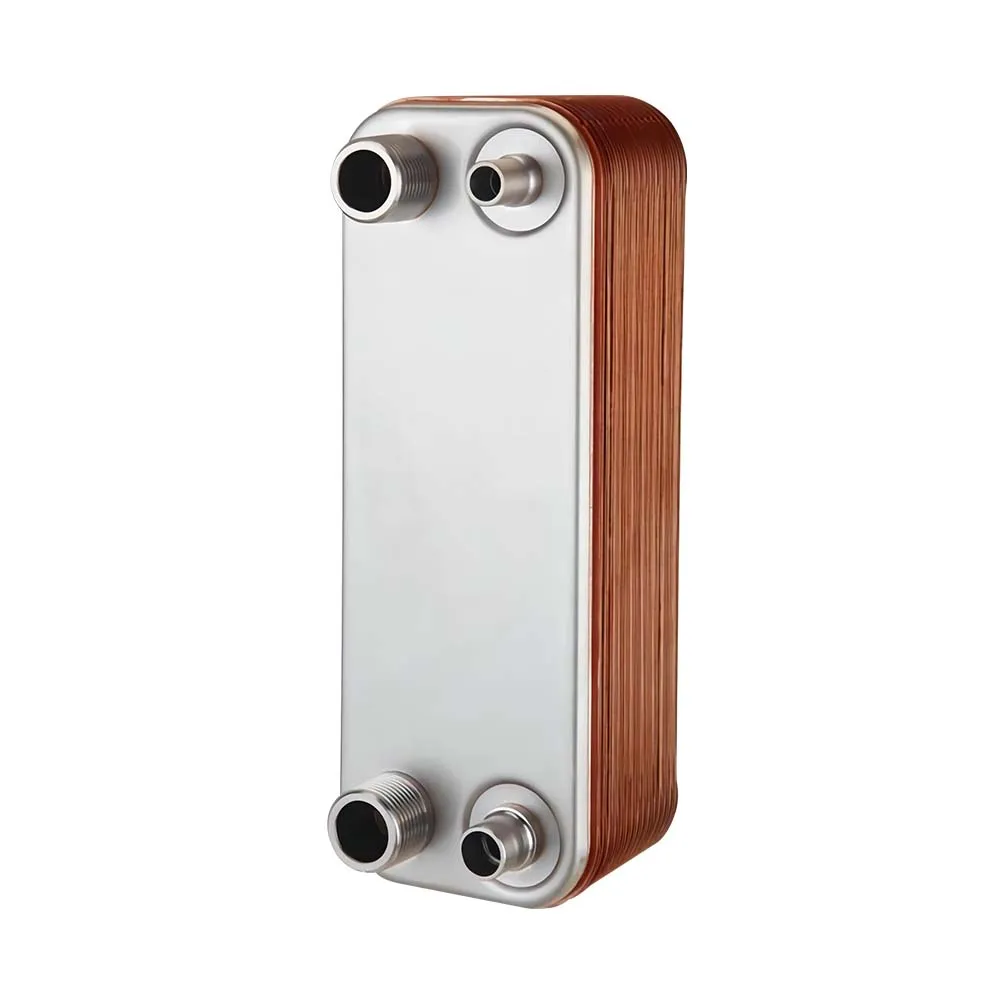

Vertical heat exchanger
4 ways reversing valve
R32 refrigerant
PROJECT CASES
JiZe County Gym Centre
Luliang County Gym Centre
Prada Gym Club in Nanjing
Grand Skylight International Hotel Guanlan
Sheraton Kunming
DoubleTree by Hilton Shenzhen Nanshan Hotel & Residences
Gothenburg house, Sweden
Hofen house,Iceland
Interlaken house Switzerland
Supetar Croatia swimming pool
Swimming pool in Edinburgh, UK
Swimming pool in The Hague, Netherlands
Tangshan Oriental Bilingual School
Nanhai Experimental Middle School
The Affiliated Middle School of Jining university
ABOUT US
An Energy Saving Researcher and Manufacturer Since 1998
Founded in 1998, NewFair Eco-Energy(Guangdong) Co.,Limited is one of the oldest manufacturer of :Swimming Pool Heat Pumps, House Heating Heat Pumps and Heat Pump Water Heaters in China. We focus on air source products continuously and obtained over 82 product patents and a series of industry certificates and awards, we also invested the industry’s first ultra-low temperature(as low as -35℃) testing laboratory in 2007, our 6 fully automated assembly lines are equipped with advanced temperature controllers from Siemens Germany. Our service team includes: 122 senior electrical HVAC
engineers, 48 PLC/controlling APP programmers, which provides professionally refined, critically acclaimed service to OEM/ODM customers.
An Award Winning Company
From 2008, we obtained 82 product patents and a series of industry certificates including: CE,TUV,KETI, China National Industrial Production License, ISO9001, ISO45001, CRAA, “Environmental Engineering Construction Qualification Level 3”. We’re also an award winning company, including: ‘China Hot Spring SPA Annual Conference Influential Brand in 2019’, in 2018 we were awarded with: ‘China Refrigeration and Air Conditioning Equipment Industry Alliance Manufacturer’, ‘Premier Supplier of EverGrande(China’s Biggest Real Estate Developer)’ and ‘Liansheng Cup" Hot Spring Pool Annual Conference Industry Recommending Brand’ Prior to this we were awarded with ‘Heat Pump Industry Recommended Brand in 2017’.
We Care About Details
Every products are 100% tested before delivery including 5 steps: Function Designs QC-Materials QC-Piping Grafts QC-Assembling QC-Performance Testing QC
The Ultra-Low Temp Testing Lab
The Assembling Line
Our Service Team
Why Choose Us
1. We have over 23 years producing experience.
2. We have 122 senior electrical HVAC engineers, 48 PLC/controlling APP programmers.
3. We have 6 fully automated assembly lines, core parts coming from Copeland Scroll, Panasonic, Mitsubishi, and Siemens.
