Волоконно-волоконный кабель Соединительный шнур шлифовальные патч-корды полировальная
- Категория: Optical Instruments >>>
- Поставщик: Shenzhen,Chuanglixun,Optoelectronic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1012.66 $* | 1063.85 $* |
| Aug-18-2025 | 1003.88 $* | 1053.2 $* |
| Jul-18-2025 | 842.44 $* | 884.19 $* |
| Jun-18-2025 | 986.22 $* | 1035.2 $* |
| May-18-2025 | 859.88 $* | 902.82 $* |
| Apr-18-2025 | 969.65 $* | 1017.49 $* |
| Mar-18-2025 | 961.93 $* | 1009.87 $* |
| Feb-18-2025 | 952.59 $* | 1000.21 $* |
| Jan-18-2025 | 944.5 $* | 991.92 $* |
Характеристики
Fibre Cable Patchcord Connector Grinding Patch Cords Polish Optical Polishing Machine Fiber Optic Polishing Machine
Product Description
The Fiber Optical Polishing Machine on The Base of International Universal Standards and Long-Term Hands-On Experience, It Exceeds Requirements for Gr-326 End Face Geometry, And This Fiber Optical Polishing Machine Adapt To Four Corners Compression And New I. P. C. Holder Technology Yields The Best Results In The Industry. No Variability in Result When Polishing 1 Or 24 Connectors, Jig Will Be Installed Stable, And Compact Size. This Fiber Optical Polishing Machine Can Process Excellent Connector End Force Polishing Quality. Our This Type of Fiber Optical Polishing Machine Designed for Volume Production, High Productivity. For More, The Fiber Optical Polishing Machine Can Save Material and Low Cost for Polishing.
Polishing Machine Features
1. High-precision Fiber Optic Polishing Equipment.
2. Can Quickly change polishing jigs.
3. The polishing trails obey the planet orbit. Polishing rotation speed is adjustable with normally 140RPM. 4. Maximum polishing capacity reaches 48 pcs for MU and LC connectors. And for SC, FC, ST. it reaches 36 pcs.
5. High efficiency, The first pass yield for end face quality reach 98%～100%
6. The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber optic connector polishing 3D pass rate> = 98% (100% Typical, according to IEC),
7. APC return loss ≥60dB , PC(UPC)return loss ≥55dB , Insertion loss ≤0.20dB ( typical)
8. The high quality stainless steel material after heat-treatment ensures the high precision & durability of the machine,Excellent stability, Eight or ten years lifetime
Specification

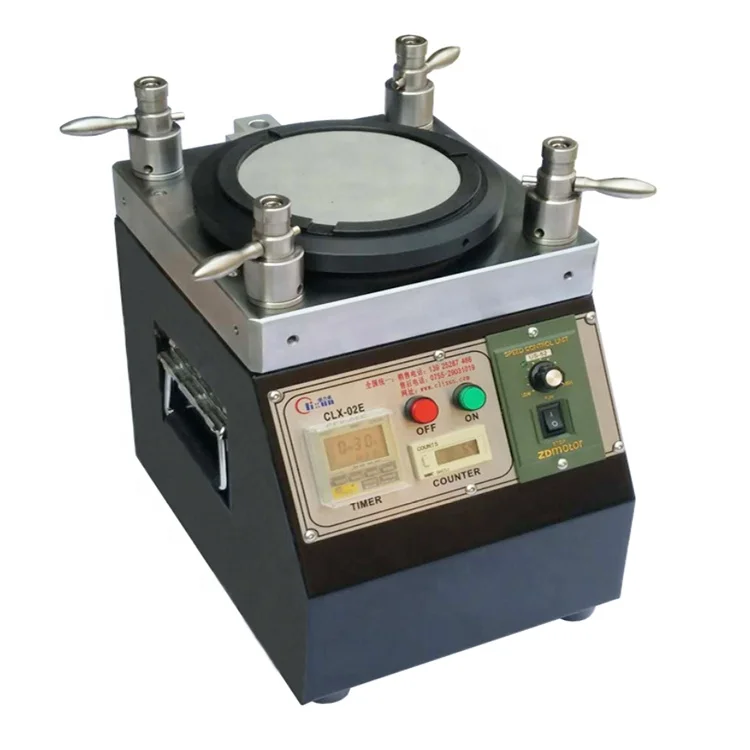

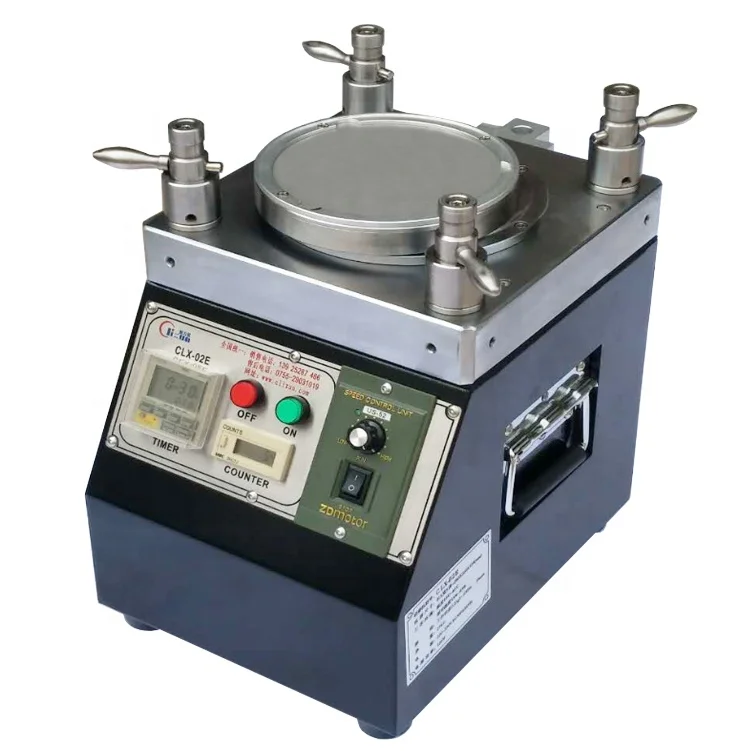

1. Machine Type | CLX-02E | ||||
2. Machine Size | L 240(mm) × W 240(mm) × H 260(mm) | ||||
3. Net Weight | 28kg | ||||
4. Power Input | 110~230VAC 50Hz/60Hz | ||||
5. Electric Power | 126W | ||||
6. Relative Humidity | 15%~85% | ||||
7. Work Temperature | 8℃~45℃ | ||||
8. O.D. of Rotation Plate | 127 mm（5 inch） | ||||
9. Time Settings | 99 min 99 sec (Max) | ||||
10. Speed for Rotation Plate | 140 rpm | ||||
11. Height of Plate Jumpiness | < 10 um | ||||
12. Pressure Configuration | 50 dB Libration | ||||
13. Noice unloading Less | 50 dB Libration | ||||
14. Working Status | 0.25g 5~100Hz 10min | ||||
15. Stopping Status | 0.50g 5~100Hz 10min | ||||
Polished Connector Ferrule Faces:
High-quality end-face polishing, no white spots, no scratches, the fiber edge is clearly visible
Connector Type | SM/UPC | SM/APC | MM/UPC |
Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.30dB |
Return loss | ≥55dB | ≥60dB | ≥30dB |
NO. | Parameters | UPC Criterion | APC Criterion |
1 | Radius of Curvature | 5-25mm | 5-12mm |
2 | Apex Offset | 0-50μm | 0-50μm |
3 | Fiber Height | -100~+50μm | -100~+50μm |
4 | Angle | n/a | 8.00+/-0.50° |
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
1.Are you a factory or a trader？
......we are factory.
2.What is your MOQ?
......MOQ 1 piece.
3.Do you provide sample services？
......Yes, we will provide samples.
4.How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity .
2.What is your MOQ?
......MOQ 1 piece.
3.Do you provide sample services？
......Yes, we will provide samples.
4.How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity .
5.How do we pay?
......Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty
period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services？
......Yes, we provide customized services, According to customer requirements and description.
......Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty
period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services？
......Yes, we provide customized services, According to customer requirements and description.
