Заводская Прямая поставка пневматическая точечная маркировочная машина
- Категория: Metal Engraving Machinery >>>
- Поставщик: Jinan,Minglun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 1333.65 $* | 1400.98 $* |
| Aug-20-2025 | 1322.5 $* | 1388.66 $* |
| Jul-20-2025 | 1109.41 $* | 1164.52 $* |
| Jun-20-2025 | 1299.2 $* | 1364.78 $* |
| May-20-2025 | 1131.7 $* | 1188.96 $* |
| Apr-20-2025 | 1277.21 $* | 1341.73 $* |
| Mar-20-2025 | 1266.90 $* | 1329.16 $* |
| Feb-20-2025 | 1254.65 $* | 1317.47 $* |
| Jan-20-2025 | 1243.64 $* | 1305.65 $* |
Характеристики
Model | ML-SC1530A （Equipped with a touch screen controller, an external air pump is required for use） | ||||||
Marking range | 150mm × 30mm | ||||||
Marking speed | 1-6 characters / second | ||||||
Marking depth | 0.1-1.2mm, depending on the hardness of the material; | ||||||
Marking position | plane of workpiece (two-dimensional, three-dimensional) | ||||||

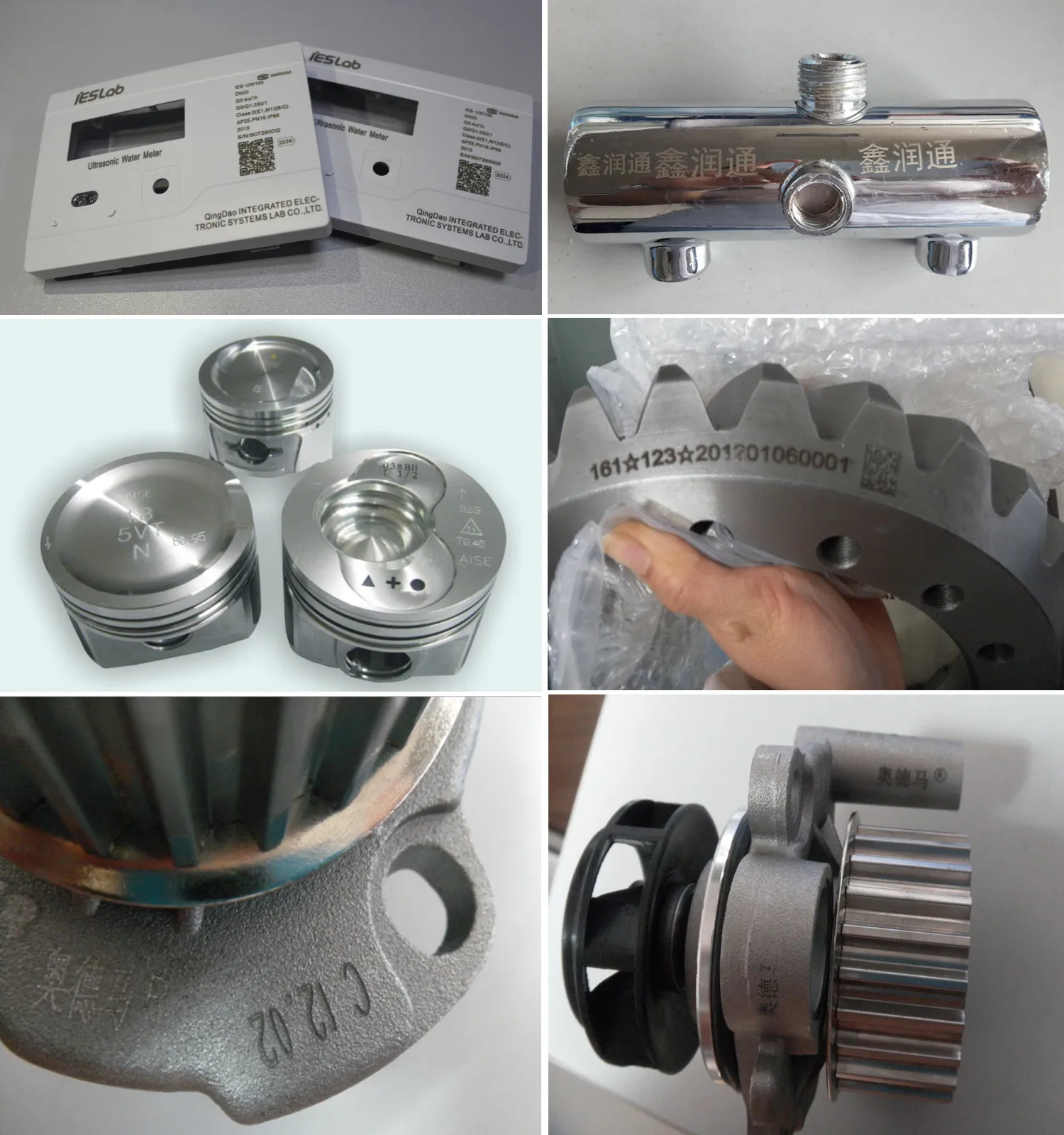

Marking content | English, numbers, punctuation, Chinese, graphics, two-dimensional code, barcode, etc ； | ||||||
Marking function | It can automatically print the production serial number (the number that increases regularly); VIN code, production date, etc. | ||||||
Control method | human-machine dialogue | ||||||
Material hardness requirements | HRC≤75 | ||||||
Machine weight | Marking Head about 2.6kg, total weight 15kg | ||||||
Marking head size | 22cm*18cm*8cm | ||||||
Equipment using conditions | ||||||||
Voltage | 110V-240V, 50HZ-60HZ; (single phase power) | |||||||
Compressed Air source | 0.2-0.6Mpa, dry and pure | |||||||
Ambient temperature | 0-40 °C | |||||||
Overall power | ≤400W; the power of the marking machine is about 150w, plus the controller, the overall power of the controller will not exceed 400W | |||||||
Work Principle:
The computer controls the marking needle to move in the X, Y two-dimensional plane according to the trajectory of the graphic characters edited by the computer. At the same time, the marking needle performs high-frequency impact motion on the workpiece under the action of compressed air, thereby forming a corresponding on the workpiece. Graphic characters
Product advantages:
1. The basic part of the marking head is made of precision molds. The overall processing performance is good, which ensures the high movement accuracy of the marking head and makes the marking characters beautiful.
2. The marking head adopts imported linear motion guide rails, self-lubricating and self-sealing and dust-proof, which ensures the marking head movement has minimal wear, and makes the marking machine run stably for a long time with high accuracy.
3. Our company's pneumatic marking machine adopts imported pneumatic components,using American MAC high-speed Solenoid Valve , with a service life of up to 120 million times;
4. Our company's pneumatic marking machine uses high-speed powder metallurgy steel made in Sweden. The unique heat treatment process makes the needle hardness as high as HRA92, which can print 600,000 characters, and can be used after grinding.
5. Guide Rail: Taiwan Hiwin. characteristics: high precision, low operating noise.
The computer controls the marking needle to move in the X, Y two-dimensional plane according to the trajectory of the graphic characters edited by the computer. At the same time, the marking needle performs high-frequency impact motion on the workpiece under the action of compressed air, thereby forming a corresponding on the workpiece. Graphic characters
Product advantages:
1. The basic part of the marking head is made of precision molds. The overall processing performance is good, which ensures the high movement accuracy of the marking head and makes the marking characters beautiful.
2. The marking head adopts imported linear motion guide rails, self-lubricating and self-sealing and dust-proof, which ensures the marking head movement has minimal wear, and makes the marking machine run stably for a long time with high accuracy.
3. Our company's pneumatic marking machine adopts imported pneumatic components,using American MAC high-speed Solenoid Valve , with a service life of up to 120 million times;
4. Our company's pneumatic marking machine uses high-speed powder metallurgy steel made in Sweden. The unique heat treatment process makes the needle hardness as high as HRA92, which can print 600,000 characters, and can be used after grinding.
5. Guide Rail: Taiwan Hiwin. characteristics: high precision, low operating noise.
According to your requirements, we provide Different Models , welcome to inquire.
Model | ML-SC9030 A | |
Built-in computer and controller | ||
Voltage | 100-240V/50-60Hz | |
Power | Power supply | |
Marking range | 80mm × 30mm | |
Marking depth | 90mm × 30mm | |
Size | 28*14.5*10.5cm | |
Weight | 5Kg | |
Model | ML-SC9030 B | |
Built-in computer and controller, need to be plugged in | ||
Voltage | 100-240V/50-60Hz | |
Power | Power supply | |
Marking range | 90mm × 30mm | |
Marking depth | 0.01-2mm | |
Size | 28*14.5*10.5cm | |
Weight | 5Kg | |
Model | ML-SC1530 B | |
Equipped with a controller, an external air pump is required for use | ||
Voltage | 100-240V/50-60Hz | |
Power | Compressed air 0.2-0.6Mpa | |
Marking range | 80mm × 30mm | |
Marking depth | 0.1-1.2 mm | |
Size | 18*18*18 cm | |
Weight | 2.6kg+12.4kg | |
Difference between ML-SC9030 A and ML-SC9030B
Packing & Delivery
Company Profile
FAQ
Q: Are you a manufacturer or an agent?
We are the manufacturer and can supply any spare parts for the machine
Q:Can your company help me design the model of the machine I want?
We can help you design the model and output of the machine you need for free, and put forward our Suggestions scientifically
Q:How long is your after-sales service?
We provide two years of after-sales service, within the warranty period, free of charge to provide related accessories.we can provide free raw material test video and photos, and test the performance index of each machine before delivery.the machine can be packed in wooden cases before leaving the factory and packed in cartons cases for each machine.
We are the manufacturer and can supply any spare parts for the machine
Q:Can your company help me design the model of the machine I want?
We can help you design the model and output of the machine you need for free, and put forward our Suggestions scientifically
Q:How long is your after-sales service?
We provide two years of after-sales service, within the warranty period, free of charge to provide related accessories.we can provide free raw material test video and photos, and test the performance index of each machine before delivery.the machine can be packed in wooden cases before leaving the factory and packed in cartons cases for each machine.
