Новая Оригинальная портативная электронная маркировочная машина гравировальная
- Категория: Metal Engraving Machinery >>>
- Поставщик: Jinan,Minglun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2499.36 $* | 2624.2 $* |
| Aug-19-2025 | 2478.42 $* | 2602.95 $* |
| Jul-19-2025 | 2079.19 $* | 2183.8 $* |
| Jun-19-2025 | 2436.11 $* | 2558.25 $* |
| May-19-2025 | 2121.83 $* | 2227.52 $* |
| Apr-19-2025 | 2394.18 $* | 2514.82 $* |
| Mar-19-2025 | 2373.47 $* | 2492.51 $* |
| Feb-19-2025 | 2352.10 $* | 2470.81 $* |
| Jan-19-2025 | 2331.29 $* | 2448.91 $* |
Характеристики

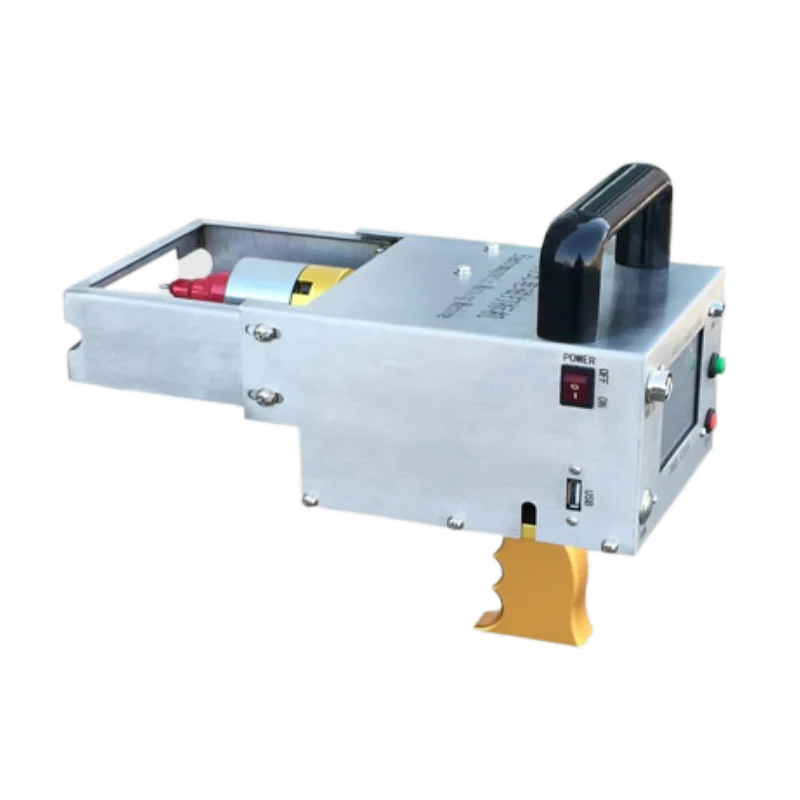

Handheld Electric Marking Machine | ||||||||
Model | ML-SC9030 B （Built-in computer and controller, need to be plugged in when using） | |||||||
Marking range | 90 mm × 30 mm | |||||||
Marking depth | 0.01-2 mm | |||||||
Driving voltage | DC24V | |||||||
Power supply mode | single exchange 110-240 V global universal | |||||||
Print content | Any Chinese and English characters numbers and graphics | |||||||
Print effect | clear and beautiful /Any graphic that containing in the CAD | |||||||
The machine supports reading data directly from the U disk | ||||||||
Machine weight | 4.5kg, Dimention: 28cm *14.5cm*10.5cm | |||||||

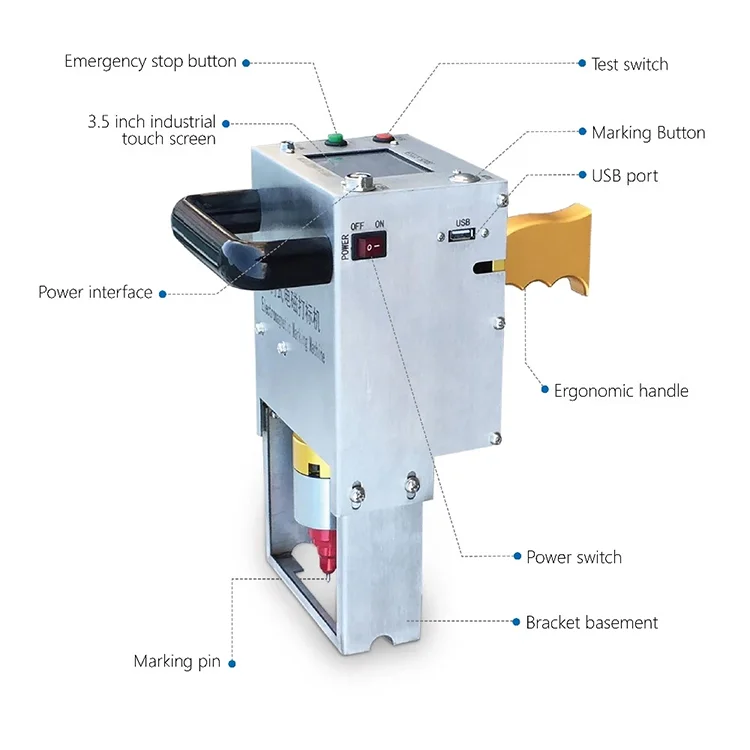

Product features:
1). Man-machine interface: embedded ARM9 industrial control platform, full-screen touch,

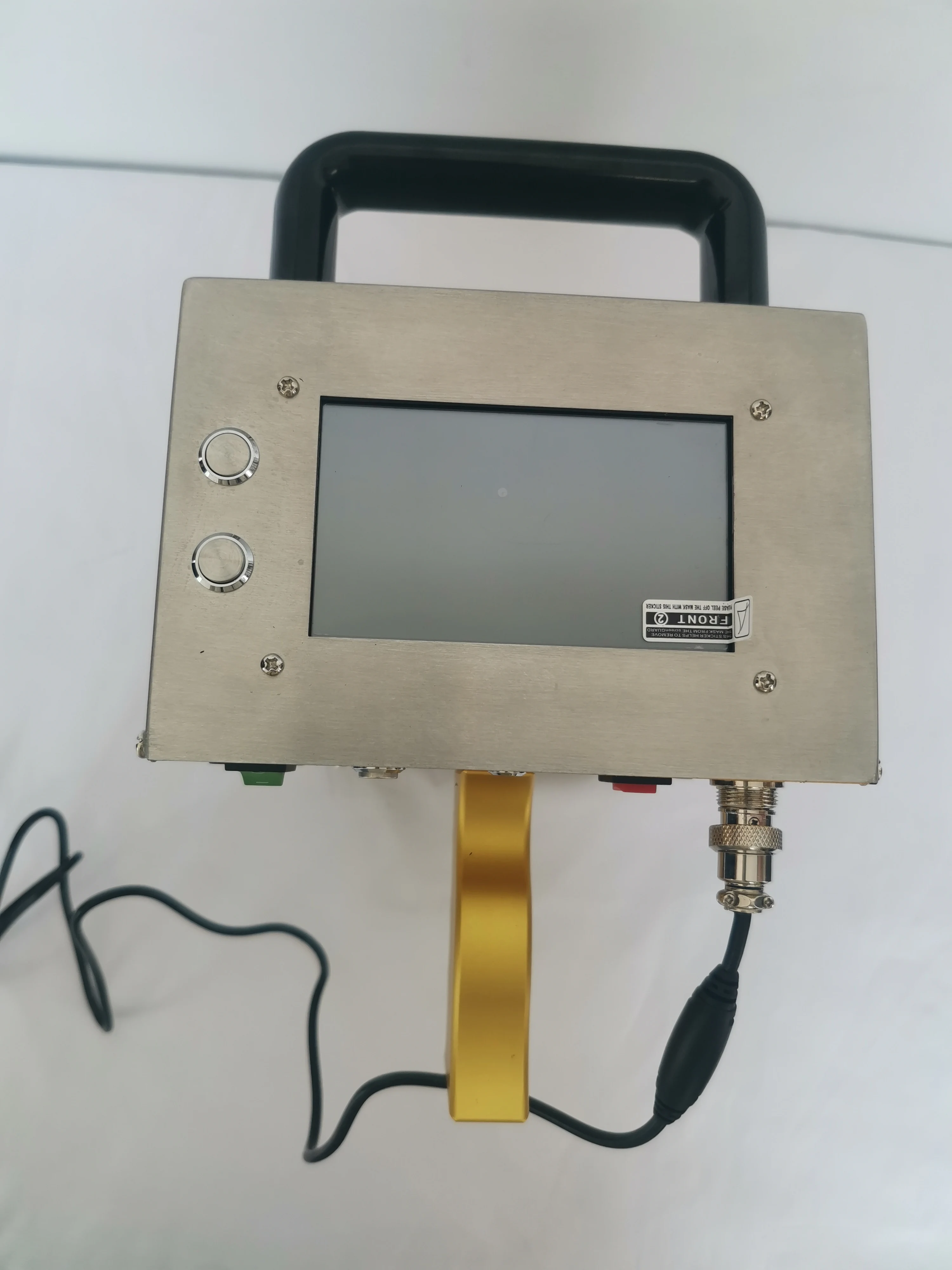

2). Display system: 3.5-inch true color touch screen (industrial grade), software embedded control system.
3). Drive Control Card: ARM+STM 32 Dual Bit Processor
4). Stepper motor driver: Fully digital drive, no noise operation, extremely smooth
marking effect, automatic semi-flow, Stepper motor: Sanyo Denki JAPAN, or high quality domestic motor (features: low noise, large torque, low heat)
5). Transmission mechanism /Guide Rail: Taiwan Hiwin (characteristics: high precision, low operating noise, closed type)
7). Print pin: The whole piece made-in- Japan, is the high quality composite material.
8). Suitable for mobile coding, the integrated design is more convenient.

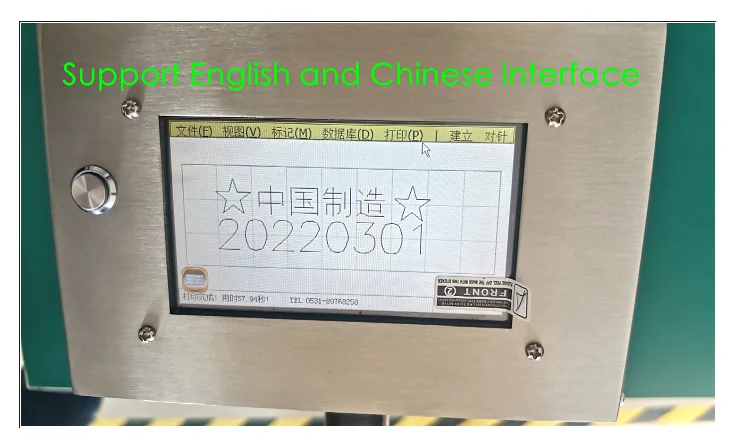

9). Software versions in English and Chinese version.
1). Man-machine interface: embedded ARM9 industrial control platform, full-screen touch,
2). Display system: 3.5-inch true color touch screen (industrial grade), software embedded control system.
3). Drive Control Card: ARM+STM 32 Dual Bit Processor
4). Stepper motor driver: Fully digital drive, no noise operation, extremely smooth
marking effect, automatic semi-flow, Stepper motor: Sanyo Denki JAPAN, or high quality domestic motor (features: low noise, large torque, low heat)
5). Transmission mechanism /Guide Rail: Taiwan Hiwin (characteristics: high precision, low operating noise, closed type)
7). Print pin: The whole piece made-in- Japan, is the high quality composite material.
8). Suitable for mobile coding, the integrated design is more convenient.
9). Software versions in English and Chinese version.
According to your requirements, we provide Different Models , welcome to inquire.
Model | ML-SC9030 A | |
Built-in computer and controller | ||
Voltage | 100-240V/50-60Hz | |
Power | Power supply | |
Marking range | 90mm × 30mm | |
Marking depth | 0.01-2mm | |
Size | 28*14.5*10.5cm | |
Weight | 5Kg | |
Model | ML-SC1530A | |
Equipped with a touch screen controller, an external air pump is required for use | ||
Voltage | 100-240V/50-60Hz | |
Power | Compressed air 0.2-0.6Mpa | |
Marking range | 80mm × 30mm | |
Marking depth | 0.1-1.2mm | |
Size | 22*18*8 | |
Weight | 2.6kg+12.4kg | |
Model | ML-SC1530B | |
Equipped with a screen controller, an external air pump is required for use | ||
Voltage | 100-240V/50-60Hz | |
Power | Compressed air 0.2-0.6Mpa | |
Marking range | 80mm × 30mm | |
Marking depth | 0.1-1.2 mm | |
Size | 18*18*18 cm | |
Weight | 2.6kg+12.4kg | |
Difference between ML-SC9030A and ML-SC9030B
Packing & Delivery
Company Profile
FAQ
Q: Are you a manufacturer or an agent?
We are the manufacturer and can supply any spare parts for the machine
Q:Can your company help me design the model of the machine I want?
We can help you design the model and output of the machine you need for free, and put forward our Suggestions scientifically
Q:How long is your after-sales service?
We provide two years of after-sales service, within the warranty period, free of charge to provide related accessories.we can provide free raw material test video and photos, and test the performance index of each machine before delivery.the machine can be packed in wooden cases before leaving the factory and packed in cartons cases for each machine.
We are the manufacturer and can supply any spare parts for the machine
Q:Can your company help me design the model of the machine I want?
We can help you design the model and output of the machine you need for free, and put forward our Suggestions scientifically
Q:How long is your after-sales service?
We provide two years of after-sales service, within the warranty period, free of charge to provide related accessories.we can provide free raw material test video and photos, and test the performance index of each machine before delivery.the machine can be packed in wooden cases before leaving the factory and packed in cartons cases for each machine.
