2HP/3HP/5HP/7.5HP титановый испаритель с ПВХ оболочкой трубчатый теплообменник для
- Категория: Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Shandong,Ecoice,Refrigeration,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 60.71 $* | 63.36 $* |
| Aug-19-2025 | 59.89 $* | 62.56 $* |
| Jul-19-2025 | 50.75 $* | 53.58 $* |
| Jun-19-2025 | 58.5 $* | 61.90 $* |
| May-19-2025 | 51.1 $* | 54.91 $* |
| Apr-19-2025 | 57.43 $* | 60.95 $* |
| Mar-19-2025 | 57.48 $* | 60.74 $* |
| Feb-19-2025 | 56.10 $* | 59.2 $* |
| Jan-19-2025 | 56.38 $* | 59.78 $* |
Характеристики
2HP/3HP/5HP/7.5HP Screwed titanium tube pvc shell heat exchanger for swimming pool heat pump & aquarium chiller evaporator
Product Description
Specification
item | value |
Applicable Industries | Hotels, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Energy & Mining |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | Canada, Turkey, United Kingdom, France, Germany, Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Japan, Malaysia, Australia, Argentina, UAE, Sri Lanka, Romania |
Showroom Location | Canada, United Kingdom, Germany, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Chile, UAE, Sri Lanka, Japan, Malaysia, Australia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Engine, Pressure vessel |
Condition | New |
Place of Origin | China |
Brand Name | ecoice |
Structure | Tube Heat Exchanger |
Liquid Flow Rate | 1.5-25m³/h |
Maximum Working Pressure | 700p |
Weight | 10KG |
Dimension(L*W*H) | D160*700mm |
Certification | CCC, ce |
Warranty | 1 Year |
Video technical support, Online support | |
Working Temperature Range | |
Key Selling Points | Competitive Price |
Product Name | heat exchanger |
Application | Heat Transfer Cooling |
Type | shell and tube |
Material | Pure Titanium |
Shell material | PVC/PPR |

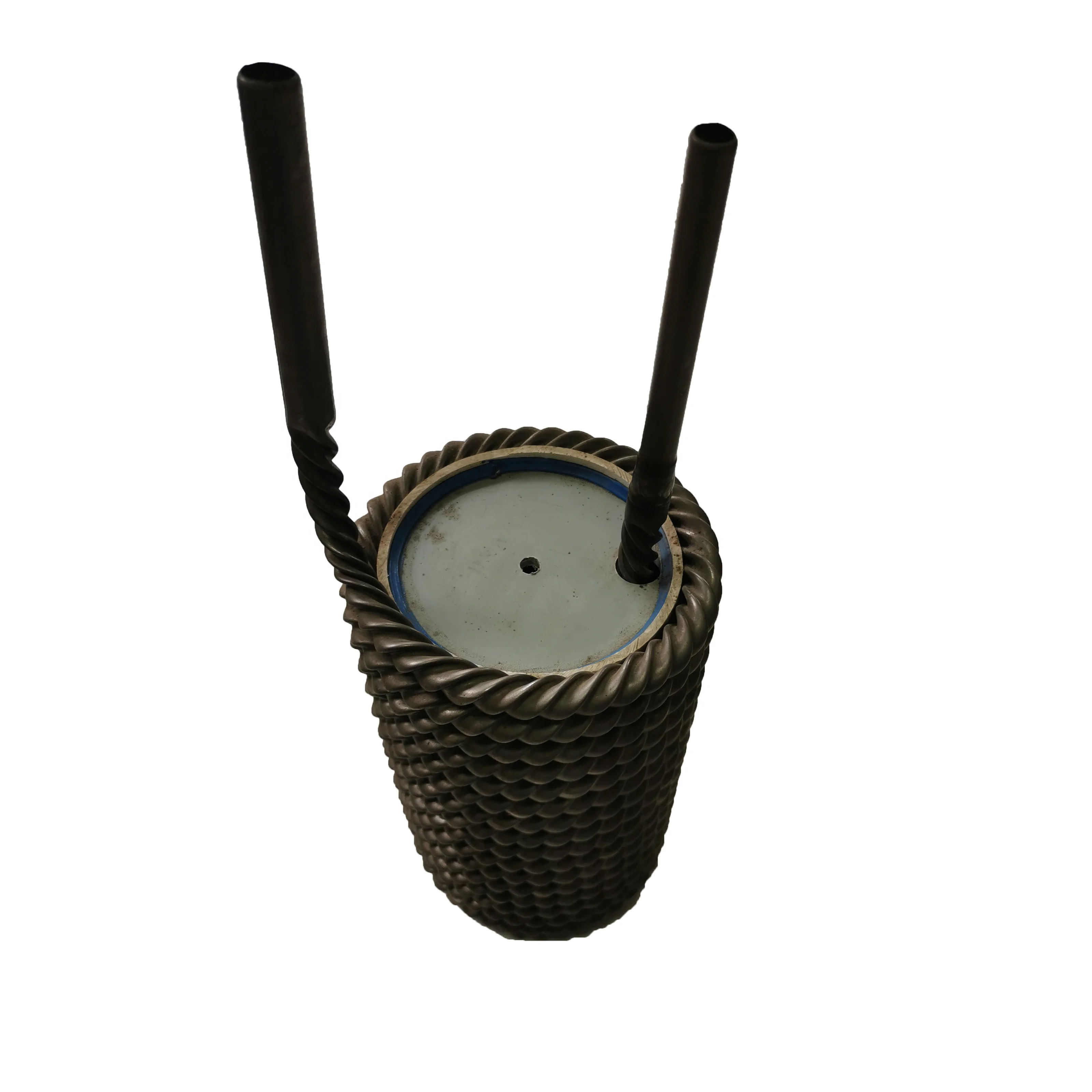

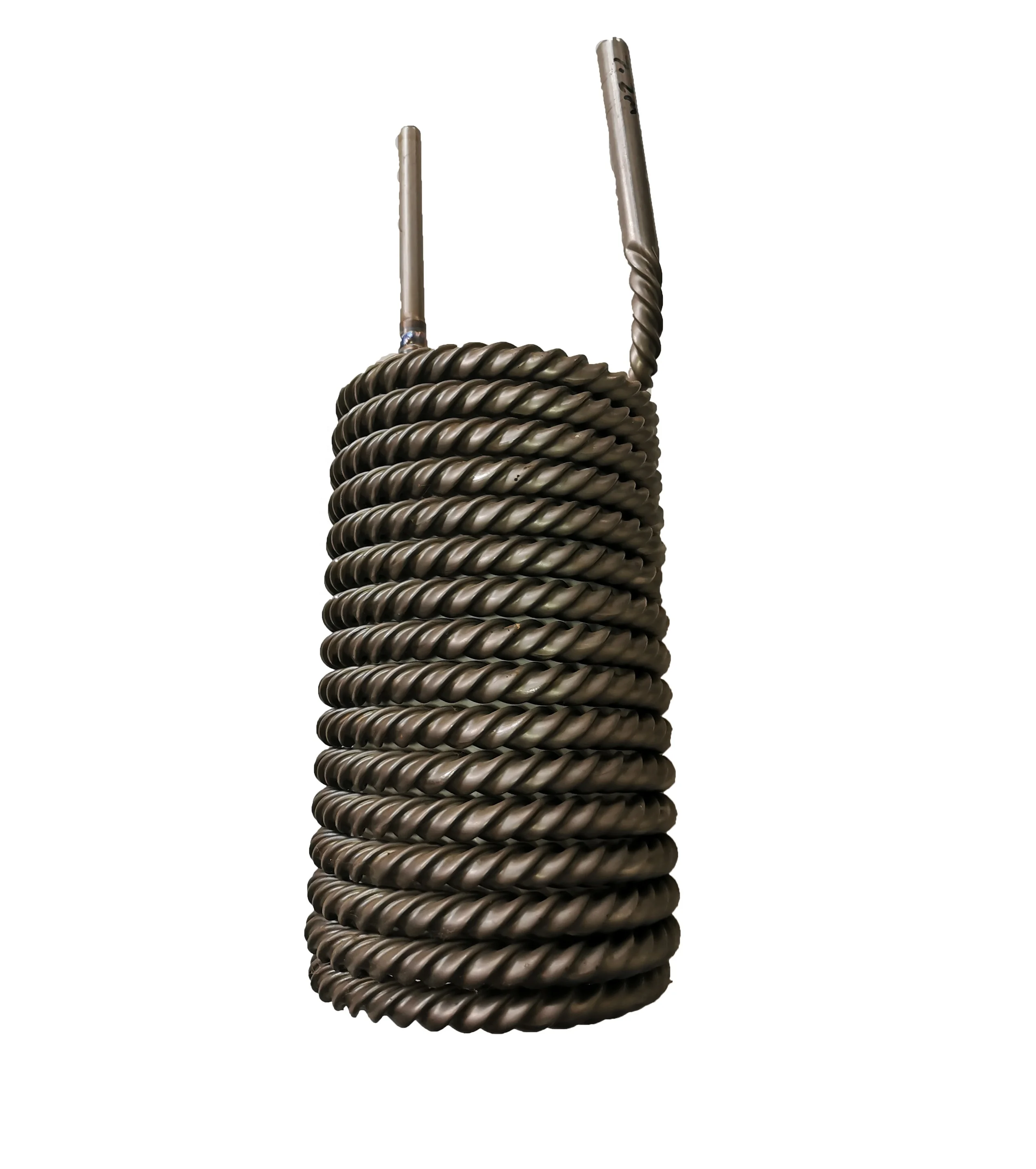

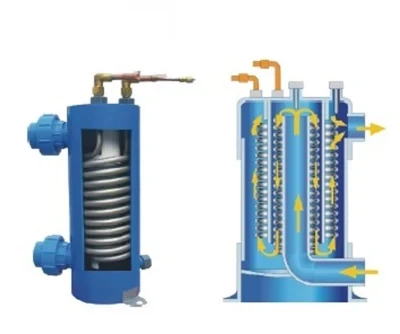

Coaxial heat exchanger consist of one spiral grooves inner tube and a outer tube. Cold liquid and heat liquid flow in the gap that between inner and outer tube or in inner tube separately.
Structure Feature
High efficiency
Spiral groove structure can enhance heat transfer on both sides. The axial flow and spiral rotation flow of the fluid in the tube will intensify the mixing of the fluid near the tube wall, thus enhancing the turbulence intensity and increasing the heat transfer efficient.
Self-cleaning ability
Self-cleaning ability
The coaxial heat exchanger has self-cleaning ability because the fluid spiral flow washes the surface. Coaxial heat exchanger has stable performance and low attenuation. The cross-section area of the waterway is large, allowing sediment and large diameter fibers to pass through without blocking. The water passage is clean because the inner tube of the spiral groove keeps the flow turbulent and cleans the surface.
Effective prevention of freezing
Effective prevention of freezing
Water is not easy to freeze because it is turbulent when it flows at a low speed in a spiral groove. The special spiral groove structure of the inner tube makes the inner tube flexible to a certain extent and does not produce the risk of frost cracking.
Less risk of leakage
Less risk of leakage
Heat exchangers are very worried about leakage due to long-term vibration, pressure fluctuation, alternation of heat and cold, and so on. The risk of leakage of coaxial exchangers is seldom due to fewer welding points, simple processing and easy control of welding quality.
Adapt to all kinds working conditions
In the actual operation of refrigeration system, the internal pressure is often in an alternate state due to temperature fluctuation, start-stop cycle, heat pump defrosting, expansion valve regulation and other factors. Spiral coaxial heat exchanger is more resistant to pressure shock and pressure shock than plate heat exchanger under constant vibration and pressure change, and can adapt to the complexity of actual working conditions
Adapt to all kinds working conditions
In the actual operation of refrigeration system, the internal pressure is often in an alternate state due to temperature fluctuation, start-stop cycle, heat pump defrosting, expansion valve regulation and other factors. Spiral coaxial heat exchanger is more resistant to pressure shock and pressure shock than plate heat exchanger under constant vibration and pressure change, and can adapt to the complexity of actual working conditions
Low Price Titanium Evaporator Titanium Tube PVC Shell for Aquarium Chiller heat exchanger
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
ShanDong EcoIce Refrigeration Co., Ltd is specialized in manufacturing flake ice machine, heat exchanger,quick freezer , seafood process machines and water chiller in China.
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS and UL certificate.
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS and UL certificate.
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.
Low Price Titanium Evaporator Titanium Tube PVC Shell for Aquarium Chiller heat exchanger
Application
Title goes here.

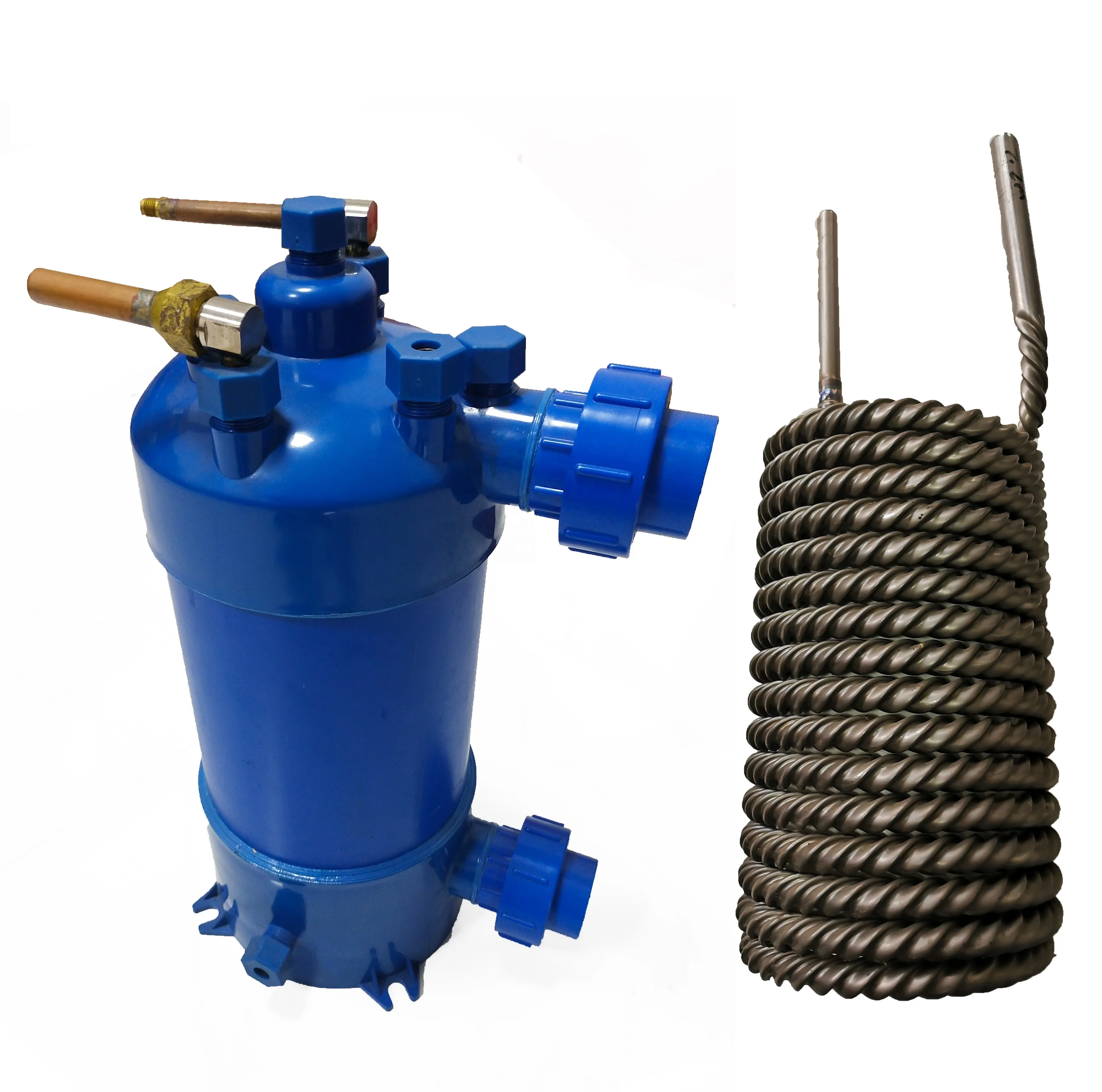

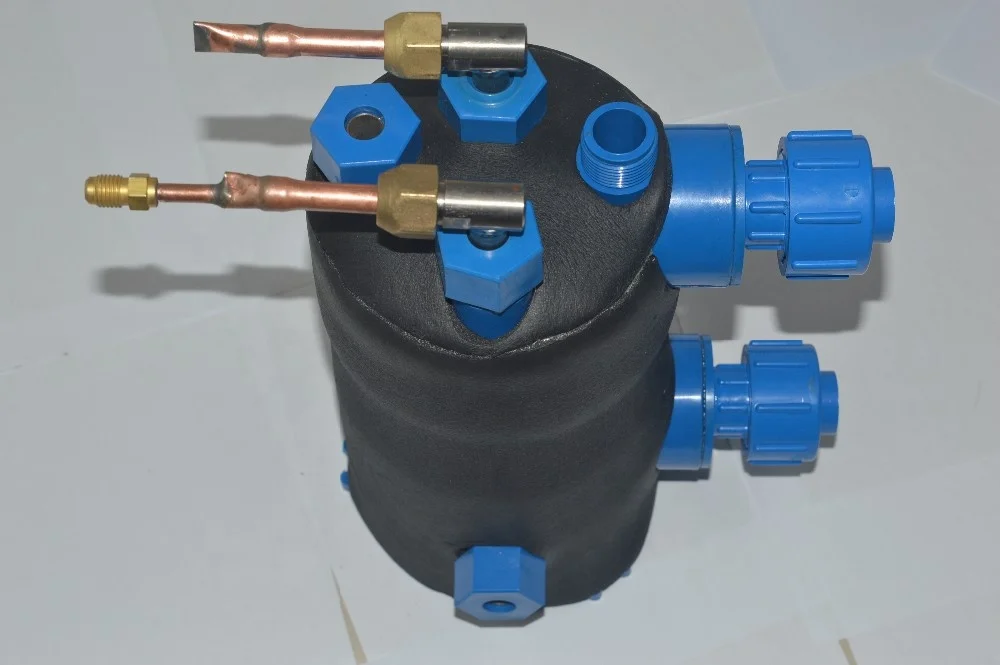

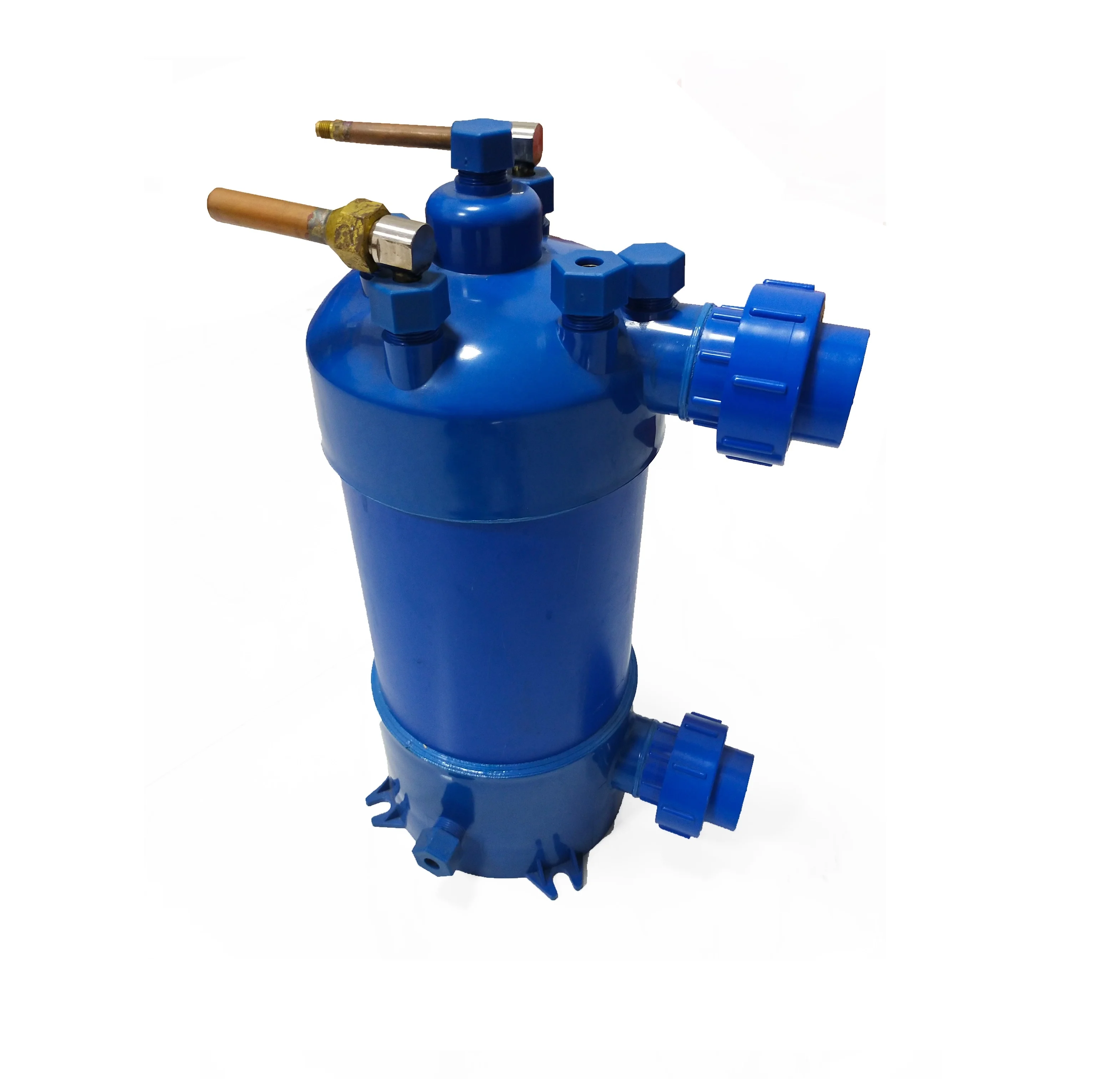

Titanium tube heat exchanger with PVC shell mainly used for Aquarium Water Chiller
