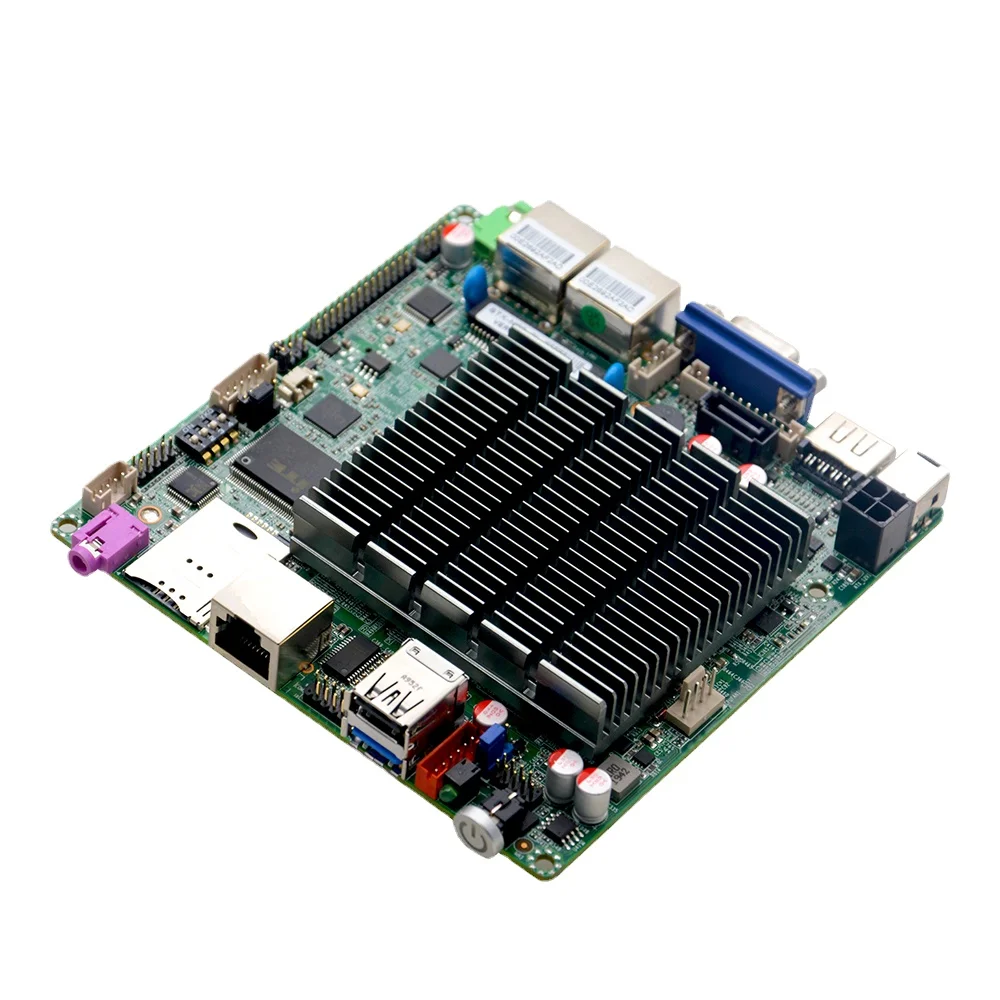

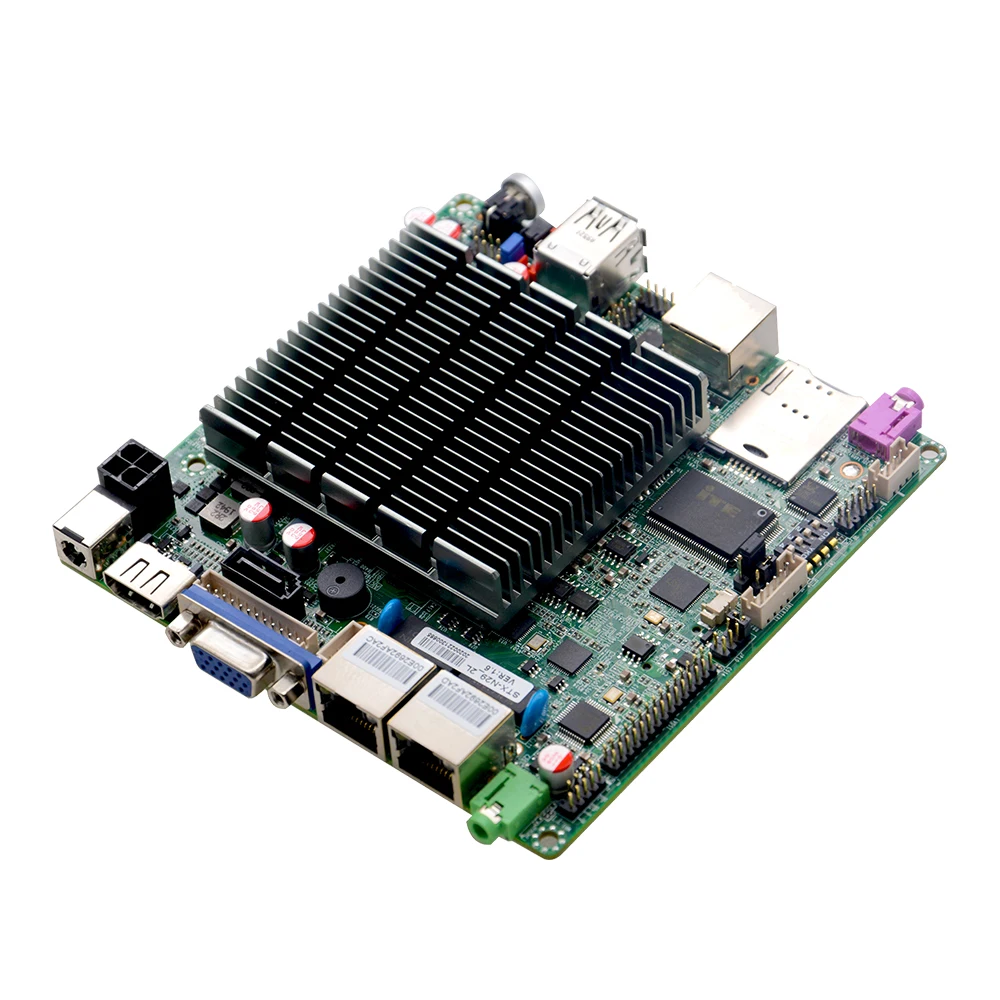

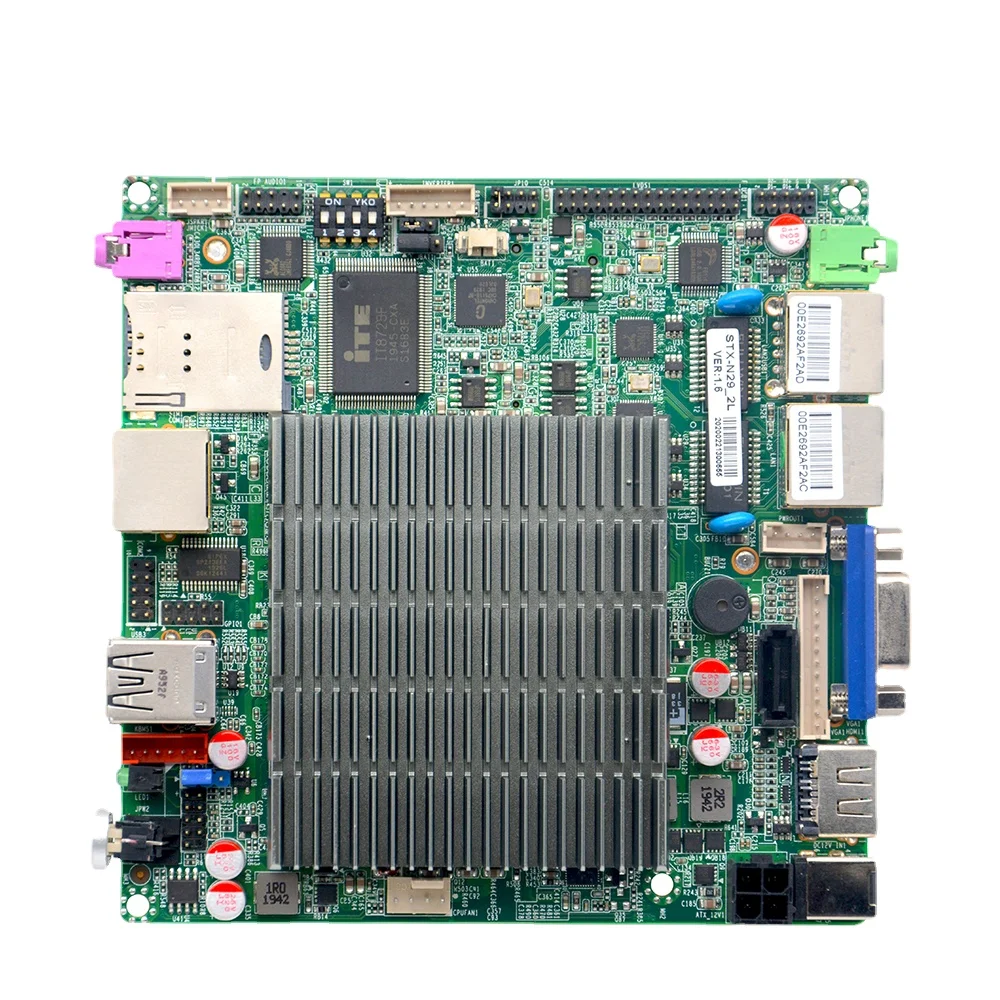

Промышленная материнская плата Mini itx с процессором Intel J1800 Встроенная Материнская NANO
- Категория: Motherboards >>>
- Поставщик: Shenzhen,Immediate,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 146.76 $* | 149.52 $* |
| Jul-16-2025 | 118.54 $* | 120.37 $* |
| Jun-16-2025 | 144.14 $* | 147.24 $* |
| May-16-2025 | 143.18 $* | 146.5 $* |
| Apr-16-2025 | 114.45 $* | 116.45 $* |
| Mar-16-2025 | 140.57 $* | 143.14 $* |
| Feb-16-2025 | 139.18 $* | 142.31 $* |
| Jan-16-2025 | 138.72 $* | 141.51 $* |
Характеристики
Product Description
| No. | Mode | Processor | Frequency | Memory | VGA | HDMI | LVDS | LAN | USB | COM | Power |
| 1 | STX-N29_2L VER:1.6 | J1900 | 2.0G | 1*SODDR3L | 1 | 1 | 2ch/24BIT | 2 | 4 | 2 | DC/12V |
| 3 | STX-N29_1L VER:1.6 | J1900 | 2.0G | 1*SODDR3L | 1 | 1 | 2ch/24BIT | 1 | 6 | 2 | DC/12V |
| Product number | STX-N29_2L VER:1.6 |
| processor | Integrated Intel®J1900/2.00GHz quad-core processor, TDP power consumption 10W |
| chipset | Based on Intel® Bay trail SOC platform |
| RAM | 1*SO DDRIII slot, only supports 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB |
| Show
| Integrated Intel®HD Graphics core graphics |
| 1*VGA, 1*HDMI, 1*LVDS interface (support dual channel 24BIT) | |
| Support VGA; HDMI; LVDS synchronous/asynchronous display | |
| The internet | 2* RTL8111F Gigabit Ethernet chip, support Wake on LAN/PXE function |
| Store | 1* SATA hard disk interface |
| Audio
| Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out. |
| The power amplifier recommends using 2Ω5W speakers | |
| Expansion slot
| 1* Mini-PCIE slot supports WIFI/3G module |
| 1* MSATA slot supports SSD/WIFI, SSD transmission speed up to 3Gbps | |

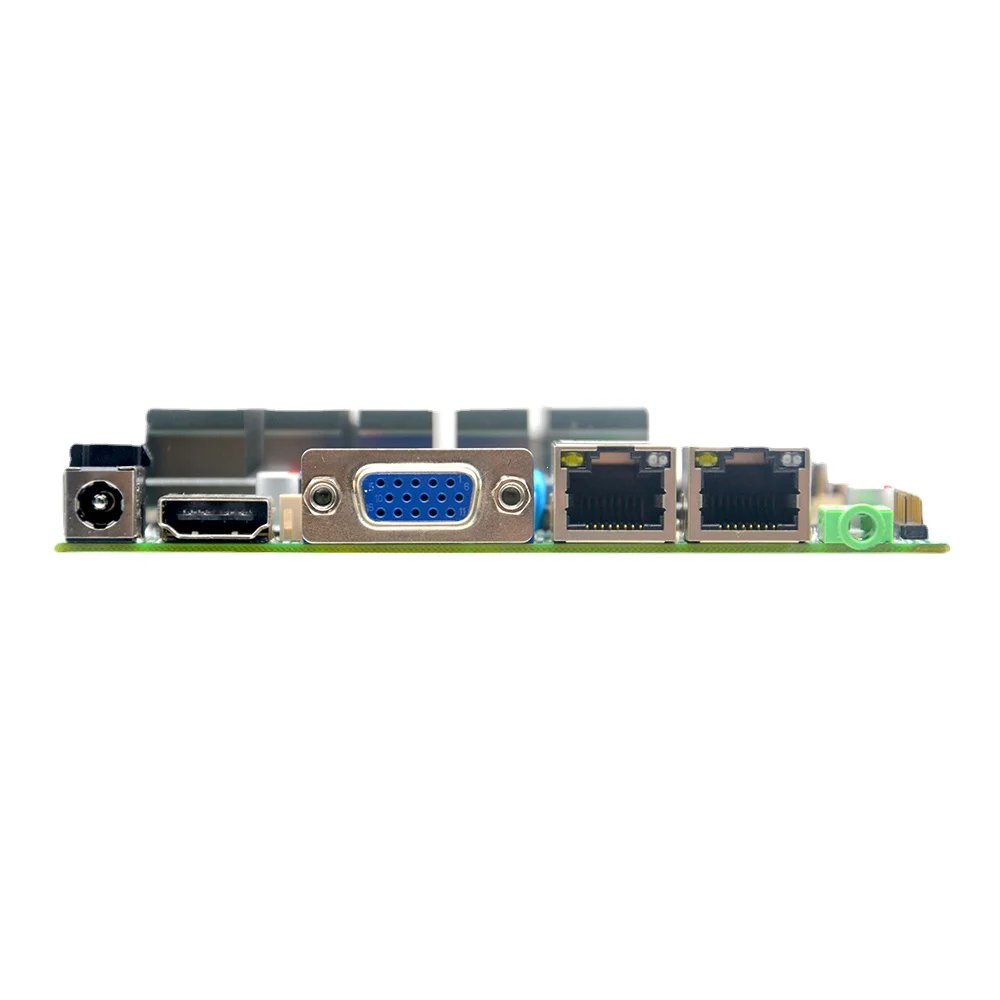

| Backplane I/O interface
| 1*USB2.0, 1*USB3.0 |
| 1* HDMI port | |
| 1* VGA port | |
| 2* RJ-45 network interface | |
| 1* Line out (green), 1* MIC (purple) | |
| 1* RJ-45 serial port | |
| 1* Power button | |
| 1* 12V DC_JACK input | |
| Built-in I/O interface
| 1* LVDS interface (2*15pin), support dual channel 24BIT LCD display |
| 1* LVDS backlight interface 1*6pin) | |
| 1* JVGA1 interface (1*12pin) same signal as DB15 | |
| 1* RS232 serial port | |
| 2* USB2.0 interface (2*5pin) | |
| 1* PS/2 mouse keyboard interface (1*6Pin) | |
| 1* Front panel audio interface (2*5pin) | |
| 1* SIM card holder | |
| 1* Hard disk power supply interface | |
| 1* Front panel function button and indicator light interface (2*5pin) | |
| 1* 4pin ATX 12V input and output power interface | |
| 1*Amplifier interface (1*4pin) | |
| Fan interface | 1* CPU fan interface 4pin |
| GPIO | Support 4 input and output GPIO |
| BIOS | AMI 64Mb Flash ROM |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| operating system | Windows 7/Windows 10/Linux |
| Power type | DC_12V single power input |
| Operating temperature | -10℃~60℃ |
| Storage temperature | -20℃~70℃ |
| Working humidity | 5%-95% relative humidity, non-condensing |
| Size | 120mm x 120mm |
