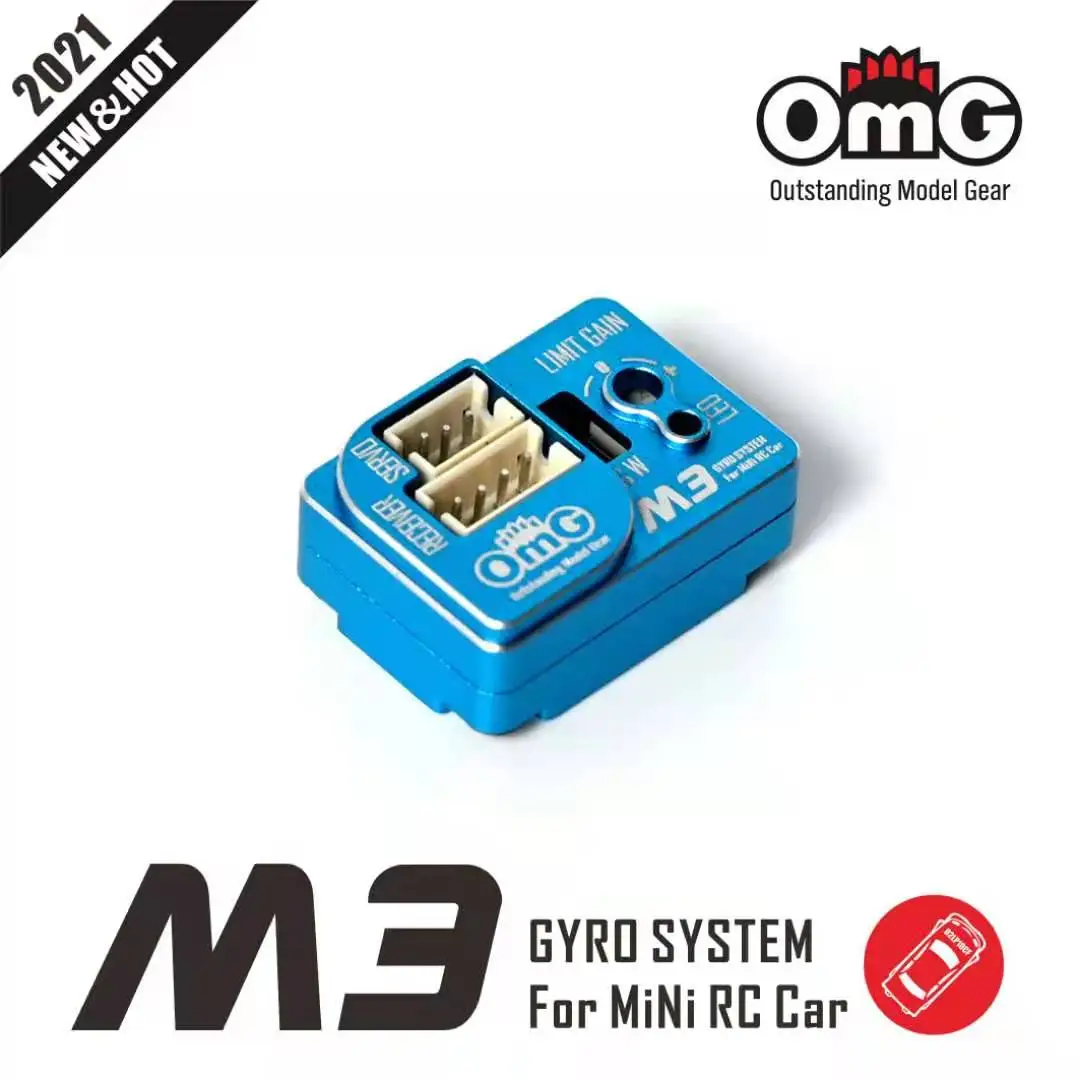

Невис игрушка «OMG» с алюминиевым корпусом высокой стабильности гироскопа управления по радио автомобилей игрушки части M3 гироскоп для RC автомобиль
- Категория: >>>
- Поставщик: Jiangmen,Xinhui,Nevis,Toy,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 33.59 $* | 35.34 $* |
| Aug-15-2025 | 33.76 $* | 35.81 $* |
| Jul-15-2025 | 28.18 $* | 29.81 $* |
| Jun-15-2025 | 32.50 $* | 34.63 $* |
| May-15-2025 | 28.64 $* | 29.35 $* |
| Apr-15-2025 | 32.84 $* | 34.71 $* |
| Mar-15-2025 | 32.93 $* | 34.94 $* |
| Feb-15-2025 | 31.93 $* | 33.93 $* |
| Jan-15-2025 | 31.78 $* | 33.86 $* |
Характеристики
Specification
Brand | Nevis |
Item NO | Gyro-M3 |

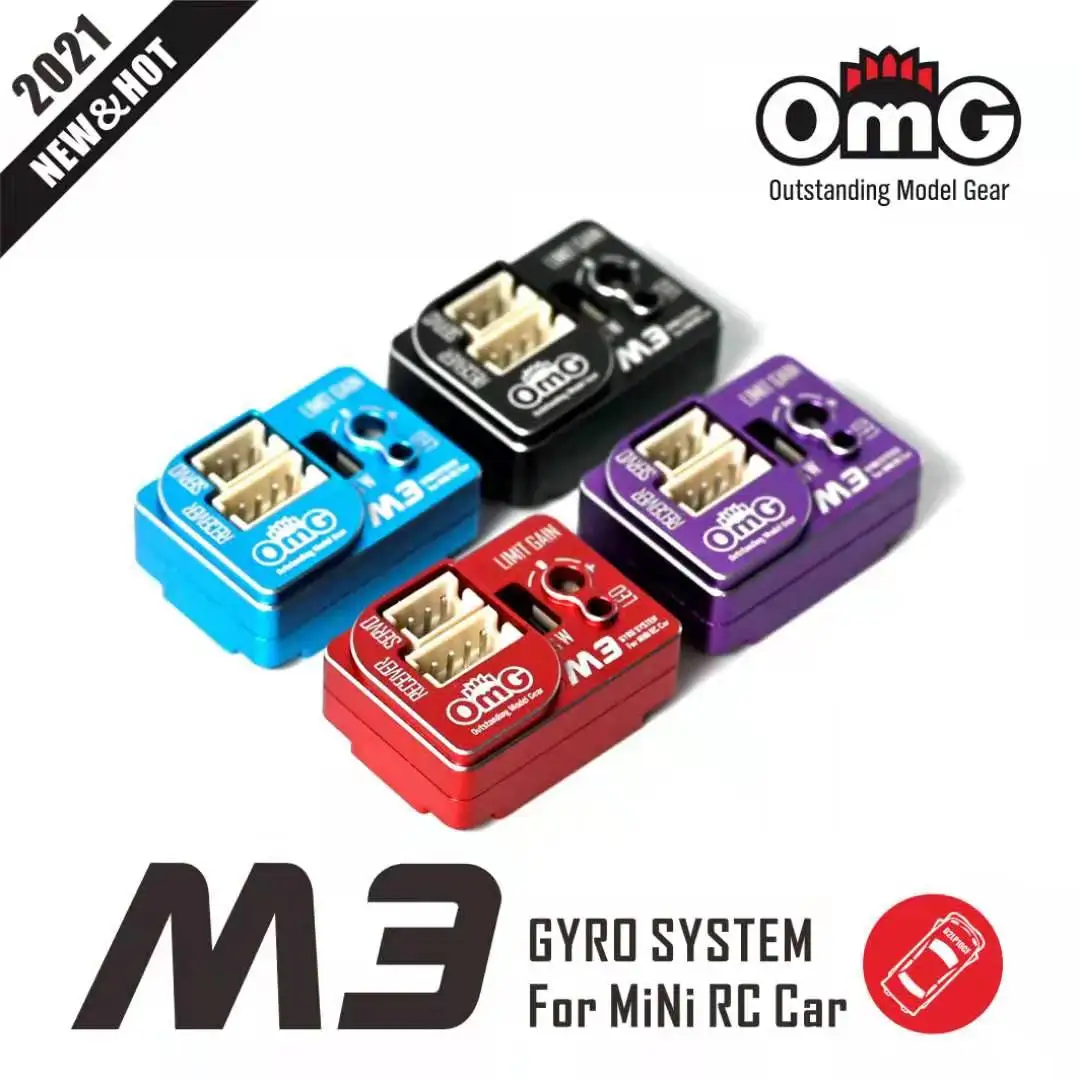

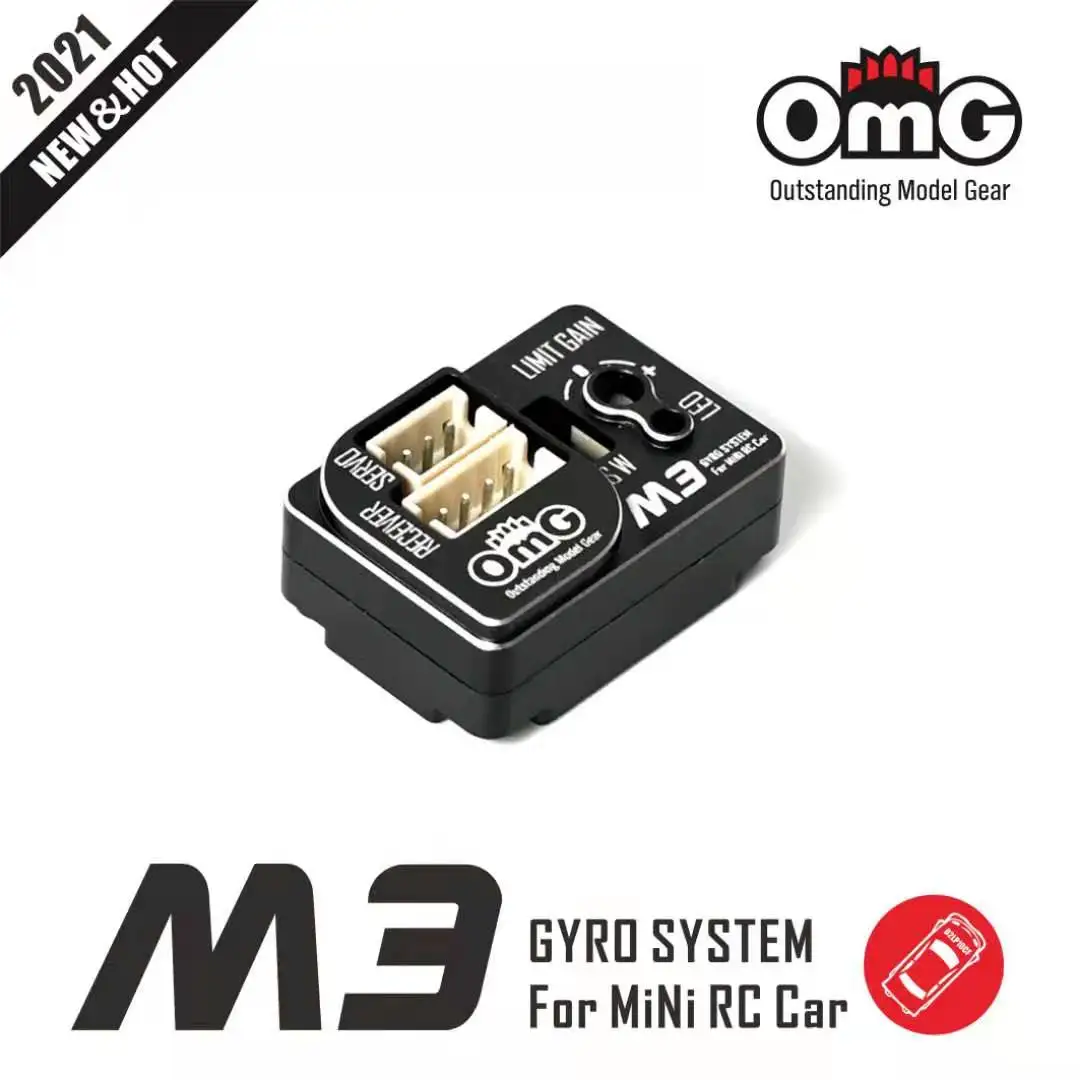

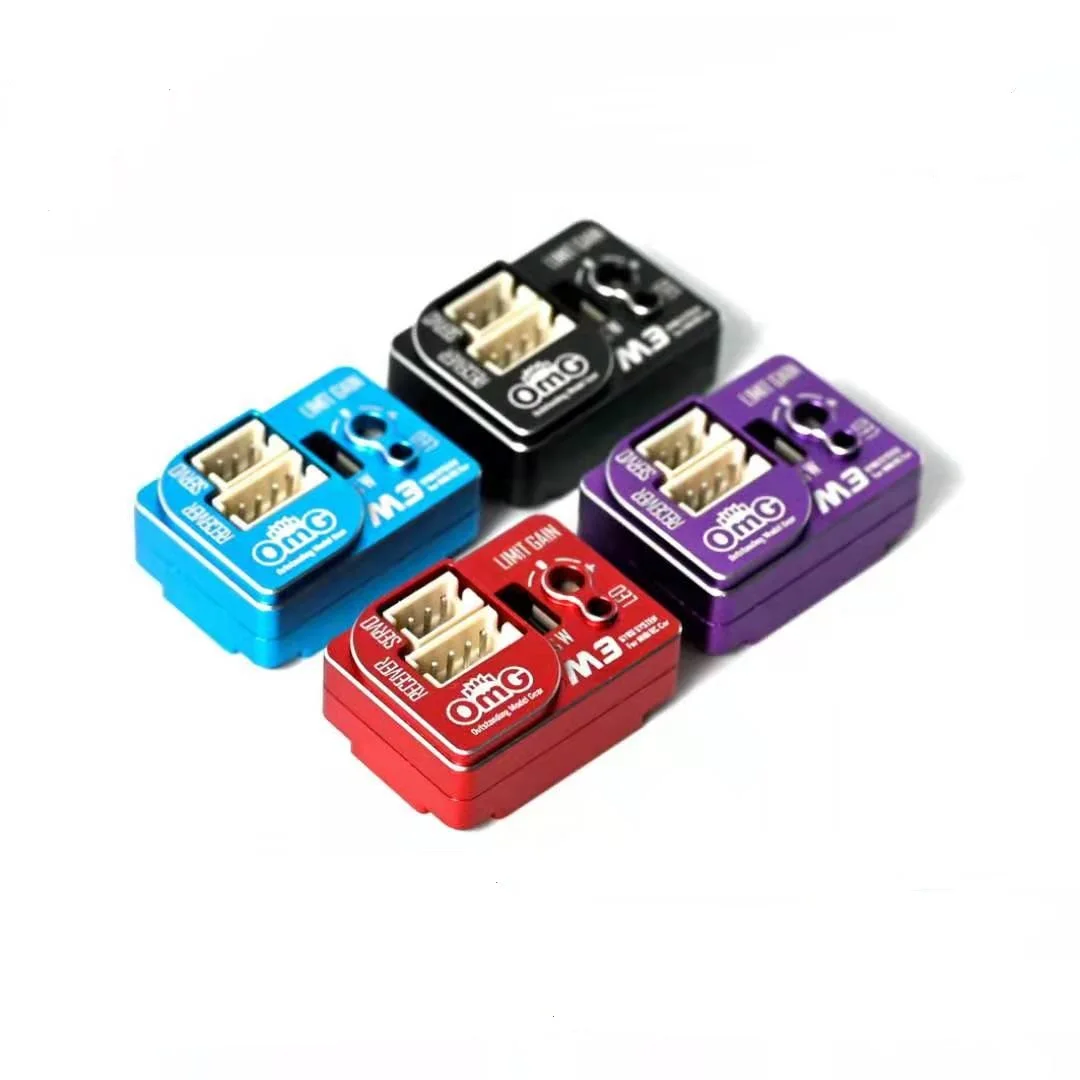

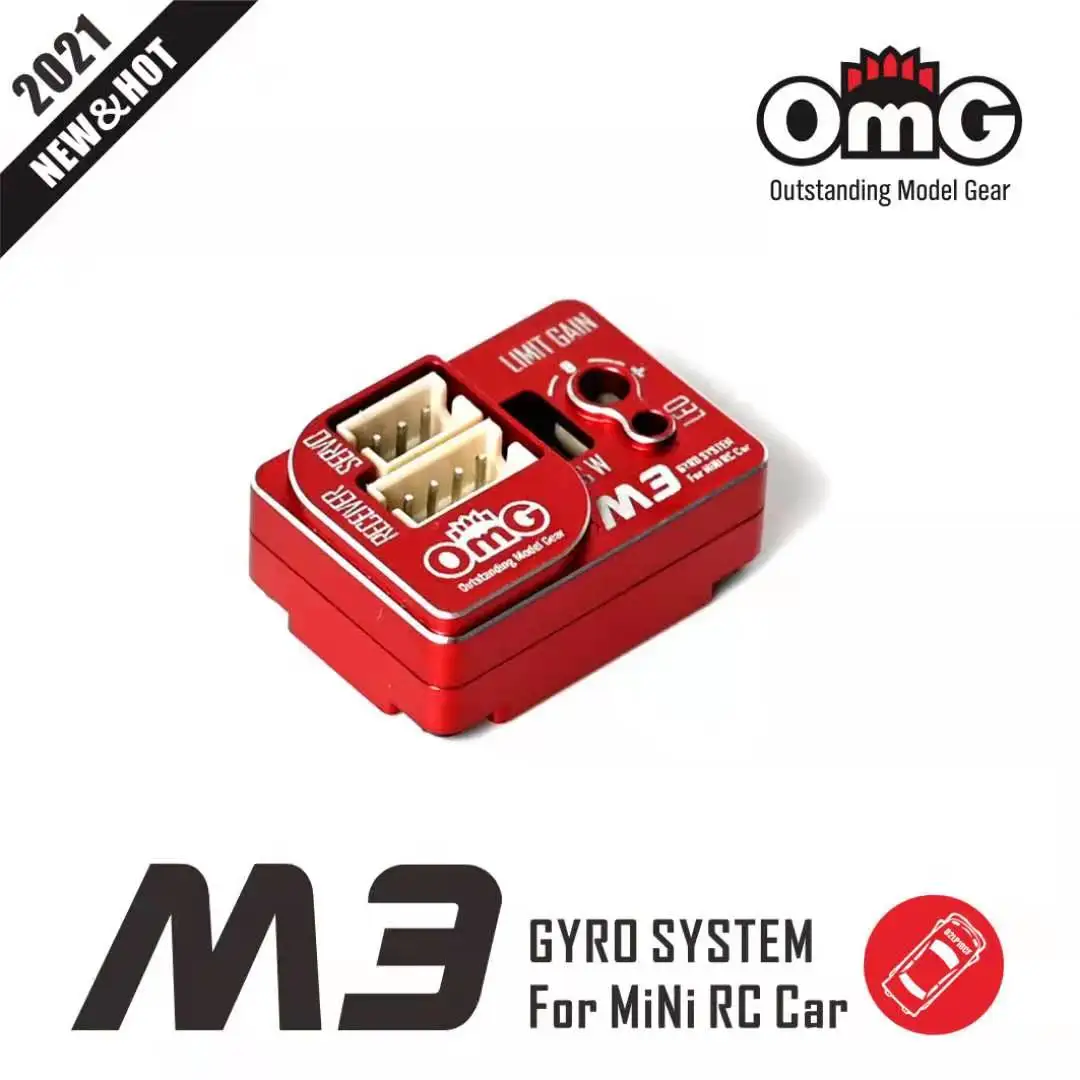

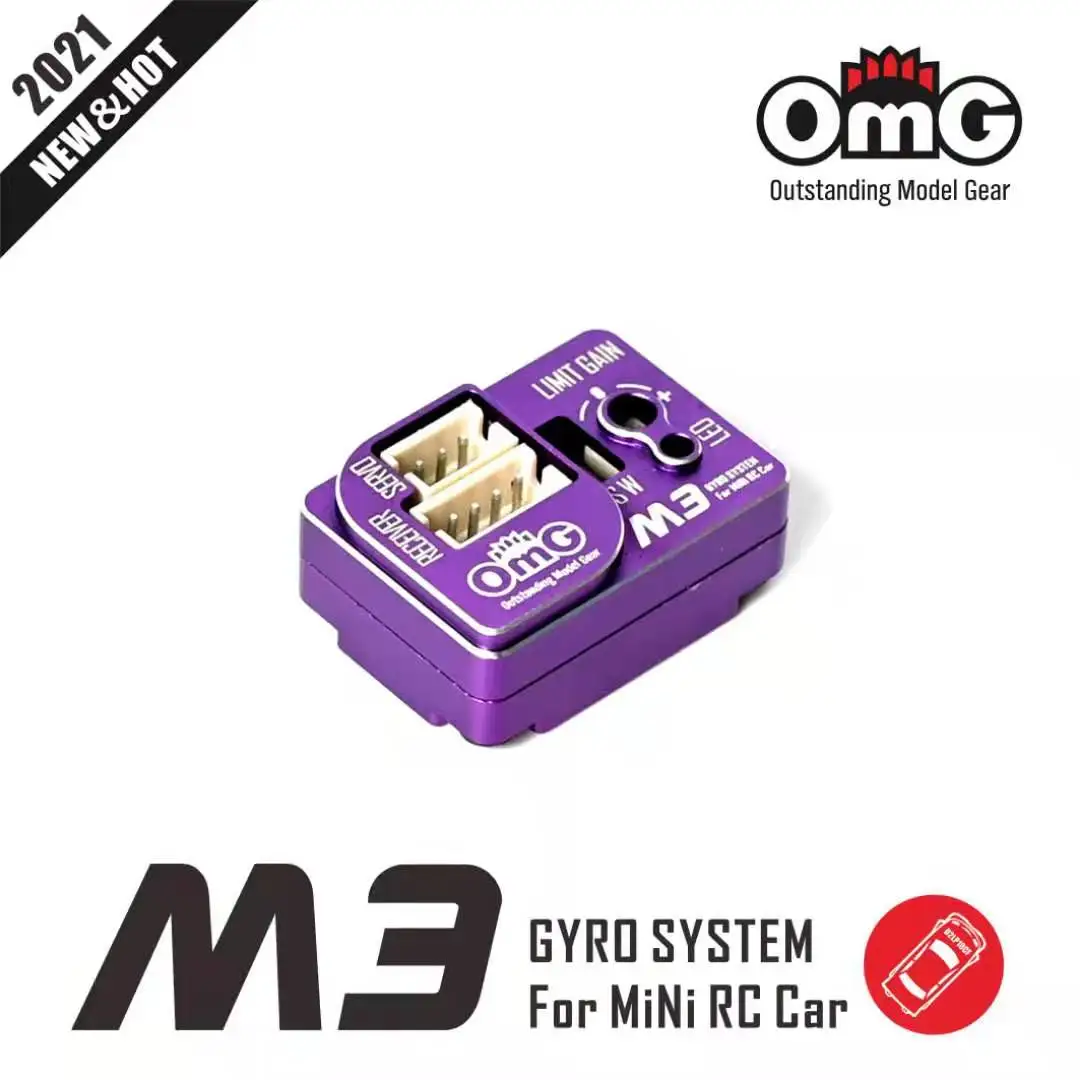

Color | Blue, Purple, Black, Red |
Suit For | RC Car MINI-Z |
Weight | 14g |
Dimension | 21x15x9mm |
Operating voltage | 3.7-8.4V |
Operating current | 20mA/6V |
Support the servo pulse width | 520uS(50Hz&333Hz) |
Operating temperature range | -10℃+50℃ |
Control systerm | PID control systerm |
Input&Output Plug | JST 1.5mm |
Sensor | Vibrating Gyro Sensor |
Including | Aluminum Case High Stability Gyro (1 pc),Adjustment Screwdriver (1 pc),Adapter Cables (3 pcs) |
Product Description
LED STATUS
LED Status Gain Adjustment Method
Red Fast Flash Initialization /
Orange Fast Flash Loss of Control Signal /
Yellow-green Solid Light Normal Gain Mode Gain Signal Input
Yellow-green Slow Flash Normal Gain Mode Potentiometer Adjustment
Red Solid Light Sensitive Gain Mode Gain Signal Input
Red Slow Flash 3 Times Normal/Sensitive Mode Set /
Orange Slow Flash 3 Times Forward and Reverse Gain Set /
Orange Slow Flash Travel Set Mode /
FUNCTION INSTRUCTION OF SWITCH
EPA (Travel Setting)
Press the switch to power on, orange slow flash, enter into servo travel set mode, rotate the remote control steering to make the servo stop at the required position ( to left or to right). Short press the switch, orange light fast flash 2 times, red solid light, then yellow- green slow flash, it means current travel has been saved. Rotate the remote control steering again to make the servo stop an another required position, short press the switch, orange light fast flash 2 times, then solid light, it means current travel has been saved as well.
After 2 seconds gyro enter into initial ization automatically , once completed, gyro is ready for use.
Reset (Travel Restore Default Setting)
Press the switch to power on to travel set mode, hold press switch 3 seconds , red light and yellow-green flash alter nately . Restore to default after 2 seconds . Then enter into initialization , once the initialization process has been completed, the gyro is ready for use.
Press the switch to power on to travel set mode, hold press switch 3 seconds , red light and yellow-green flash alter nately . Restore to default after 2 seconds . Then enter into initialization , once the initialization process has been completed, the gyro is ready for use.
Gyro Direction (Forward and Reverse Gain Setting)
In the normal working state, hold press switch 4 seconds, orange light slow flash 3 times, reverse gain direction.
Dual Gain Mode Set
In the normal working state, fast press switch 2 times, red slow flash 3 times, change normal mode/sensitive mode.
RECEIVER CONNECTION (INPUT SINGAL MODE)
PWM (50-333Hz) suitable for most remote control systems, while plug-in the gain wire, it can adjust the sensitivity by transmitter (See PIC 1); While do not plug-in the gain wire, it can adjust the sensitivity by the potentiometer of gyro itself (See PIC 2). FUTABA S.BUS suitable for FUTABA S.BUS control systems. When use S.BUS signal input, default CH3 channel for sensitivity adjustment, and the gain wire is not used.
In the normal working state, hold press switch 4 seconds, orange light slow flash 3 times, reverse gain direction.
Dual Gain Mode Set
In the normal working state, fast press switch 2 times, red slow flash 3 times, change normal mode/sensitive mode.
RECEIVER CONNECTION (INPUT SINGAL MODE)
PWM (50-333Hz) suitable for most remote control systems, while plug-in the gain wire, it can adjust the sensitivity by transmitter (See PIC 1); While do not plug-in the gain wire, it can adjust the sensitivity by the potentiometer of gyro itself (See PIC 2). FUTABA S.BUS suitable for FUTABA S.BUS control systems. When use S.BUS signal input, default CH3 channel for sensitivity adjustment, and the gain wire is not used.
SANWA SSR/SANWA SHR suitable for SANWA control system, when use SSR / SHR signal input, the output signal adapts to SSR / SHR signal automatically.
REMARK:SAMWA SSR signal only for SSR servo, may cause permanent damage to the regular servo.
LIMIT GAIN (GAIN ADJUSTMENT)
Through remote sensitivity channel to adjust sensitivity) by default when SBUS input), the range is -100% ~ 0 ~ +100%.
A:0 means sensitivity zero B: -100% / +100% is maximum sensitivity.
While not used gain wire to input, they gyro is in normal mode only, use .potentiometer of gyro to adjust sensitivity,
yellow-green slow flash.
REMARK:SAMWA SSR signal only for SSR servo, may cause permanent damage to the regular servo.
LIMIT GAIN (GAIN ADJUSTMENT)
Through remote sensitivity channel to adjust sensitivity) by default when SBUS input), the range is -100% ~ 0 ~ +100%.
A:0 means sensitivity zero B: -100% / +100% is maximum sensitivity.
While not used gain wire to input, they gyro is in normal mode only, use .potentiometer of gyro to adjust sensitivity,
yellow-green slow flash.
