Недорогой регулятор бесщеточного двигателя Sabvoton SVMC7245 3000 Вт 5000 8000 12000 для электрического

Sabvoton SVMC7245 brushless motor controller for 3000W 5000W 8000W electric bike

1. General SPEC
1). sine wave controller, programmable, with regen function
2). DC Current Limit: 150A
3). Max. Phase Current: 350A
4). Protect Phase Current: 450A
5). Battery Voltage: 24V-72V rated, Max. 95V
6). Thermic Probe: KTY83-122
7). Including one controller + USB convertor cable + matched plug
8). controller size: 247mm*146mm*62.5mm
9). Net weight: 2.5kg

10). Default function: Hall, Throttle, Reverse, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed switch, Hall speedometer.

 Notes:
1).We have updated the 0-5v e-brake function.
Old: it should be press the brake switch then can achieve 0-5v e-brake funtion.
Update: you can achieve 0-5v e-brake function without press the brake switch.
2). For no lock type controller, there is warranty service, but we could offer our suggestions for you.
3). CA function not support anymore. You could customize the controller according to our drawing.
4). Pls. make sure all the connection is correct before power on.

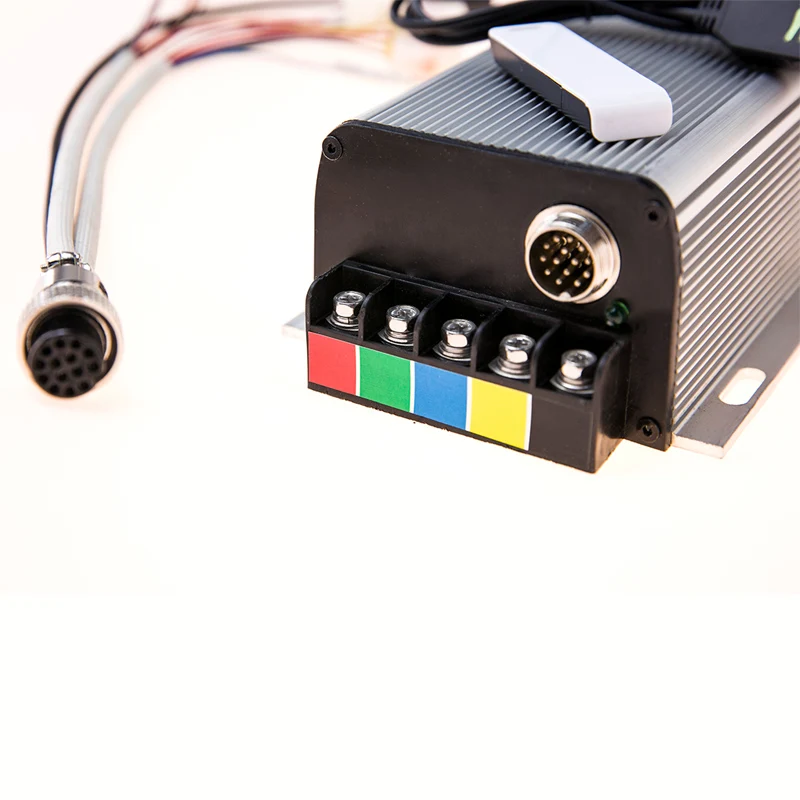

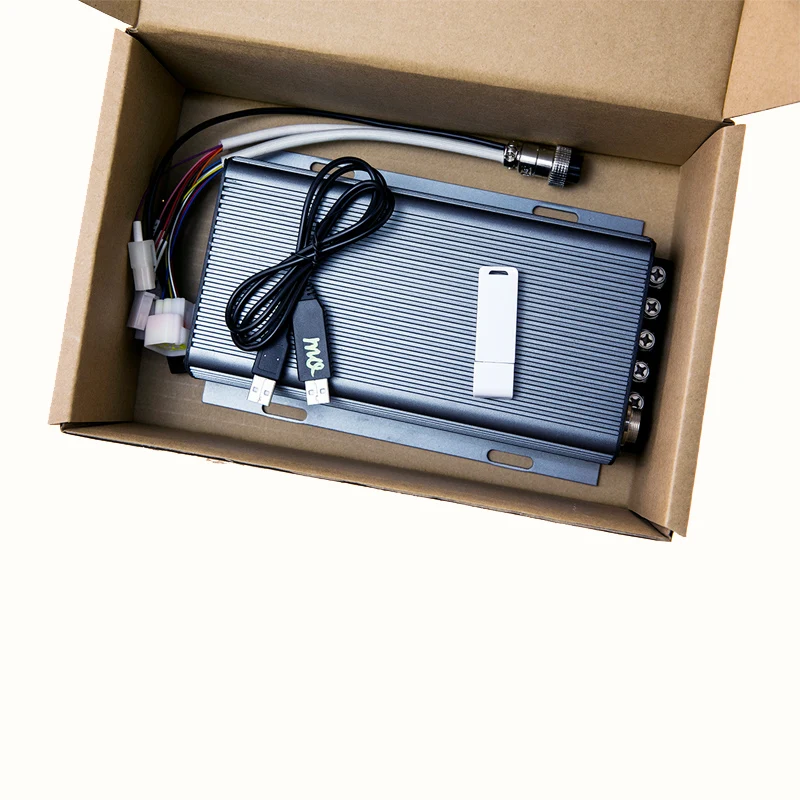

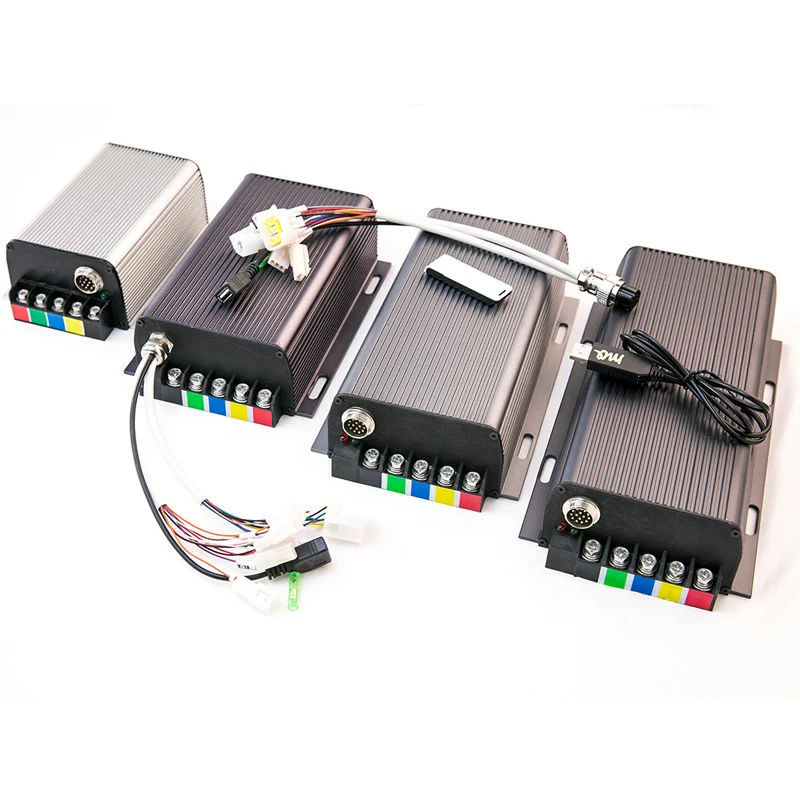

Product photos:

Q1. What is your terms of packing?

A: Generally, we pack this electric motorcycle in cartons. But if necessary, we can also add steel frame.

Q2. What is your terms of payment?

A: Delivery after paid on 100% T/T  prepaid,  trade assurance in alibaba or west union.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the shipping cost.
