Неэкранированный тип кабеля Ethernet Rj45 сетевой штекер Rj
- Категория: Connectors >>>
- Поставщик: Guangzhou,Ronde,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.92 $* | 0.43 $* |
| Aug-19-2025 | 0.84 $* | 0.75 $* |
| Jul-19-2025 | 0.62 $* | 0.43 $* |
| Jun-19-2025 | 0.35 $* | 0.71 $* |
| May-19-2025 | 0.82 $* | 0.10 $* |
| Apr-19-2025 | 0.82 $* | 0.9 $* |
| Mar-19-2025 | 0.14 $* | 0.69 $* |
| Feb-19-2025 | 0.93 $* | 0.63 $* |
| Jan-19-2025 | 0.61 $* | 0.10 $* |
Характеристики
Product Description

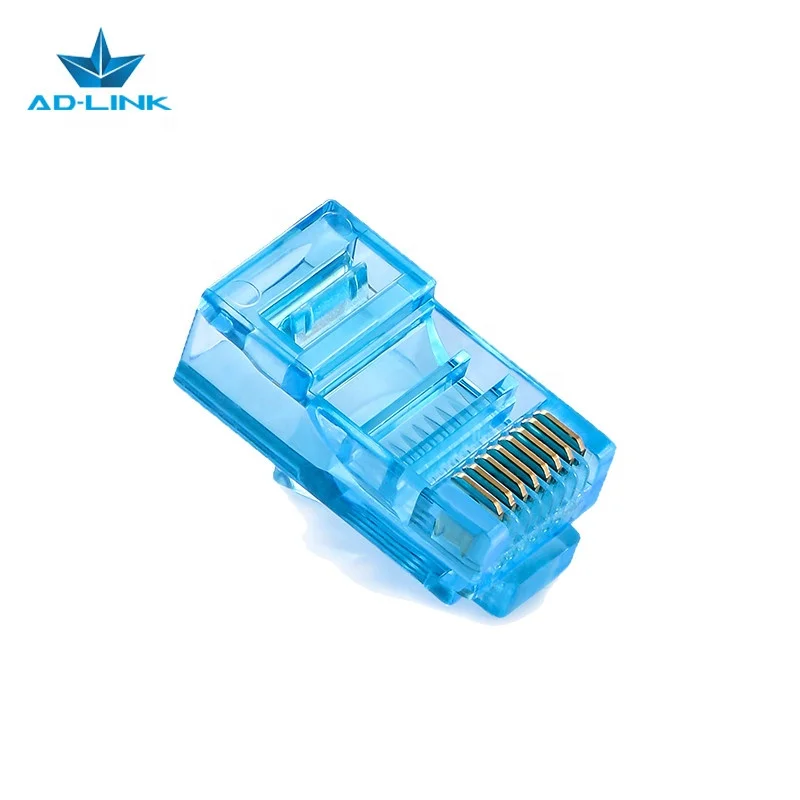

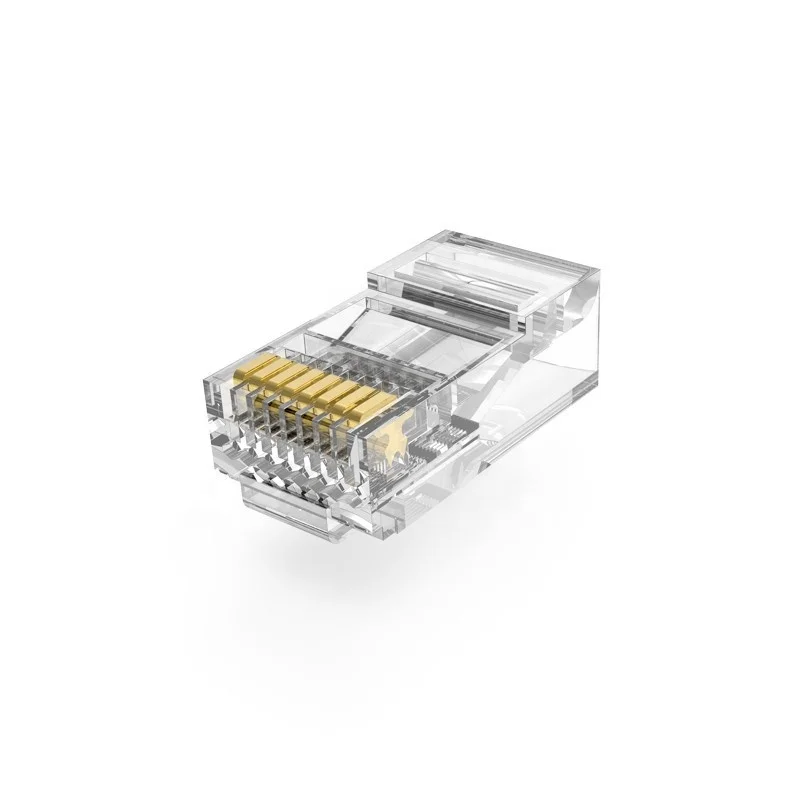

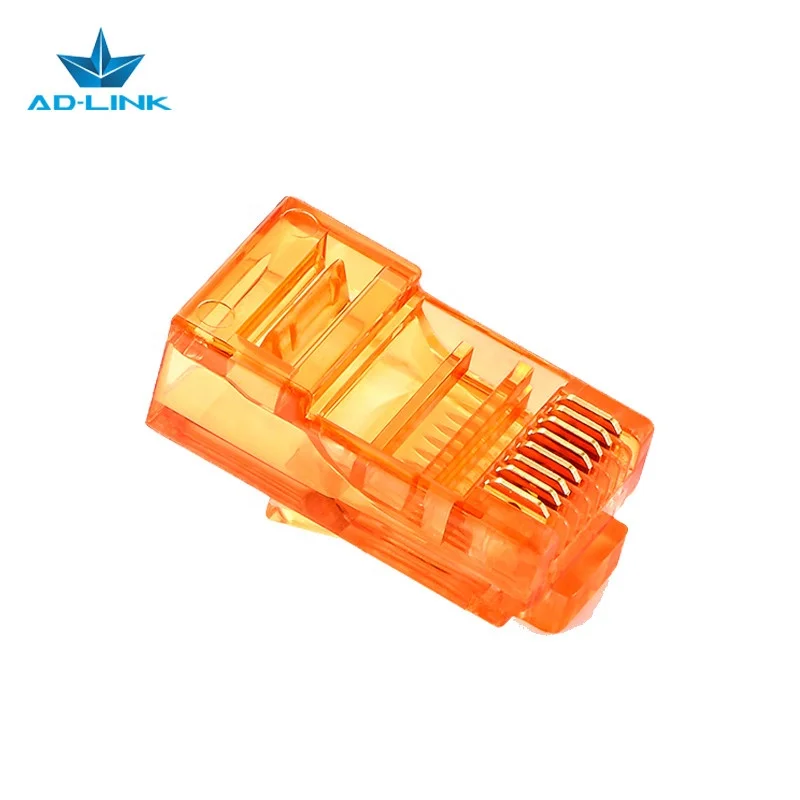

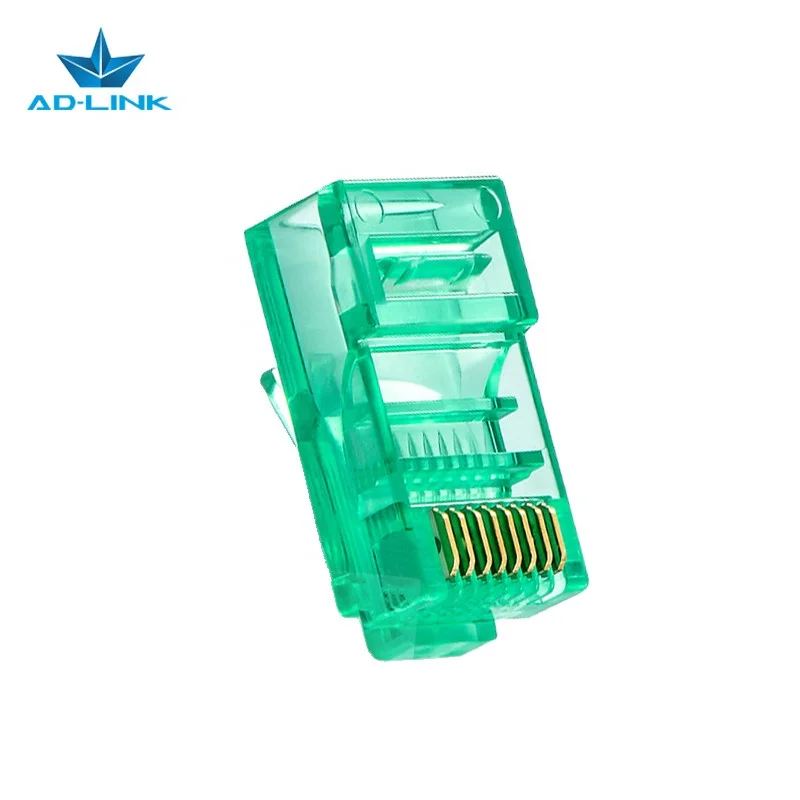

Unshielded RJ45 Modular Plug/ RJ45 Connector
Packaging: 100pcs one polybag, one polybag into one small color box
Specification
Model | Unshielded RJ45 Modular Plug/ RJ45 Connector | ||||||
Type | 8P8C UTP Unshielded, Cat5e / Cat6 | ||||||
Gender | Male | ||||||
Shell Material | Polycarbonate(PC) 94V-2 OR 94V-0 | ||||||
Pin Material | Golden-plated | ||||||
Gold plating thickness | 3U” 6U” 15U” 30U” 50U” | ||||||
Operating temperature | -40~70℃ | ||||||
Dielectric Withstanding Voltage | AC1000V max at 2AMPS | ||||||
Use Voltage | 250V AC | ||||||
Rated current | ≤1.5A | ||||||
Termination Resistance | Resistance 20mΩ max after environmental testing | ||||||

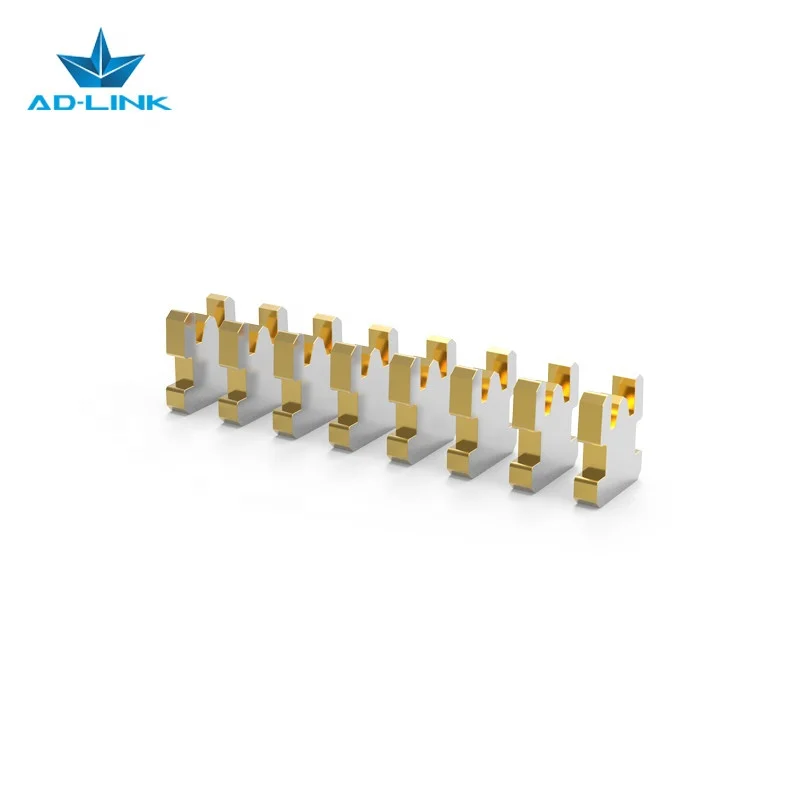

Contact | Brass Alloy Gold Plated over nickelΩ | ||||||
Contact resistance | ≤20mΩ | ||||||
Matching core diameter | 23~26AWG | ||||||
Service life | ≤750 times plug/unplug | ||||||
Standard | IEC standard | ||||||
Durability | over 1000 mating cycles | ||||||
Color | Transparent, or Customized | ||||||
Packing | 100pcs one bag, one bag into one small box, 100boxes in one carton | ||||||
Application | Long distance/LAN communication/indooor communication | ||||||
