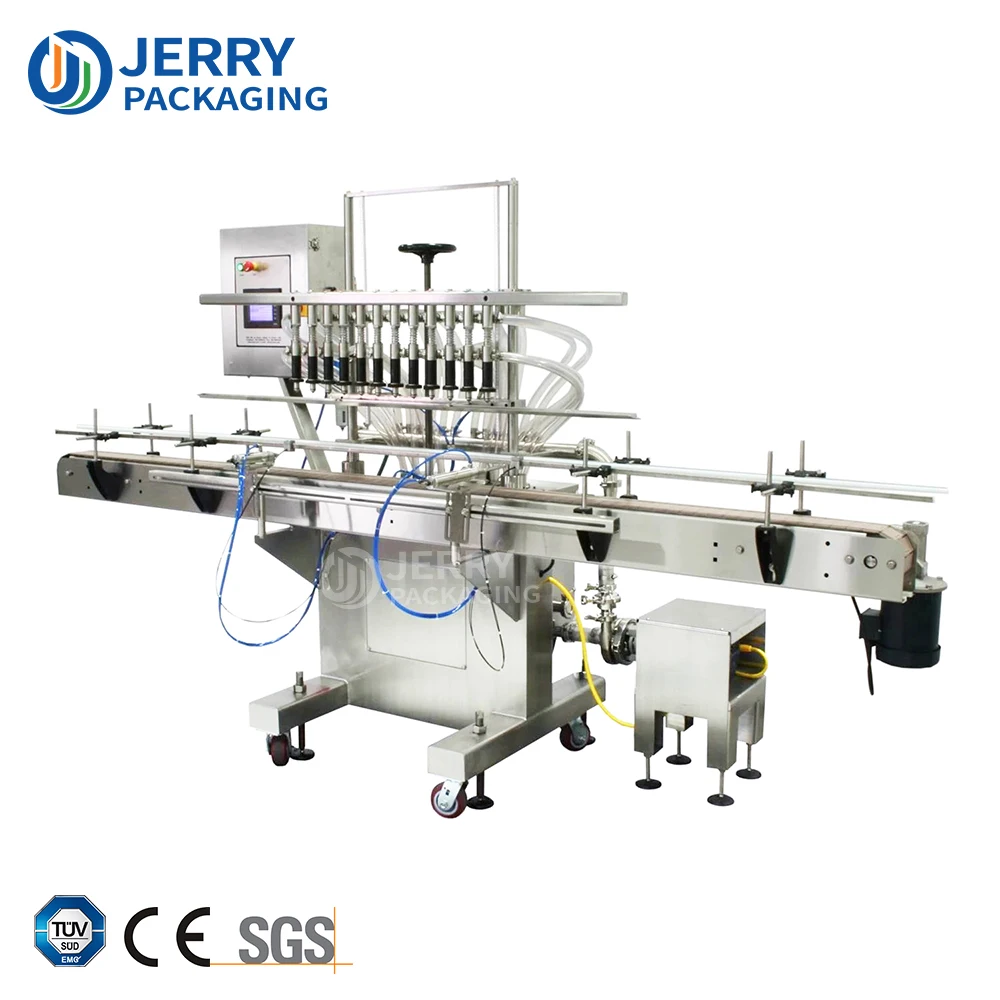

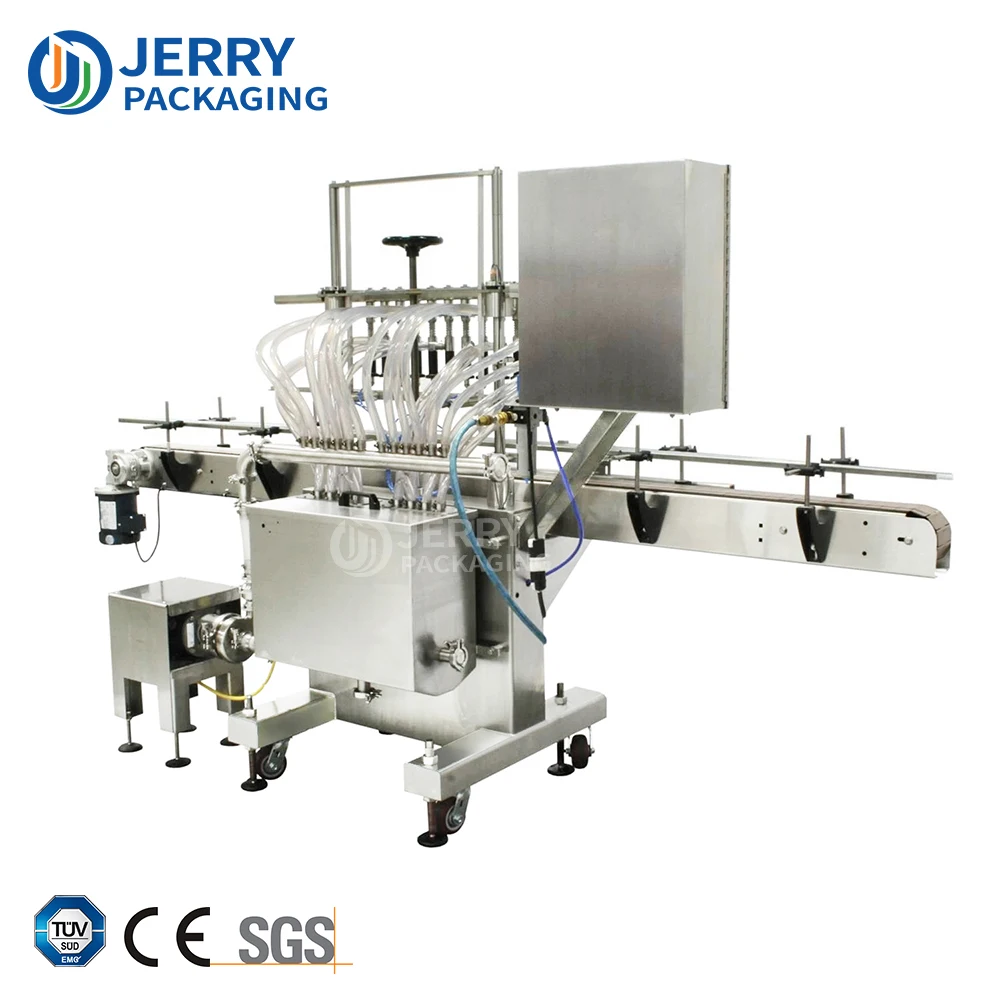

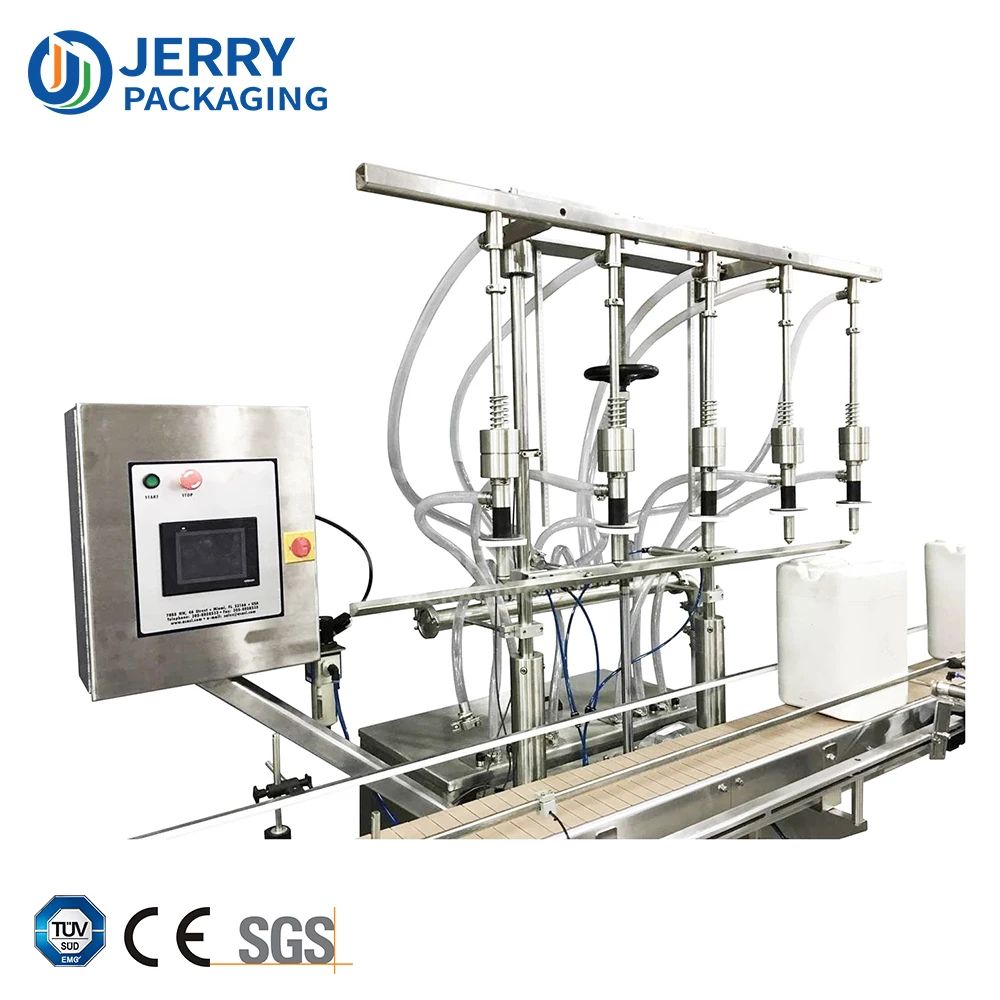

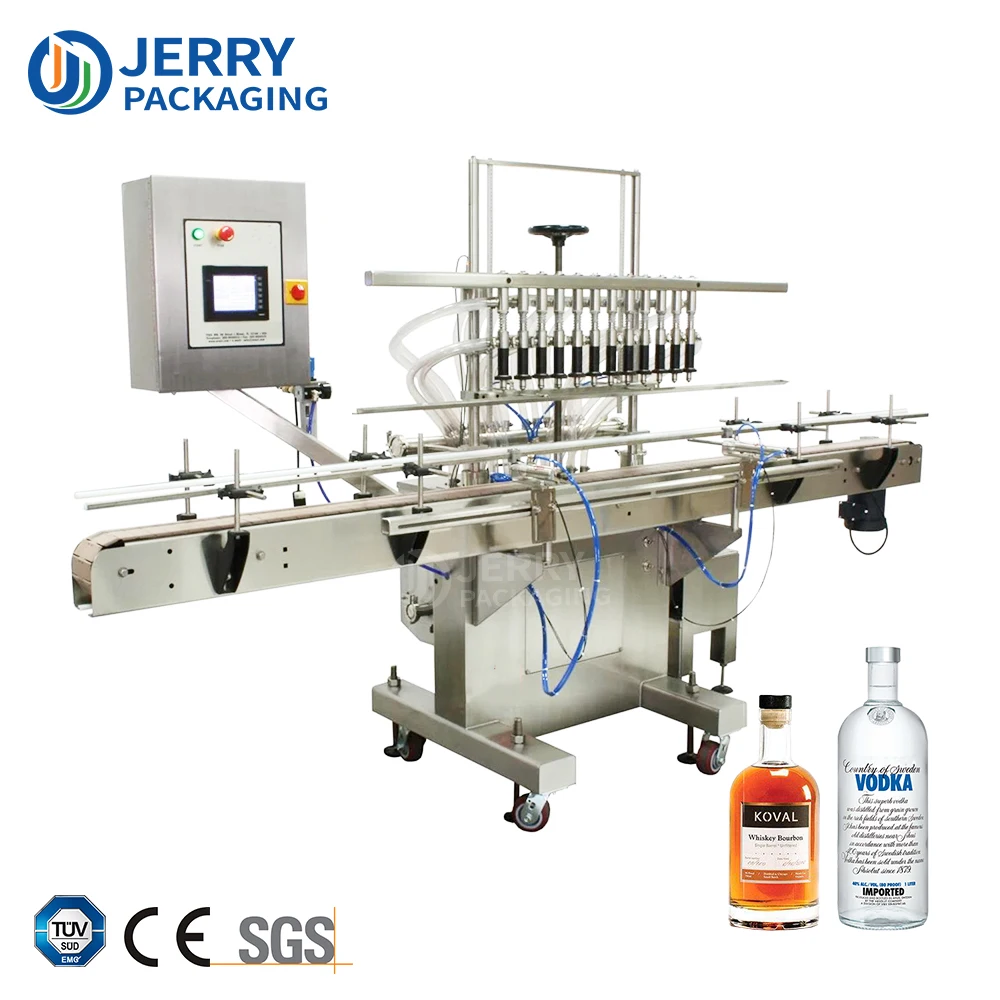

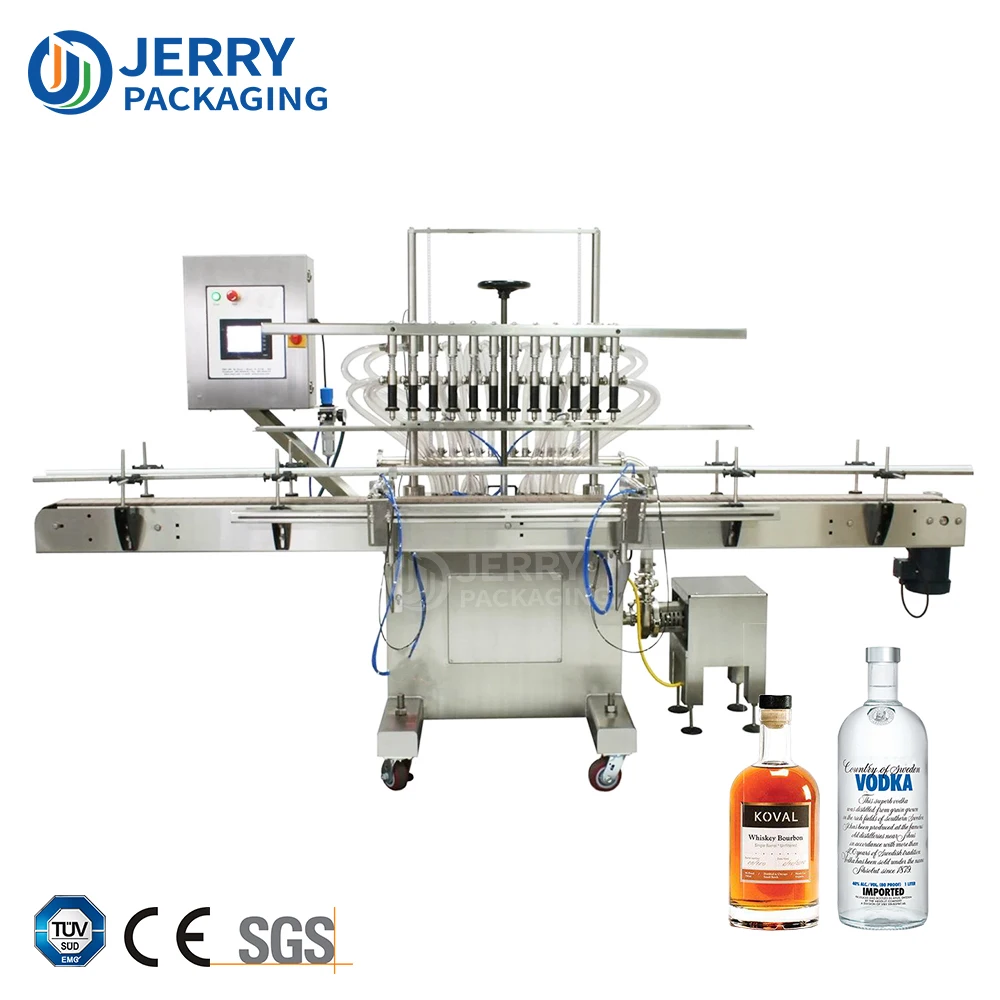

Полностью автоматическая машина для наполнения жидкостью воды водки уксуса соевого соуса вина сока разливочная
- Категория: Packaging Machines >>>
- Поставщик: Changzhou,Jerry,Packaging,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.55 $* | 0.49 $* |
| Aug-16-2025 | 0.86 $* | 0.74 $* |
| Jul-16-2025 | 0.96 $* | 0.45 $* |
| Jun-16-2025 | 0.79 $* | 0.19 $* |
| May-16-2025 | 0.52 $* | 0.74 $* |
| Apr-16-2025 | 0.2 $* | 0.87 $* |
| Mar-16-2025 | 0.12 $* | 0.63 $* |
| Feb-16-2025 | 0.43 $* | 0.71 $* |
| Jan-16-2025 | 0.68 $* | 0.75 $* |
Характеристики
Products Description
Equipment Description：
304 Stainless steel heavy duty stainless steel welded C frame. 20 Gallon stainless steel overflow tank. Stainless steel cover for overflow tank. 20 hose 304 stainless steel feeding manifold. All contact parts are stainless steel, sanitary, Teflon, viton and hoses per your requirements. Special seals or hoses by order. Calibrated guide for fast height changeovers.Filling machine mounted on 4 heavy duty casters. Leveling of machine by 1 inch 304 stainless steel leveling screws.
Product Application
Technical parameters
Voltage | 220 volts,single phase, 60/50 Hz |
Filling range | 100ml-5000ml |
Filling accuracy | 0.5%-1% |
Air source pressure | 0.6-0.8 MPa |
Product Features
Automatic Pressure Overflow Filler is typically used in consumer packaging applications where a consistent visual (spirits, wine,or cosmetic) fill level is required. The desired product to be filled is held in a stainless steel reservoir, then pumped into a manifold to disperse product to each of your filling nozzles. Once the product reaches your desired cosmetic fill level in each bottle, excess product or foam overflows back to the reservoir. Advantages of the Overflow Filler include even fill levels,variable pressure pump speed control (to reduce foam), and ease of operation.
Control Panel Features
SIEMENS PLC for all machine logic functions, special modifications on programs available for special adaptations. Frequency control drive for pump speed, acceleration and deceleration. Front panel bottle filling time adjustment through Timer. Front panel conveyor speed control for machine sold with conveyor. Front panel mounted bottle counter. Front panel Start and Emergency STOP for easy access. Front panel nozzle code for changing nozzle quantities. Fiber optic sensors by Omron standard for container
gating. Expandable to 20 nozzles to increase speed. No bottle no fill PLC controlled.
gating. Expandable to 20 nozzles to increase speed. No bottle no fill PLC controlled.
Main Components Features

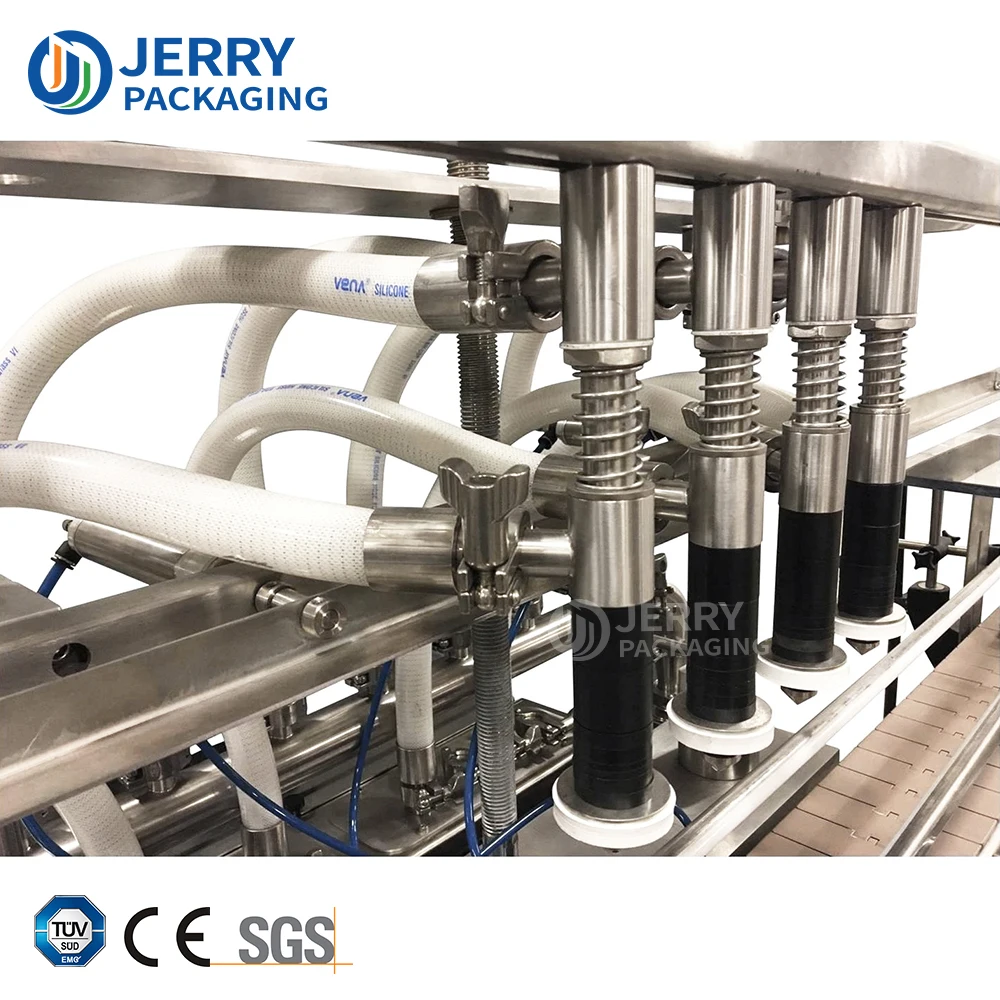

96 Gallon per minute, 1 Hp, 3phase, 316 stainless steel centrifugal pump. Hardened Stainless steel calibrated shafts with linear
bearings for nozzle rack movement smoothness and durability. 10 inch stroke air cylinder with magnetic sensors for nozzle up and down movement. 316L Stainless steel sanitary check valve mounted on pump. Hand wheel and shaft mounted stoppers for height and stroke adjustment.
Standard Features
Nozzle spacing fully adjustable through top screw. Container height adjustment from 1 to 16 inches high. Nozzle stroke adjustments
from 0 to 10 inches. Entry and exit bottle gating cylinders adjustable, sideways, up and down and inside and outside. Will work with plastic or glass containers. No change parts needed for various types of containers. Air filter-regulator and safety lockout valve included. Spacing and additional bottle control obtained by flow controls mounted on air gating cylinders.
from 0 to 10 inches. Entry and exit bottle gating cylinders adjustable, sideways, up and down and inside and outside. Will work with plastic or glass containers. No change parts needed for various types of containers. Air filter-regulator and safety lockout valve included. Spacing and additional bottle control obtained by flow controls mounted on air gating cylinders.
