Трехфазный цифровой измеритель мощности Mastech MS2205 Гармонический тестер с 6000 отсчетами поддержка
- Категория: Power Meters >>>
- Поставщик: Shenzhen,Yi,Xiongyi,Di,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.29 $* | 0.47 $* |
| Aug-20-2025 | 0.21 $* | 0.8 $* |
| Jul-20-2025 | 0.72 $* | 0.34 $* |
| Jun-20-2025 | 0.92 $* | 0.78 $* |
| May-20-2025 | 0.22 $* | 0.39 $* |
| Apr-20-2025 | 0.59 $* | 0.97 $* |
| Mar-20-2025 | 0.28 $* | 0.94 $* |
| Feb-20-2025 | 0.70 $* | 0.86 $* |
| Jan-20-2025 | 0.26 $* | 0.84 $* |
Характеристики

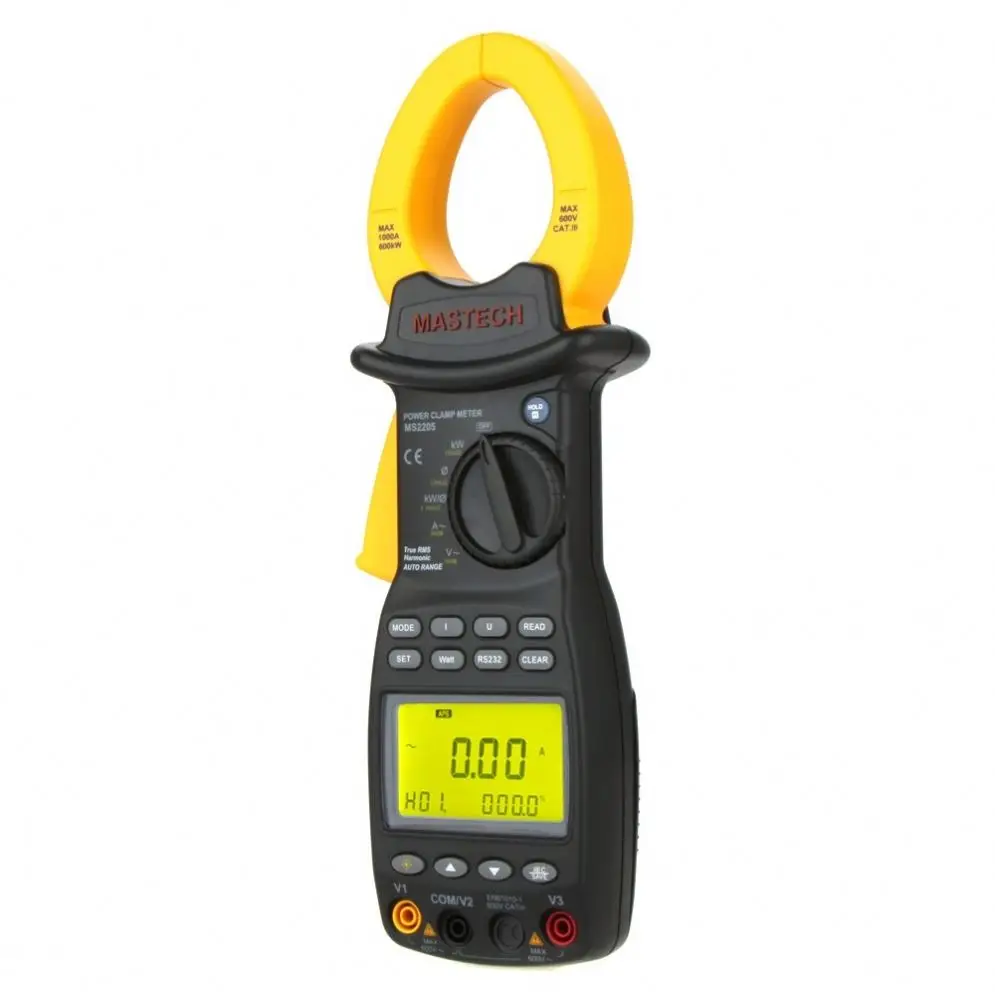

\tMastech MS2205 Three Phase Digital Power Clamp Meter Harmonic tester with 6000 Counts Support RS232 Interface
\t
\tSpecifications:
\tAC Voltage: 0.1~600V ±(1.2%+5)
\tAC Current: 0.1A~1000A ±(2.0%+5)
\tActive Power: 0.1kW~600kW ±(3.0%+5)
\tApparent power: 0.1kVA~600kVA ±(3.0%+5)
\tReactive power: 0.1kVAr~600kVAr: ±(3.0%+5)
\tPower Factor: 0.3~1 ±(2.0%+2)
\tHarmonic Measurement: 45Hz~65Hz (fundamental frequency)
\tHarmonic NO.1 ±(3.0%+10)
\tHarmonic NO.2-6 ±(3.5%+10)
\tHarmonic NO.7-8 ±(4.5%+10)
\tHarmonic NO.9-10 ±(5.0%+10)
\tHarmonic NO.11-15 ±(7.0%+10)
\tHarmonic NO.16-20 ±(10%+10)
\t
\tFeature:
\tAuto Power Off: √
\tAuto Ranging: √
\tData Hold: √
\tDisplay Back Light: √
\tRs232 Interface: √

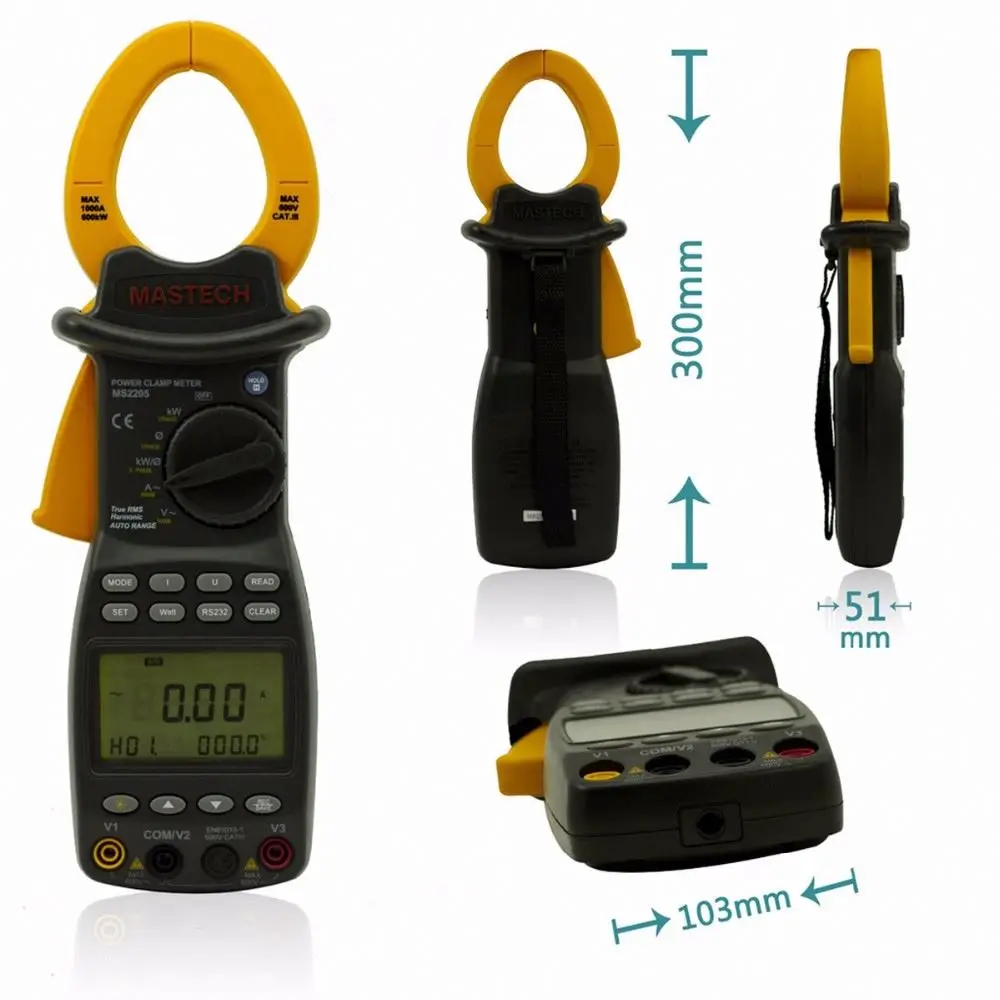

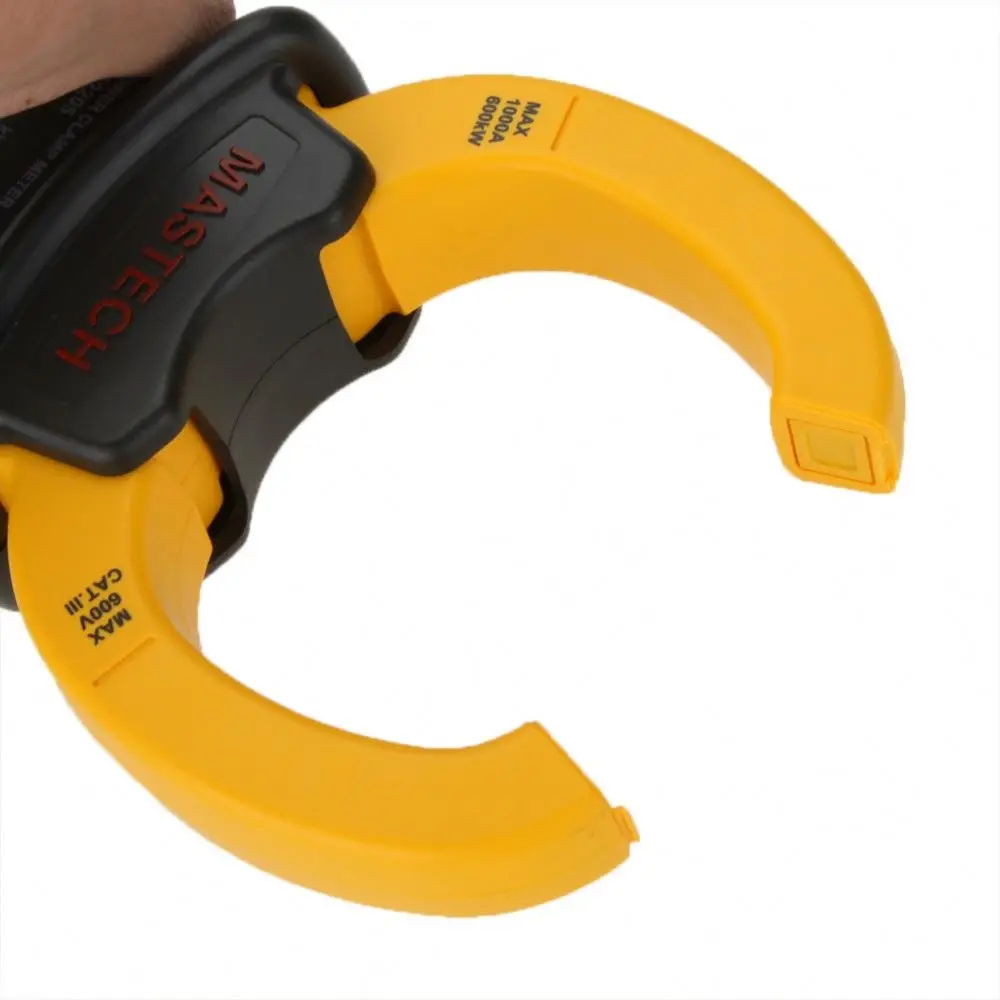

\tJaw opening R50mm/2.0”
\tData logging And recall 100groups
\tLBD Low Battery indication
\tTrue RMS True Root Mean Square Measurement
\tDisplay 6000 counts
\t
\tGeneral:
\tPower Supply 4 x 1.5V AA Battery (Not Included)
\tCategory CE CAT .III 600V RoHS
\tPackage size: 33 * 22 * 6cm / 13.2 * 8.8 * 2.4in
\tPackage weight: 1450g / 3.2 lb
\t

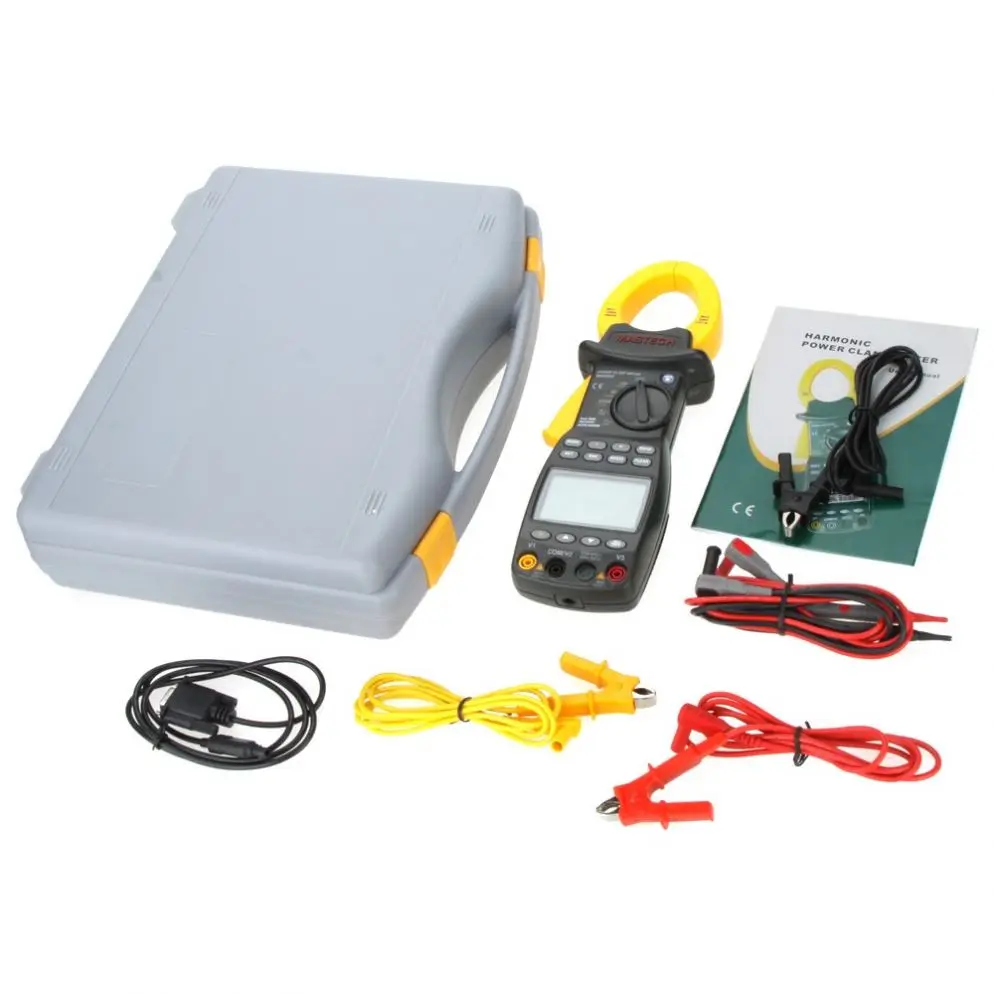

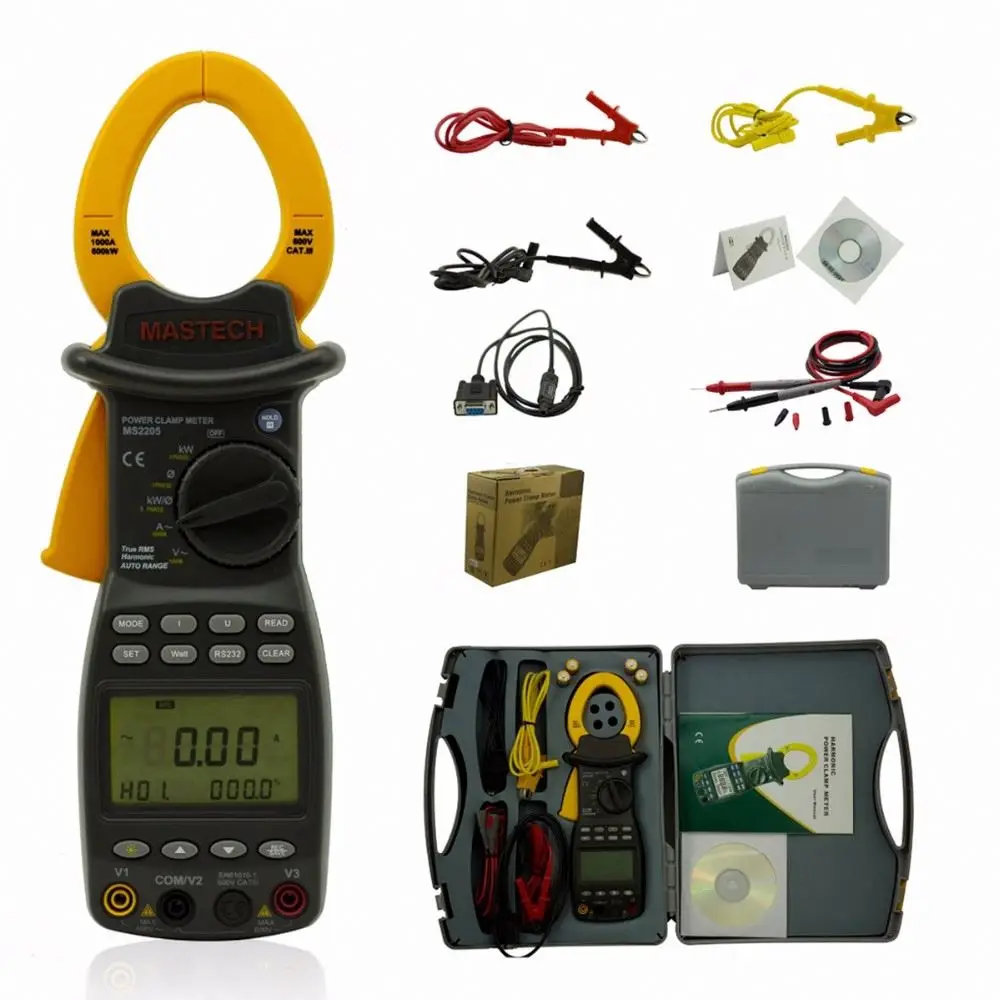

\t Package list
\t1 * HYELEC MS2205 Clamp Meter AC RMS Active Power Factor Passive Frequency Harmonic Test
\t1 * Portable Bag

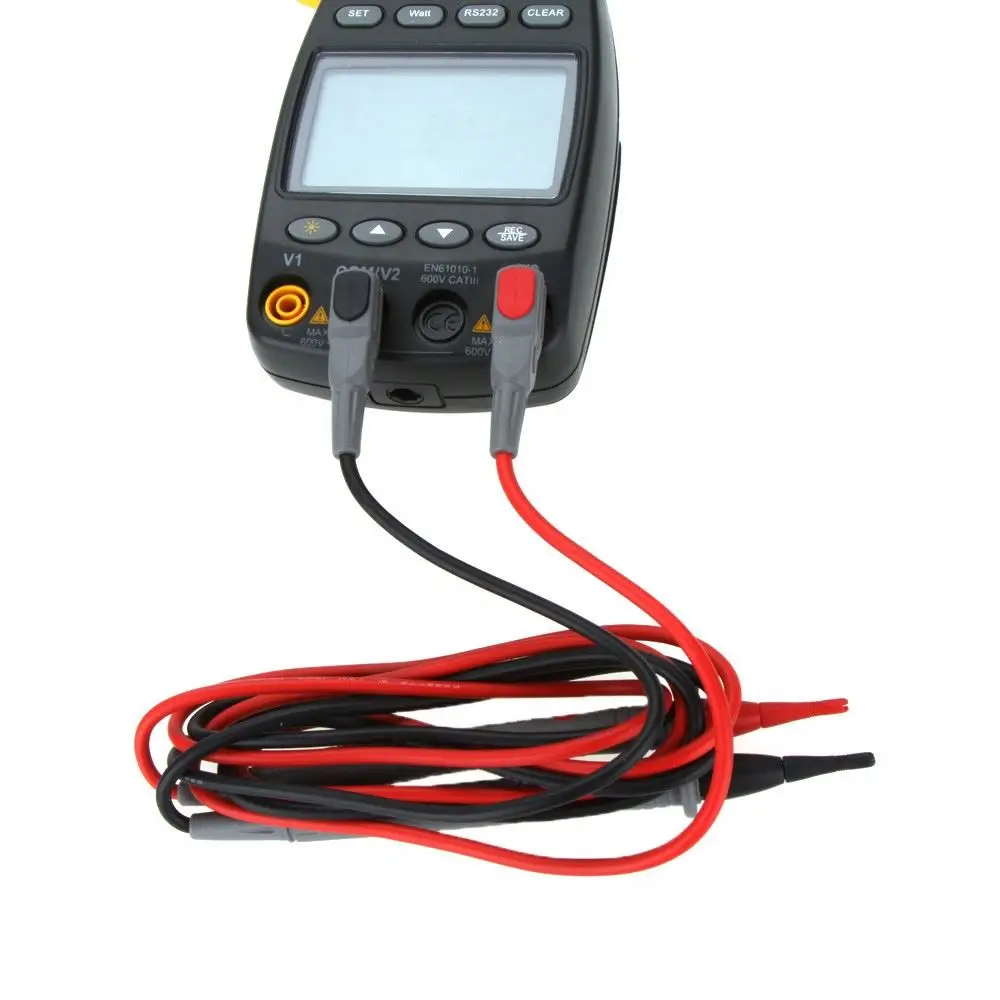

\t1 * Test Probe
\t3 * Test Clip
\t1 * Rs232 Interface Cable
\t1 * CD
\t1 * English Instructions
\tAC Voltage: 0.1~600V ±(1.2%+5)
\tAC Current: 0.1A~1000A ±(2.0%+5)
\tActive Power: 0.1kW~600kW ±(3.0%+5)
\tApparent power: 0.1kVA~600kVA ±(3.0%+5)
\tReactive power: 0.1kVAr~600kVAr: ±(3.0%+5)
\tPower Factor: 0.3~1 ±(2.0%+2)
\tHarmonic Measurement: 45Hz~65Hz (fundamental frequency)
\tHarmonic NO.1 ±(3.0%+10)
\tHarmonic NO.2-6 ±(3.5%+10)
\tHarmonic NO.7-8 ±(4.5%+10)
\tHarmonic NO.9-10 ±(5.0%+10)
\tHarmonic NO.11-15 ±(7.0%+10)
\tHarmonic NO.16-20 ±(10%+10)
\t
\tFeature:
\tAuto Power Off: √
\tAuto Ranging: √
\tData Hold: √
\tDisplay Back Light: √
\tRs232 Interface: √
\tJaw opening R50mm/2.0”
\tData logging And recall 100groups
\tLBD Low Battery indication
\tTrue RMS True Root Mean Square Measurement
\tDisplay 6000 counts
\t
\tGeneral:
\tPower Supply 4 x 1.5V AA Battery (Not Included)
\tCategory CE CAT .III 600V RoHS
\tPackage size: 33 * 22 * 6cm / 13.2 * 8.8 * 2.4in
\tPackage weight: 1450g / 3.2 lb
\t
\t Package list
\t1 * HYELEC MS2205 Clamp Meter AC RMS Active Power Factor Passive Frequency Harmonic Test
\t1 * Portable Bag
\t1 * Test Probe
\t3 * Test Clip
\t1 * Rs232 Interface Cable
\t1 * CD
\t1 * English Instructions
\t
\t
\t
\t
\t
\t
