Высокоавтоматическая Заводская поставка TANPU полезная Изолированная стеклянная

1. PLC control system with touching screen interface
2. Automatic distinguish the coating side of Low-E glass.
3. Perfect washing performance for on/off line Low-E glass.
4. Unique air knife with silencer device.

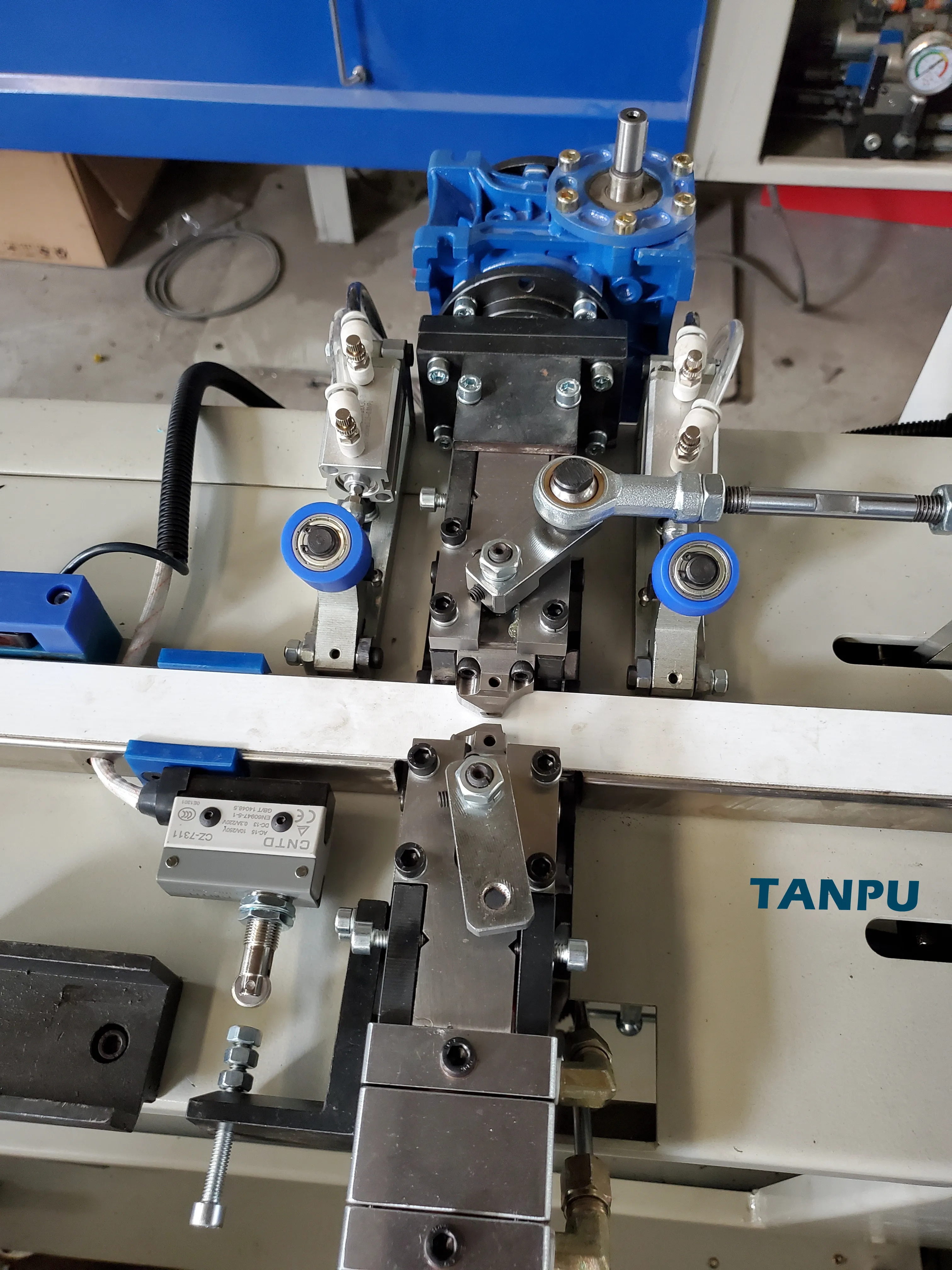

5. Automatic aluminum frame mounting system.
6. Auto glass positioning system
7. Inside and outside assembly and press function.
8. Bendable mechanical structure for general container loading, save freight.

1. Automatic distinguish the coating side of Low-E glass, front 3 soft low-E brushes.
2. Unique air knife and silencer for washing machine.
3. The washing zone and water tank are made of stainless steel and corrosion-proof material. Water heating system available.
4. The conveyor rollers are made of rubber, resistant to acid and alkali.
5. Automatic adjustment of glass thickness from 3mm to 12mm.
6. Drive speed adjusted by inverter stepless, the glass runs stably at proper speed.

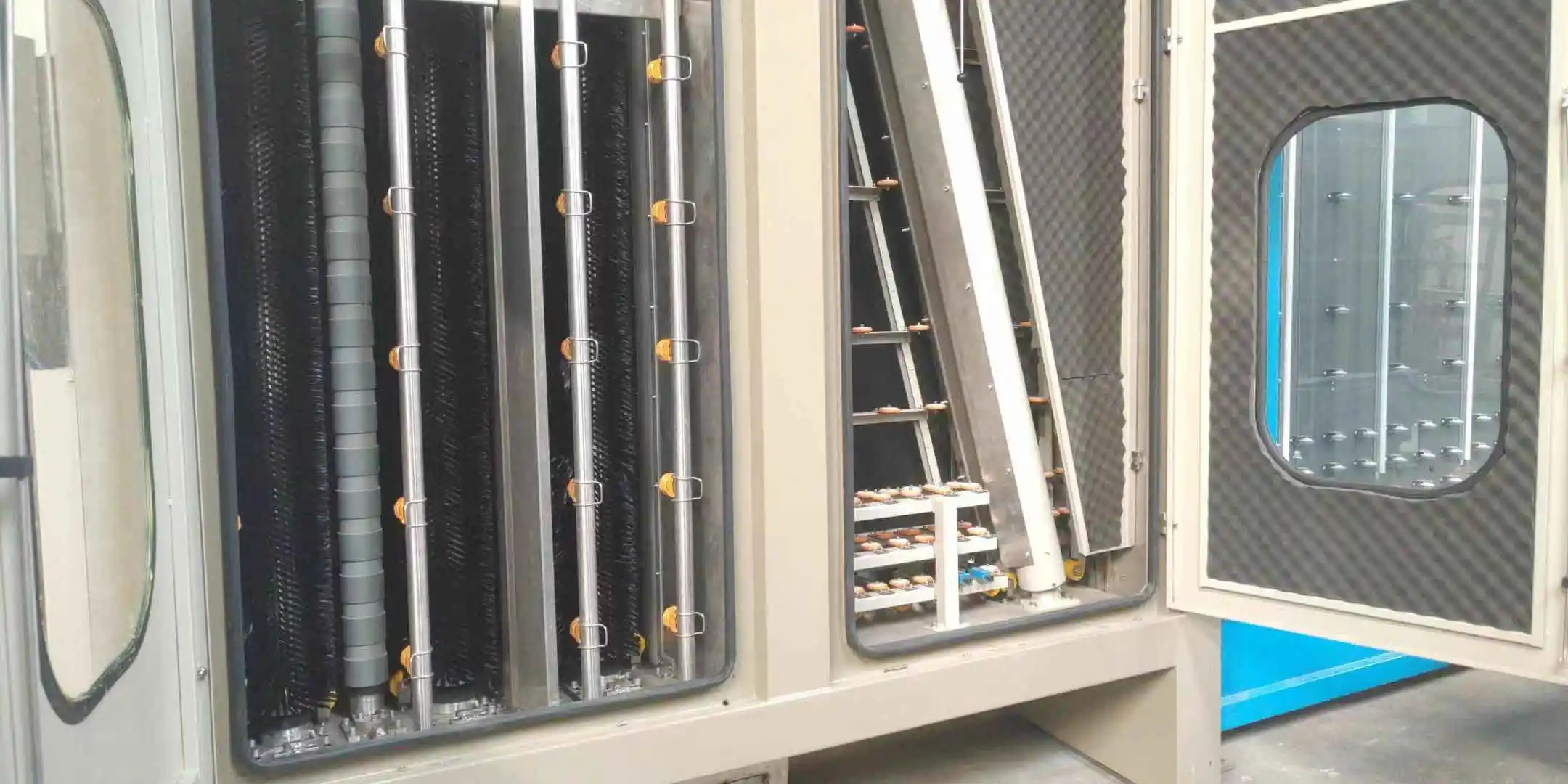

7. Three pairs of brushes, with high-pressure water spray nozzle.
8. In the drying zone, there is a pair of alloyed and corrosion-proof air knife, installed angularly, generate strong air flow to
dry both sides of glass.
9. Three independent water circulating system: the first washing water system, the second washing water system and rinse water
system.
10. To ensure the washing quality, the water conductivity should not exceed 40µs/cm.
11. 15KW blower with heating system.
