Модульный разъем Keystone Blue AMP RJ45

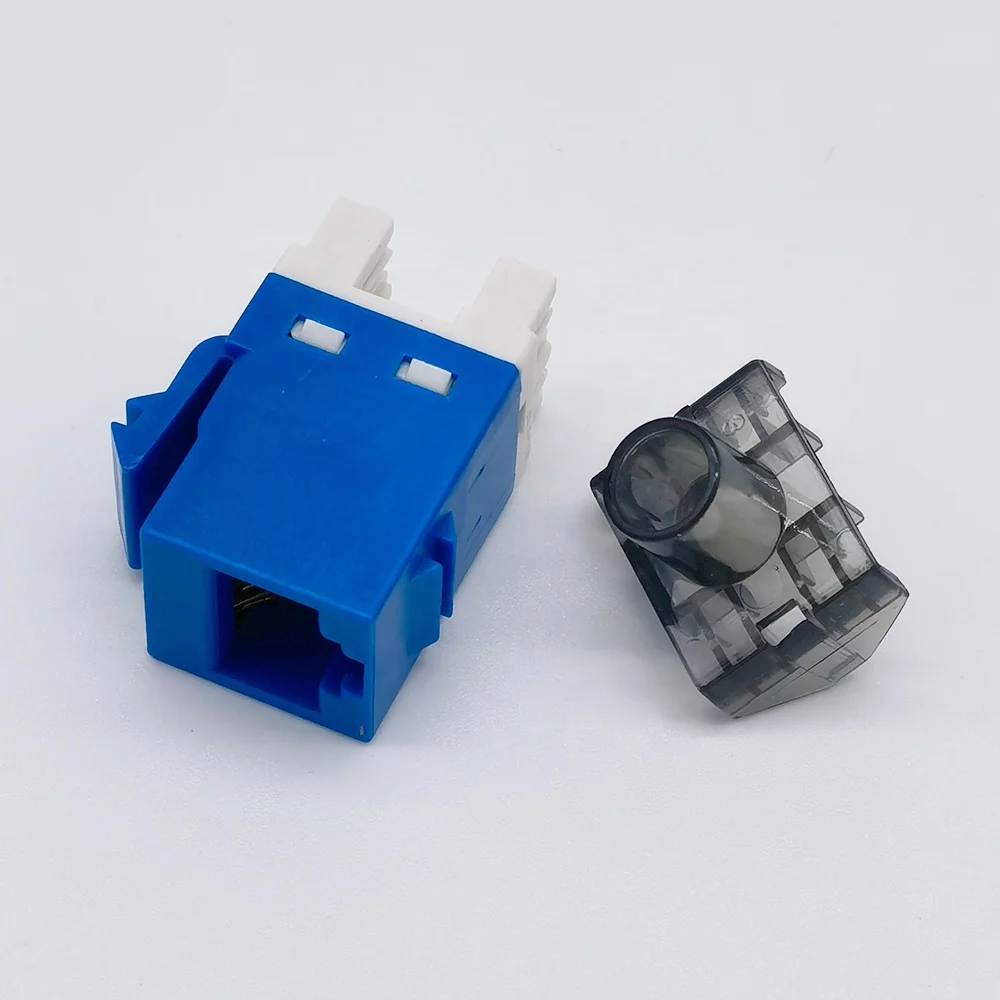

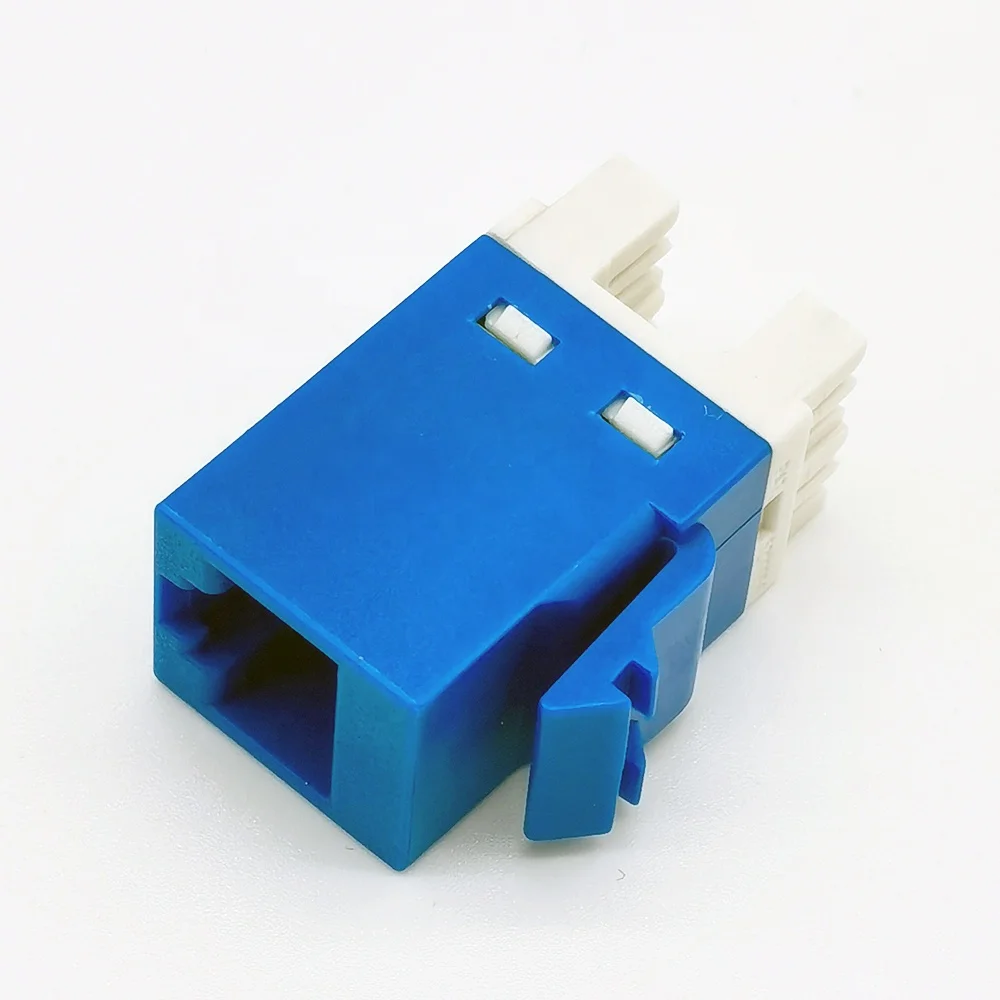

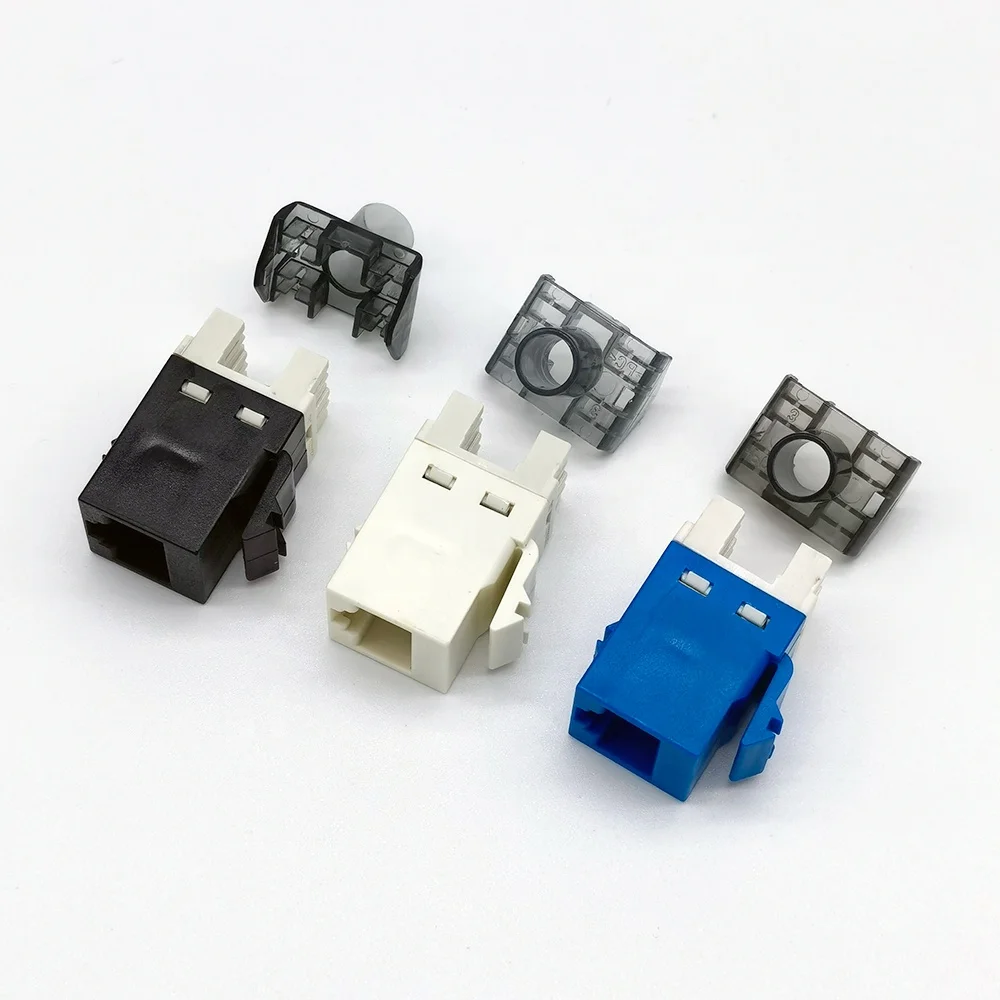

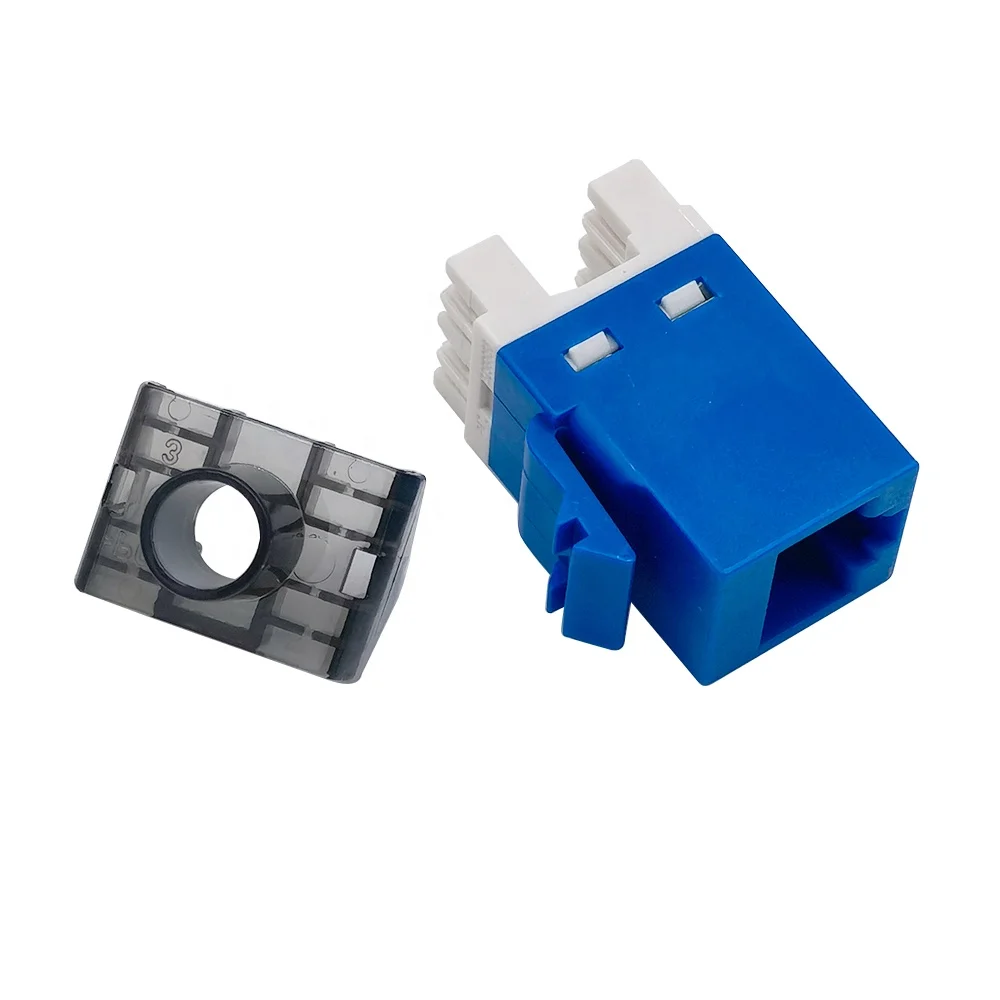

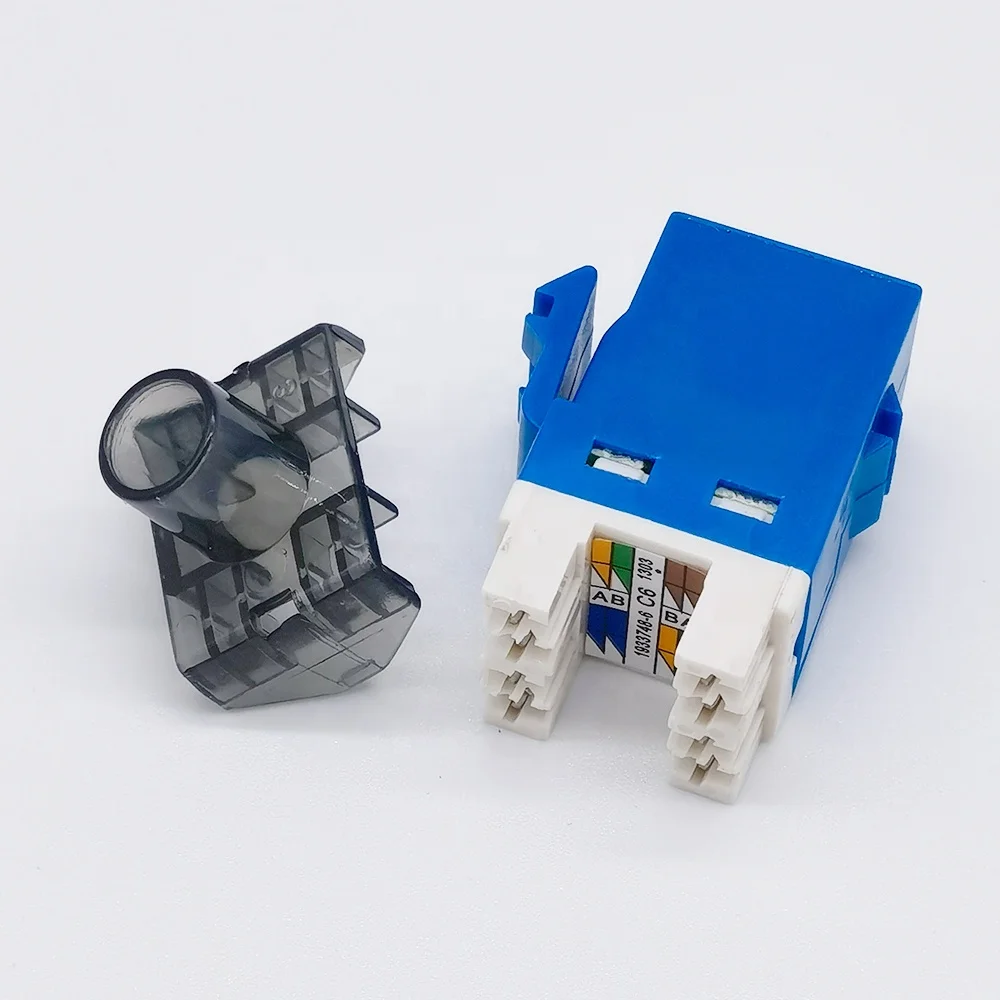

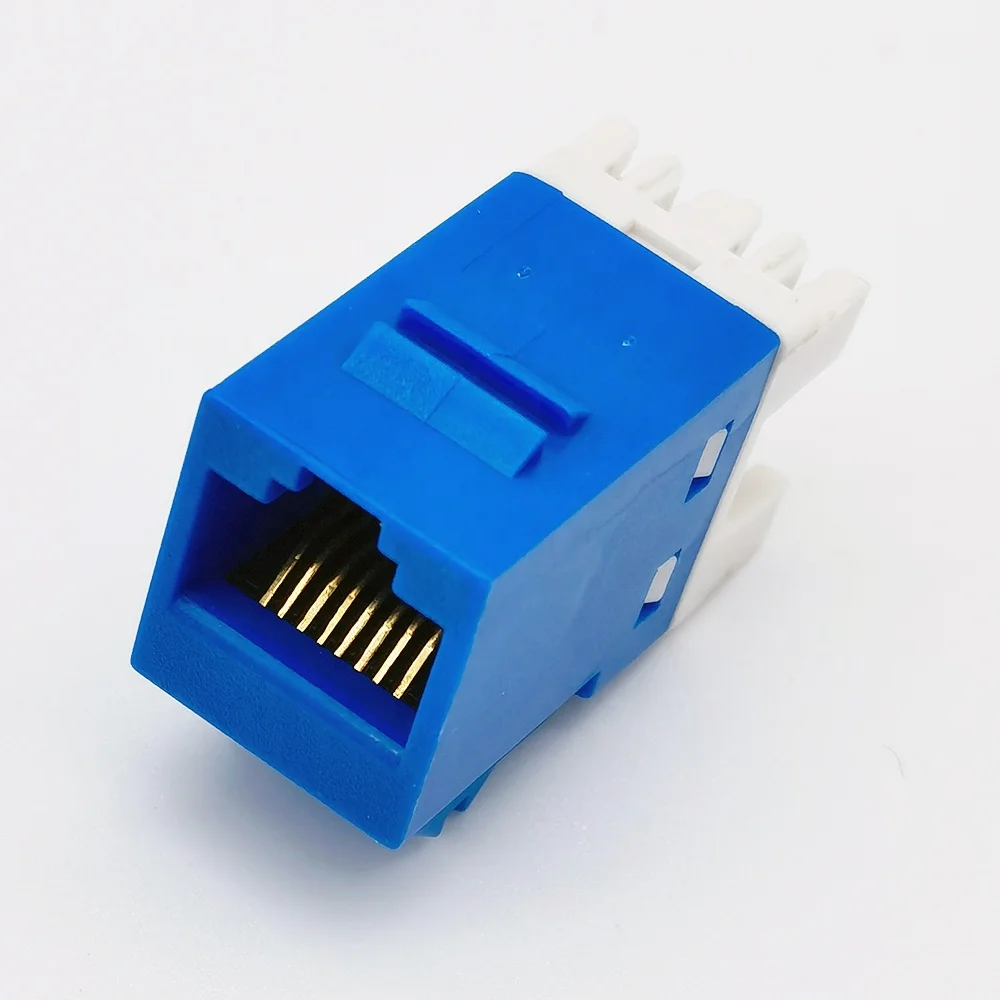

    The keystone jack will balance signal transmission of insertion loss and crosstalk from 1 to 250 MHz. Jacks are available in 5 colors to match housing or allow color-coded designation port in compliance with TIA-606 requirements. The jacks are designed to work in conjunction with any standard keystone and angled multimedia wallplate or patch panel. Each keystone jack includes 110-type IDC termination with strain relief caps, and comes standard with 50μ inch gold plating on the jack contacts.

Product Highlights:
* Connector - Modular
* Performance Category = Cat 6
* SL Series Series
* Without Dust Cover
* Jack Type = RJ45
Product Type Features:
* Product Type = Connector - Modular
* Performance Category = Cat 6
* Series = SL Series
* Jack Type = RJ45
* Wiring Pattern = Universal
* Termination Style = SL Termination Tool
* Keyed = No
Electrical Characteristics:
* Shielded = No
Dimensions:
* Conductor O.D. (mm [in]) = 1.45 [0.057]
Body Features:
* Number of Positions = 8
* NETCONNECT Select System = No
* Mount Type = Panel Mount
* Wire Range (Solid) (mm [AWG]) = 22-24
* Wire Range (Stranded) (mm² [AWG]) = 24-26
* 110 Block Material = Polycarbonate
Contact Features:
* Contact Base Material = Beryllium Copper
* Contact Plating, Mating Area, Material = Gold
* Contact Plating, Mating Area, Thickness (µm [μin]) = 1.27 [50]
Housing Features:
* Housing Color = Black
* Housing Material = Polycarbonate
* UL Flammability Rating = UL 94V-0
Configuration Features:
* Dust Cover = With
Industry Standards:
* RoHS/ELV Compliance = RoHS compliant, ELV compliant
* Lead Free Solder Processes = Not relevant for lead free process
* RoHS/ELV Compliance History = Converted to comply with RoHS directive
Packaging Features:
* Packaging Method = Poly Bag
* Packaging Quantity = 1

Detailed Images
