Дешевая цена pp сплетенный мешок делая машину цементный рисовый тканый ткань режущая швейная

Описание и отзывы

Трекер стоимости

Характеристики

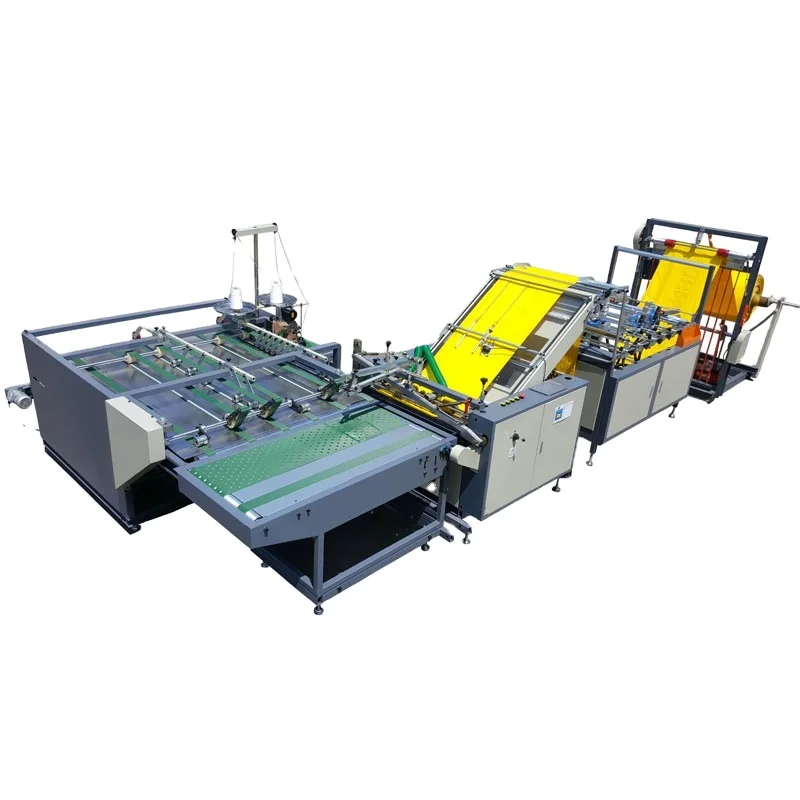

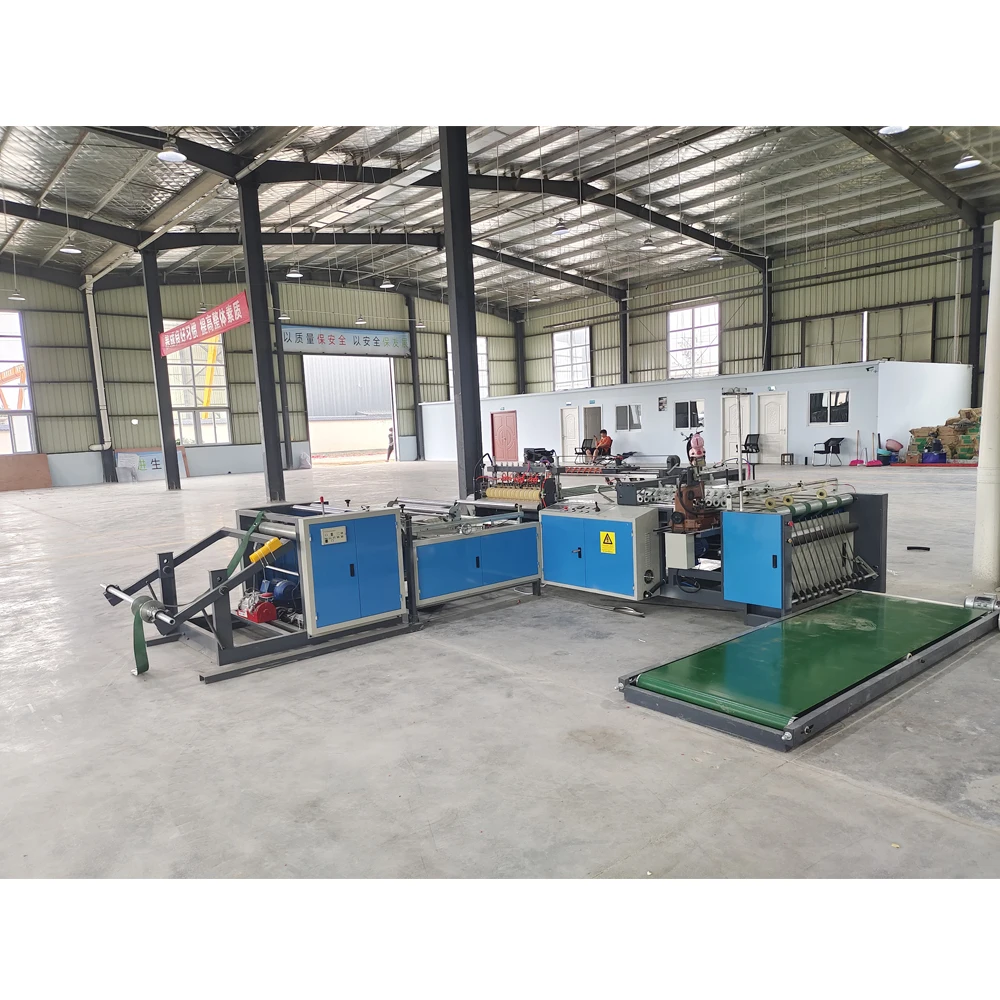

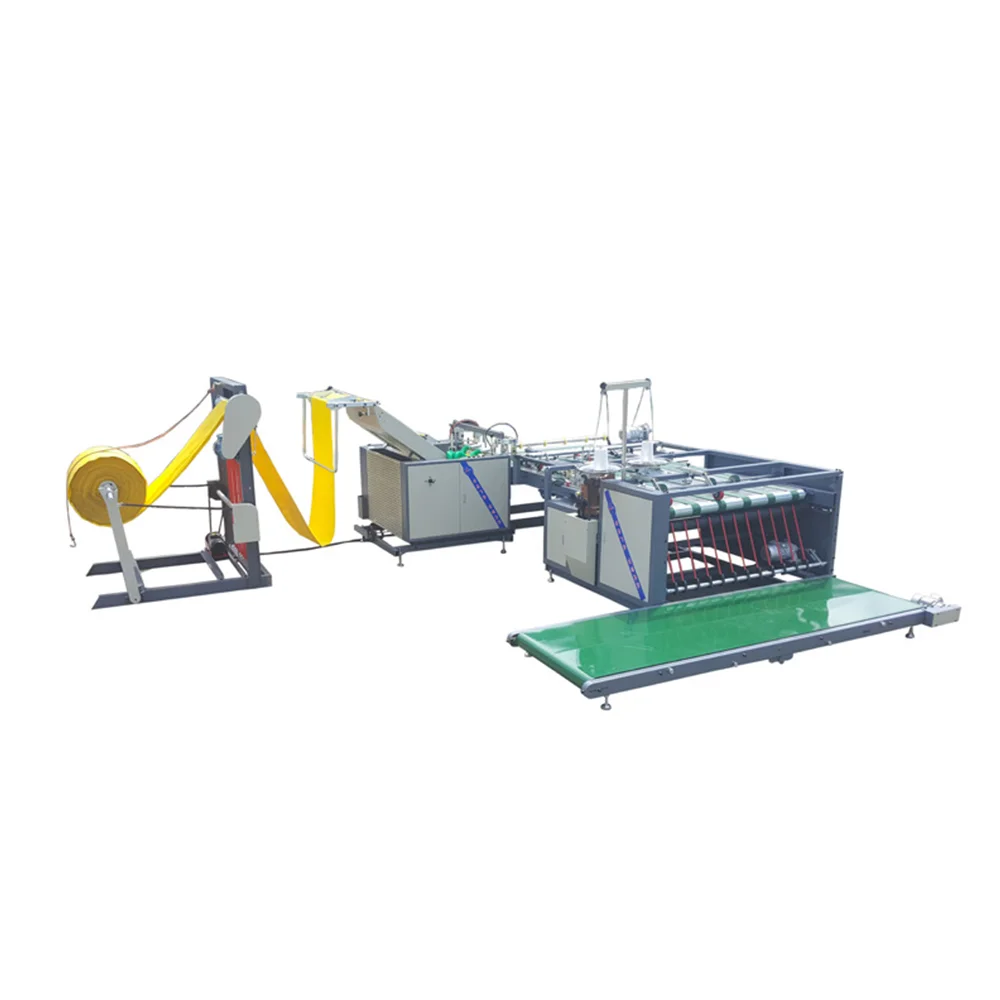

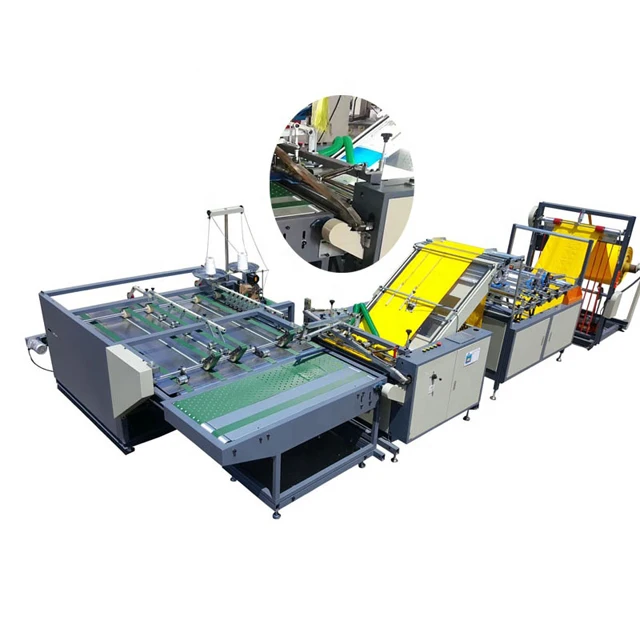

Woven sacks PP woven bag cutting and sewing machine

Main Technical Parameters







Model	RQF-900
Bag Making Speed	36-45pcs/min
Max.Diameter of Cloth Roller	1500mm
Max Cutting Width	900mm
Max Cutting Length	1500mm
Cutting Precision	±2mm
Bottom Folding	Single or Double
Stitching method	Single or Double Thread
Power Supply	380V ±50HZ,3Phase,4KW
Weight	1700kg



Application:

This machine is suitable to cut the PP woven fabric rolls without lamination into pieces then stitch the bottom of the bag. Adopt fully motror control, no need air compressor, much stable and very low failure rate. Suitable for powder bags,flour bags,rice bags,feed bags, kraft paper bags and other woven bags. Since the machine can finish the processes of cutting & stitching of the bags in one line, so it can save labors and improve the quality of the bags evidently.



Features:

• Integration of cutting and stitching as a whole.


• Adopt Taiwan DELTA PLC control, more stable and reliable

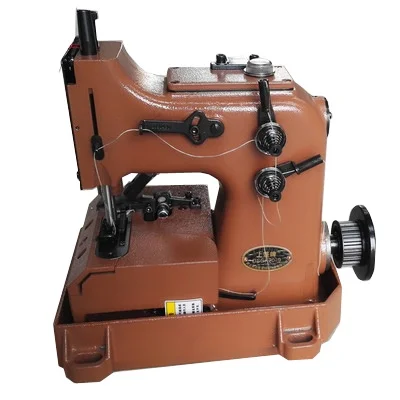

• Stitching head use China most famous brand, SHANGPENG DSGK20-9


• The cloth wind-driven tension automatic control.


• Cutting based on length setting and printing mark setting


• Stitching machine thread break, automatically alarm.


• Set the bag number, then it will auto collect and move the bags.
