 we produce the whole line for rope making machine: fantasy mobile:008613153856283

Some forms of braided rope with untwisted cores have a particular advantage; they do not impart an additional twisting force when they are stressed. The lack of added twisting forces is an advantage when a load is freely suspended, as when a rope is used for rappelling or to suspend an arborist. Other specialized cores reduce the shock from arresting a fall when used as a part of a personal or group safety system.



Braided ropes are generally made from nylon, polyester, polypropylene or high performance fibers such as high modulus polyethylene (HMPE) and aramid. Nylon is chosen for its strength and elastic stretch properties. However, nylon absorbs water and is 10-15% weaker when wet. Polyester is about 90% as strong as nylon but stretches less under load and is not affected by water. It has somewhat better UV resistance, and is more abrasion resistant. Polypropylene is preferred for low cost and light weight (it floats on water) but it has limited resistance to light, is susceptible to friction and has a poor heat resistance.



Braided ropes (and objects like garden hoses, fibre optic or coaxialcables, etc.) that have no lay (or inherent twist) uncoil better if each alternate loop is twisted in the opposite direction, such as in figure-eight coils, where the twist reverses regularly and essentially cancels out.



Single braid consists of an even number of strands, eight or twelve being typical, braided into a circular pattern with half of the strands going clockwise and the other half going anticlockwise. The strands can interlock with either twill or plain waive. The central void may be large or small; in the former case the term hollow braid is sometimes preferred.



Double braid, also called braid on braid, consists of an inner braid filling the central void in an outer braid, that may be of the same or different material. Often the inner braid fibre is chosen for strength while the outer braid fibre is chosen for abrasion resistance.



In solid braid the strands all travel the same direction, clockwise or anticlockwise, and alternate between forming the outside of the rope and the interior of the rope. This construction is popular for general purpose utility rope but rare in specialized high performance line.







Product Description

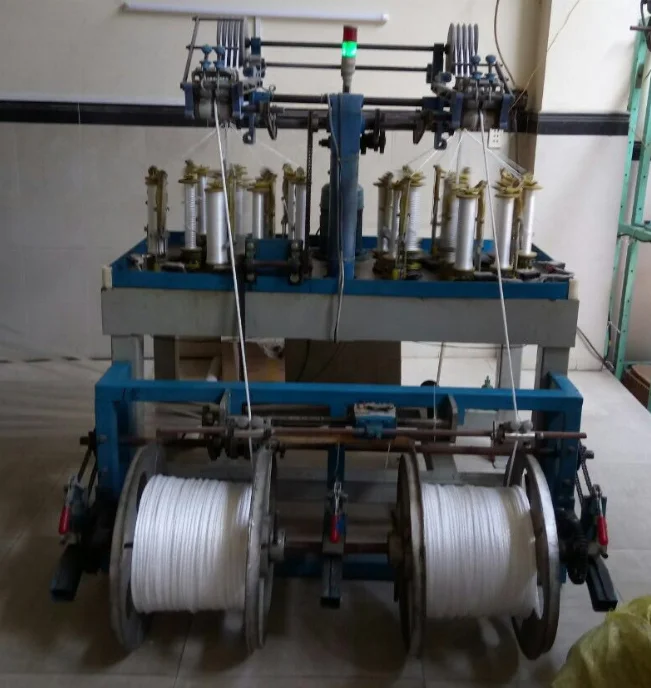

The machine is suitable to produce different size and material start rope,bungee rope,pet rope,tow rope,marine rope,shoelace etc.The machine is equipped with yarn break stop automatically device and frequency converter.The machine has the characteristics of high efficiency,safety and easy operation.

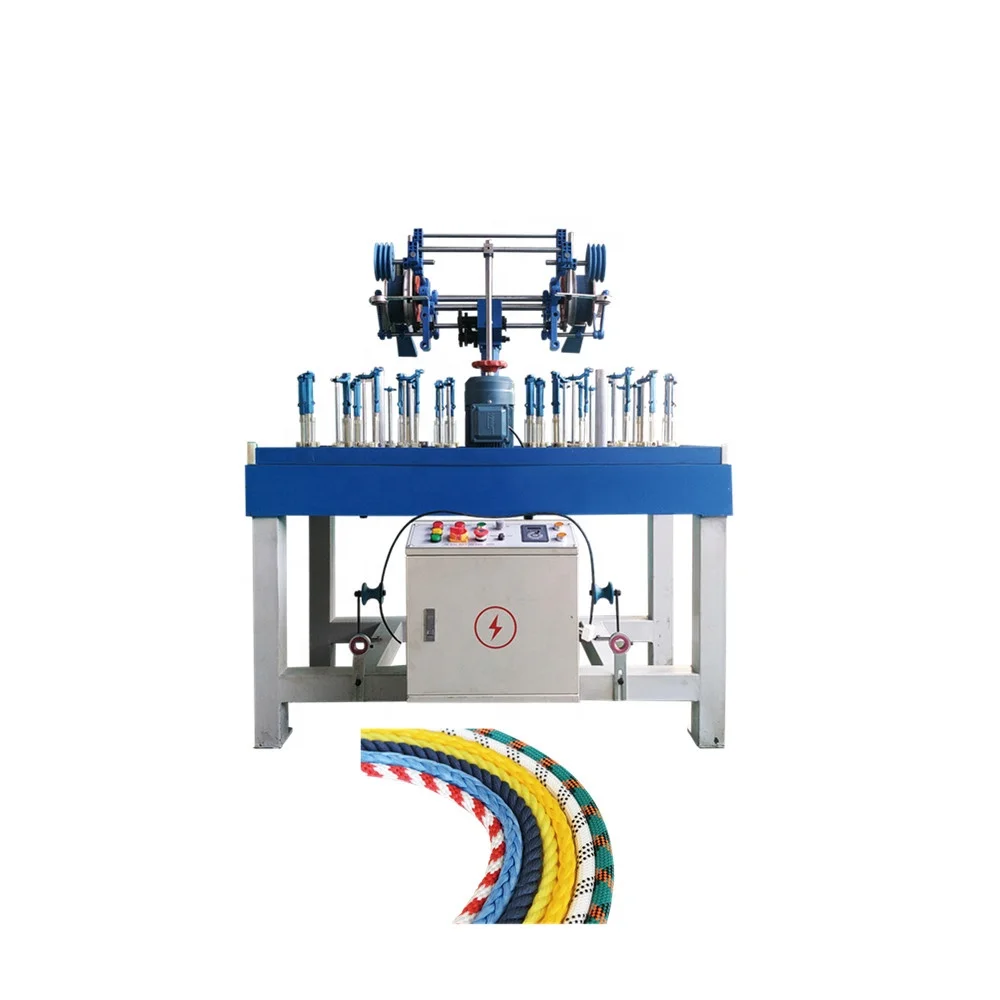

The machine is suitable to produce different size and material of 8, 16, 24, 32,48 strands braided rope,which is widely used in shoelace,fishing line,ports rope,bungee rope,skipping rope,climbing rope,pet rope etc.The machine is equipped with yarn break stop automatically device and frequency converter.The machine has the characteristics of high efficiency,safety and easy operation.





Product Models



Product Features

1) with frequency conversion speed regulation function, simple operation, high output and low noise.

2) automatic stop alarm system for yarn breaking reduces the defective rate.

3) high quality parts, stable operation and long service life.

4) can be customized according to customer requirements.

5) it is widely used in conventional rope, mountaineering rope weaving, Marine rope weaving, elastic rope weaving, clothing rope, decorative rope, decorative tape, rubber hose weaving, wire and cable weaving, explosion-proof water pipe, automobile electronic wire harness knitting, heart bracket knitting and other industries.

Spare parts





Our Main Products:



Extruder& Ring Twister & Rope Making Machine:

Braiding Machine& Hawser Machine& D type Rope Making Machine:

Ball Automatic Hank Winder & High Speed Hank Winder & Manual Hank Winder:

Rope Coiler & Automatic Ball Winder& Multi-head Ball Winder:

Six Head Spool Winder & Two Head Spool Winder & 2 in 1 Spool Winder:
