2 порта USB переключатель 4k двойной монитор EDID горячая клавиша управления HDMI
- Категория: KVM Switches >>>
- Поставщик: Shenzhen,Hongshi,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 50.38 $* | 53.46 $* |
| Aug-15-2025 | 50.48 $* | 53.60 $* |
| Jul-15-2025 | 42.4 $* | 44.73 $* |
| Jun-15-2025 | 49.31 $* | 51.39 $* |
| May-15-2025 | 42.23 $* | 44.62 $* |
| Apr-15-2025 | 48.7 $* | 50.27 $* |
| Mar-15-2025 | 47.34 $* | 49.34 $* |
| Feb-15-2025 | 47.73 $* | 49.42 $* |
| Jan-15-2025 | 47.27 $* | 49.70 $* |
Характеристики
Tips:
1.Contact us for more discount;
1.Contact us for more discount;
2.OEM/ODM are also welcome；
3.Excellent quality and better Price.
3.Excellent quality and better Price.
Products Description

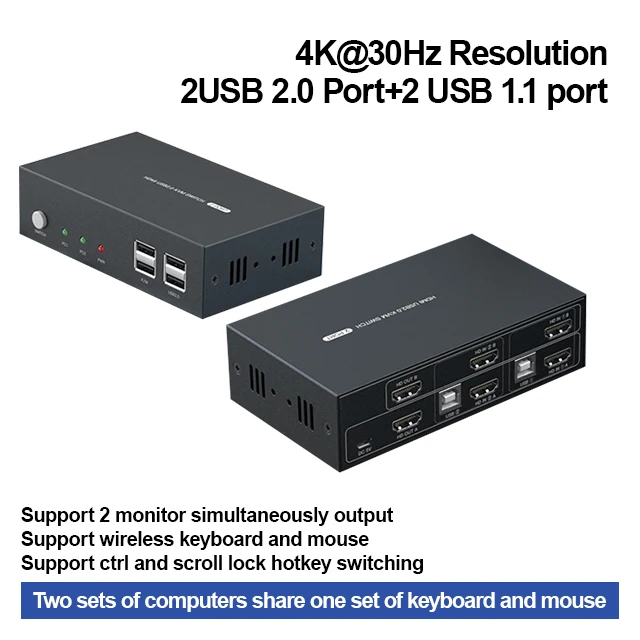

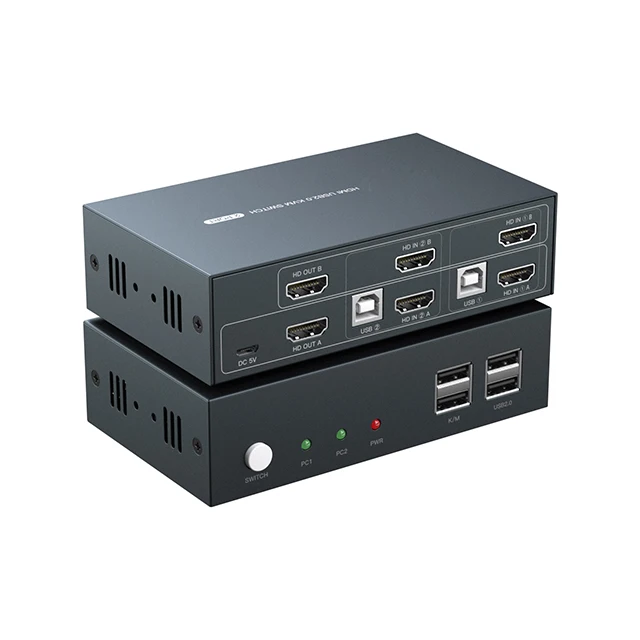

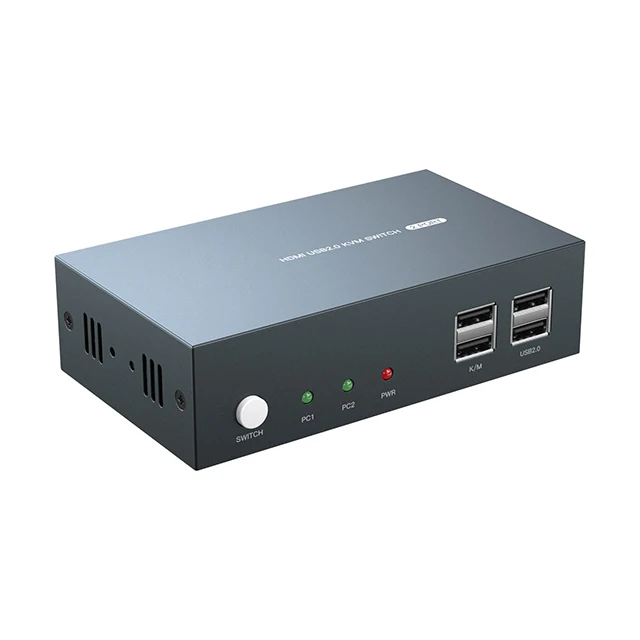

2 port USB Switch 4k Dual Monitor EDID Hot Key Buttons control Switch HDMI KVM Switch
S7201H2 KVM Switch Selling Points:

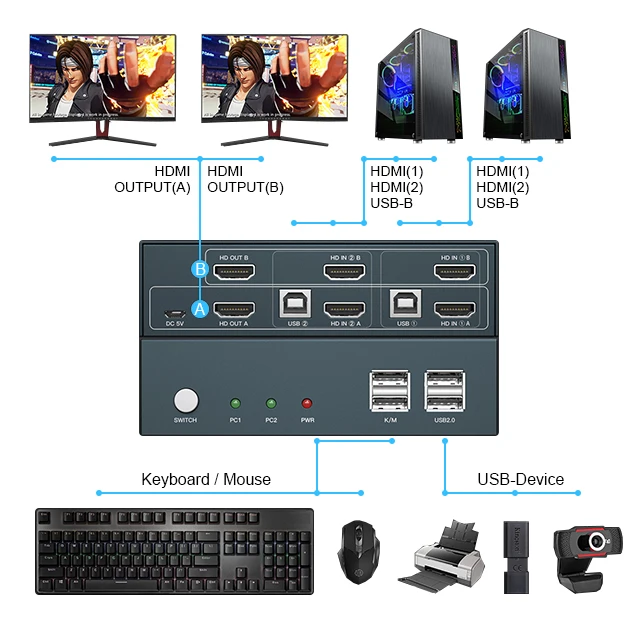

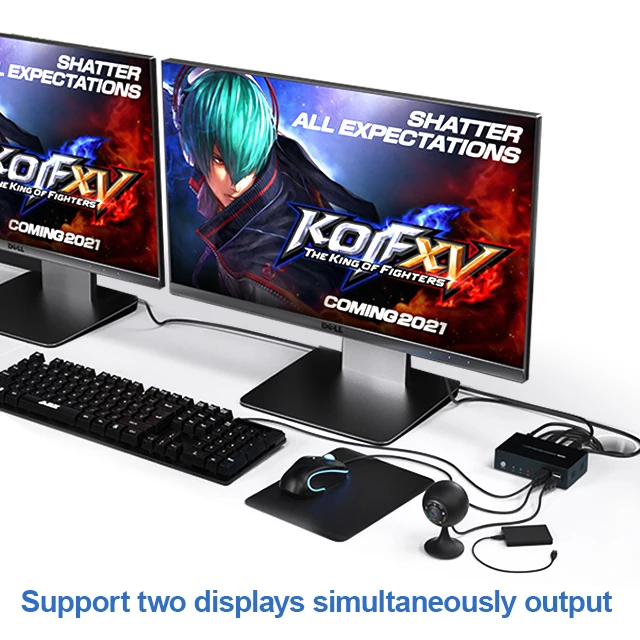

KVM switch S7201H2 supports dual monitor display: one set of keyboard, mouse and monitor to control 2 Dual graphics cards devices.
It supports hot plug, keyboard hot keys, and also there is a front panel button, makes the sharing more efficient and convinient.
Details Images
S7201H2 KVM Switch Features：
2.Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian and other Linux based system
3.With EDID emulators in every input ports, keep PCs always have correct display information,when the switch connect diplayer, all EDID will be updated
4.Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices
5.Support front panel buttons, keyboard hot keys to control KVM switch
6.Support resolution up to 3840*2160@30Hz.
1. Using one set of keyboard, mouse and monitor to control 2 Dual graphics cards devices
2.Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian and other Linux based system
3.With EDID emulators in every input ports, keep PCs always have correct display information,when the switch connect diplayer, all EDID will be updated
4.Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices
5.Support front panel buttons, keyboard hot keys to control KVM switch
6.Support resolution up to 3840*2160@30Hz.
S7201H2 KVM Switch Application scenarios：
KVM switch S7201H2 is widely used in office work, video conference, security, finance, and multimedia teaching, HDMI signal extension, etc.
Product Paramenters
Parameter | Description | ||
Video | Standards | HDMI 1.4 | |
Maximum pixel clock | 225MHz | ||
Maximum data rate | 10.2Gbps | ||
Resolution range | Up to 3840x2160@30Hz, 1920*1080@60Hz | ||
Connector | HDMI-A Interface | ||
Impedance | 100Ω | ||
HDMI Cable Range | <5M( Resolution: 1920*1080@60Hz) | ||
USB | Interface protocols | USB1.1, USB2.0 | |
PC input interface type | USB-B | ||
Output interface type | USB-A | ||
Other | Power supply | USB-B 5V power supply | |
Power dissipation | MAX 4W | ||
Temperature | Operating: -5℃ ~ +70℃ | ||
Humidity | Operating: 5% ~ 90% | ||
Dimension | 130*75.8*35mm | ||
The warranty | 1 year free warranty | ||
Product packaging
2 port USB Switch 4k Dual Monitor EDID Hot Key Buttons control Switch HDMI KVM Switch
Product Packing:
Size：21.5*17*7.5cm
Weight：0.95kg
Package type：
1. Neutral Box/OEM Box
2. Single Size：130*75.8*35mm

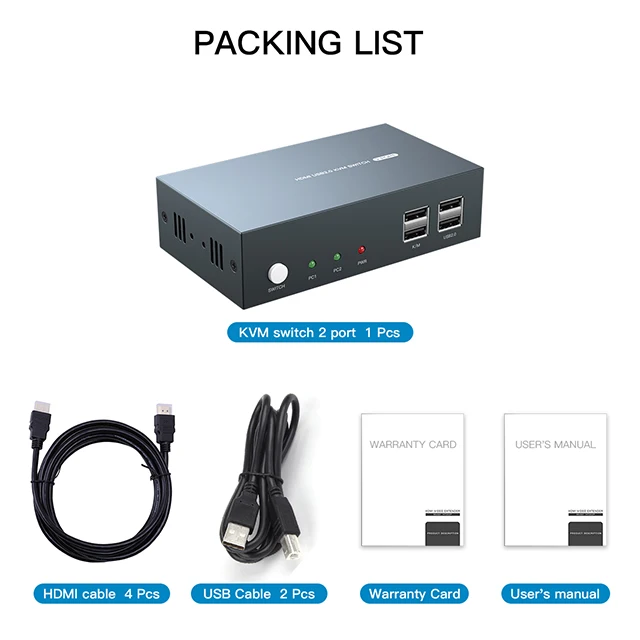

3. Supplied Accessories：
5V power supply，HDMI1.4 cable，double display，USB1.1 cable，USB2.0 cable，EDID emulators，user manual，warranty card
Weight：0.95kg
Package type：
1. Neutral Box/OEM Box
2. Single Size：130*75.8*35mm
3. Supplied Accessories：
5V power supply，HDMI1.4 cable，double display，USB1.1 cable，USB2.0 cable，EDID emulators，user manual，warranty card
Company Profile
Certifications
FAQ
Q1: Are you trading company or manufacturer?
A: Hongshi is the leading brand of the video conference solution, the professional provider of the conferencing system, we have our own factory of HDMI extender, HDMI IP extender, KVM switch and with rich supply
chain in the related conferencing products such as POE switcher, hub and so on.
chain in the related conferencing products such as POE switcher, hub and so on.
Q2: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. With the rich experience in HDMI, we support not only OEM your logo, but also, we accept ODM as your ID,including the material, color, style can customize, the basic quantity we will advise after we discuss.
Q3: What’s your MOQ?
A: If we have the products in stock, it will be none MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q4: How long is your delivery time?
A: The general delivery time is 3-7 days after receiving your deposit and depends on your quantity. Batch order usually takes 2 or 3 weeks.If only sample order and we have the goods in stock, it will only take 2-4 days.
Q5: Which shipping way can you provide?
A: We can provide shipping by sea, by air and by fast express. Usually depends on you.
Q6: What’s your quality control?
A:We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.
1.All raw material checked once it arrive our factory.
2.All pieces and logo and all details checked during production.
3.All packing details checked during production.
4.Aging time is over 8 hours when semi-finished articles.
5.All production quality and packing checked on final inspection after finished.
