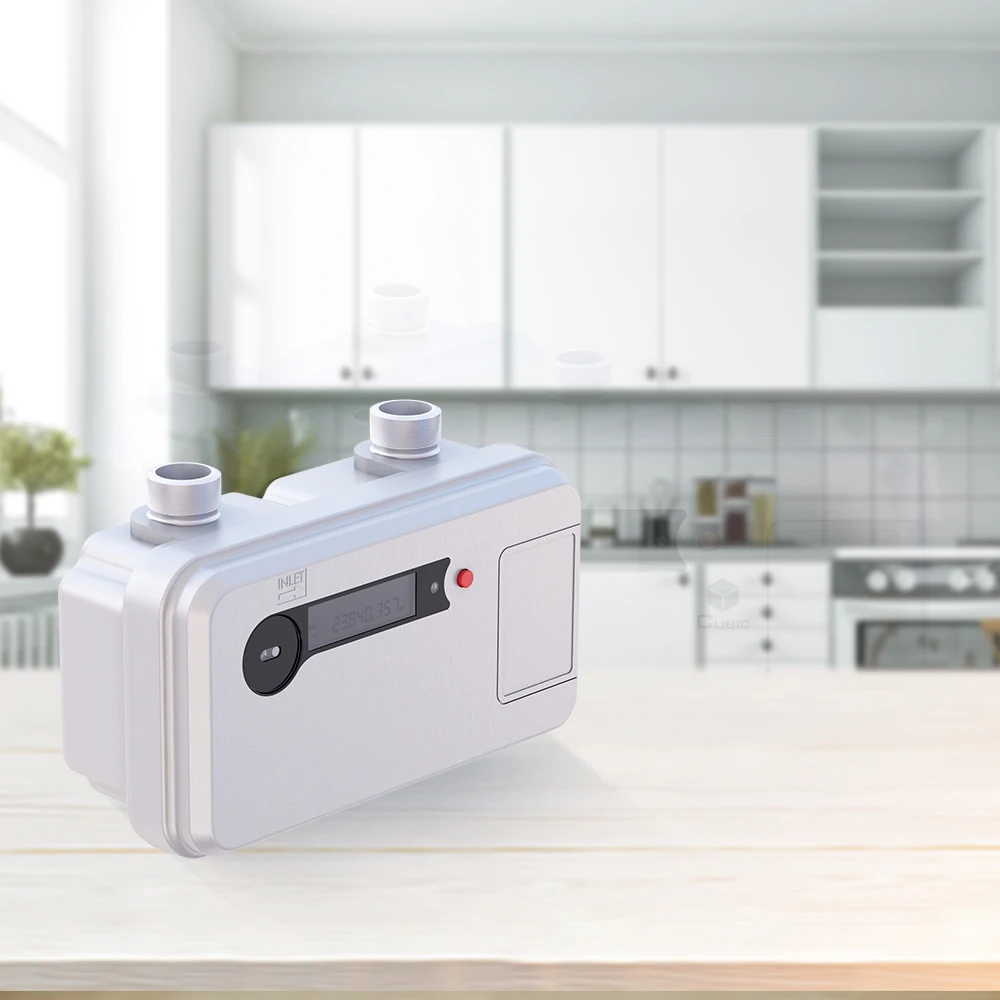

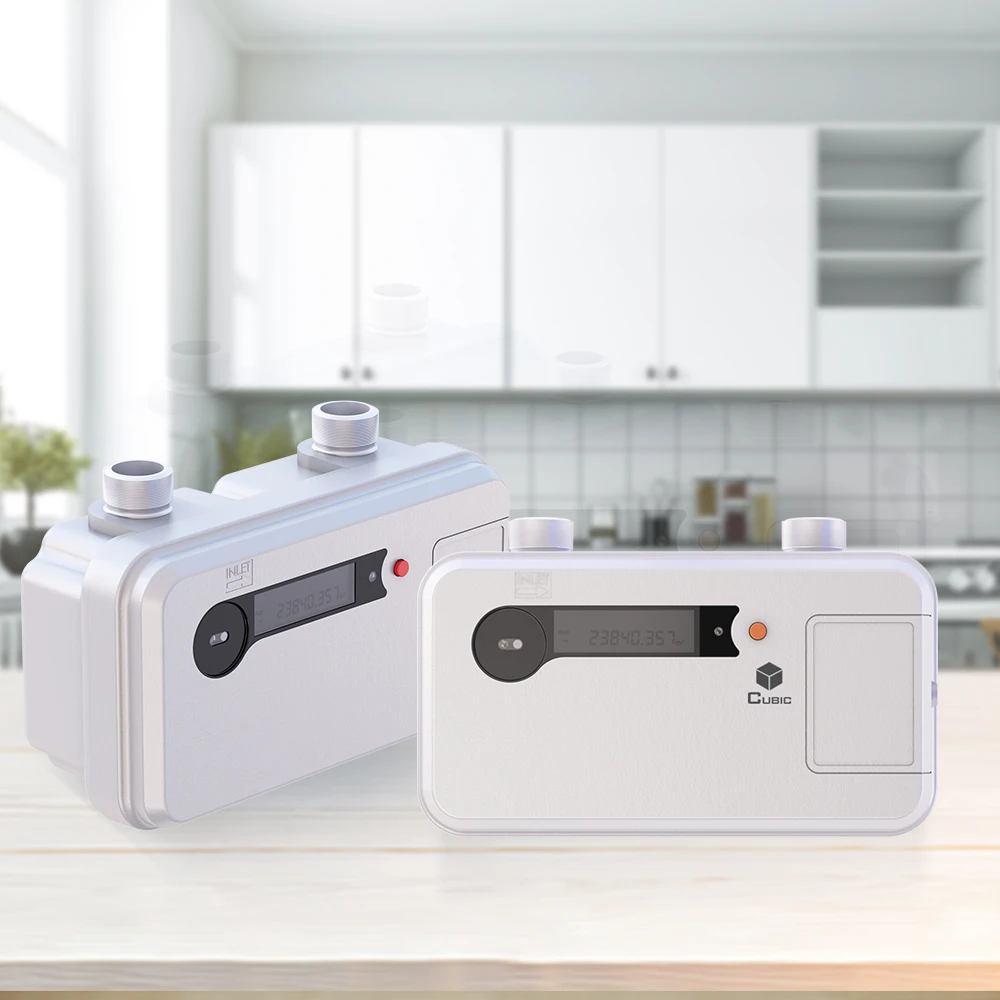

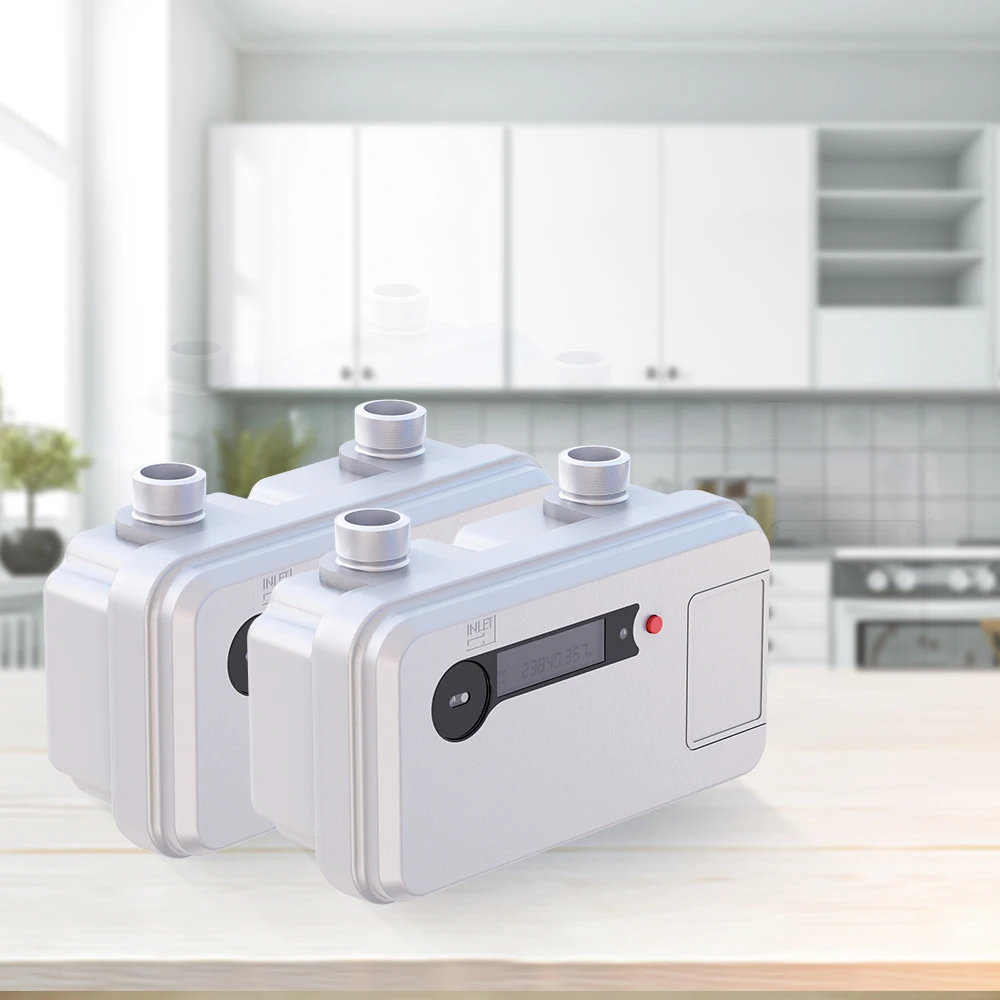

Для домашнего использования ультразвуковой газовый счетчик цифровой Смарт натуральный USM-G2.5/G4 цены по
- Категория: Gas Meters >>>
- Поставщик: Cubic,Sensor,and,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 81.69 $* | 85.83 $* |
| Aug-18-2025 | 80.78 $* | 84.70 $* |
| Jul-18-2025 | 67.50 $* | 70.34 $* |
| Jun-18-2025 | 79.34 $* | 83.38 $* |
| May-18-2025 | 69.23 $* | 72.67 $* |
| Apr-18-2025 | 78.72 $* | 82.32 $* |
| Mar-18-2025 | 77.45 $* | 81.0 $* |
| Feb-18-2025 | 76.17 $* | 80.25 $* |
| Jan-18-2025 | 75.68 $* | 79.53 $* |
Характеристики
Product Description
Product performance description
USM Series Ultrasonic Gas Flow Meter is a type of electronic meter that adopts TOF (Time of Speed) principle to measure flow velocity of gas medium, with class 1.5 accuracy and high stability, USM-G2.5/G4 is widely applied for residential natural gas metering application.
Specifications | |
Measurement Range | USM-G2.5: 0.025~4 m³/h [0.88~ 141.26 ft³/h] USM-G4: 0.04~6 m³/h [1.41~ 211.88 ft³/h] |
Accuracy | Class 1.5 |
Error | Qmin≤Q<0.1Qmax: ±3%; 0.1Qmax≤Q≤Qmax:±1.5% |
Battery | 3.6V Lithium battery |
Connector Type | Aluminum case: Screw thread, G1-1/4 Steel case: Screw thread, M30*2 |
Dimensions(mm) | 239*151*102 |
Weight(kg) | 1.1 |
Center Distance of Connectors (mm) | 130 |
Working Pressure | 0~50kPa / 0~7.25psi |
Pressure Loss | 200pa / 0.029psi or less |
Working Temperature | -20℃~55℃ / -68℉~131℉ |
Storage Temperature | -30℃~70℃ / -86℉~158℉ |
Protection Class | Aluminum case: IP54 Steel case: IP65 |
Product Features
1.Innovative ultrasonic gas flow sensor technology;
2.Built-in temperature compensation;
3.High measurement sensitivity and accuracy with intelligent software algorithm for air,100% CH4, H1 and different natural gases;
4.Long-term stability of accuracy;
5.Anti-contamination, high corrosion resistance;
6.Low pressure loss due to absence of obstructing objects within flow path;
7.No magnetic induction elements, free from magnetic field effect;
8.Low power consumption, long lifespan;
9.Low operation & maintenance cost;
10.Compact size, light weight, easy installation;
11.Compliant to OIML R137 and EN14236 class 1.5;
12.GPRS and NB-IoT solutions are optional.
Function Highlight
Communication Disconnection Alarm
Low Balance Alarm
Reverse Gas Flow Alarm
Gas Leakage Alarm
Front Cover Opening Alarm
Low Power Alarm
Related Products
Aluminium
Aluminium
Steel
Product Applications
AMI smart gas meter solutions
Advanced Metering Infrastructure (AMI) solution is an integrated system of smart meters, communications networks, and data management systems that enables two-way communication between utilities and customers. More and more Governments agencies and utilities are turning toward advanced metering infrastructure (AMI) systems as part of larger "smart grid" initiatives. Cubic has provided a wide range of remote communication gas meter solutions based on comprehensive technologies integration.
Advanced Metering Infrastructure (AMI) solution is an integrated system of smart meters, communications networks, and data management systems that enables two-way communication between utilities and customers. More and more Governments agencies and utilities are turning toward advanced metering infrastructure (AMI) systems as part of larger "smart grid" initiatives. Cubic has provided a wide range of remote communication gas meter solutions based on comprehensive technologies integration.
AMR smart gas meter solutions
Automatic Meter Reading (AMR) is the technology of automatically collecting consumption, diagnostic, and status data from gas meter or energy metering devices (gas, electric) and transferring that data to a central database for billing, troubleshooting,and analyzing. This technology solution mainly saves utility providers the expense of periodic trips to each physical location to read a meter. Cubic's comprehensive gas service solutions could be equipped with -diverse functions of the AMR technology.
IC card prepayment gas meter solutions
Based on advanced IC card technologies, the gas operation mode "pay before using gas" becomes maturely possible. The smart operation mode involves IC card smart gas meters and the supporting charging management system.To acclimate the trend of IC card intelligent gas meter, Cubic has already had complete solutions of IC card intelligent gas meter control and to realize gas prepayment operation mode through connecting to comprehensive Gas Management Platform.
Packing&Shipping
Company Introduction
Found in 2003, Cubic is a gas sensor company with a comprehensive gas sensor technology platform for measurement from gas composition to gas flow. Cubic has core gas sensor technologies based on NDIR, UVDOAS, NDUV, lasers scattering, Laser Raman and Ultrasonic.In 2008, Cubic had developed the ultrasonic oxygen sensor and flow sensor for oxygen concentrators and ventilators.In 2010, Cubic began to carry out a forward layout in the field of ultrasonic gas meters. Significant breakthroughs in ultrasonic signal processing ensure Cubic to be an industry-leading ultrasonic metering expert. Besides, supply chain integration advantage drives Cubic to be a one-stop supplier for smart gas meters, isolation ball valves, commercial gas regulators, software management systems, etc.In 2022, the newly built industrial park with an area around 33500m² and the production lines for ultrasonic gas meter business will be put into production in Jiashan, which is about 60km driving from the Shanghai Hongqiao International Airport.
