Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00
Электродвигатель 24 В постоянного тока с электромагнитным тормозом для инвалидной коляски 75 ОБ/мин 120 об/мин 160 в 250
- Категория: Motors >>>
- Поставщик: Chengdu,Lunyee,Imp.,&,Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 43.16 $* | 45.82 $* |
| Aug-18-2025 | 42.38 $* | 44.68 $* |
| Jul-18-2025 | 36.56 $* | 38.38 $* |
| Jun-18-2025 | 42.53 $* | 44.20 $* |
| May-18-2025 | 36.51 $* | 38.56 $* |
| Apr-18-2025 | 41.19 $* | 43.45 $* |
| Mar-18-2025 | 41.81 $* | 43.43 $* |
| Feb-18-2025 | 40.1 $* | 42.63 $* |
| Jan-18-2025 | 40.8 $* | 42.10 $* |
Характеристики
Products Description

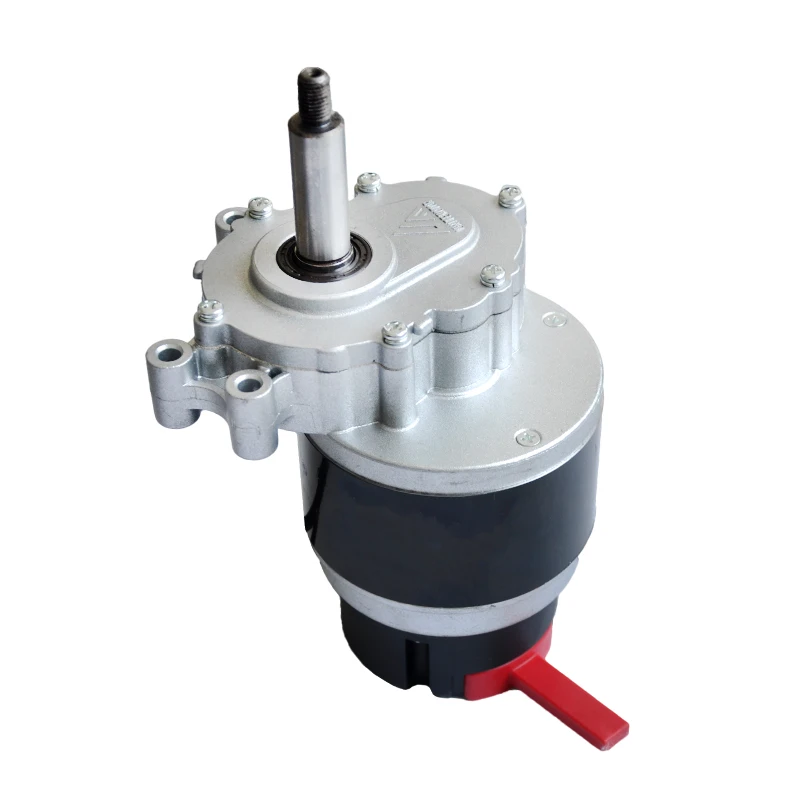

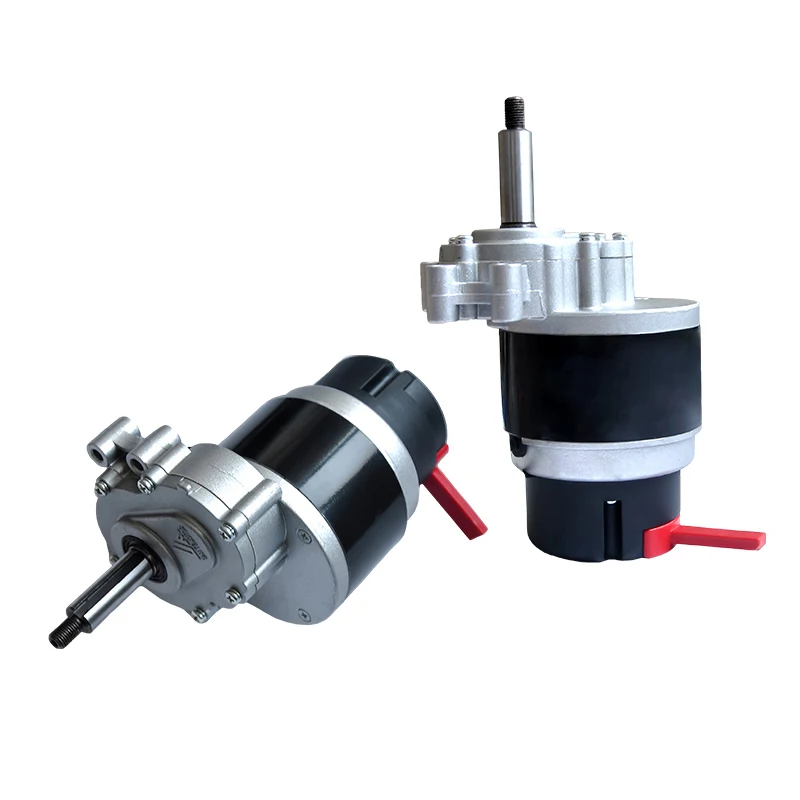

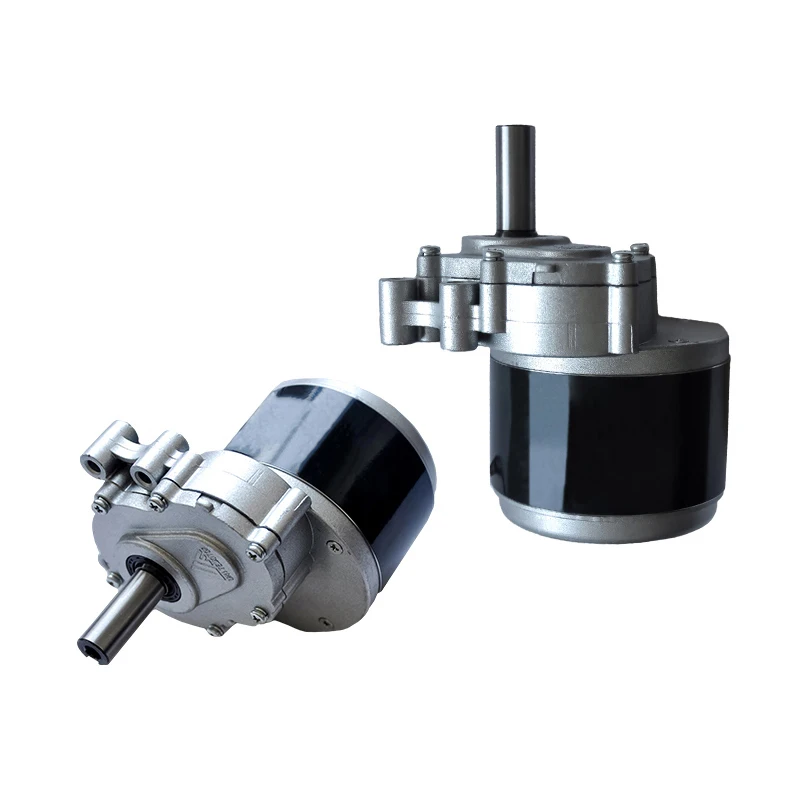

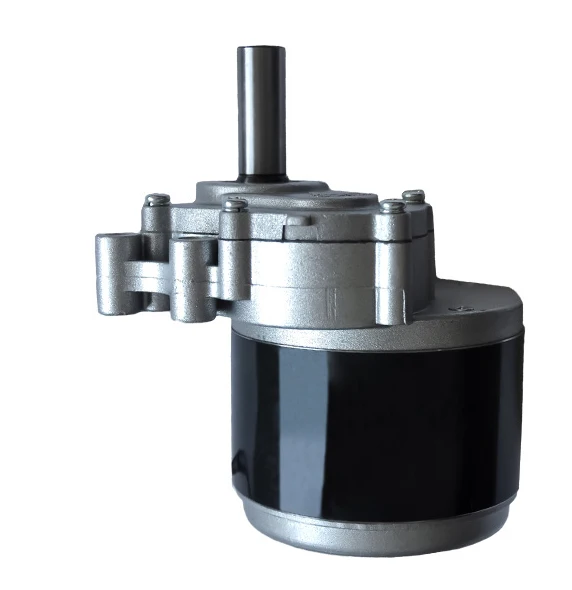

12/24V 200W wheelchair motor
Parameters
MY1016Z Wheelchair Motor | ||
Voltage | 24V | |
Power | 250W | |
Motor speed | 2400 / 3700 RPM | |
No-load speed | 75rpm/ 120 rpm/160rpm | |
Output speed | 75/120/160 rpm | |
Rated torque | ≥45mm | |
No-load current | ≤ 4.0 A | |
Rated current | ≤13.7 / 14.8 A | |
Working hours | S2 : 60 | |
Insulation class | E | |
Reduction ratio | 23.2 : 1 | |
Motor efficiency | ≥ 70 / 76 % | |
Load capacity | 100kg/pcs | |
Application | wheelchair | |
Application
Packing&Shipping
Packing Method :
1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
Shipment Method:
UPS/DHL/TNT/EMS/Fedex /By sea etc. Other shiping method are also available if needed.
1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
Shipment Method:
UPS/DHL/TNT/EMS/Fedex /By sea etc. Other shiping method are also available if needed.
Company Profile
OUR SERVICE:
1.Free maintenance within 12 months guarantee, Lifetime consultant
2. Idea share for your item
3. Professional research and development team to update new product
4. Qualified CE, RoSH, FCC certification
5.Fast delivery with stable package
6.Technical support for installation
6.Technical support for installation
7. Customization production
FAQ
Q1:What information do i need to provide when send inquiry?
A: For AC or DC motors, it is necessary to tell us rated power,voltage,output speed,output torque,work conditions, installation way, insulation class,IP class etc. For Speed reducer,it is perfect that provide servo motor drawing and parameters, gear ratio is needed.
Q2:What about your warranty?
A:Follow the user manual ,1 year for conventional products.customized product requires negotiation.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q2:What about your warranty?
A:Follow the user manual ,1 year for conventional products.customized product requires negotiation.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
