Плоская вязальная машина 57 г поддерживает 16 насадок для пряжи с высокоскоростной и высокоэффективной двойной системой
- Категория: Knitting Machines >>>
- Поставщик: Zhangjiagang,Luban,Jinggong,Machinery,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 9044.89 $* | 9496.96 $* |
| Aug-19-2025 | 8968.17 $* | 9416.42 $* |
| Jul-19-2025 | 7524.21 $* | 7900.85 $* |
| Jun-19-2025 | 8816.97 $* | 9257.7 $* |
| May-19-2025 | 7676.94 $* | 8060.91 $* |
| Apr-19-2025 | 8664.13 $* | 9097.67 $* |
| Mar-19-2025 | 8588.29 $* | 9017.61 $* |
| Feb-19-2025 | 8512.6 $* | 8938.81 $* |
| Jan-19-2025 | 8436.40 $* | 8858.45 $* |
Характеристики
Products Description

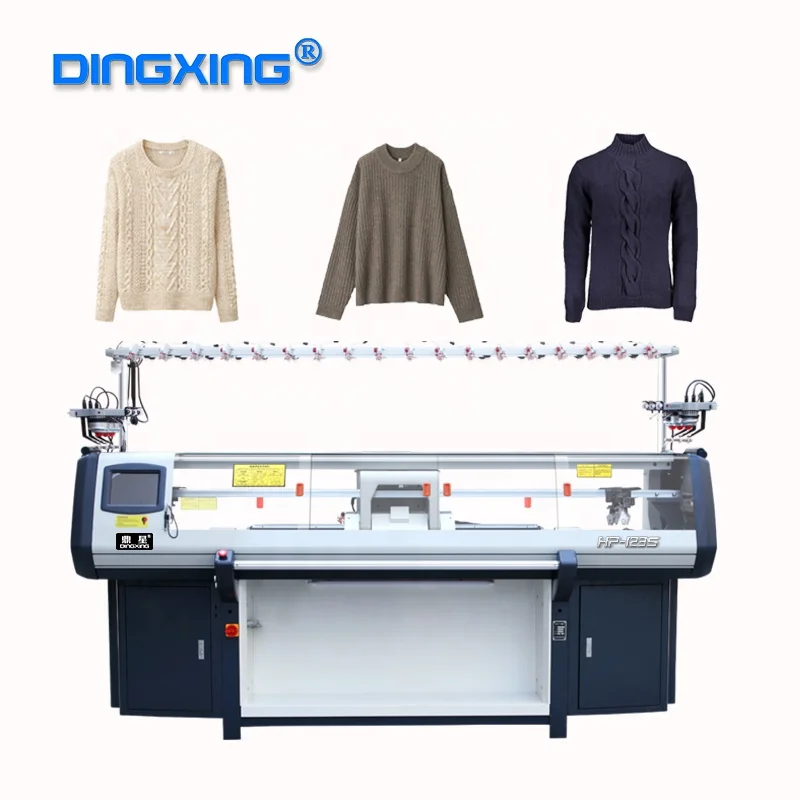

57G multi-gauge high-speed knitting machine
Knitting pattern:
front and back needles, twisting rope, jacquard, transfer, close needle, 1*1 thread, 2*2 thread, light (dark) narrowing, air layer knitting method.
Scope of application:
sweaters, knitted hats, knitted gloves, knitted scarves, knitted blankets, wool uppers for the elderly, pet clothes, etc.
Machine configuration
Product Paramenters
DINGXING® Knitting Machine HP-123S | |
Gauge | 16G，14G，12G，7G，5/7G，5G |
Knitting Width | 52 inch |
Knitting speed | Maximum speed of 1.6 meters per second，32 segment programmable speed |
Stitch density | 32 segments of electronic control，the use of subdivision technology，adjustable range：0-650，more accurate control of the length of fabric |
Knitting system | Single carriage with double system |
Rib transfer | Both front and back，not affecting by the carriage direction， separately knitting |
Sinker system | The stepping motor can adjust the movable settling plate，and can be adjusted according to different fabrics to achieve a plurality of collecting and putting effects |
Actuator | 8 section of electronic needle selector |
Comb device | The comb device with releasing principle，can effectively realize yarn hanging and releasing function |
Roller device | main roller and the comb；the 32 section of automatic control，subsection adjustment |
Color changing device | 8+4 set of yarn mouth configuration in the right and left sides of the guide rail |
Protection | Automatic stopping device if yarn broken，yarn knot，batching， striking，completion, overload，designated starting and stopping，program error happen |
Driving system | Belt drive，AC servo motor control |
Safety device | The whole machine cover to reduce noise and dust，the protecting cover is equipped with stopping sensor，emergency stopping，power off device |
Data input | Through the U disk，computer connection for direct input of data |
Language choice | Multi language version：support Chinese，English，Arabia and other languages, but also according to customer needs to increase the required language |
Size（L×W×H） | 2530×850×1870mm |
Weight | 1000KG |
Power | Voltage：AC200V Frequency：50HZ Power：1.5KW |
Sideline Frame
It uses the high quality spring to effect the yarn picker. Besides the tension control function，it can also pullback the
superfluous yarn occurs when the carriage moves reversely to tighten the yarn in the uniform tension which is to guarantee the
normal knitting. The creel with sensor is high sensitive，and is not affected by the external factors such as environment and
debris. The induction function is stable and rapid.
superfluous yarn occurs when the carriage moves reversely to tighten the yarn in the uniform tension which is to guarantee the
normal knitting. The creel with sensor is high sensitive，and is not affected by the external factors such as environment and
debris. The induction function is stable and rapid.
Sinker System
Flat knitting machine for knitting needle movement inthe rise and fall with the regularity of the moment，to achieve the stitch
transfer，stitch press off，stitch knit，stitch tuck such as knitting effects，need to help latch needle from sinker to
complete，Improve the capacity of weaving.Sinker control system make the functionof sinker adjustable to achieve， adjusted as
needed of knitting to control，the function of sinker and presser foot are very similar，but more reliable andpractical than the
presser foot.
Flat knitting machine for knitting needle movement inthe rise and fall with the regularity of the moment，to achieve the stitch
transfer，stitch press off，stitch knit，stitch tuck such as knitting effects，need to help latch needle from sinker to
complete，Improve the capacity of weaving.Sinker control system make the functionof sinker adjustable to achieve， adjusted as
needed of knitting to control，the function of sinker and presser foot are very similar，but more reliable andpractical than the
presser foot.
Display Screen
It adopts industry LCD displayer with graphic touchcontrol，multi color， all time monitoring function. The data of knitting
amount，time，speed， roller， density，yarn carrier， etc， is clearly shown and can be adjusted in the process. It is most convenient
and efficient way to amend the data.
amount，time，speed， roller， density，yarn carrier， etc， is clearly shown and can be adjusted in the process. It is most convenient
and efficient way to amend the data.
Yarnstorage
Yarn storage can effectively reduce the resistance ofthe conveyor yarn， especially suitable for less flexible or brittle
fabric，such as cashmere， rabbit fiber，making the fabric even and smooth，improvingmachine knitting efficiency.
Yarn storage can effectively reduce the resistance ofthe conveyor yarn， especially suitable for less flexible or brittle
fabric，such as cashmere， rabbit fiber，making the fabric even and smooth，improvingmachine knitting efficiency.
Yarn feeder
8yarn feeders'position can be adjusted according tothe knitting width of fabric，also can be adjusted by programmable fine tune
according to the carriage'srunning speed. It has the technical characteristics ofreacting fast and positioning accurate.
8yarn feeders'position can be adjusted according tothe knitting width of fabric，also can be adjusted by programmable fine tune
according to the carriage'srunning speed. It has the technical characteristics ofreacting fast and positioning accurate.
Needle bed
Divided structure ,steel sheet made from import high quality steel precisely punched and fine polished to reduce the resistance
with needles and increase the longvity.
Divided structure ,steel sheet made from import high quality steel precisely punched and fine polished to reduce the resistance
with needles and increase the longvity.
Cooperation mode

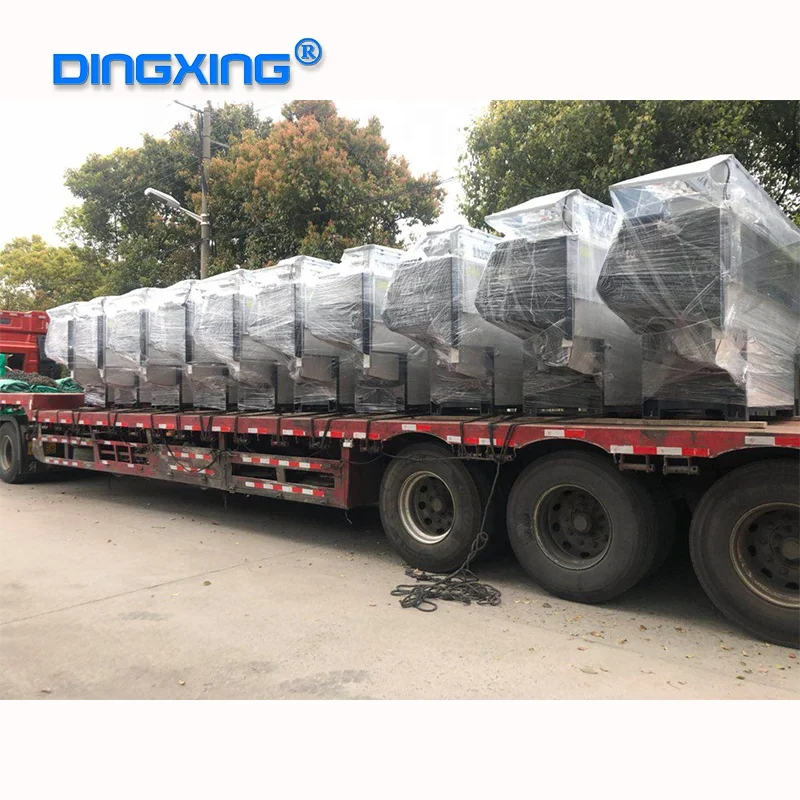

About transportation
Export Packing Instructions
The surface of the needle plate of the flat knitting machine is attached with the special nano-green rust inhibitor produced in the Netherlands, and then covered with moisture-proof paper. Packed in plastic bags before packing in wooden boxes, the annual anti-corrosion and moisture-proof limit can be as long as 3 years.
standard wooden cases
4sets per20''container
8sets
per40'' container
length*width*height*:
3000*950*2000mm
netweight:about1250kg
