Новый дизайн высокая скорость из искуственного мрамора спеченный камень искусственный керамика автомат
- Категория: Stone Machinery >>>
- Поставщик: Jinan,Care,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.36 $* | 0.51 $* |
| Aug-16-2025 | 0.73 $* | 0.36 $* |
| Jul-16-2025 | 0.80 $* | 0.14 $* |
| Jun-16-2025 | 0.56 $* | 0.84 $* |
| May-16-2025 | 0.99 $* | 0.55 $* |
| Apr-16-2025 | 0.95 $* | 0.46 $* |
| Mar-16-2025 | 0.14 $* | 0.62 $* |
| Feb-16-2025 | 0.48 $* | 0.79 $* |
| Jan-16-2025 | 0.86 $* | 0.34 $* |
Характеристики

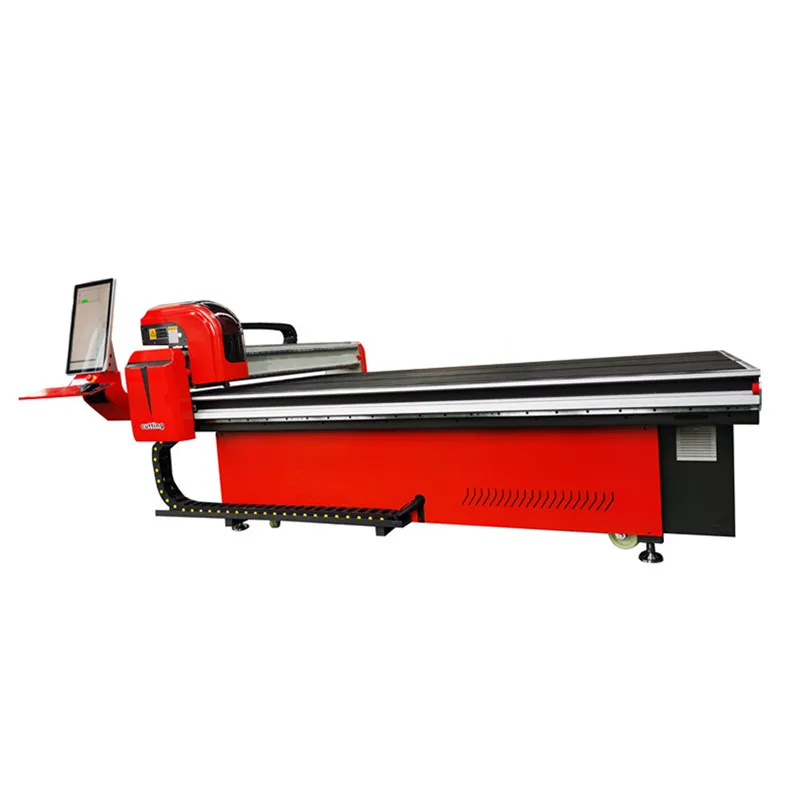

New Design High Speed Artificial Marble Sintered Stone Artificial stone Ceramics Cutting Machine
Products Description
Product Parameters
Machine parameters | Dimensions(L*W*H) | 5600*2000*1630mm | 7550*2000*1630mm | |
Weight | 1200kg | 2300kg | ||
Table height | 880±30mm(Adjustable feet） | |||
Power requirements | 380V，50Hz | |||
Installed power | 7.5kW（Use power3KW） | |||
Compressed air | 0.6Mpa | |||
Processing parameters | Cut Sintered Stone size | MAX.2700*1600mm | MAX.3600*1600mm | |
Cut Sintered Stone thickness | 3~15mm | |||
Head beam speed | X axis 0 ～ 200m / min (can be set) | |||
Head speed | Y axis 0 ～ 200m / min (can be set) | |||
Cutting acceleration | ≥8m/s² | |||
Cutting knife seat | Cutting head can rotate 360 degrees (precise cutting of straight lines and special shapes) | |||
Cutting accuracy | ≤±0.25mm/m（Based on the size of the cutting line before the glass breaking） | |||
Product detail
01.
02.
03.
Specially developed 6mm thick 6061 high-strength pre-stressed industrial aluminum beams to ensure the service life and
load-bearing capacity of the aluminum beams. The large-scale milling machine processes the mounting surface to ensure the
verticality and straightness of the mounting surface and improve accuracy.
load-bearing capacity of the aluminum beams. The large-scale milling machine processes the mounting surface to ensure the
verticality and straightness of the mounting surface and improve accuracy.
04.
heads for Italian rock slabs.
05.
life, stable performance, etc. The optimization rate can reach 99%.
Product Features
1. The absolute value motor and imported high-precision racks and other top components can effectively ensure the accuracy and stability of glass cutting, and have a longer service life, which can meet the cutting of various shapes of glass and sintered stone;
2. One-piece guide rail, exclusive patent, higher cutting precision;
3. The machine is made of waterproof, fireproof, high and low temperature resistant, and anticorrosive materials, which will never be deformed;
4. Infrared scanning point function and infrared scanning special-shaped template function;
5. Highly intelligent cutting machine optimization software, which greatly improves the utilization rate of raw materials and reduces production costs;
6. Air flotation function, improve work efficiency, with automatic feeding machine and separator;
7. The automatic oil injection and automatic pressure adjustment function of the cutting machine can effectively ensure the cutting stability and cutting effect;
8.No special requirements for operators, simple operation and easy management.
Product packaging
payment method

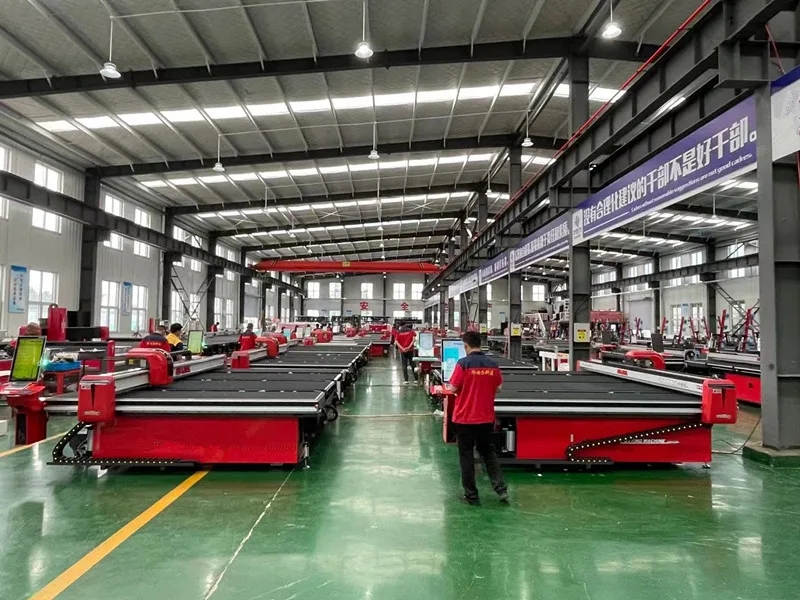

Company Profile
