China Smart Film Window Film PDLC A4 sample Switchable Film For Home Building hotel office sticker

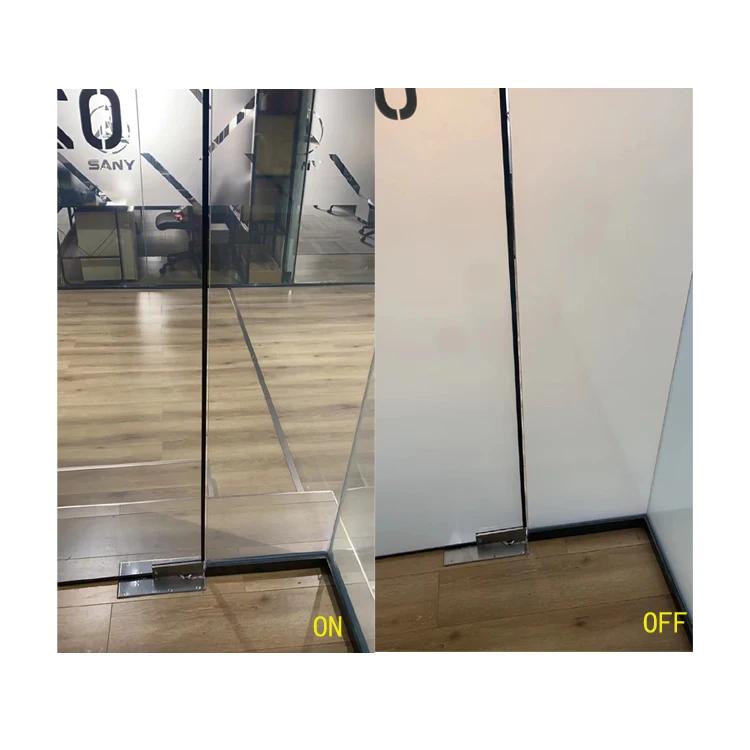

The smart film project picture as below:

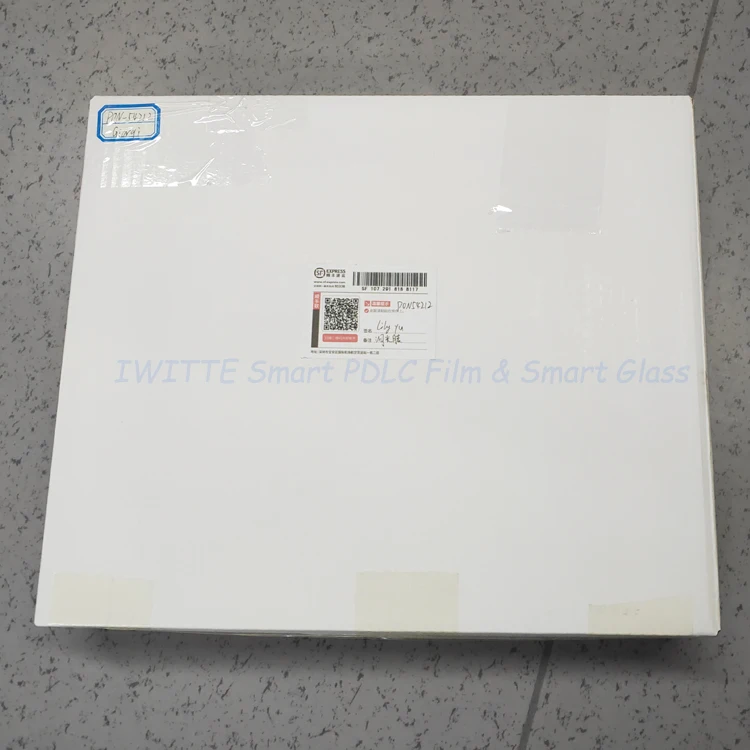

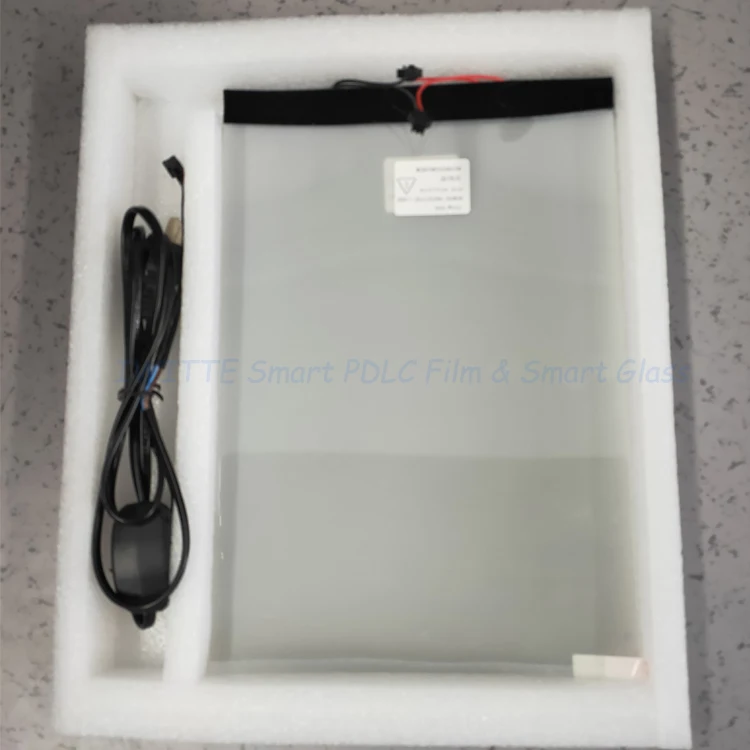

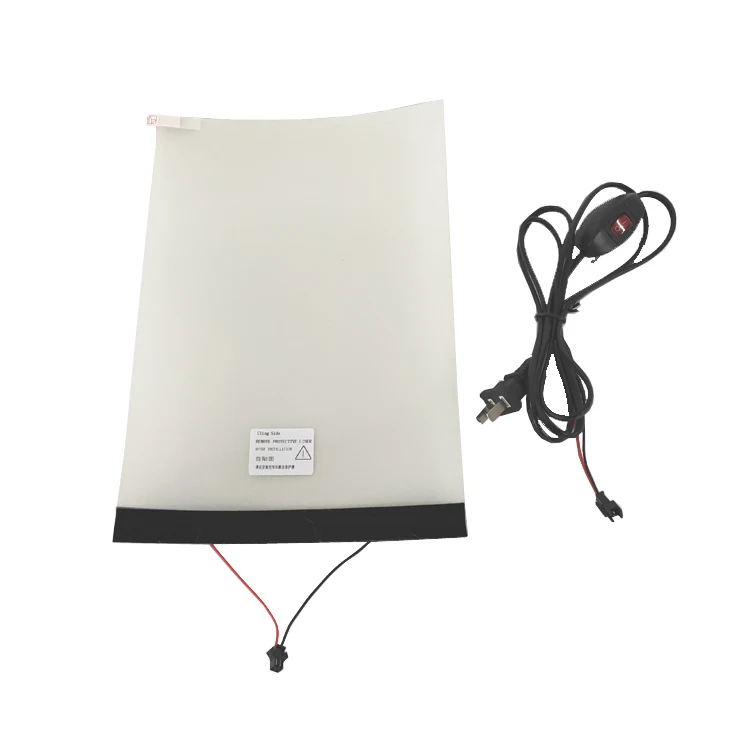

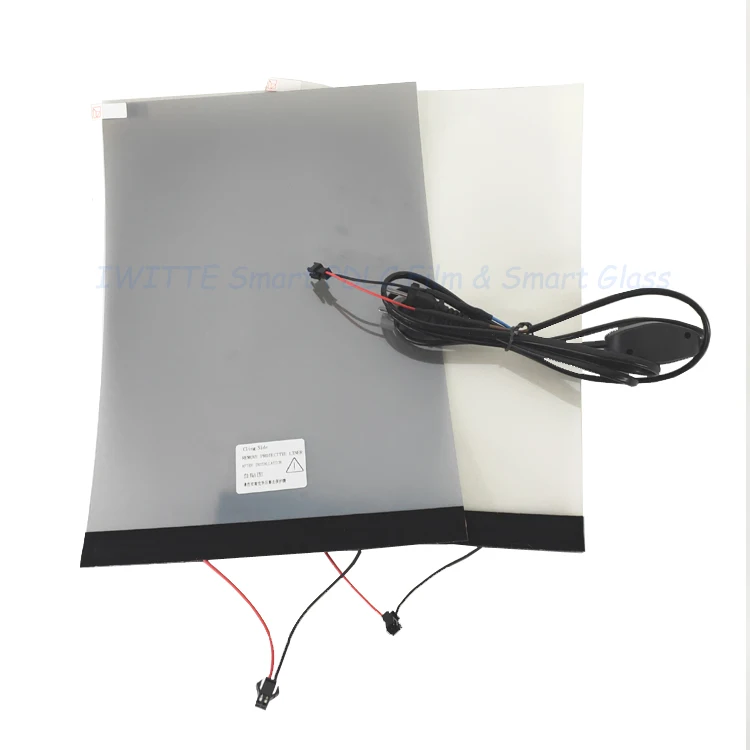

FREE Sample picture is as below, please kindly contact us for more details!







The liquid crystal privacy film is made up of electrically conductive coatings, a polymer matrix and liquid crystals.

Working Principle





           PDLC Smart Film Technical Parameters



Item		Mode	Remarks
Optical Properties	Visible light Transmittance	ON	>85%
		OFF	>55%
	Parallel light transmittance	ON	>80%
		OFF	<3%
	Haze	ON	<3%
		OFF	>90%
	UV Blocking	ON/OFF	>99%
	IR Blocking	ON/OFF	>60%
Electrical Properties	Operating Voltage	ON	48V / 65V
	Power Consumption	ON	5W/m2
	Switching Speed	ON-OFF	<20ms
		OFF-ON	<200ms
Lifespan			>10 years
Viewing Angle		160°
Operating Temperature		-30℃ to 50℃
Storage Temperature		-30℃ to 70℃
Product Dimension	Thickness	0.4mm
	Length & Width	Customized
Controlling Ways		Switch, voice, remote control, remote network control are available, any combination can be worked out according to customer request.



Product Features:
1. Privacy Protection
As the most important function, smart film/smart glass can be changed from transparent to opaque via easy model ON & OFF. Switch-OFF for privacy protection, switch-ON for great vision.
2. Energy Saving
Only 5W low power consumption per square meter per hour when power on.
3. Environmental
60% infrared rays blocking, to reduce heat radiation and transfer;
99% of UV rays blocking, to protect interior furnishings from color-fading or aging, and protect personnel from diseases caused by ultraviolet radiation.
4. Projection
Smart glass is a good projection screen, easily conversion it into home cinema or advertising wall.
5. Sound proof
With excellent damping action, the smart glass is easy to block the noise.
6. Explosion proof
That can avoid getting hurt from heavy strike/broken.
7. Diversified Control
It can be controlled by wall switch, dimmer, motion detector, light, temperature sensor, remote controller, etc.
8. Easy installation & controlling mode
With simple structure, low cost, easy installation, and easy controlling mode, there is no need for complicated installation of curtains and subsequent clean-up.







>>>>>>>>>>>>>>Click here to know more details





“Iwitte” PDLC smart products are excellent solutions for modern Office building, Hotel, Medical Institution, Exhibition Hall, Bank, Museum, Villa, Auto and so on.

>>>>>>>>>>>>>>click here to know more about our smart products.











Our Advantage:

• Professional production line


• Focus on quality and service


• Strict quality control system of ISO9001


• Product quality in line with international standards RoHS and CE certification











Welcome to visit our factory by this link: https://www.linked-reality.com/company/13949/en .
