Высокопроизводительный 2000 Вт Ручной Волоконно-лазерный сварочный
- Категория: Laser Welders >>>
- Поставщик: Spower,Machinery,Technology,Co.,Ltd.(Jinan)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5355.22 $* | 5623.46 $* |
| Aug-18-2025 | 5310.83 $* | 5576.21 $* |
| Jul-18-2025 | 4455.29 $* | 4678.7 $* |
| Jun-18-2025 | 5220.85 $* | 5481.61 $* |
| May-18-2025 | 4545.19 $* | 4772.65 $* |
| Apr-18-2025 | 5130.89 $* | 5387.91 $* |
| Mar-18-2025 | 5085.16 $* | 5339.0 $* |
| Feb-18-2025 | 5040.49 $* | 5292.32 $* |
| Jan-18-2025 | 4995.47 $* | 5245.47 $* |
Характеристики
Product Description
Product Introduction
BCW series fiber laser welding machine adopts the latest generation of fiber laser and is equipped with intelligent laser welding head.It has many advantages such as simple operation, beautiful welding line, fast welding speed and no consumables. Welding applications in metal materials such as thin stainless steel plates, carbon steel plates, and galvanized sheets can perfectly replace traditional argon arc welding and electric welding.
Laser Model | Fiber Laser |
Repetition Rate | continuous |
Maximum welded | ≤2000w |
Laser power | 500w-2000w ( Optiona) |
Fiber diameter | 25um -100um (Optiona) |
Laser welding penetration | 0.39mm-4.57mm |
Laser welding speed | ≤20m/min |
Aiming and positioning | Red light indication |
Cooling way | water cooling |
Welding material | Carbon steel, stainless steel, galvanized steel, aluminum, etc |
Operating temperature | 10℃-40℃ |
Product Tips
1. About Fiber Cable Length
Usually standard length is 10m, if you have other needs, we support shortening or lengthening.
2. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.
3. About wire feeder
It's the machine standard configuration, we will send to you together with the whole machine.
4. Machine warranty
usually 2 years, we have professional after sale group, 24 hour online
Usually standard length is 10m, if you have other needs, we support shortening or lengthening.
2. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.
3. About wire feeder
It's the machine standard configuration, we will send to you together with the whole machine.
4. Machine warranty
usually 2 years, we have professional after sale group, 24 hour online
product details
Control system:
Fully digital design , simplified setting , clear working status at a glance
Wobble Welding Head
Wobble laser head multiple welding nozzles to meet different welding needs
Laser source
1000W /1500W/2000W Fiber laser power for optonal with professional water chiller stability and good joint performance
Laser
BCW series fiber laser welding machine is conventionally equipped with 10-meter optical fiber, which can realize long-distance, flexible welding in large areas and reduce operating limitations
Water Chiller
Industrial Water Chiller
Built-in water chiller
Built-in water chiller
laser welding video
Applications&Samples
✦Applicable Materials:
BCAMCNC laser welding machine Application in Stainless steel, Carbon steel, Aluminum, Copper materials, etc.
✦Applicable industry
Can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window
guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedures
BCAMCNC laser welding machine Application in Stainless steel, Carbon steel, Aluminum, Copper materials, etc.
✦Applicable industry
Can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window
guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedures

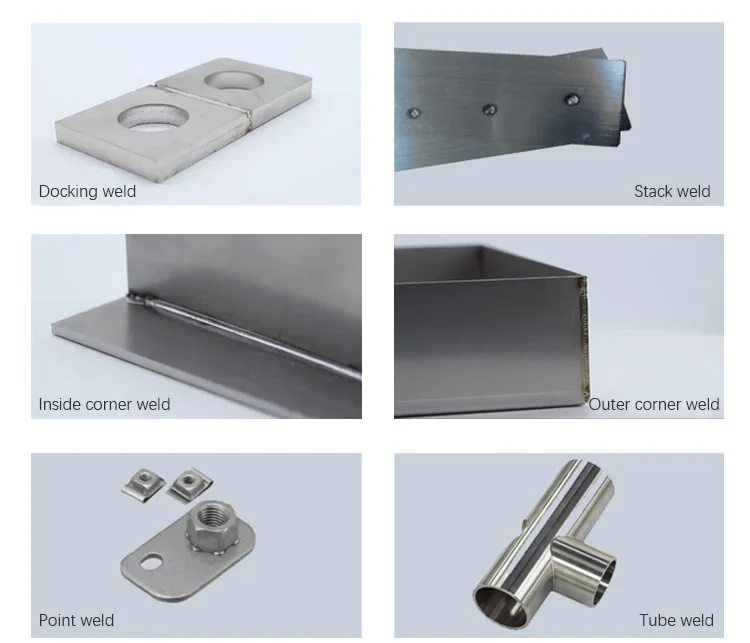

Welding Method
product advantage
* Various welding of non-standard metal parts, manual welding is more flexible;
* Perfect welding quality, small deformation, high penetration, no weld penetration;
* Various welding process methods, spot welding, seam welding, and stitch welding Etc.;
*High welding efficiency, replacing traditional TIG welding equipment;
* Maximum welding cost, no consumables, energy saving and environmental protection.
* Perfect welding quality, small deformation, high penetration, no weld penetration;
* Various welding process methods, spot welding, seam welding, and stitch welding Etc.;
*High welding efficiency, replacing traditional TIG welding equipment;
* Maximum welding cost, no consumables, energy saving and environmental protection.
After-sales service
We will give you 3 years warranty, so you don't have to worry about the after-sales.
We will also send you new parts if there's any parts broken by non-human issues.
We will also send you new parts if there's any parts broken by non-human issues.
Customer Feedback
Company Profile
Company Introduction
BCAM has more than 15 years of experience and has built and installed thousands of machines for industries including Aluminum & Metal Composite Cladding, Signmaking, Graphics &Print Finishing, Cabinetry, Woodworking, Plastic Fabrication, Metal Fabrication, Foam Packaging, Point of Purchase, Solid Surface etc.
Certification
Team Show
BCAM values every employee and strives to make everyone safe,healthy and happy. Weput safety first and have set ambitious goals to prevent all injuries, occupational diseases and safety incidents. Our commitment to safety practices runs through the entire value chain from supplier to customer.Weare committed to providing our customers with safe and reliable products and services
Related Products
Packing & Delivery
1.Anti-collision package edge: All parts of the fiber laser welding machine are covered with some soft materials, mainly the use of pearl wool .
2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4.Wooden box at the bottom of a solid iron socket for easy handling.
2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4.Wooden box at the bottom of a solid iron socket for easy handling.
FAQ
1.How to use the machine after receving the machine
1）when you got machine , you need to contact with us ,our engineer will together with your to deal with it .
1）when you got machine , you need to contact with us ,our engineer will together with your to deal with it .
2）we send user manuals and CD to you before you get the machine .
3) Our professional technician online teach you until you can use it well by yourself.
2.Payment terms,There are 2 ways to pay money .
1)T/T, means international bank transfer. 30% deposit, we produce the machine for you. 70% before shipping. It is convenient and fast.
2)Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee.
3.How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Other kinds of payment we can consider if acceptable for us.
2.Payment terms,There are 2 ways to pay money .
1)T/T, means international bank transfer. 30% deposit, we produce the machine for you. 70% before shipping. It is convenient and fast.
2)Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee.
3.How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Other kinds of payment we can consider if acceptable for us.
If you are interested in our machines, welcome to consult
