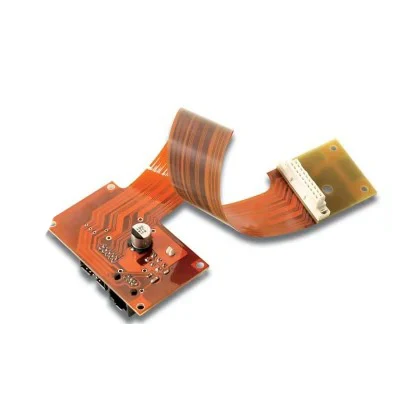

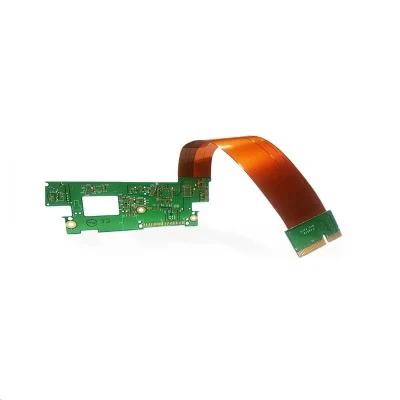

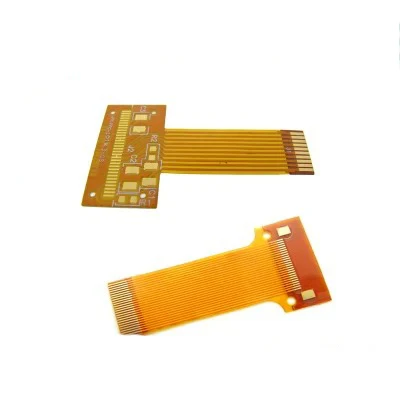

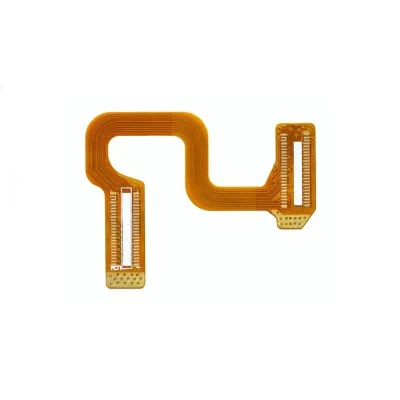

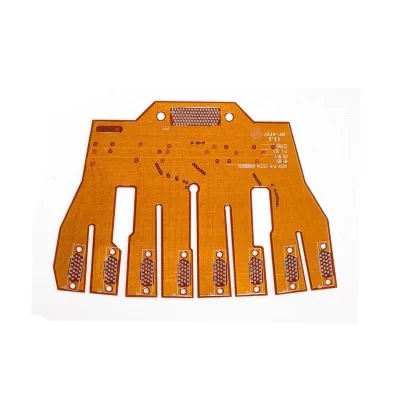

Китайские поставки производители мягких и гибких печатных плат 612 слоев мягкие печатные платы
- Категория: FPC >>>
- Поставщик: Shenzhen,Hidly,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1.61 $* | 1.91 $* |
| Jul-19-2025 | 1.84 $* | 1.66 $* |
| Jun-19-2025 | 1.18 $* | 1.54 $* |
| May-19-2025 | 1.84 $* | 1.55 $* |
| Apr-19-2025 | 1.30 $* | 1.29 $* |
| Mar-19-2025 | 1.88 $* | 1.37 $* |
| Feb-19-2025 | 1.4 $* | 1.67 $* |
| Jan-19-2025 | 1.50 $* | 1.58 $* |
Характеристики
Items | Paramerers |
Double side/Mulyti-layer | |
Max panel size | 32'*20'(800mm*508mm) |
Minimum track/gap IL | 0.075mm/0.075mm(3mil/3mil) |
Min annular ring on inner layer one side | 3mil(0.075mm) |
Maximum Cu weight OL | 6oz(210um) |
Maximum Cu weight 1L | 12oz(420um) |
Finished board thickness | 0.20-6mm |
Layer count | 2-32L |
Layer to layer registration | ±3mil(±76um) |
Min finished hole diameter | 0.15mm(6mil),0.1mm(4mil) for HDI |
Hole position Accuracy | ±2mil(±50um) |
Slot hloe Tolerance | ±3mil(±75um) |
PTH diameter tolerance | ±2mil(±50um) |
NPTH diameter tolerance | ±1mil(25±um) |
Max Aspect ratio PTH | 10:1 |
Copper on the wall of the holes | 0.4-2mil(10-50um) |
Grapic pattern registration tolerance | ±3mil(0.075um) |
Minimum track/gap 1L(mil)-copper weight dependant | 3mil/3mil(75um/75um) |
The track Etching tolerance | ±1mil(±25um) |
FAQ
Q1.What is needed for PCB PCBA quotation?
A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for PCB PCBA production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole
process.. All documents from customers are never shared with any third parties.
Q4. MOQ?
A: There is no MOQ in HIDLY.We are able to handle Small as well as large volume production with flexibility.
Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to
quote you the shipping cost.
A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for PCB PCBA production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole
process.. All documents from customers are never shared with any third parties.
Q4. MOQ?
A: There is no MOQ in HIDLY.We are able to handle Small as well as large volume production with flexibility.
Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to
quote you the shipping cost.
