Характеристики
Products Description

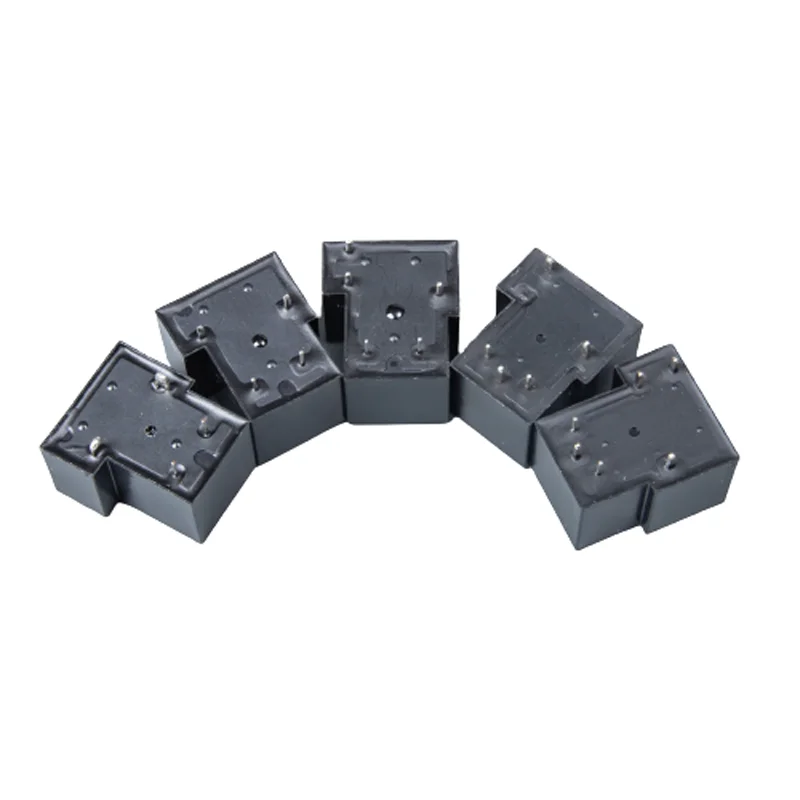

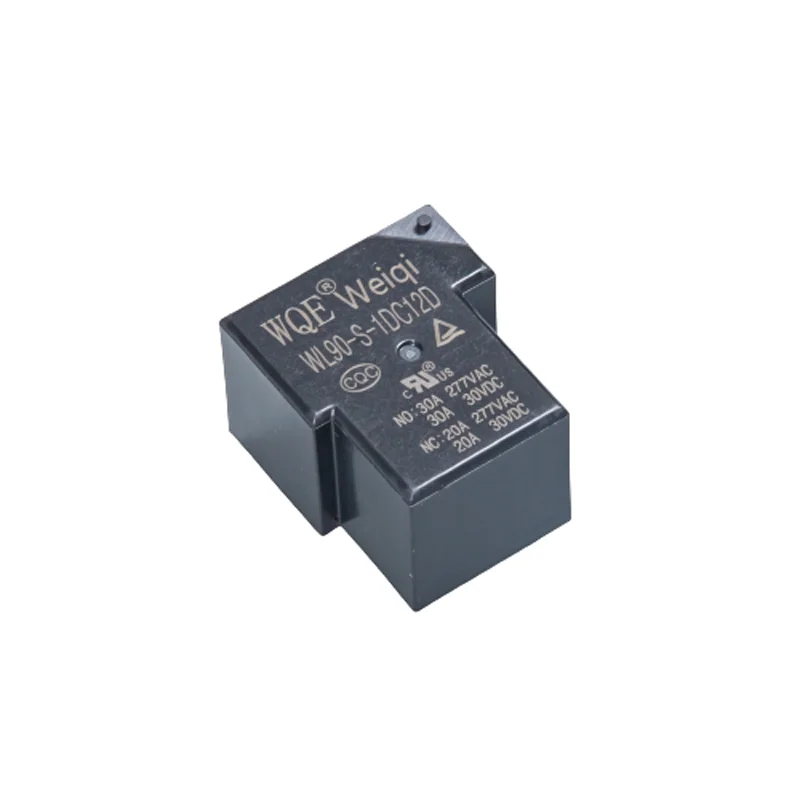

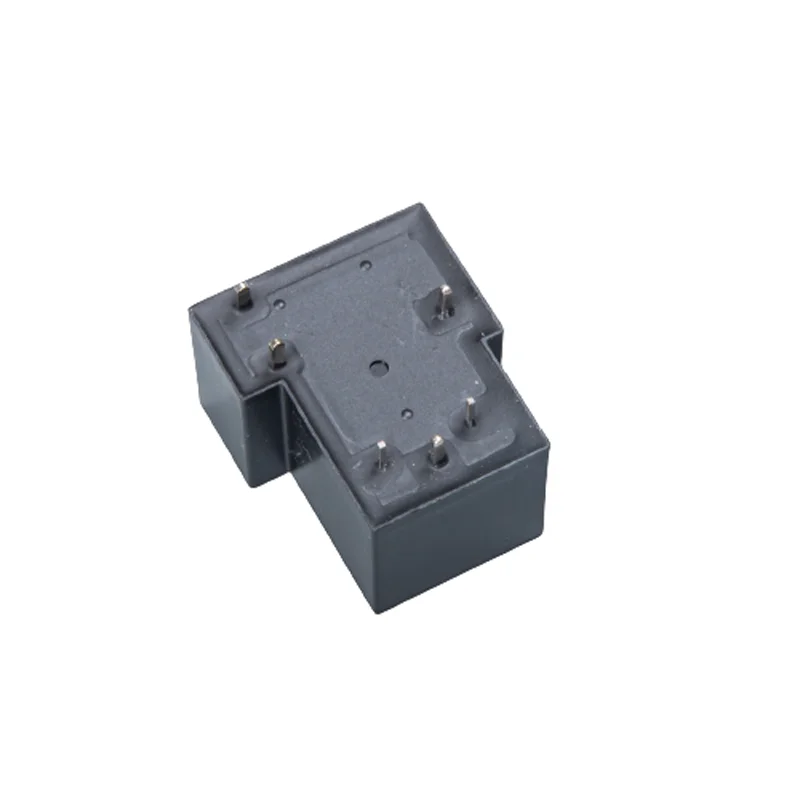

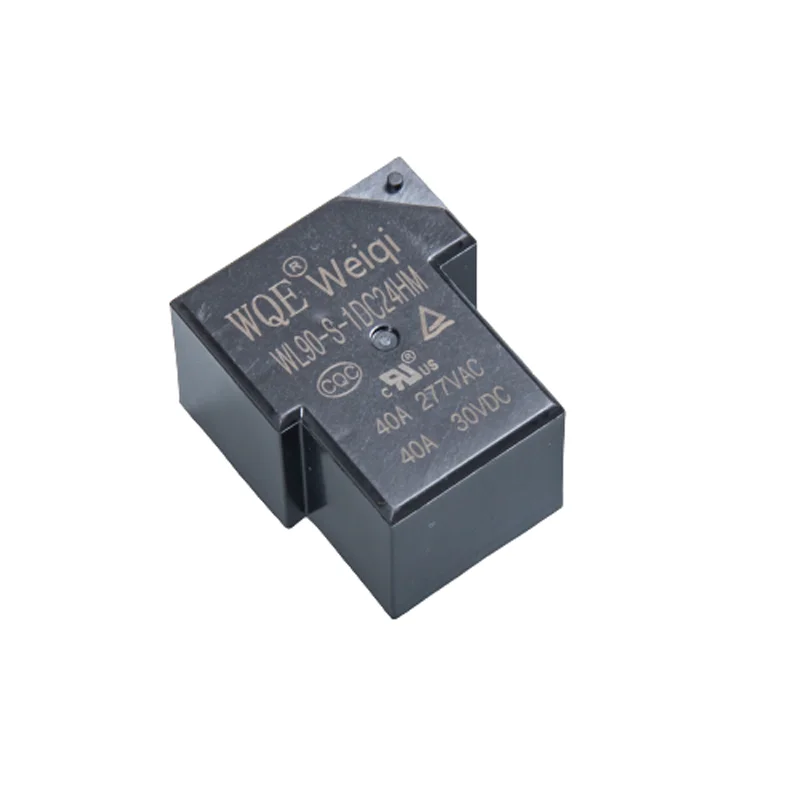

China relay manufacturers hot sale 30a 40a 50a miniature 3v 5v 6v 9v 12v 24v 48v 110v power relays for PCB electrical appliance

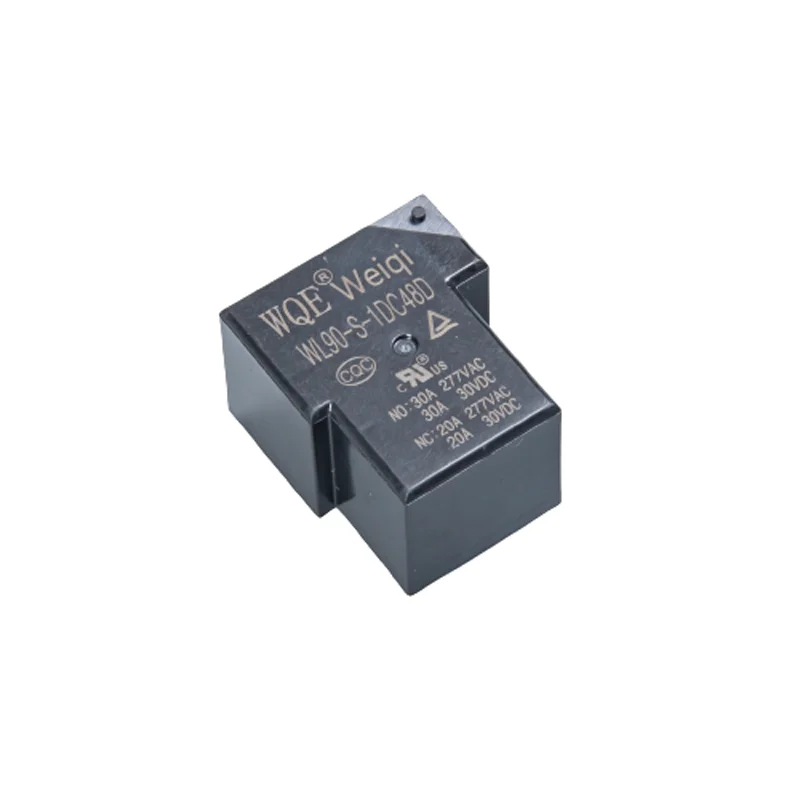

WL90-S-1DC48D
1. Up to 40A contact switching capability
2. 2.5KV dielectric strength (between coil and contacts)
3. Plastic sealed and flux proofed types
4. Overall dimensions（32.3×27.1×20）mm
3. Plastic sealed and flux proofed types
4. Overall dimensions（32.3×27.1×20）mm
触点参数Contact load | ||||||
型号Model | WL90 | |||||
触点形式Contact form | 1A(SPSTNO) 1B(SPSTNC) 1C(SPDT(B-M)) | |||||
最大切换电流Maximum switching current | 30A | 40A | ||||
最大切换电压Maximum switching voltage | 277VAC/30VDC | |||||
最大切换功率Maximum switching power | 8310VA/900W | 11080VA/1200W | ||||
触点负载（阻性） Contact load (resistive) | NO：40A 277VAC,40A 30VDC, NC:40A 277VAC,40A 30VDC; NO/NC:30A/20A277VAC,30A/20A 30VDC; | |||||
性能参数Performance parameter | ||||||
触点材料Contact material | 银合金 Ag Alloy | |||||
接触电阻Contact resistance | Max 100MΩ | |||||
动作时间Action time | ≤15ms | |||||
释放时间Release time | ≤10ms | |||||
绝缘电阻Insulation resistance | Min 1000MΩ（500VDC) | |||||
介质耐压 Dielectric Strength | 断开触点间 | AC 1500VAC 50/60Hz 1min | ||||
Between contactsBetween contacts | AC 1500VAC 50/60Hz 1min | |||||
触点线圈间 | AC 2500VAC 50/60Hz 1min | |||||
Between contact coils | ||||||
冲击 To attack | 稳定性Stability | 98m/s2 | ||||
强度Strength | 980m/s2 | |||||
振动Vibration | 10~55Hz 双振幅1.5mm Double Amplitude | |||||
机械寿命Mechanical endurance min | 1×107 | 1×107 | ||||
电气寿命Electrial eddurance min | 1×105 | 1×105 | ||||
相对湿度Humidity | 5%~85%RH | 5%~85%RH | ||||
环境温度Ambient temperature | DC:-55℃~85℃,AC:-55℃~60℃ | DC:-55℃~85℃,AC:-55℃~60℃ | ||||
重量Weight | 约 Approx. 36g | 约Approx.36g | ||||
浪涌电压Surge voltage | 6KV | 6KV | ||||
线圈参数Coil parameters （at 20°C） | ||||||||||
型号规格 Coil Voltage | 线圈电阻 Coil Resistance | 动作电压 Pick-up Voltage | 释放电压 Drop-out Voltage | 功率 | ||||||
额定 Rated | 最大 Max | 额定电压的75% 75% of rated | 额定电压的10% 10% of rated | Coil Power | ||||||
VDC | Ω±10% | VDC | VDC | W | ||||||
3 | 3.9 | 10 | 2.25 | 0.3 | 0.9 | |||||
5 | 6.5 | 28 | 3.75 | 0.5 | ||||||
6 | 7.8 | 40 | 4.5 | 0.6 | ||||||
9 | 11.7 | 90 | 6.75 | 0.9 | ||||||
12 | 15.6 | 160 | 9 | 1.2 | ||||||
15 | 19.5 | 250 | 10.25 | 1.5 | ||||||
18 | 23.4 | 360 | 13.5 | 1.8 | ||||||
24 | 31.2 | 640 | 18 | 2.4 | ||||||
48 | 62.4 | 2560 | 36 | 4.8 | ||||||
110 | 143 | 13445 | 82.5 | 11 | ||||||
5 | 6.5 | 21 | 3.75 | 0.5 | 1.2 | |||||
6 | 7.8 | 30 | 4.5 | 0.6 | ||||||
12 | 15.6 | 120 | 9 | 1.2 | ||||||
24 | 31.2 | 480 | 18 | 2.4 | ||||||
48 | 62.4 | 1920 | 36 | 4.8 | ||||||
AC12V | 15.6 | 27 | 9 | 3.6(30%) | 2VA | |||||
AC24V | 31.2 | 120 | 18 | 7.2(30%) | ||||||
AC110V | 143 | 2360 | 82.5 | 33(30%) | ||||||
AC120V | 156 | 3040 | 90 | 36(30%) | ||||||
AC220V | 286 | 13490 | 165 | 66(30%) | ||||||
AC240V | 312 | 15740 | 180 | 72(30%) | ||||||
AC277 | 360.1 | 20300 | 207.8 | 83.1(30%) | ||||||
安全认证负载Safety certified load | ||
认证类别 Certification category | 认证负载 Certified load | |
CQC | NO：40A 277VAC,40A 30VDC, NC:40A 277VAC,40A 30VDC; NO/NC:30A/20A277VAC,30A/20A 30VDC; | |
TUV | NO：40A 277VAC,40A 30VDC, NC:40A 277VAC,40A 30VDC; NO/NC:30A/20A277VAC,30A/20A 30VDC; | |
UL | NO：40A 277VAC,40A 30VDC NC：40A 277VAC,40A 30VDC 30A 277VAC,40A 30VDC 30A 277VAC,40A 30VDC 2HP 250VAC/1HP 125VAC 20A/15A 277VAC 96LRA 30FLA 1/2HP 250VAC，1/4HP 125VAC TV-8 125VAC 20A 277VAC NO/NC: 30A/20A277VAC,30A/20A 30VDC; 2HP 250VAC/1HP 125VAC，1/2HP 250VAC，1/4HP 125VAC TV-8 125VAC TV-3 120VAC | |
