Производитель проводов 50 мм2 hv Кабель el провод для автомобильного зарядного устройства кабель быстрой зарядки 70 мм
- Категория: Electrical Wires >>>
- Поставщик: Zhengzhou,Saichuan,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.92 $* | 0.18 $* |
| Aug-17-2025 | 0.12 $* | 0.68 $* |
| Jul-17-2025 | 0.33 $* | 0.71 $* |
| Jun-17-2025 | 0.67 $* | 0.70 $* |
| May-17-2025 | 0.18 $* | 0.28 $* |
| Apr-17-2025 | 0.65 $* | 0.3 $* |
| Mar-17-2025 | 0.10 $* | 0.61 $* |
| Feb-17-2025 | 0.22 $* | 0.18 $* |
| Jan-17-2025 | 0.78 $* | 0.4 $* |
Характеристики
Product Introduction

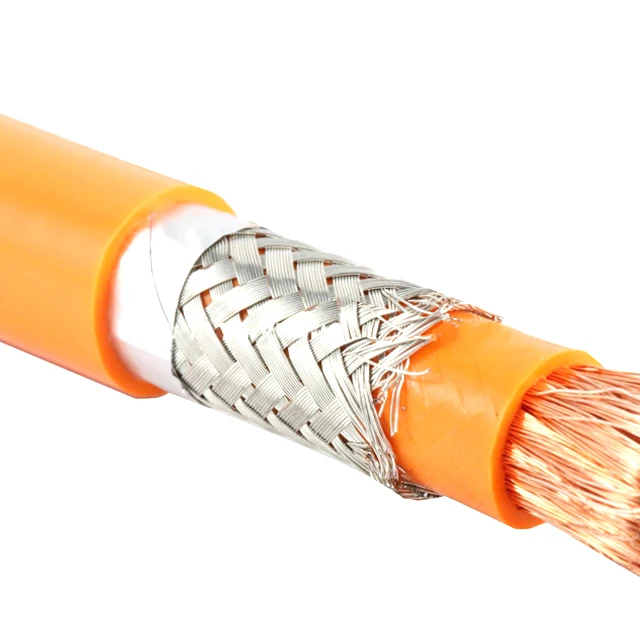

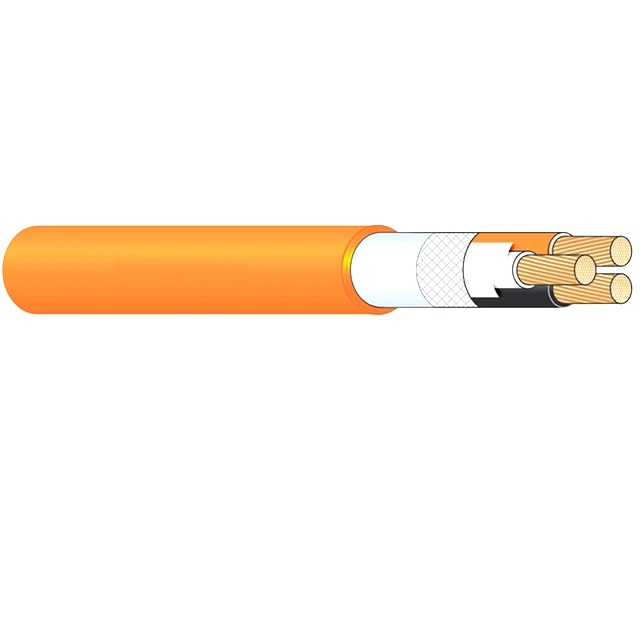

wire manufacturer 50mm2 hv cable el wire for car charger cable fast charging 70mm ev cable
We can produce all kinds of high quality new energy vehicles wire, including LV HV car cable，mainly used in AC/DC charging system of electrical vehicles, as the connection cable between AC and DC charging connector of vehicles and charging piles, and cables used inside new energy vehicles, etc.
Features:
Using temperature : -40℃~+125℃; 40℃～+150℃; -40℃~+180℃; 40℃~+200℃.
Rated voltage: 600V AC,suitable for 1500V DC high voltage conditions
Cable material meets GB/ T2408 HB,V0 combustion grade
The belding radius not less than five times the cable 5xOD, easy to install
Halongen free, follow the environment-friendly product's developing direction

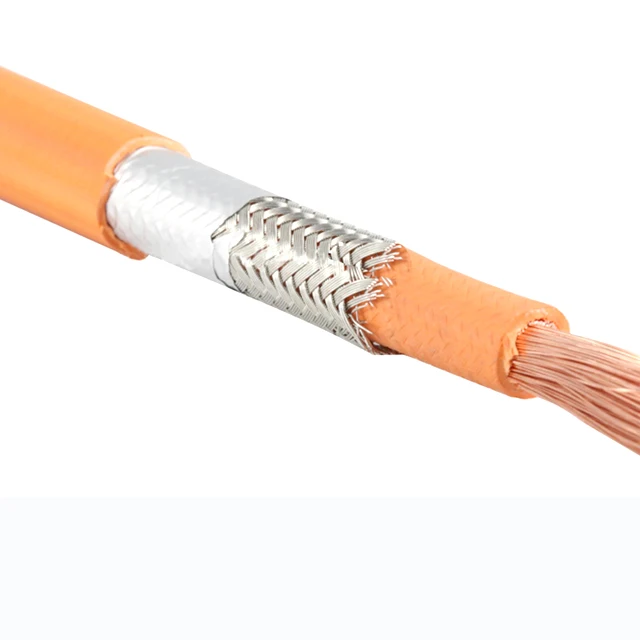

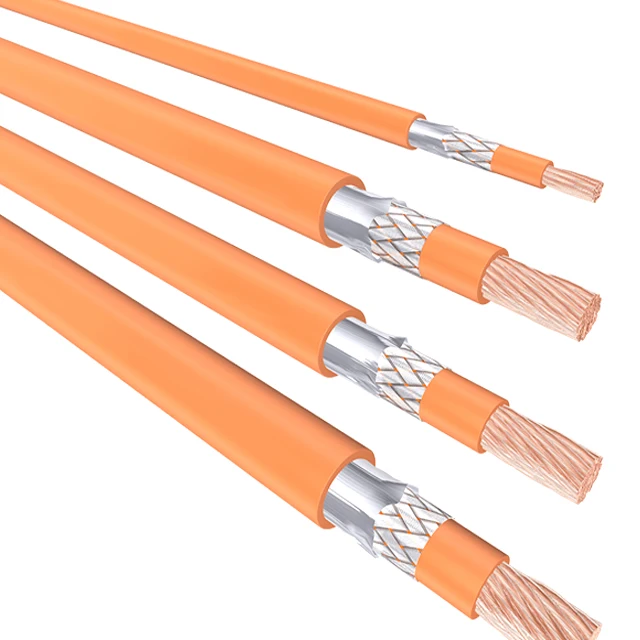

Details Images
Style of the cable (mm²) | Conductor Construction n/mm | Stranded Dia. mm Max | Conductor Max Resstance AT 20℃ (Ω/Km) | Nominal Thickness （mm） | Insulation Dia. (mm) |
EV-YJ/SIR 1x1.5(Unshielded) | 49/0.20AS | 1.62 | 12.7 | 0.60 | 2.90±0.15 |
EV-YJ/SIR 1×2.5(Unshielded) | 80/0.20AS | 2.06 | 7.60 | 0.70 | 3.50+0.15 |
EV-YJ/SIR 1×4(Unshielded) | 133/0.20AS | 2.66 | 4.71 | 0.80 | 4.30±0.20 |
EV-YJ/SIR 1x6(Unshielded) | 190/0.20AS | 3.42 | 3.14 | 0.80 | 5.10±0.20 |
EV-YJ/SIR 1×10(Unshielded) | 323/0.20AS | 4.40 | 1.82 | 1.00 | 6.50±0.20 |
EV-YJ/SIR 1×16(Unshielded) | 513/0.20AS | 5.70 | 1.16 | 1.00 | 7.90±0.25 |
EV-YJ/SIR 1x25(Unshielded) | 798/0.20AS | 6.70 | 0.743 | 1.30 | 9.60±0.25 |
EVYJSIR 1×35(Unshielded) | 1121/0.20AS | 8.00 | 0.527 | 1.30 | 10.60±0.40 |
EV-YJSIR 1×50(Unshielded) | 1596/0.20AS | 9.50 | 0.368 | 1.50 | 12.50+0.40 |
EV-YJSIR 1x70(Unshielded) | 2257/0.20AS | 11.50 | 0.259 | 1.50 | 14.50±0.40 |
EV-YJ/SIR 1x95(Unshielded) | 1887/0.254AS | 13.50 | 0.196 | 1.60 | 16.90±0.50 |
EV-YJ/SIR 1x120(Unshielded) | 2368/0.254AS | 15.60 | 0.153 | 1.60 | 19.00±0.50 |
Application
This product is applicable to the high-voltage wiring system in new energy vehicles, and is used for high-voltage harnesses such as on-board charger, BSG motor, motor controller, DC high-voltage bus, high-voltage insulation detection system, etc.

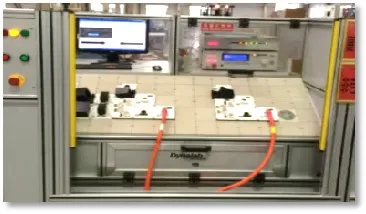

Certifications

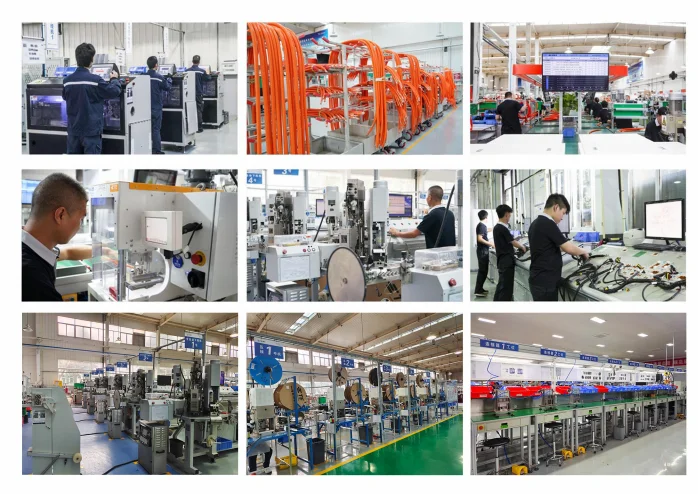

Company Profile
Product packaging
Packing Details :
cable is supplied on drum, 1 joint is allowed on one drum.
The two parties discussed on length on drum.
The two parties discussed on length on drum.
Packed in wooden cases with shockproof foam up to about 30mm thick to ensure the safely. Professional logistics system to deliver the goods to port on time.
FAQ
Q1.Are you a factory or trading company?
A: We are a professional manufacturer specialized in HV cables/harness, electrical connection system, Various electrical connectors, Saichuan Technology is the main supplier of Yutong Bus Group, Located in the High-tech Zone of Zhengzhou City, Henan Province.
Q2.How could I know if this product is suitable for me?
A: Before ordering, we will provide every details of the product for your reference, or you could tell us your detailed requirements, our technician will recommend the most suitable product for you.
Q3.Is it possible to provide after-sales service?
A: We have a team of professional after-sales engineers, can provide full after-sales service online or on-site.
Q4.Can I visit your factory?
A: Welcome to visit our factory. We build business relationship with many well-known factory. We can visit the cooperative factories if you need, and you could know more thing about Saichuan technology according that.
Q5.I haven't done business with you guys before,how can i trust your company?
A: We would trade on Alibaba online to make sure your money is safely; we has rich experience of EV electrical connection solutions. Saichuan had established business relationship with so many famous brands, Quality is reliable.
Q6.What's the shipment terms and delivery time of your company?
A: It depends on the quantity of your order. Meanwhile,our board attach importance to foreign orders ,thus the orders aboard will have priority over it at home.
Contact Us and get the last price:
Phone/WhatsApp/skype: 86-18749403209
E-mail: infosc@saichuangroup.com
Phone/WhatsApp/skype: 86-18749403209
E-mail: infosc@saichuangroup.com
