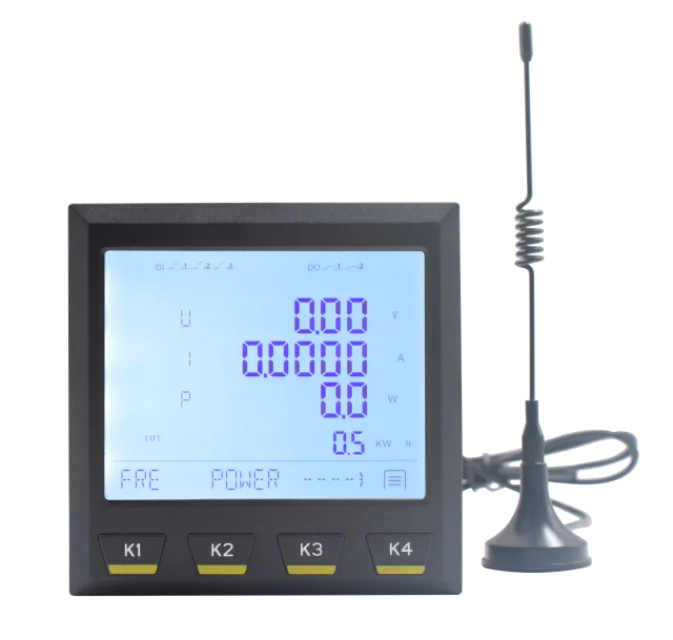

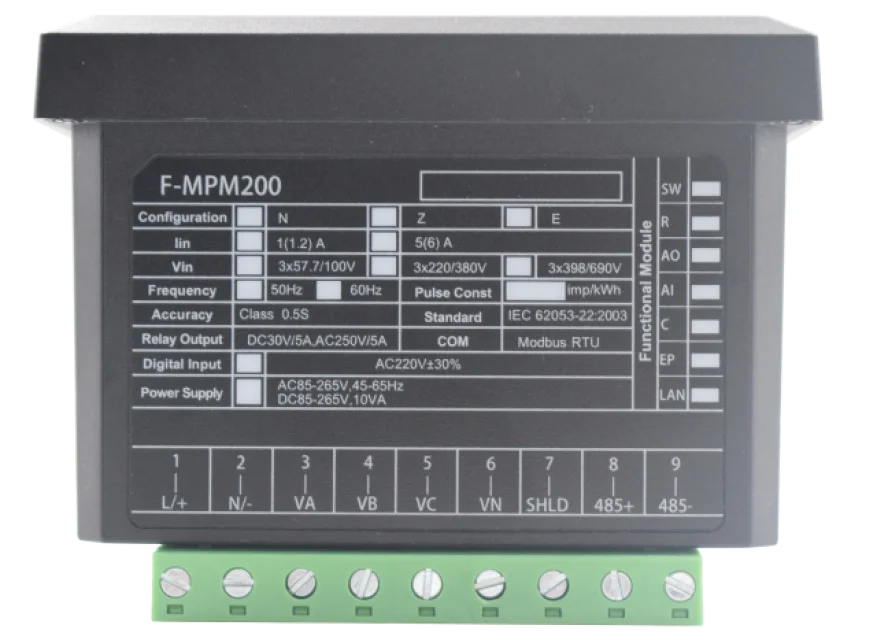

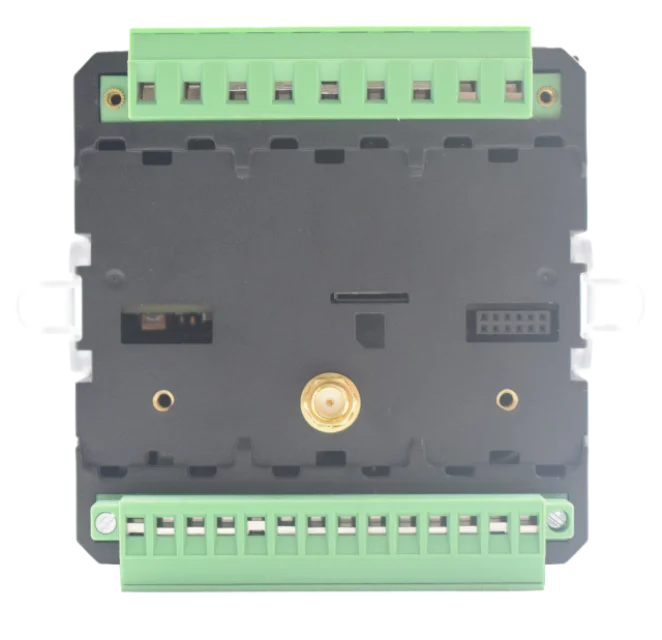

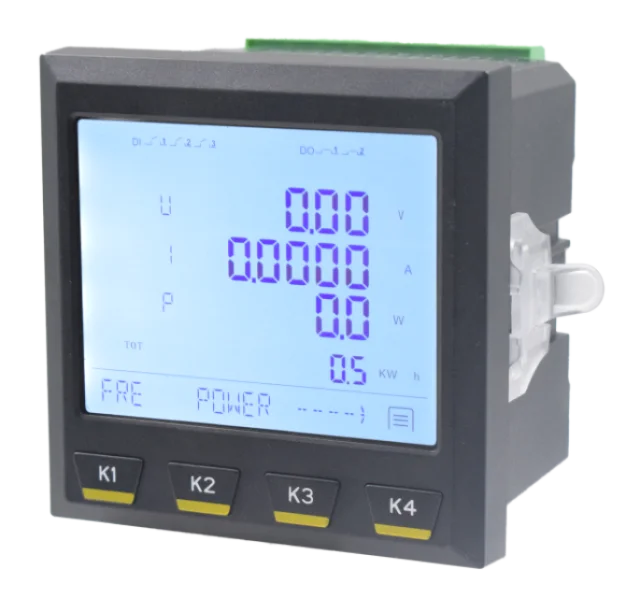

F-MPM200 интеллигентая (ый) 2G/3/4gwireless измеритель мощности RS485 Ethernet RJ45 3G/4G сим-карту до

F-MPM200 интеллигентая (ый) 2G/3/4gwireless измеритель мощности RS485 Ethernet RJ45 3G/4G сим-карту до

Категория: Power Meters >>>
Поставщик: Xiamen,Four-Faith,Smart,Power,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.55 $*	0.43 $*
Aug-19-2025	0.0 $*	0.83 $*
Jul-19-2025	0.4 $*	0.39 $*
Jun-19-2025	0.54 $*	0.14 $*
May-19-2025	0.92 $*	0.20 $*
Apr-19-2025	0.92 $*	0.15 $*
Mar-19-2025	0.46 $*	0.22 $*
Feb-19-2025	0.75 $*	0.26 $*
Jan-19-2025	0.30 $*	0.82 $*

Характеристики

Features

Suit for LV/ HV Voltage System
For low voltage system, direct connect up to 690 V (L-L) AC
For high voltage system, support connect up to 65kV

Ture-RMS Measuring Parameter
True-RMS measuring parameters includes:
U, I, P, Q, S, PF, F, kWh, kvarh, kVAh

Demand Calculation
2 kinds of demand modes: fixed block and rolling block

Power Quality Analysis
31st Harmonic analysis, K factor, unbalance etc.

TOU (Multi-tariff billing), Historical Data of 31 Days and 12 Months
TOU, 4 tariffs, 8 time period in 24 hours

Max./ Min. Record (U, I, P, Q*, S*)

Under/ Over Limit Alarm

64M Bit Memory, Build-in Web
Real-time data inquiry by Web
Save monitoring data (Time interval
settable 1min, 5 min, 10min,15min, 30min)
Support FTP for download memory data

CO2 (Carbon Dioxide) Calculation for kWh

Multiple Communication
BACnet MS/TP Protocol (RS485 port)
MODBUS-RTU Protocol (RS485 Port)
MODBUS-TCP/IP Protocol (Ethernet port )

DI / DO

High Accuracy
Active energy: according to IEC62053-22, class 0.5s
Reactive energy: according to IEC62053-23, class 2

Specification

\t Basic Function
\t Real time metering	\t Voltage	\t Ua, Ub, Uc, Uab, Ubc, Uca, UL-L avg, UL-N avg
	\t Current	\t Ia, Ib, Ic, In, Iavg
	\t Power	\t Pa, Pb, Pc, ∑P, Qa, Qb, Qc, ∑Q, Sa, Sb,Sc, ∑S
	\t Power Factor	\t PFa, PFb, PFc, ∑PF
	\t Energy	\t kWh, kvarh, kVAh *
	\t CO2 (Carbon dioxide)	\t
	\t Frequency	\t F
	\t Demand & Max. Demand	\t Dmd_I, Dmd_P, Dmd_Q ,Dmd_S
	\t Max./ Min. Value	\t Max./ min. (U, I, P, Q, S)
	\t Multi-tariff Energy *	\t
	\t Phase Angle *	\t
\t Power Quality Analysis	\t Unbalance	\t U_unbl , I_unbl
	\t Harmonic (31st )	\t THDu, THDi, TOHDu, TOHDi, TEHDu, TEHDi, HRU , RHI
	\t Harmonic RMS (0-31st )	\t Harmonic RMS-U , Harmonic RMS-I , Harmonic RMS-P *
	\t Harmonic energy (1st -13th )	\t
	\t Voltage crest factor, current K factor, Load rate, Voltage deviation, Frequency deviation Running time record for power-on period and qualified voltage & current *
\t Setpoint Alarm	\t Over/ under limit alarm
\t 3DI +2 DO	\t 3 status input + 2 relay output
\t RS485	\t Modbus-RTU protocol
\t Record Function	\t SOE (event log), Real-time clock ( yyyy-mm-dd hh:mm:ss) *
	\t Voltage/ frequency deviation, Voltage unbalance record

\t Optional Module
\t SW	\t 4 status input (wet contact)	\t LAN	\t 64M bit memory + Ethernet TCP/IP
\t SD	\t 4 status input (dry contact)	\t AI	\t 2 analog input (4-20mA)
\t C *	\t The 2nd RS485	\t AO	\t 2 analog output (4-20mA)
\t Ep *	\t 2 pulse output	\t BA	\t BACnet MS/TP protocol
\t R	\t 2 relay output	\t	\t
\t * means some of function can't be read through BACnet communication port

\t Parameter	\t Accuracy	\t Resolution	\t Measuring Range
\t Voltage	\t 0.2%	\t 0.01V	\t Direct: 690Vph-ph
\t Voltage	\t 0.2%	\t 0.01V	\t PT primary: 0.001kV~65kV (settable) PT secondary: 1~398V (settable)
\t Current	\t 0.2%	\t 0.001A	\t CT primary: 1~9,999A (settable) CT secondary: 1 A or 5A
\t Power	\t 0.5%	\t 0.1W/var/ VA	\t each phase: 0~649.9MW/ Mvar/ MVA
\t Power	\t 0.5%	\t 0.1W/var/ VA	\t Total: 0~1949.8MW/ Mvar/ MVA
\t Power Factor	\t 0.5%	\t 0.001	\t -1.000~+1.000
\t Frequency	\t 0.01	\t 0.01Hz	\t 45~ 65 Hz
\t Active Energy	\t 0.5%	\t 0.1kWh	\t 0~ 99,999,999.9 kWh
\t Reactive Energy	\t 2.0%	\t 0.1kvarh	\t 0~ 99,999,999.9 kvarh
\t Apparent Energy	\t 1.0%	\t 0.1kVAh	\t 0~ 99,999,999.9 kVAh
\t THD	\t 1.0%	\t 0.001	\t 0~100.0%
\t Individual Harmonic	\t 1.0%	\t 0.001	\t 0~100.0%
\t Un-balance	\t 1.0%	\t 0.001	\t 0~100.0%

\t Connection mode	\t 3-phase 3-wire, 3-phase 4-wire, 1-phase 2-wire	\t Communicati-on	\t Modbus-RTU Protocol	\t RS485 serial Baud rate: 2400, 4800, 9600, 19200, 38400bps Address: 1~247
\t Metering	\t True RMS, 1 sec refresh time
\t Input	\t Rate current: 1A or 5A Rate voltage: Direct 120, 220V, 240V, 277V, 398Vph-N (optional) PT secondary: 1~398V (settable) Frequency: 50/ 60Hz		\t Modbus-TCP/ IP	\t Ethernet communication port Support connect 10M/100M ethernet, Modbus TCP/IP, Web, FTP
\t Overload	\t 120% of rated, continuously Instantaneous current: 10 times/ sec Instantaneous voltage: 2 times/ sec		\t BACnet MS/TP protocol	\t RS485 serial Baud rate: 2400, 4800, 9600, 19200, 38400, 57600, 76800bps Address: 1...127, excluding 99
\t Status input	\t Wet contact, external power supply
\t Relay output	\t Node capacity: 250VAC/5A	\t Dimension (L x W x H)	\t F-MPM110: Panel: 96 x 96 x 13.5 mm Cut-out: 90 x 90 x 58.6 mm (basic) 90 x 90 x 80.1 mm (optional module) F-MPM110-DR: Panel: 96 x 96 x 12 mm Cut-out: 90 x 90 x 58.6 mm (basic)
\t Pulse output	\t Pulse constant: 1000~9999 programmable Pulse width: 60~100ms programmable Formula: 1 pulse = (1÷ pulse constant ×PT ×CT) kWh
\t Power supply	\t 85 ~265VAC,85~265VDC (When select P1) 100~420VAC, 100~400VDC (When select P2)
\t Power loss	\t <5VA	\t Weight	\t Basic unit: approx 550gr. Optional module: 50gr.
\t IP index	\t IP52 (front panel) and IP30 (case)	\t Environment	\t Main Module & and other Modules	\t Operating temperature: -10℃~ +55 ℃ Storage temperature: -40℃~ +70 ℃ Humidity: 5%~95% non-condensing
\t Power frequency withstand voltage	\t AC 2KV/minute
\t Insulation resistance	\t ≥50MΩ		\t BACnet Module	\t Operating temperature: 0℃~ +50 ℃ Storage temperature: -5℃~ +75 ℃ Humidity: 10%~95% non-condensing
\t Impulse withstand voltage	\t 4kV (peak), 1.2/50uS

\t Standard(EMC)
\t Electrostatic discharge immunity test	\t IEC 61000-4-2,Level 4	\t Surge immunity test (1, 2/50μs~8/20μs)	\t IEC 61000-4-5,Level 3
\t Radiated immunity test	\t IEC 61000-4-3,Level 3	\t Conducted emissions	\t EN 55022,Class B
\t Electrical fast transient /burst immunity test	\t IEC 61000-4-4,Level 4	\t Radiated emissions	\t EN 55022,Class B
